Description

Overview…

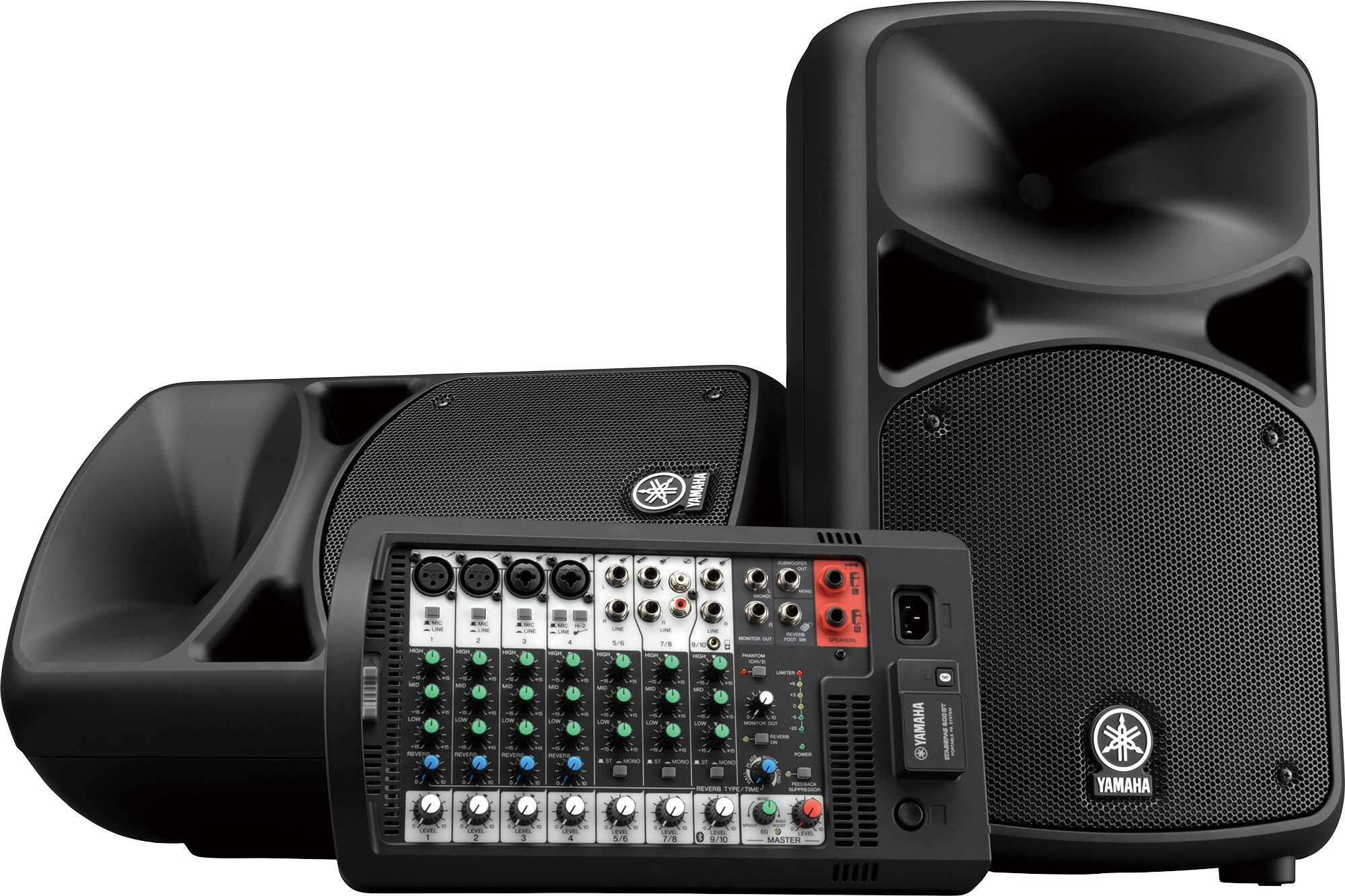

680-watt, portable PA system with 10-channel powered mixer, two 10″ speakers, a Bluetooth® input, SPX digital reverbs, an onboard feedback suppressor and versatile EQ.

The Ultimate All-in-One Portable PA System…

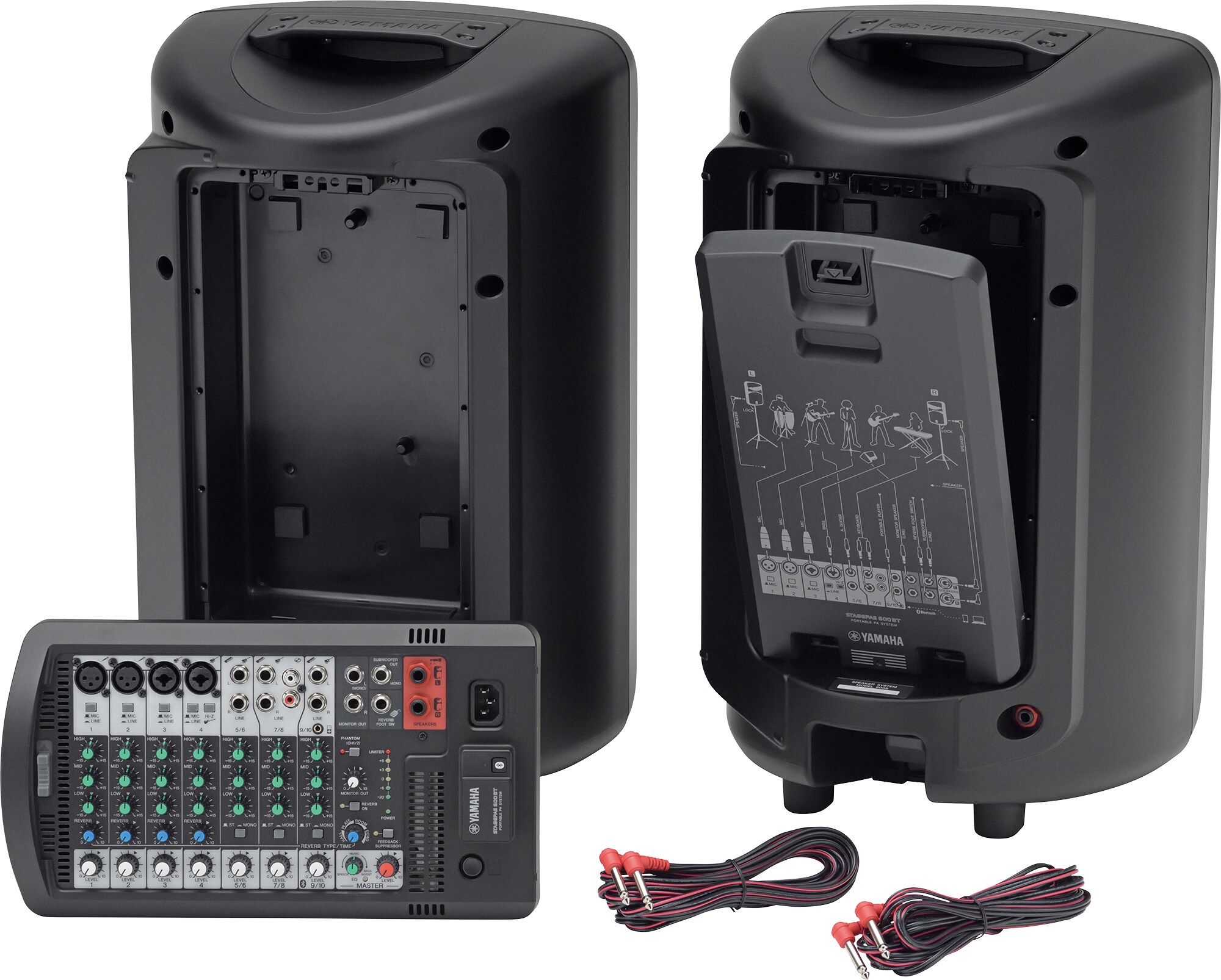

You can take literally anywhere the all-in-one PA system STAGEPAS which is compact and light enough to carry by hand. The two lightweight speakers and a detachable mixer, along with one pair of speaker cables and a power cord, combine into an attractive, compact package that provides the kind of portability that no roadie would ever dare to dream of.

Fast and easy set-up…
With its intuitive, simple design, STAGEPAS can be set up and ready to go in a matter of seconds. Even users with no PA operation experience will be able to produce high-quality sound in under a minute.

A PA for any occasion…
Flexible enough to be used in a truly impressive range of environments and applications, STAGEPAS systems can be set up in a variety of PA and monitoring configurations.

Mix It…
Versatile features and seamless functionality ensure your mixes are always right on the money.

Bluetooth® Wireless Audio Streaming…
Equipped with a Bluetooth input for wireless audio streaming from smartphones or tablets, the STAGEPAS-BT models let you seamlessly play backing tracks for gigs, or set the tone of parties, conferences, or events with the audio playback of your choice.

Key Features…
– 680W (340W + 340W) power output
– High quality speakers (LF:10″ woofer/ HF:1.4″ voice coil compression driver)
– Detachable 10-channel mixer (4 mono/line + 6 mono / 3 stereo line)
– Bluetooth® audio streaming
– 1-Knob Master EQ™ with virtual bass boost
– High resolution SPX digital reverbs (4 types, parameter control)
– Onboard feedback suppressor
– Great-sounding 3-band channel EQ
– Switchable stereo/ mono inputs
– Hi-Z (high impedance) inputs
– Phantom power
– Monitor and Subwoofer outputs
– Optional reverb footswitch

Tech Spec…
System…
– System Type: Powered mixer with 2 passive speakers
– Frequency Range (-10dB): 55Hz-20kHz
– Maximum SPL (Measured Peak IEC Noise@1m): 129dB SPL / speaker
– Power Consumption: 35W (Idle), 100W (1/8 Power)
– Power Requirements: 100V-240V 50Hz/60Hz
– Dimentions (W x H x D): Speaker 335mm x 545mm x 319mm (13.2″ x 21.5″ x 12.6″), Mixer 348mm x 197mm x 135mm (13.7″ x 7.8″ x 5.3″)
– Net weight: 25.6 kg (56.4 lbs) (2 x Speaker 10.9 kg + Mixer 3.8 kg)

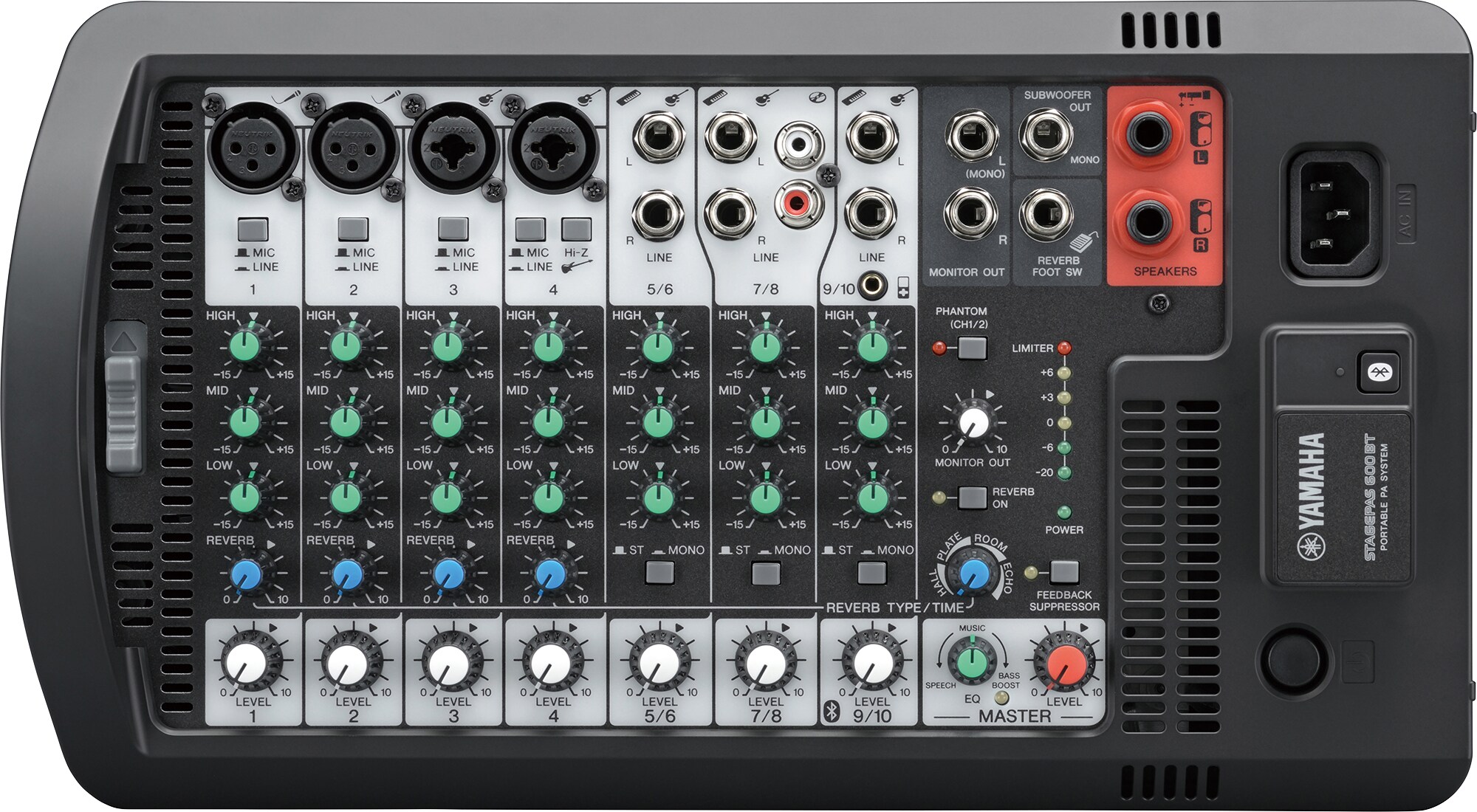

Powered Mixer…
– Mixing: Channels 10
– Analogue Inputs: 4 mono mic/line + 6 mono / 3 stereo line
– Bluetooth Input: Bluetooth Ver.4.1, A2DP v1.2, Maximum Range: Approx. 10 m
– Channel EQ: 3-band (HIGH Shelving: 8kHz, MID peaking: 2.5kHz, LOW Shelving: 100Hz)
– Channel Functions: Hi-Z switch: CH4, ST/MONO switch: CH5/6-9/10
– Digital Effects: SPX digital reverb (4 program, parameter control)
– Output Processing: Feedback suppressor, 1-Knob Master EQ™
– Phantom: Power +30V (CH1, 2)
– Outputs: SPEAKERS OUT (L, R), MONITOR OUT (L/MONO, R), SUBWOOFER OUT (MONO) with auto HPF
– Control and Others: Reverb foot switch

Built in Amplifiers…
– Power Rating (Dynamic): 680W (340W + 340W)
– Power Rating (Continuous): 560W (280W + 280W)

Speakers…
– Type: Two-way bass-relfex speakers
– Components: LF: 10″ (25cm) cone, HF: 1.4″ (3.56cm) voice coil compression driver
– Coverage Angle: 90° x 60°
– Floor Monitor Angle: 50°
– Handle: 1 x Top
– Pole Socket: 34.8-35.2mm pole socket with StageLok™
