Description
Overview…

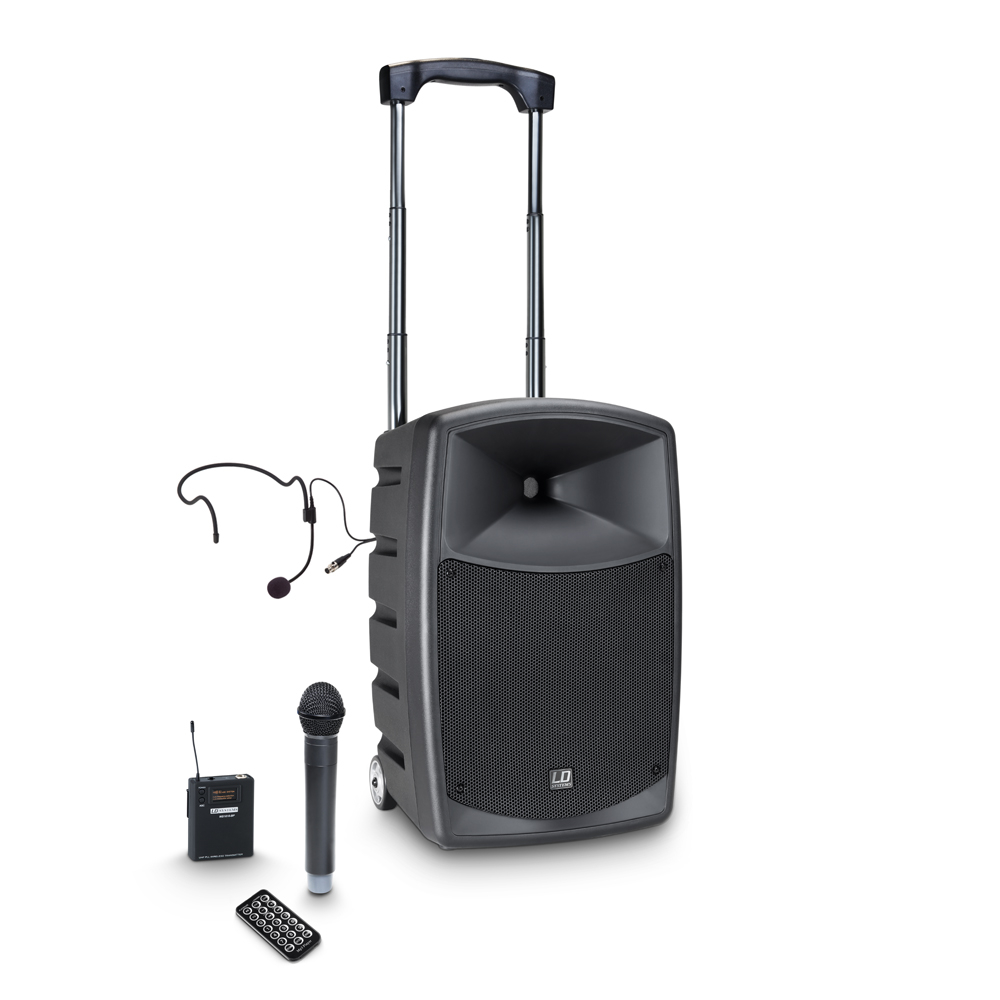

The LD Systems Roadbuddy 10 is an elegant solution for voice and music transmission on the go. The 2-way speaker with a 10″ custom woofer and a 1″ compression driver is operated with a rechargeable battery for up to 8 hours and is powered by a class D power amplifier with a highly efficient switching power supply and 480 watts of peak power.

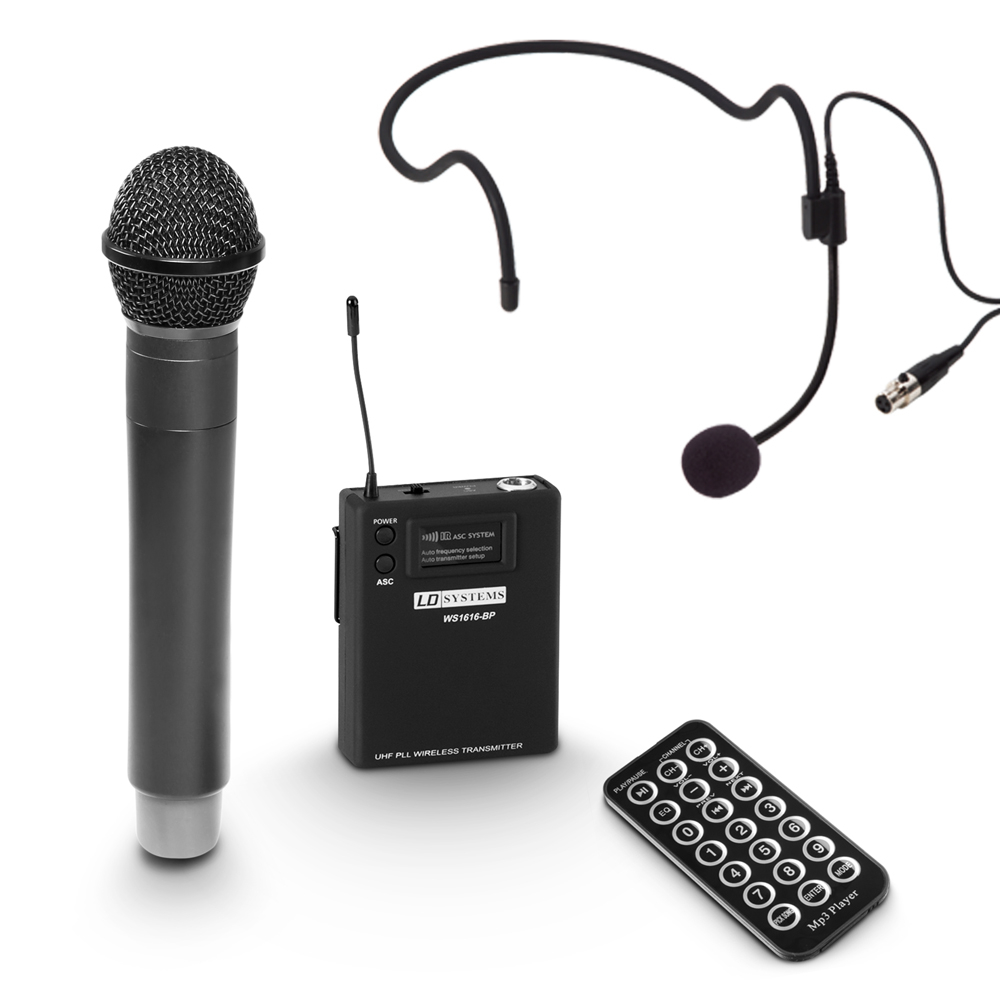

The Roadbuddy relies fully on wireless transmission: it has an UHF radio receiver which operates in the license-free 863 – 865 MHz range, and can be expanded with an additional system. The on-board Bluetooth player with backlit multifunction display ,equalizer, USB port and SD card slot supports the mp3, wma and wav formats. A handheld microphone with 10 mW output power(LDRBUD10) or as an alternative a headset microphone with belt pack (LDRBUD10HS) and an IR-remote control for the player are included.
For wired devices, the Roadbuddy has two channels with combo jacks and individual volume controllers that are switchable for microphone and line level, a stereo input via RCA (Cinch) sockets (mono summed) and a 3.5 mm Aux input. Treble, Bass, Echo and Master volume controllers complete the control panel.
The LD Systems Roadbuddy is easily transportable thanks to built-in castor wheels and a pull-out handle. On the top, there is a handy storage compartment for up to two hand-held transmitter microphones. The plastic housing of this lightweight device has been designed to accommodate a 35 mm tripod mount.
Key Features…
– Battery powered speaker solution
– Integrated radio receiver 863 – 865 MHz for license-free operation
– Bluetooth player with USB port and SD card slot
– Class D power amplifier with 480 watts of peak power
– 2 combo sockets for microphone or line inputs
– 3.5 mm Aux input
– Master section with 2-band EQ
– Built-in wheels, pull-out handle and fixing for 35 mm tripod mount
– Wireless microphone and IR-remote control included
Specs…
– Product type = Battery-powered PA speaker
– Low/mid driver dimensions = 10 ”
– Woofer size = 254 mm
– Woofer magnet = Ferrite
– Woofer brand = Custom-made
– HF driver dimensions = 1 ”
– HF Driver Size = 25.4 mm
– HF driver magnet = Ferrite
– HF driver brand = Custom-made
– Amplifier = Class D
– RMS = 120 W
– Peak power = 480 W
– Frequency response = 55 – 18000 Hz
– SPL (1W/1m)= 96 dB
– Max. SPL = 115 dB
– Protection circuits = over-current , overload protection , short circuit
– Controls = AUX / MP3 switch , CD / Tape IN Level , Echo , high , low , Master Volume , Mic 1 Level , Mic 2 Level
– Indicators = Charge/battery status , Power
– Media player = Supported media, Bluetooth , SD Card , USB stick
– Supported formats = MP3 file , WAV-CD , WMA file
– Media player controls = equalizer , Mode (Menu / Bluetooth /SD / USB) , Next Track , Play / Pause , Previous Track , Repeat , Stop
– Media player display elements = Lighted multifunctional LC display
– Line inputs = 1
– Line input connectors = 2 x RCA , 2 x XLR , 3.5 mm jack , 6.3 mm jack
– Mic inputs = 2
– Mic inputs = 2 x XLR , 6.3 mm jack
– Wireless Unit = Transmission frequency range – 863 – 865 MHz
– Modulation Type = FM
– Channels = 16
– Frequency Response Wireless Unit = 50 – 17000 Hz
– Controllers Wireless Unit = ASC , Mute Level (Squelch) , Power / Volume , Value Down , Value Up
– Indicators Wireless Unit = AF (LED) , LED Display , RF (LED)
– Connections Wireless Unit = nTNC for receiver antenna
– RF Transmitter Power Output = 10 mW
– Bodypack weight = 0.08 kg
– Bodypack material = ABS plastic
– Operating voltage = Switching power supply – Operating voltage = 100 V – 120 V / 60 Hz , 220 V – 240 V AC / 50 Hz
– Rechargeable batteries = 12 V / 5 Ah
– Cabinet material = polypropylene
– Cabinet construction = vented
– Width = 415 mm
– Height = 525 mm
– Depth = 328 mm
– Weight = 16,5 kg
