Overview…

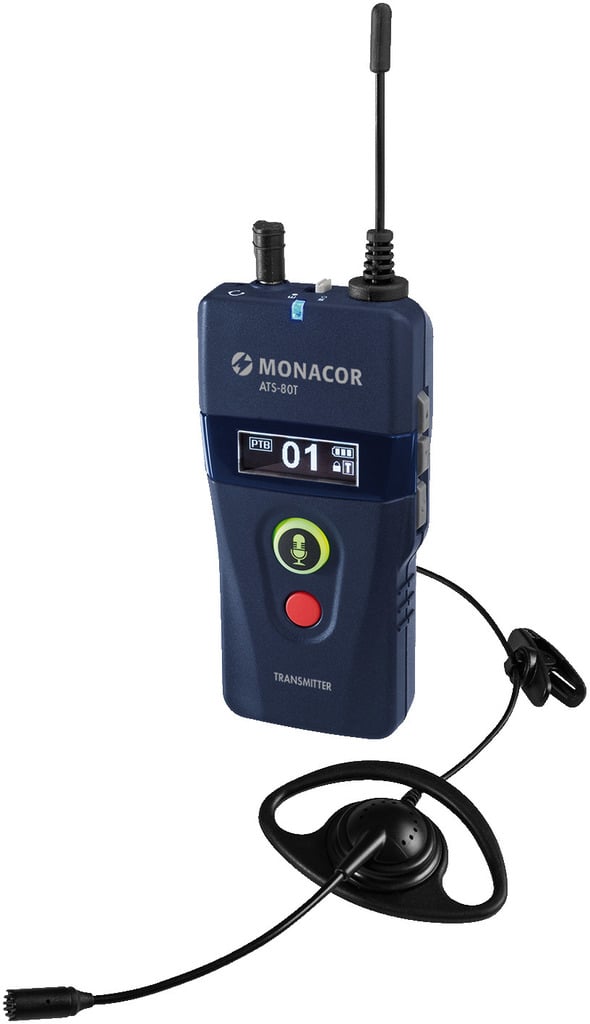

A 42-channel digital PLL voice transmission system on frequency range 823-832 MHz and 863-865 MHz.
Ideal as a tour guide system, but also suitable for any other application in which a two-way communication is required, e.g. training sessions, lectures with questions and answers, horse riding communication, group tours and factory tours.

Key Features…
– High resistance to interference due to digital transmission
– High operating range
– Frequency range optimised for voice transmissions
– Interference-free parallel operation of up to 42 different channels possible
– 42-channel PLL transmitter, for microphone operation and audio line signals.
– 3 different operating modes: guiding, lecturing and discussions for versatile applications
– Integrated microphone, adjustable gain
– Supplied with additional earphone microphone
– Audio line input via 3.5 mm stereo jack
– High-contrast OLED display
– Battery status indication
– Priority assignment
– Alarm function
– Talk/mute button
– Call button
– Channel lock
– Full-duplex communication
– Attendance monitoring
– Belt clip
– Lanyard
– Adjustable transmitting power (high: ≤ 20 mW/low: ≤ 10 mW)
– Operating range: approx. 100 m
– Power supply via 2 x 1.2 V NiMH rech. battery AA size (not supplied)
– Dimensions: 47 x 97 x 35 mm
– Weight: 53 g

Tech Spec…
– Description: 42-channel digital PLL transmitter
– Carrier frequency range: 823-832 MHz, 863-865 MHz
– Channels: 1
– Operating time: > 30 h
– Admiss. ambient temp.: 0-40 °C
– Transmitting power: ≤ 20 mW/≤ 10 mW
– Operating range: 100 m
– Power supply transmitter: 2 x 1.2 V NiMH rech. batt. AA size
– Connections transmitter: 3.5 mm jack (microphone/headset), 3.5 mm jack (line in)
