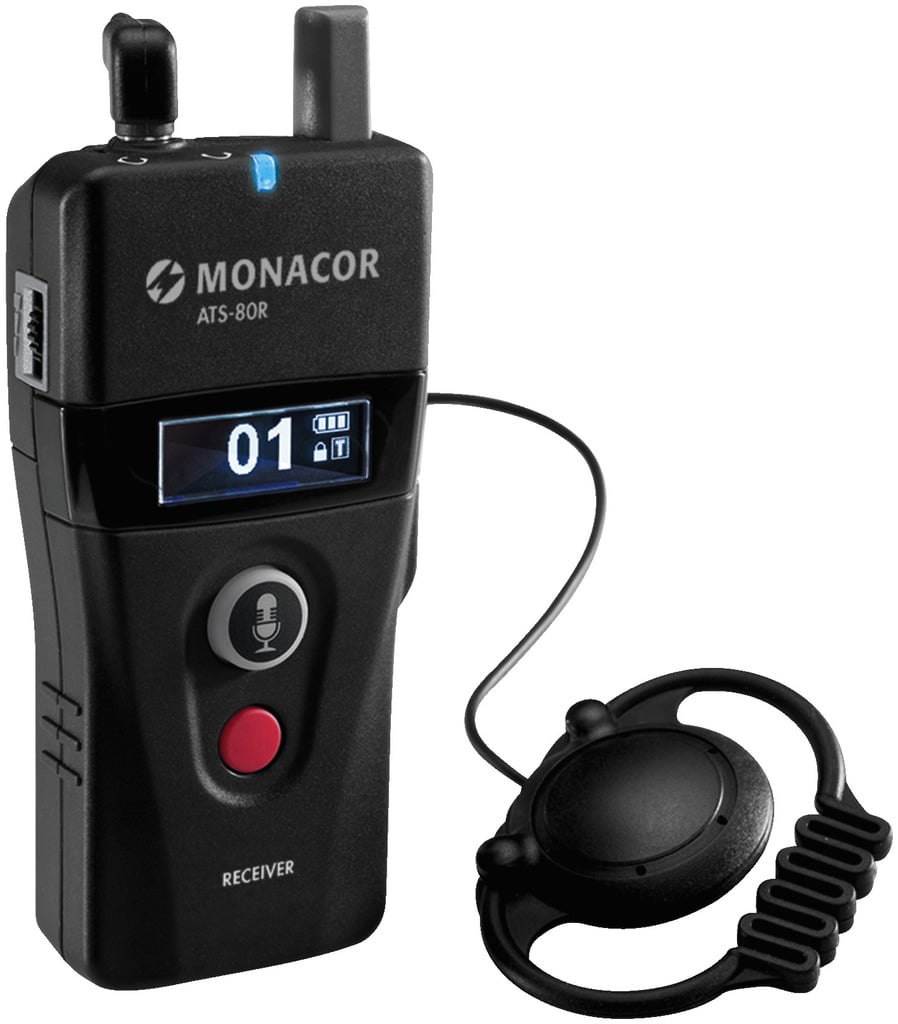

This is the Receiver which works together with the Monacor ATS-80T Transmitter.
A 42-channel digital PLL voice receiver on frequency range 823-832 MHz and 863-865 MHz.
Ideal as a tour guide system, but also suitable for any other application in which a two-way communication is required, e.g. training sessions, lectures with questions and answers, horse riding communication, group tours and factory tours.

Key Features…
– High resistance to interference due to digital transmission
– High operating range
– Frequency range optimised for voice transmissions
– Interference-free parallel operation of up to 42 different channels possible
– 42-channel PLL receiver
– Supplied with matching earphone
– Adjustable headphone output
– Automatic switch-off (power-saving function)
– High-contrast OLED display
– Battery status indication
– Push-to-talk button with 3 operating modes (PTT, PTB, PTM)
– Alarm-off button
– Operating range alert
– Call alert
– Mute function
– Automatic channel lock
– Built-in microphone
– Full duplex communication (release by transmitter)
– Hearing Aid Compatible (HAC)
– Belt clip
– Lanyard
– Power supply via 2 x 1.2 V NiMH rech. battery AA size (not supplied)
– Dimensions: 47 x 109 x 35 mm
– Weight: 53g

Tech Spec…
– Description: 42-channel digital PLL receiver
– Carrier frequency range: 823-832 MHz, 863-865 MHz
– Audio frequency range: 300-4,500 Hz
– Channels: 1
– Operating time: > 30 h
– Admiss. ambient temp.: 0-40 °C
– Power supply receiver: 2 x 1.2 V NiMH rech. batt. AA size
– Connections receiver: 3.5 mm jack (earphones)
