Description

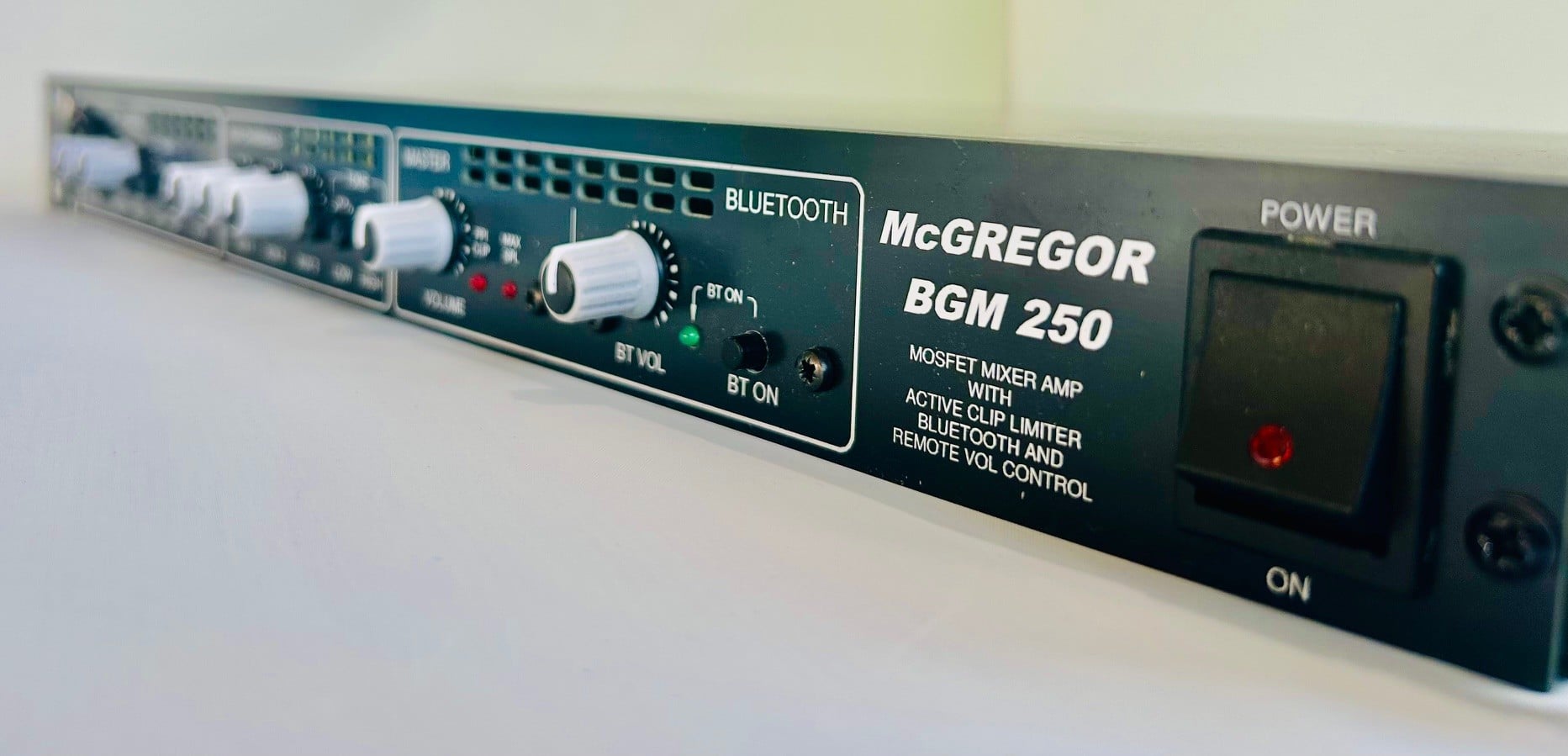

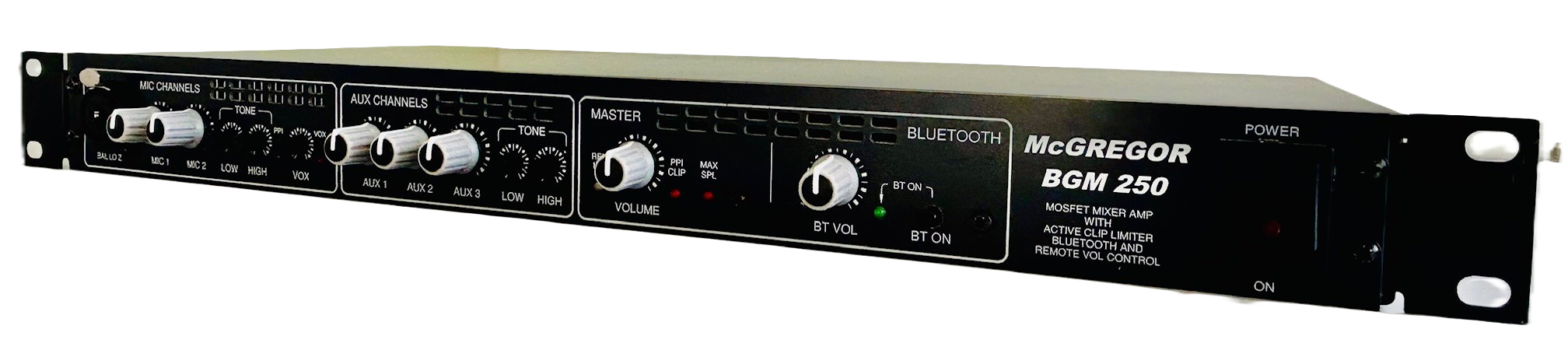

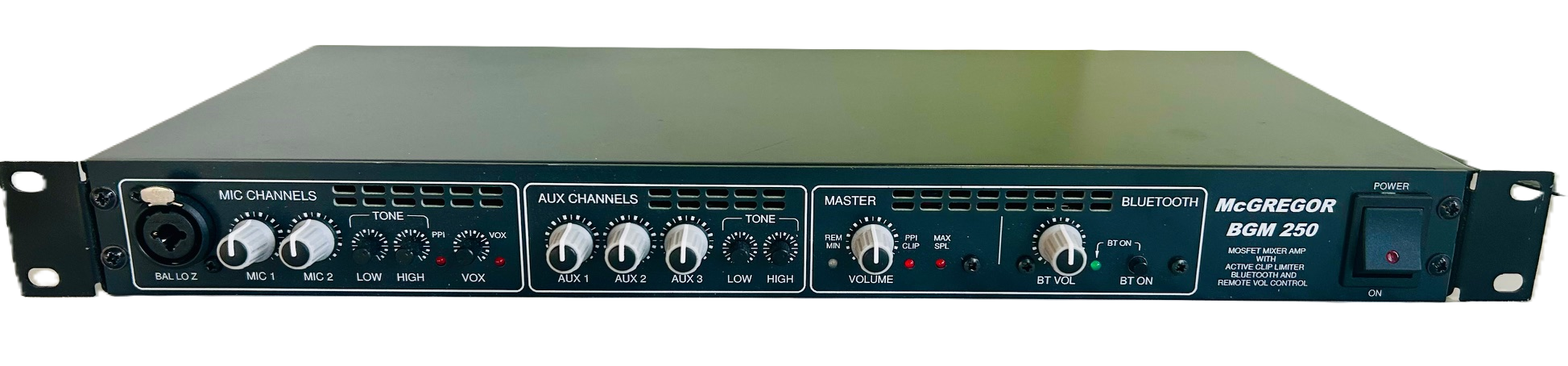

– Super Slim-Line 250w Mixer Amplifier with Bluetooth
– 2 mic channels, 3 line level channels, both with separate EQ
– Specifically designed to be easy to use
– Great quality British built commercial product
– Ideal for Fitness Classes, Dance Clubs, Sports Centres, Cafes, Reception areas etc
– Inputs for smartphones, tablets, CD, laptops or pretty much anything else

Key Features…
– Two microphone channels and three auxiliary line level channels
– Separate two band EQ is available for both microphone and auxiliary channels

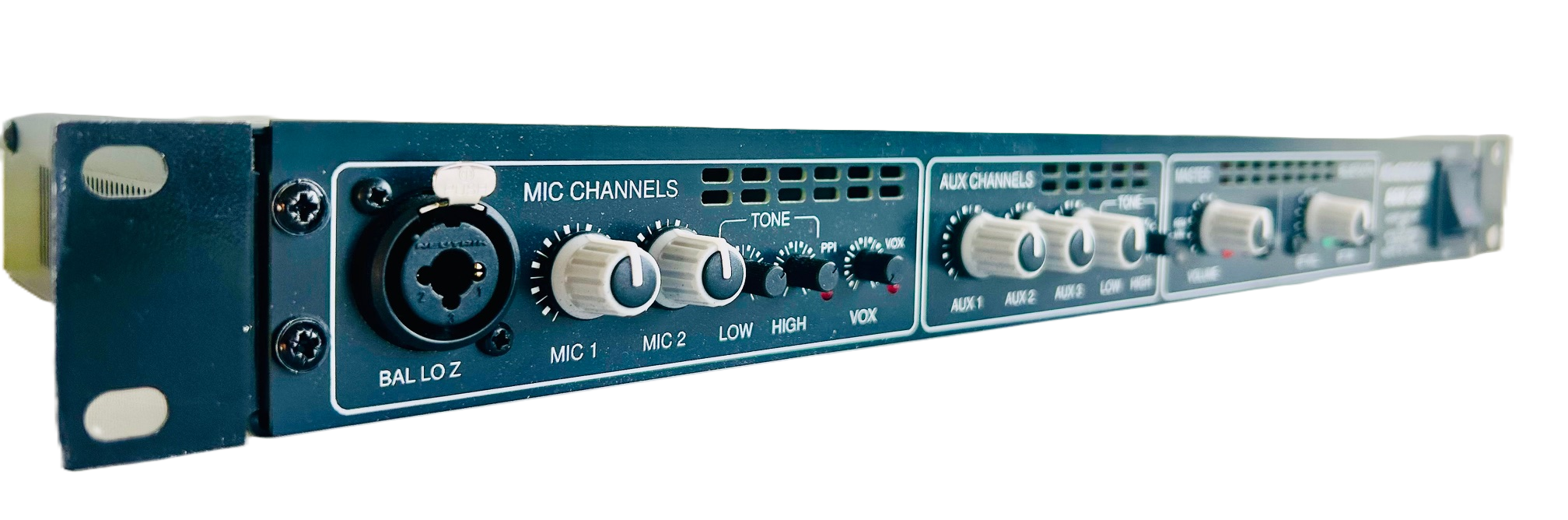

– Microphone 1 (XLR/Jack socket) input is accessible via the front panel, and can be connected balanced or unbalanced
– Microphone 2 (XLR/Jack socket) input is accessible via the back panel, and can be connected balanced or unbalanced
– Microphone 1+2 controls include individual Volume and shared Bass, Treble and PPI indicators along with Voice Override (VOX)
– Voice override level (VOX) is adjustable and has an active led indicator (Operates with on both microphones to automatically reduce the music level to the desired level for talking over when selected)

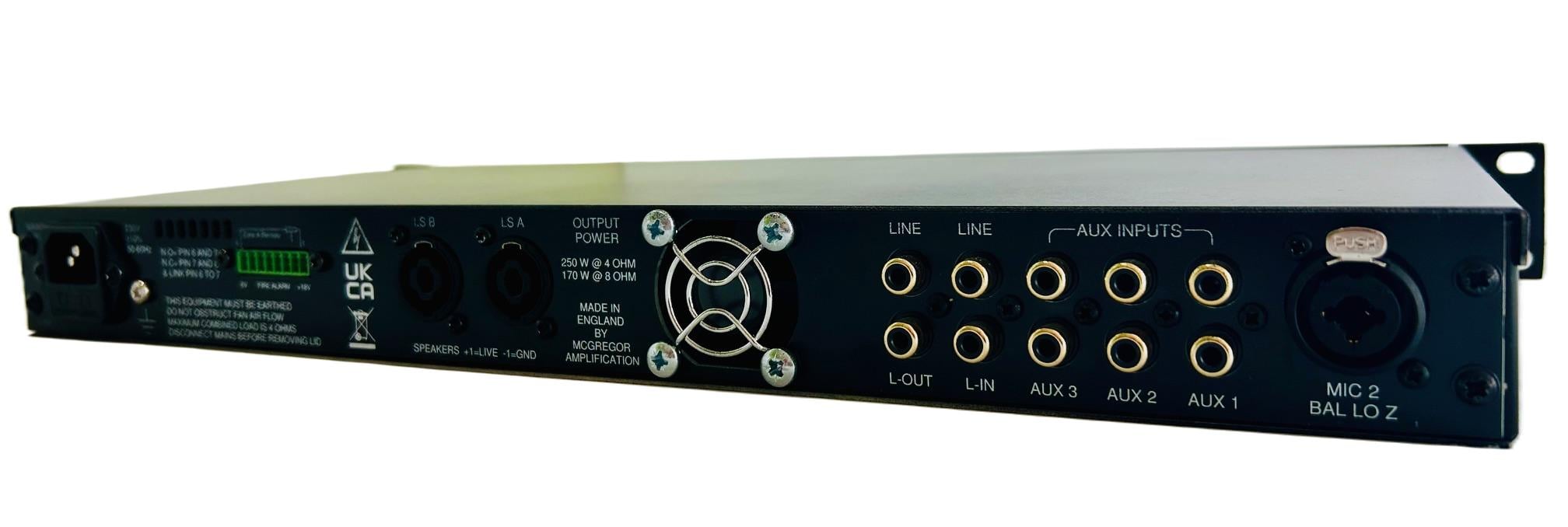

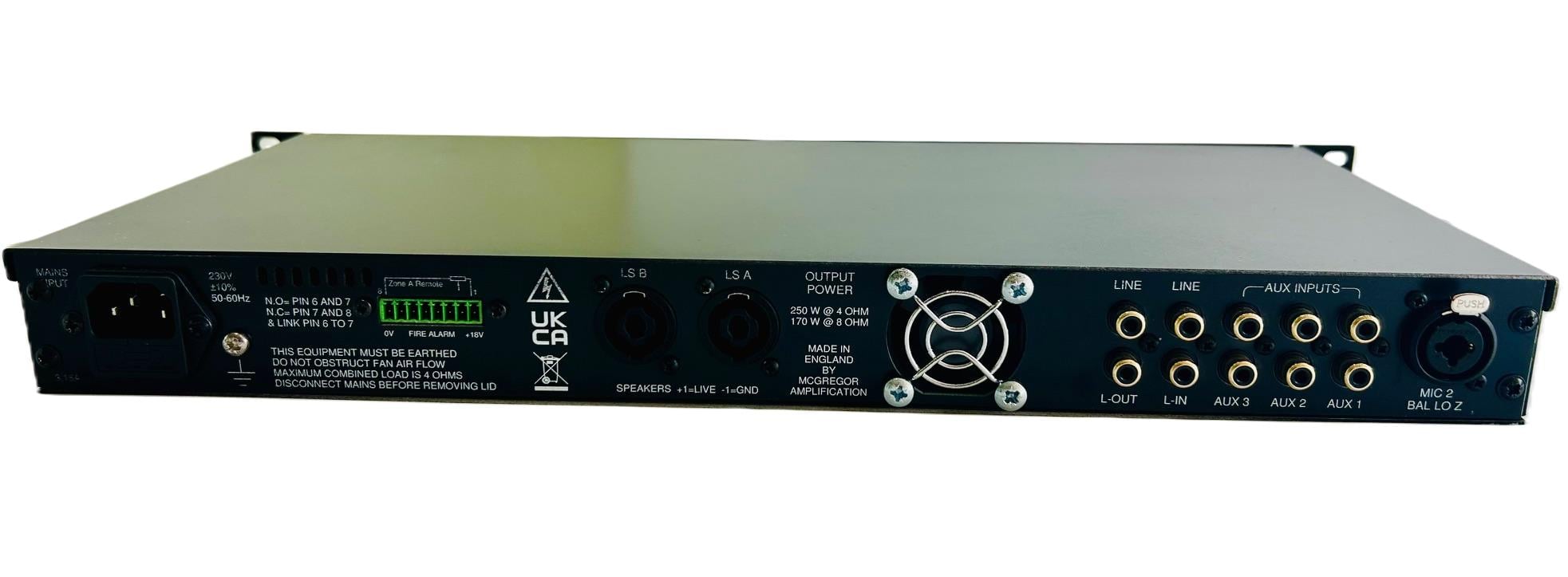

– Auxiliary 1-3 inputs, Line input and Line output connections are rear mounted twin RCA phono sockets
– Speaker outputs are also rear mounted and are standard Speakon sockets
– Active clip limiter is internally configurable and is always active at the off setting. Settings between off and max enters a sound limiting mode that restricts the maximum amplifier output to the selected level
– Fan cooled with a proportional speed fan provides quieter operation and extra fan longevity
– The three Auxiliary Line Level controls have common Bass and Treble EQ
– Overall master volume control permits simultaneous mic and aux adjustment

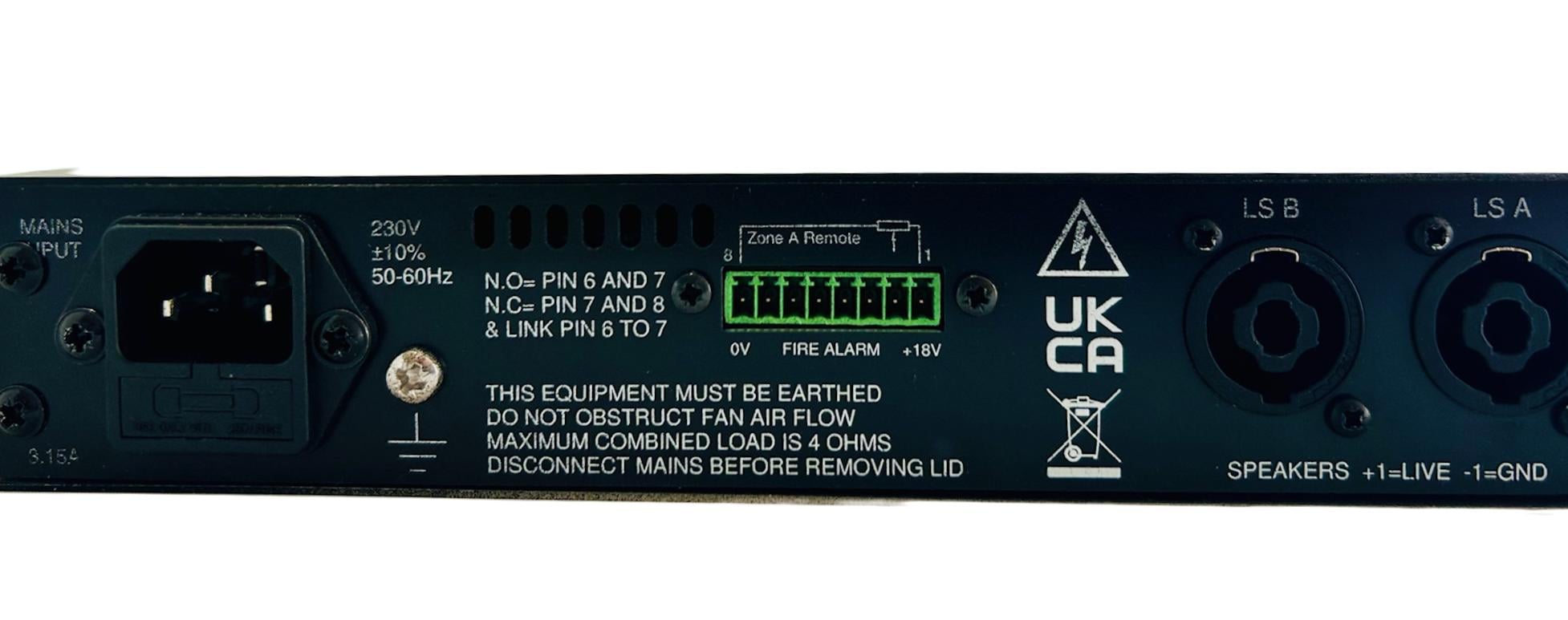

– Remote volume control with fire alarm interface option is available via a rear mounted Phoenix connector and is only required for installations
– The rem min led on the front panel indicates when the external remote volume has been turned down – A remote will always take priority over the amplifiers auxiliary volume controls if it is present
– Bluetooth is activated by the on/off push switch and has a separate level control. Bluetooth shares the auxiliary channels EQ tone controls

Tech Spec…
– BGM250: 250 watts RMS into 4 ohms. 170w @ 8 ohms
– Microphone inputs: Balanced or unbalanced 3k3 – 5mV
– Internal phantom power link for each microphone
– Line level inputs: Unbalanced >22k – 200mV
– Slave line output: Unbalanced <10k – 775mV (0dB)
– Bluetooth range: Up to 15M
– Headroom: +22dB (PPI’s active @ +19dB)
– Bass EQ: +/- 14dB @ 50Hz – Shelved
– Treble EQ: +/- 14dB @ 12kHz – Shelved
– Frequency response: 20Hz – 25kHz +/-0.5dB
– D/C Protection: +/-12V
– Signal to noise ratio: Better than 100dB
– PPI / Clip Limiter, variable compression (Off = clip limiting only )
– T.H.D. @ 1kHz rated power – <0.02%
– Damping Factor: Better than 400
– Slew Rate: 40V / uS
– Mains Input Power: 230V +/-10% 50-60Hz
– 483mm (W) x 205mm (D) x 44mm (H)
– Weight: 5.5kg
