Description

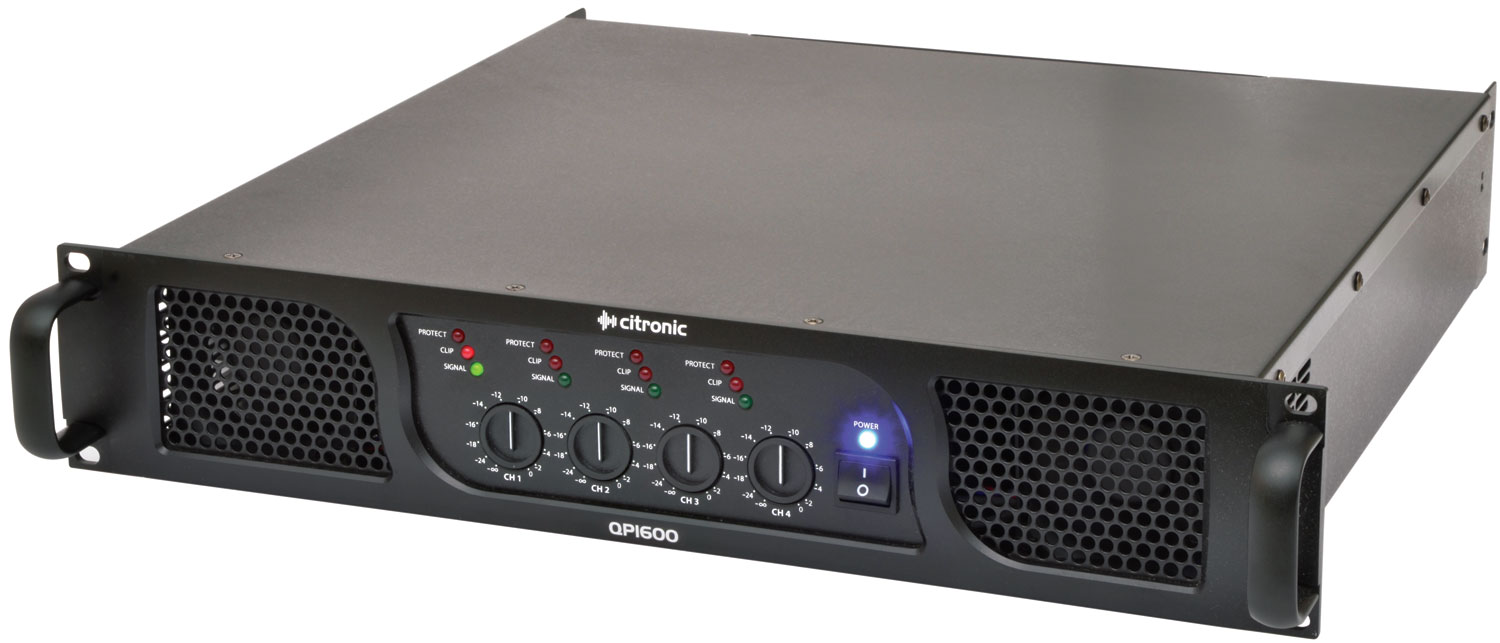

A range of quad power amplifiers with 4 fully independent channels and individual volume controls. Fully balanced line inputs and parallel outputs allow signal daisy-chaining to further amplifiers. Designed as a cost effective and efficient solution for multi speaker installations where sound quality is paramount.
Features
Fully balanced signal path
Stable down to 2 Ohms
2U rack-mountable
Technical Specifications
Power supply[tab]230Vac, 50Hz (IEC)

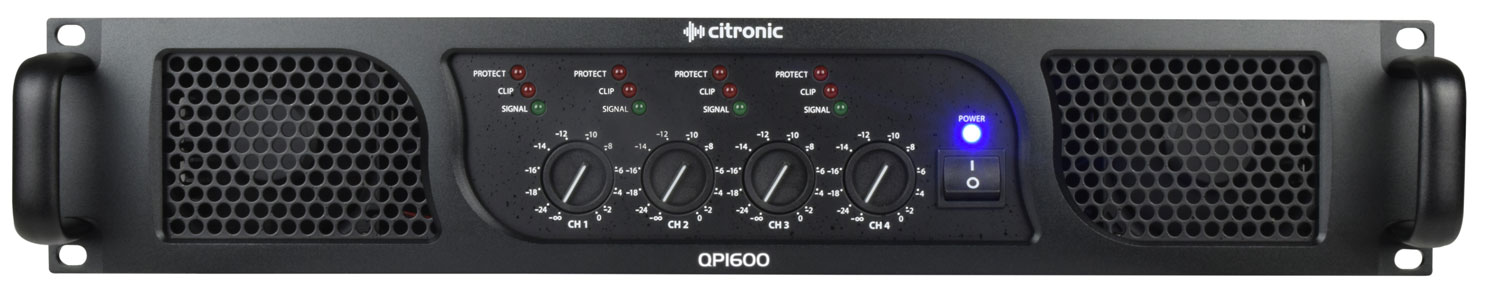

Controls[tab]4 x channel gain
Dimensions[tab]483 x 439 x 88mm

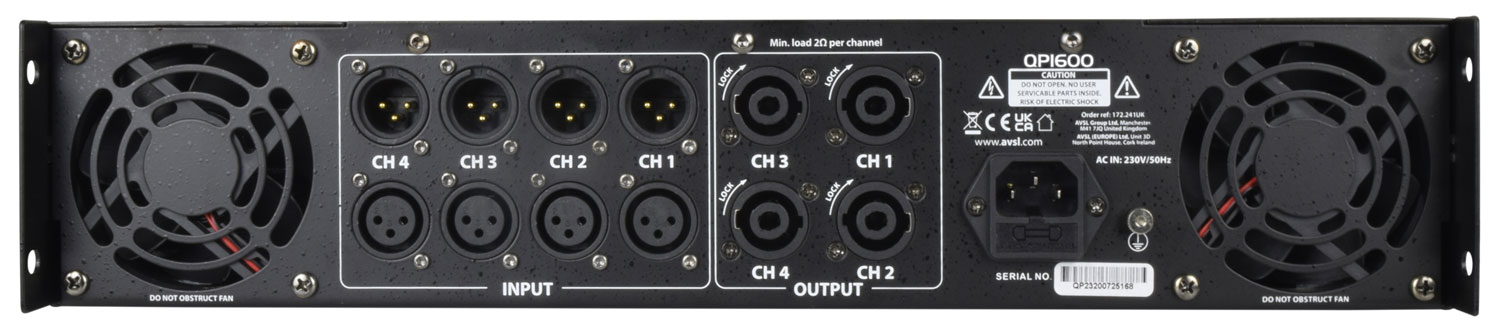

Input : line[tab]4 x XLRF balanced
Output : line[tab]4 x XLRM (parallel from inputs)
Speaker : outputs[tab]4 x SPK connectors
Input impedance[tab]20k Ohms
Frequency response[tab]5Hz – 50kHz
THD[tab]0.05%
Slew rate[tab]40V/usec
S/N ratio[tab]103dB
Circuit protection[tab]Short-circuit, DC, overload, soft-start
Weight
22.0000kg
Dimensions
465 x 560 x 125mm
