Overview…

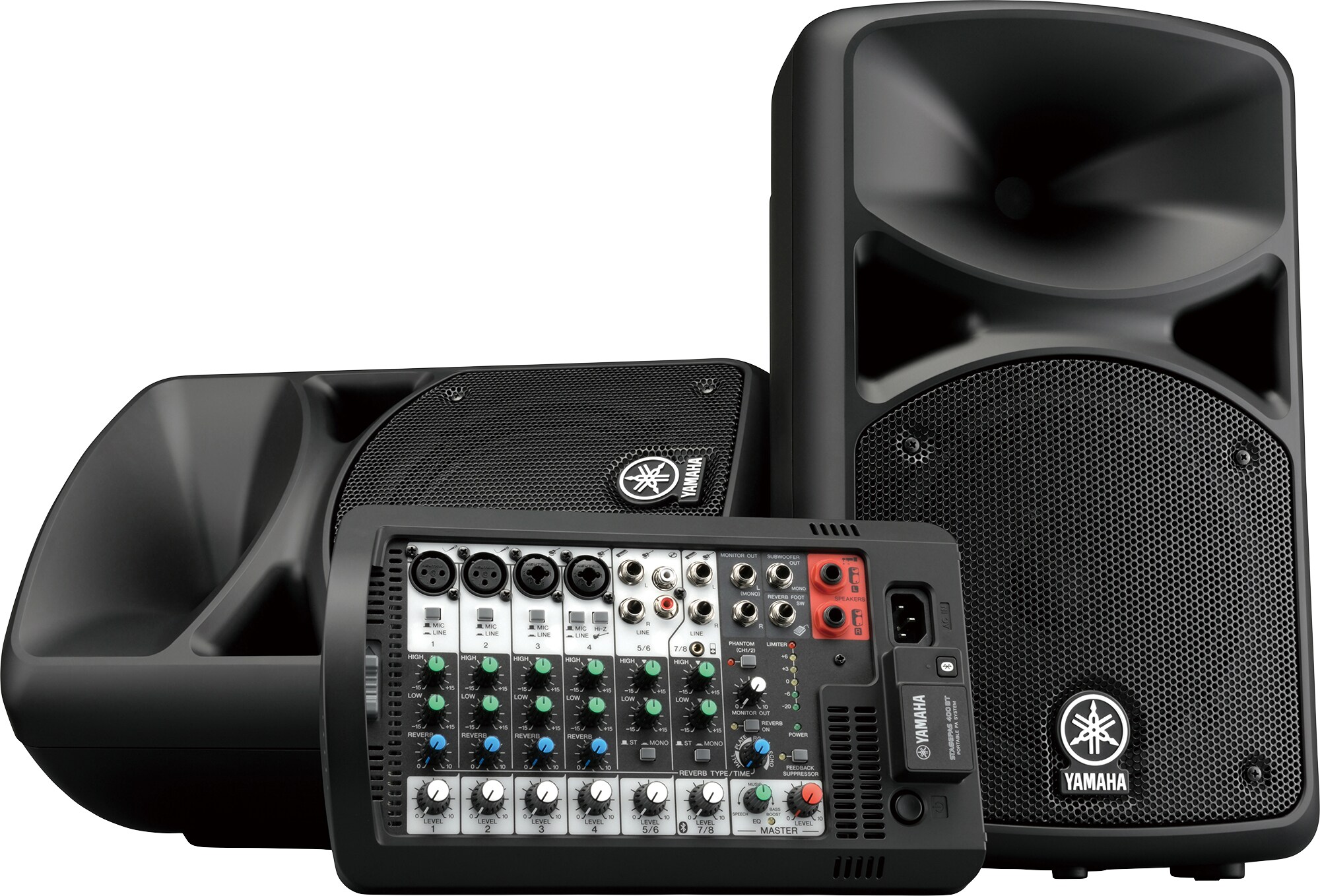

400-watt, portable PA system with 8-channel powered mixer, two 8″ speakers, a Bluetooth® input, SPX digital reverbs, an onboard feedback suppressor and versatile EQ.

The Ultimate All-in-One Portable PA System…

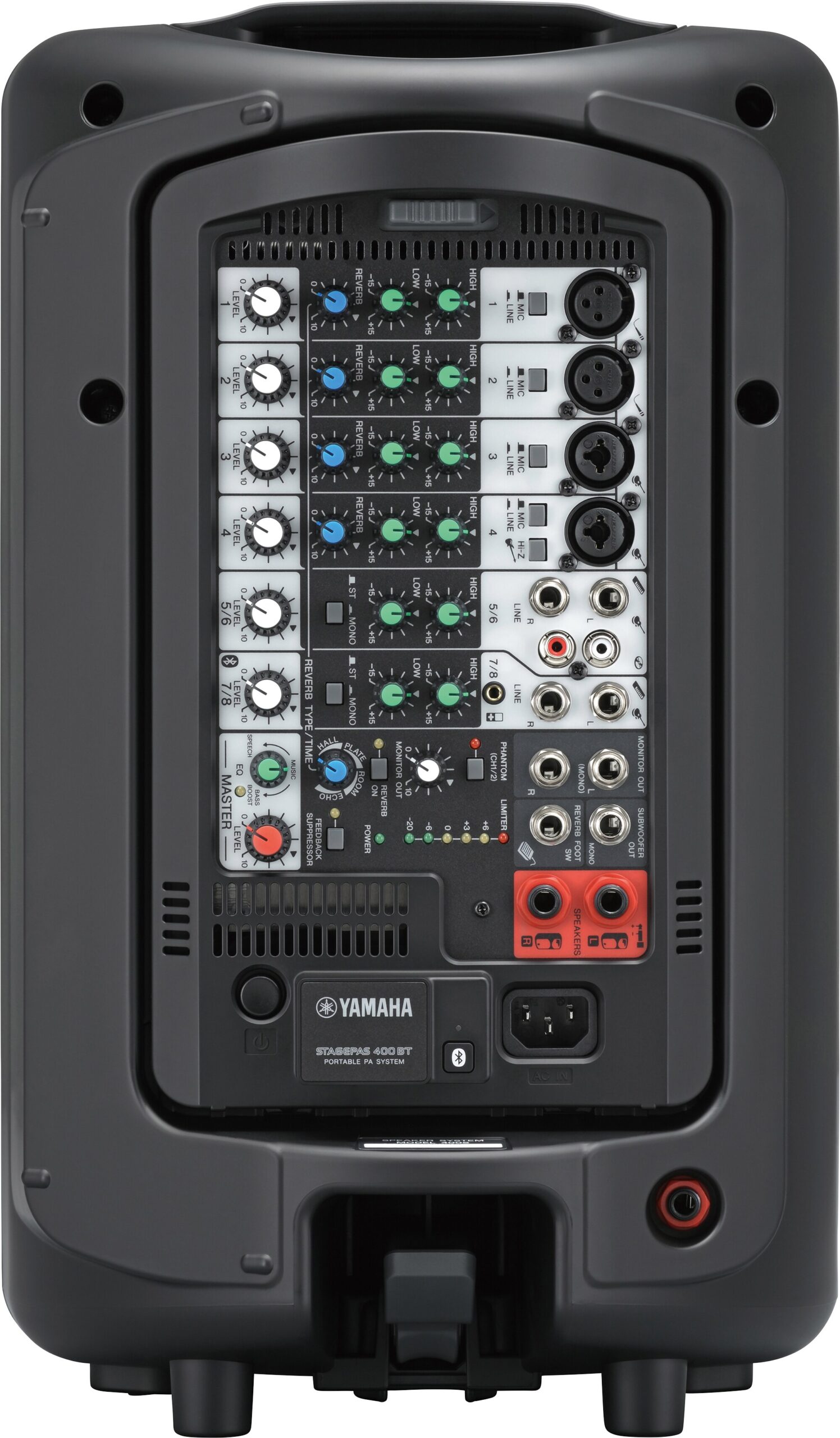

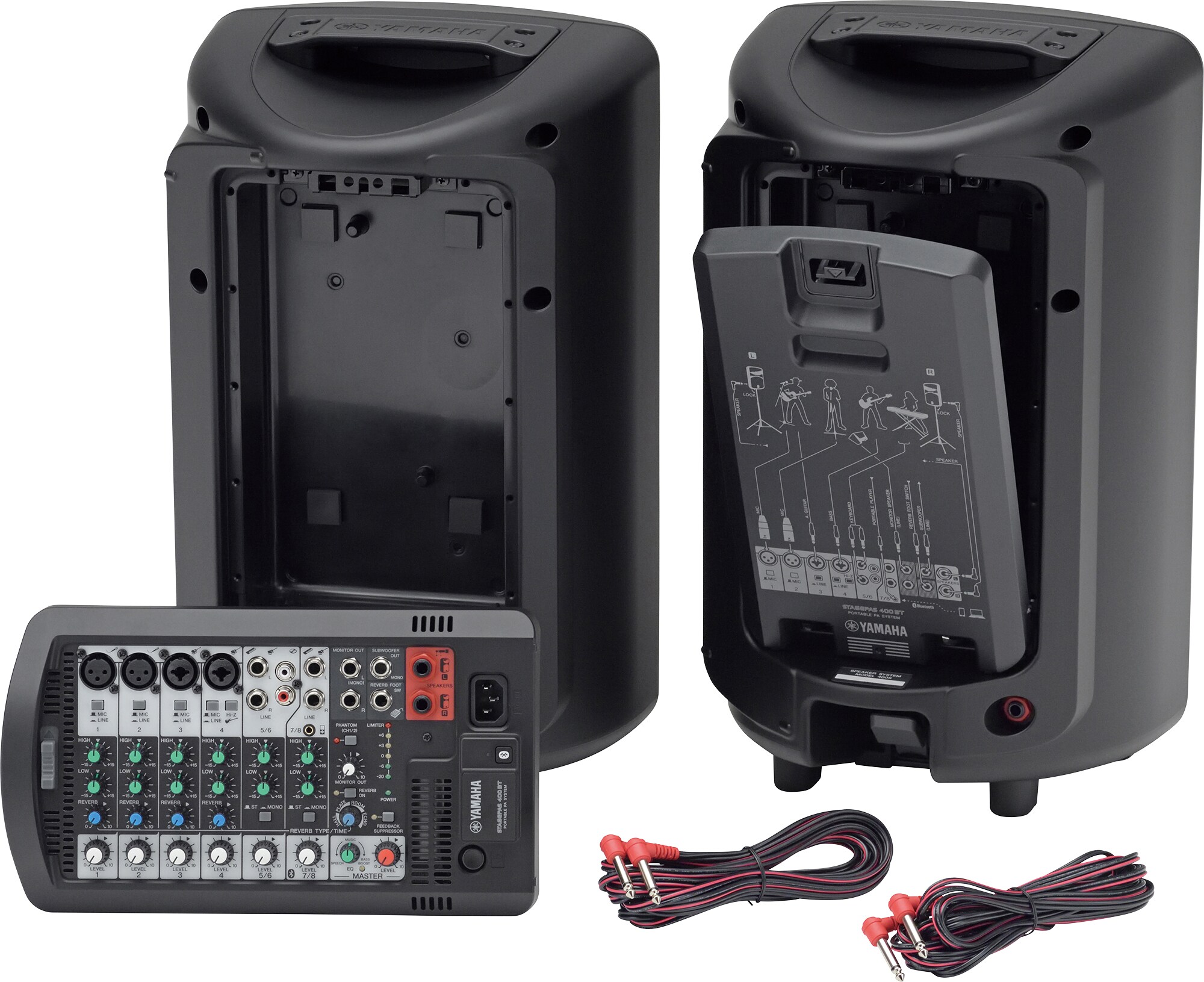

You can take literally anywhere the all-in-one PA system STAGEPAS which is compact and light enough to carry by hand. The two lightweight speakers and a detachable mixer, along with one pair of speaker cables and a power cord, combine into an attractive, compact package that provides the kind of portability that no roadie would ever dare to dream of.

Fast and easy set-up…
With its intuitive, simple design, STAGEPAS can be set up and ready to go in a matter of seconds. Even users with no PA operation experience will be able to produce high-quality sound in under a minute.

A PA for any occasion…
Flexible enough to be used in a truly impressive range of environments and applications, STAGEPAS systems can be set up in a variety of PA and monitoring configurations.

Mix It…
Versatile features and seamless functionality ensure your mixes are always right on the money.

Bluetooth® Wireless Audio Streaming…
Equipped with a Bluetooth input for wireless audio streaming from smartphones or tablets, the STAGEPAS-BT models let you seamlessly play backing tracks for gigs, or set the tone of parties, conferences, or events with the audio playback of your choice.

Key Features…
– 400W (200W + 200W) power output
– High quality speakers (LF:8″ woofer/ HF:1″ voice coil compression driver)
– Detachable 8-channel mixer (4 mono/line + 4 mono / 2 stereo line)
– Bluetooth® audio streaming
– 1-Knob Master EQ™ with virtual bass boost
– High resolution SPX digital reverbs (4 types, parameter control)
– Onboard feedback suppressor
– Great-sounding 2-band channel EQ
– Switchable stereo/ mono inputs
– Hi-Z (high impedance) inputs
– Phantom power
– Monitor and Subwoofer outputs
– Optional reverb footswitch

Tech Spec…
System…
– System Type: Powered mixer with 2 passive speakers
– Frequency Range (-10dB): 55Hz-20kHz
– Maximum SPL (Measured Peak IEC Noise@1m): 125dB SPL / speaker
– Power Consumption: 30W (Idle), 70W (1/8 Power)
– Power Requirements: 100V-240V 50Hz/60Hz
– Dimentions (W x H x D): Speaker 289mm x 472mm x 275mm (11.4″ x 18.6″ x 10.8″), Mixer 308mm x 180mm x 116mm (12.1″ x 7.1″ x 4.6″)
– Net weight: 18.3 kg (40.3 lbs) (2 x Speaker 7.7kg + Mixer 2.9kg)

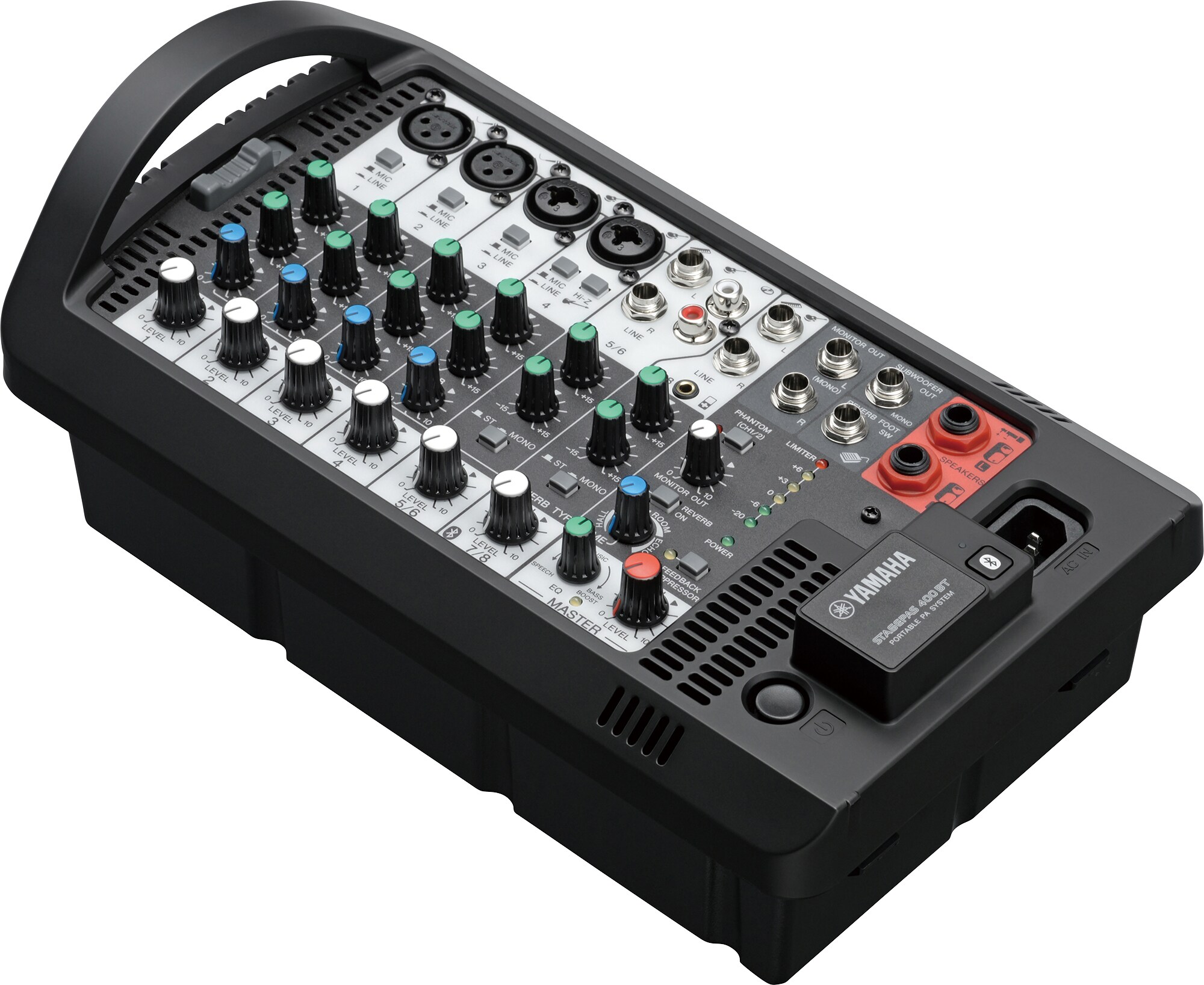

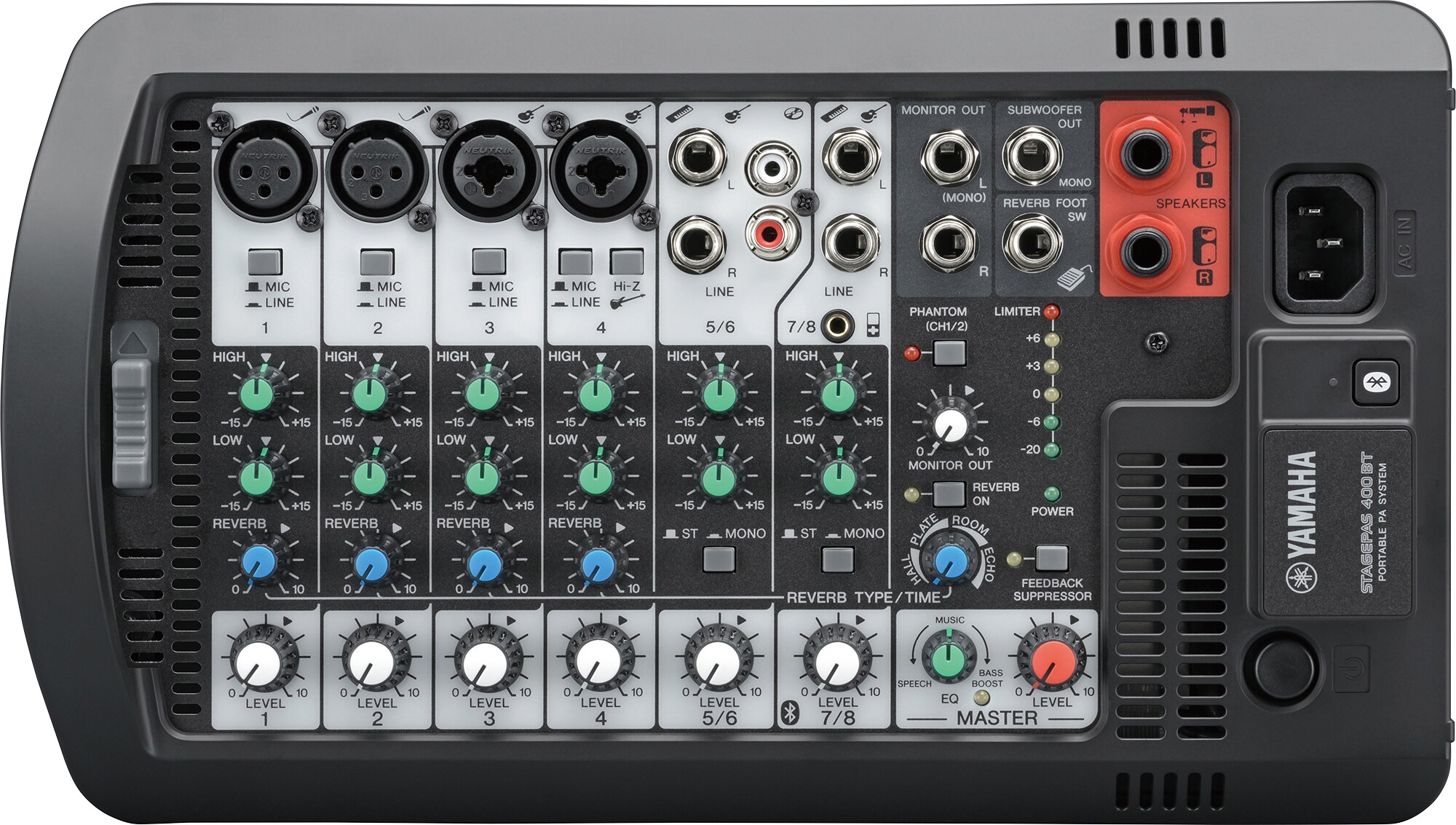

Powered Mixer
– Mixing: Channels 8
– Analogue Inputs: 4 mono mic/line + 4 mono / 2 stereo line
– Bluetooth Input: Bluetooth Ver.4.1, A2DP v1.2, Maximum Range: Approx. 10 m
– Channel EQ: 2-band (HIGH Shelving: 8kHz, LOW Shelving: 100Hz)
– Channel Functions: Hi-Z switch: CH4, ST/MONO switch: CH5/6-7/8
– Digital Effects: SPX digital reverb (4 program, parameter control)
– Output Processing: Feedback suppressor, 1-Knob Master EQ™
– Phantom Power: +30V (CH1, 2)
– Outputs: SPEAKERS OUT (L, R), MONITOR OUT (L/MONO, R), SUBWOOFER OUT (MONO) with auto HPF
– Control and Others: Reverb foot switch

Built in Amplifier…
– Power Rating (Dynamic): 400W (200W + 200W)
– Power Rating (Continuous): 360W (180W + 180W)

Speakers…
– Type: Two-way bass-relfex speakers
– Components: LF: 8″ (20cm) cone, HF: 1″ (2.54cm) voice coil compression driver
– Coverage Angle: 90° x 60°
– Floor Monitor Angle: 50°
– Handle: 1 x Top
– Pole Socket: 34.8-35.2mm pole socket with StageLok™
