Description

Key Features…

• 18″ Active subwoofer
• MDF construction
• Class D amplification
• 600w RMS
• 1200w Peak
• Adjustable low pass filter
• 132dB Max SPL @1m
• Custom quad layer LF driver
• 2.5″ voice coil
• Hi Pass Outputs

Product Overview…

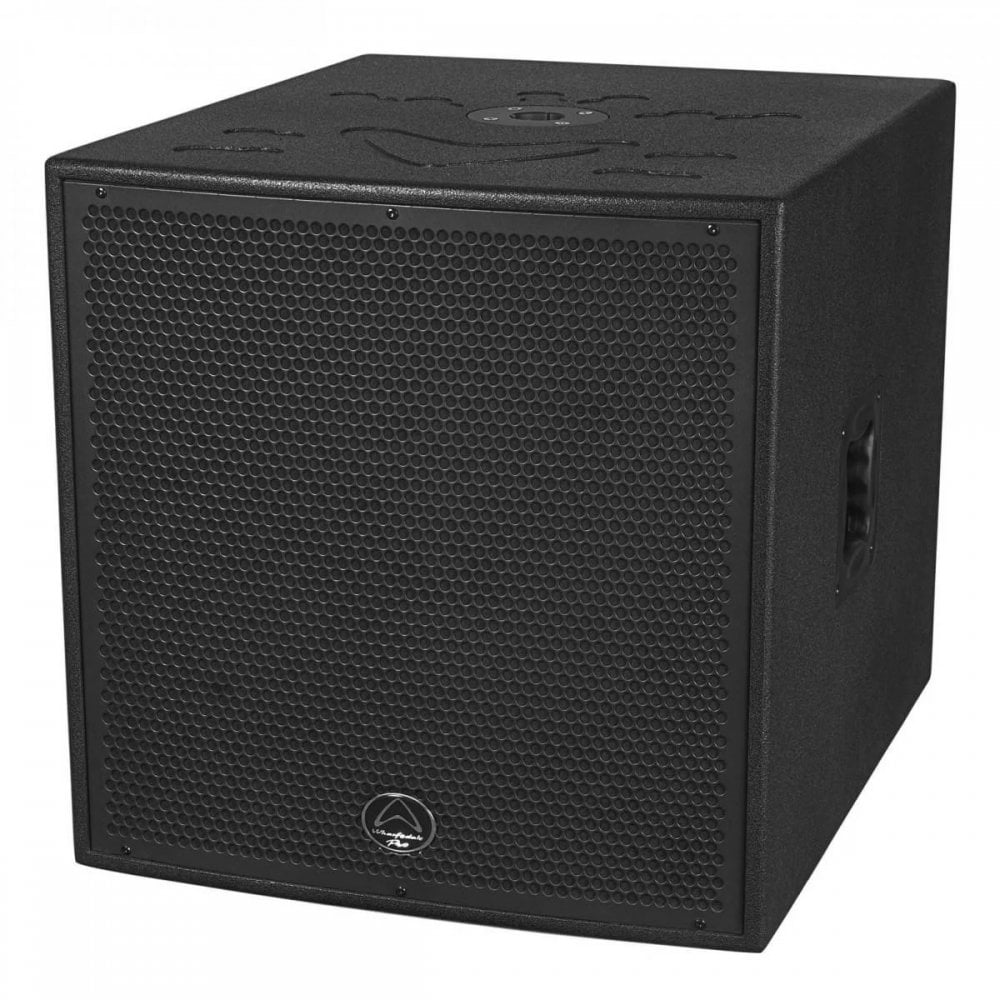

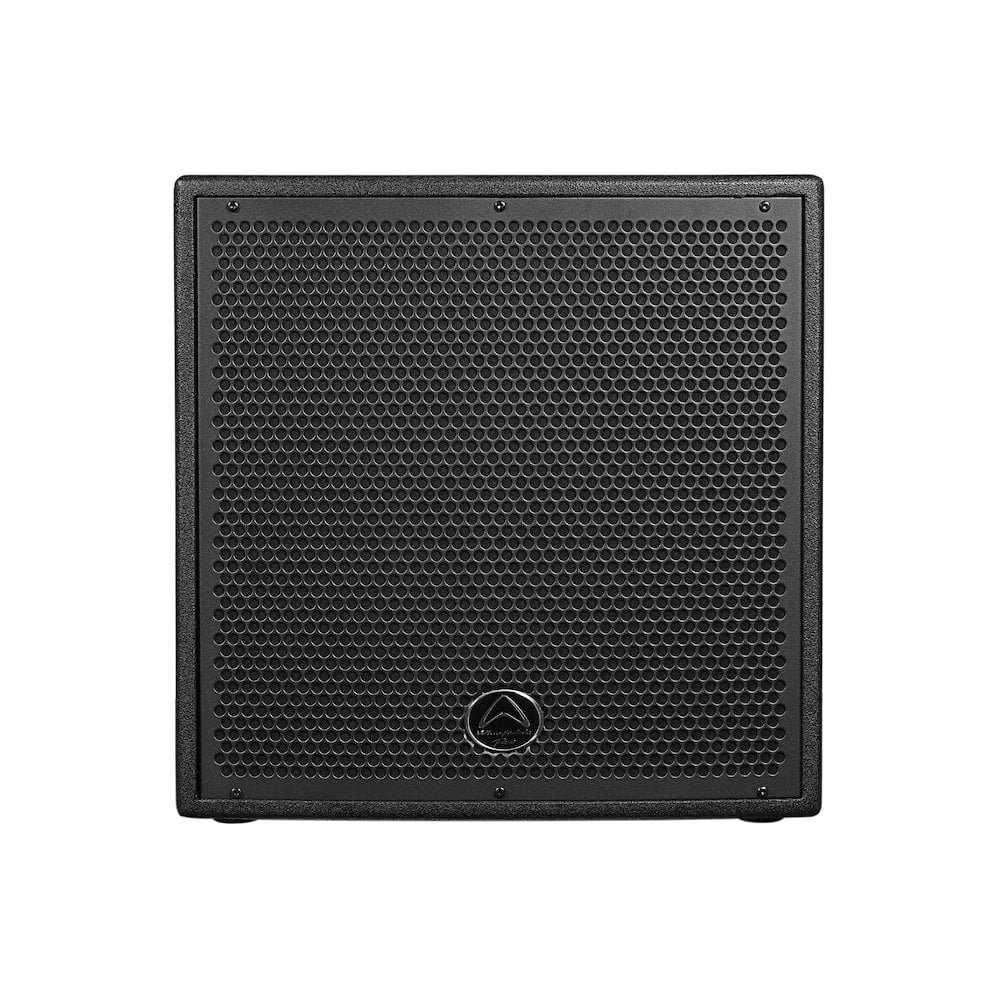

A powerful 18″ active subwoofer that produces impressive bass with 2000w peak power. Incredible as part of any system and quality true of the Wharfedale brand. The 15″ active subwoofer uses a single Class D amplifier to drive the LF transducer. Inside the Delta-AX subwoofers is a highly efficient Class D amplifier and the amplifier has been perfectly matched to the custom low frequency driver. This perfect combination leads to maximum efficiency and supreme output SPL.

Delta-AX subwoofers use premium Baltic birch plywood construction and not only does this create a solid and durable cabinet, but it also contributes to the overall sound and character. Delta-AX subs are also covered in our most durable and hard wearing Rhino Rock paint finish. This ensures that a Delta-AX will always look as good as the day you unboxed it.

Tech Spec…

• LF Power Amplifier -Class D, RMS/Peak Watts 600w / 1200w
• HF Power Amplifier -Class D, RMS/Peak Watts N/A
• Limiter indicator- Yes
• Power indicator- Green LED (Red LED front)
• Max input level- 6v

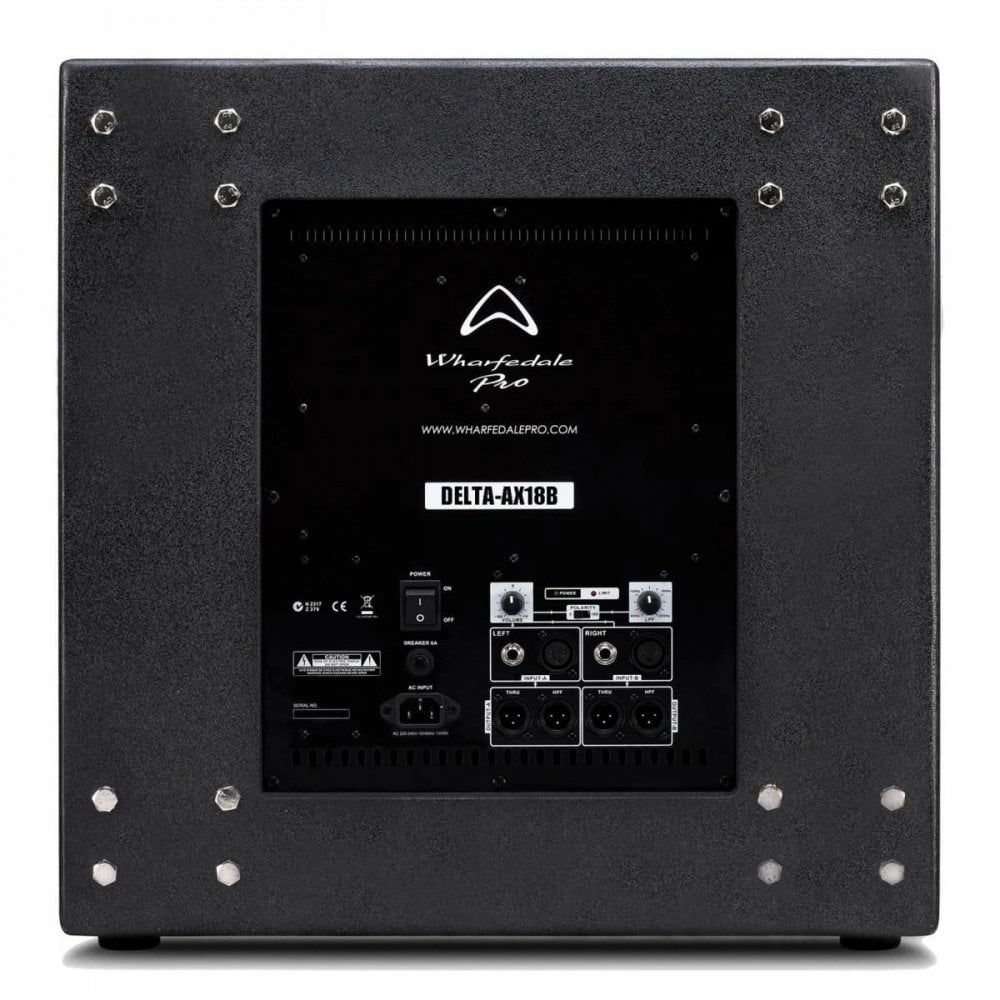

• Input connectors- XLR & 1/4″ (Line/MIC)
• Line output connector- XLR THRU/HPF(OUT)
• Pole socket- 35mm
• Enclosure Material and finish- MDF / Black paint
• Grille material- Steel
• Height- 650mm
• Width- 528mm
• Width (rear)- 528mm
• Depth- 528mm
• Net Weight- 38.3kg
