Description

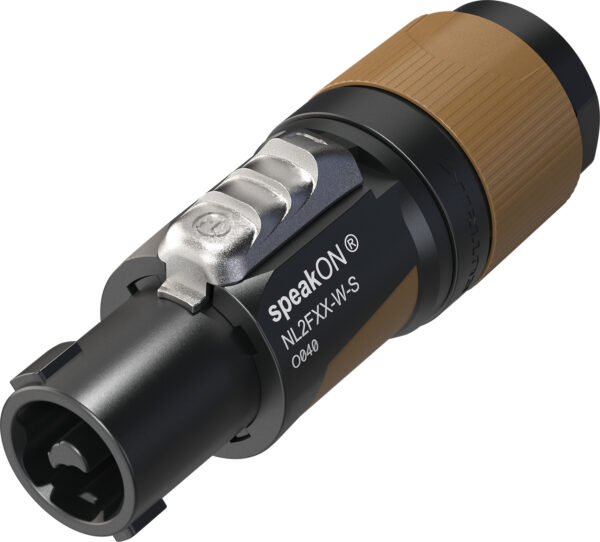

2 pole speakon cable connector, screw terminal assembly, chuck type strain relief for cable diameters 6 to 12 mm. Speakon connectors are the industry-standard for loudspeaker connections. This product series offers extremely reliable and robust cable connectors with a proven twist lock system. speakon cable connectors feature solid contacts with screw-type terminals including a stranded wire protection

• Mates with 2-pole chassis connector as well as 4-pole chassis connector (contacts +1/-1)
• Up to 37 A rms current rating
• Easy and reliable twist lock system
• Improved kink protection by two-component bushing
• Ergonomic design with slip-proof two-component molded housing

Specifications

• Contact resistance: ≤ 2 mΩ
• Cable : diameter = 6-12mm
• Lifetime: Typically 5’000 mating cycles
• Terminals: Screw type
• Temperature range: -33 °C to +80 °C
• IP rating: IP20
