Description

– Ultra compact column PA
– 800 watts of peak power
– LECC digital processing for controlled dynamic performance
– Built-in 4-channel mixer with Bluetooth© technology

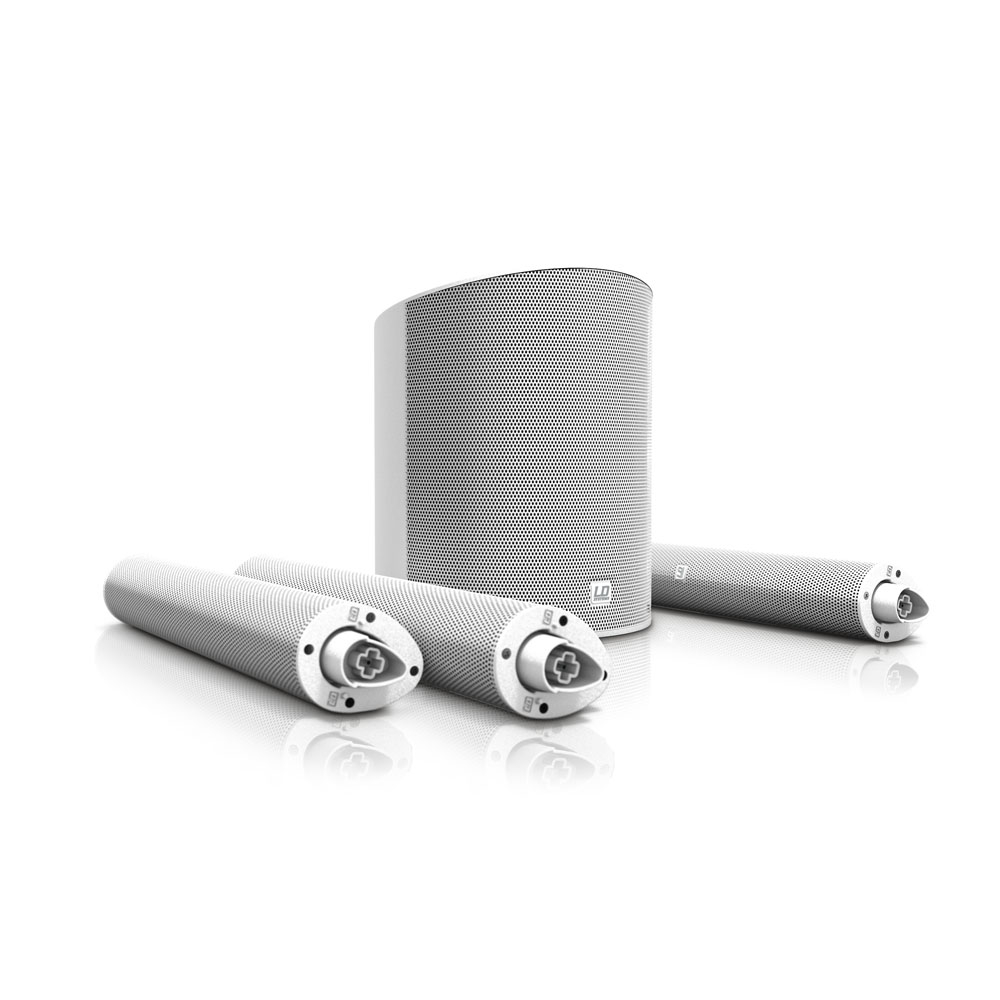

– Cableless assembly in seconds
– Easy portability

Overview…
The ultra compact MAUI 5 weighs in at about 11 kg while delivering 800 watts of peak power and a maximum SPL of 120 dB.
Providing both sound reinforcement with extended coverage and feedback resistant monitoring the subwoofer base and 3-piece column system assembles in seconds with custom multipin connectors.
The junior member of the MAUI family is most easily portable and fits onto any car seat.

The vented 8″ subwoofer also houses the system’s Class D amplification with overcurrent, short circuit and thermal protection, LD Systems’ proprietary LECC digital processing and a 4-channel mixer.
Featuring Bluetooth technology for wireless streaming and microphone, line level and hi-Z inputs which can be used simultaneously the MAUI 5 lets you connect a wide variety of sources including music players and instruments such as keyboards or guitars.
Individual level controls, subwoofer and master volumes plus high shelf filtering for room correction enable a perfectly balanced performance.

Key Features…
– 800 watts of peak power
– Vastly extended coverage
– LECC digital processing for controlled dynamic performance
– Built-in 4-channel mixer with Bluetooth technology
– Comprehensive connectivity
– Cableless assembly in seconds
– Easy portability

Tech Spec…
General Spec…
– Type: Active
– Peak output power: 800 W
– RMS output power: 200 W
– Amp class: Class D
– Max. SPL peak: 120 dB
– Max. SPL average: 114 dB
– Frequency response: 50 – 20,000 Hz
– Speaker system: 2-way coaxial system
– Beam angle: Hor.: 120° / Vert.:20°
– Protection features: Multiband Limiter, Short circuit, Overheating, Overvoltage
– Colour: White

Bluetooth®…
– Bluetooth® version: 4.2
– Features: Audio Streaming (A2DP)
– Bluetooth® range: ≤10 m (Class 2)
– Supported audio codecs: SBC

Inputs…
– Number of microphone inputs: 1
– Mic-in connector type: XLR combo socket
– Number of instrument inputs: 1
– Inst-in connector type: 6.3 mm Jack TS female
– Number of line inputs: 2
– Line-In connector type: XLR combo socket
– Number of music inputs: 1
– Music inputs connector types: 3.5 mm Jack TRS female

Signal processing…
– 4 channel mixer
– Audio processing: 3 band EQ (High, Mid, Low)
– AD/DA converter bit depth: 24 Bit
– AD/DA converter sampling rate: 48 kHz

Bass driver…
– Size: 8″
– Magnet: Ferrite
– Voice coil: 2″

Mid-high range…
– Size: 3″
– Quantity: 4
– Voice coil: 1″
– Magnet: Neodymium

Satellites/columns…
– Closed design
– Chassis material: ABS
– Width: 82 mm
– Height: 535 mm
– Depth: 105 mm

Subwoofer…
– Design: Bass reflex
– Number of handles: 1
– Width: 305 mm
– Depth: 395 mm
– Height: 405 mm

Environmental…
– Ambient temperature: 0 – 40 °C
– Maximum air humidity (non-condensing): 80 %

Dimensions & weight…
– Width: 305 mm
– Height: 1,985 mm
– Depth: 395 mm
– Weight: 11.3 kg
