Description

– All-in-one column speaker for PA and monitor applications
– 2,000 watts peak Class-D system power offer high performance with a low weight
– Powerful bass reproduction with 2 x 8″ woofers
– Balanced mids thanks to the 16 x 3″ full-range speakers
– Precise and silky highs with 2 x 1″ high-frequency drivers

Overview…

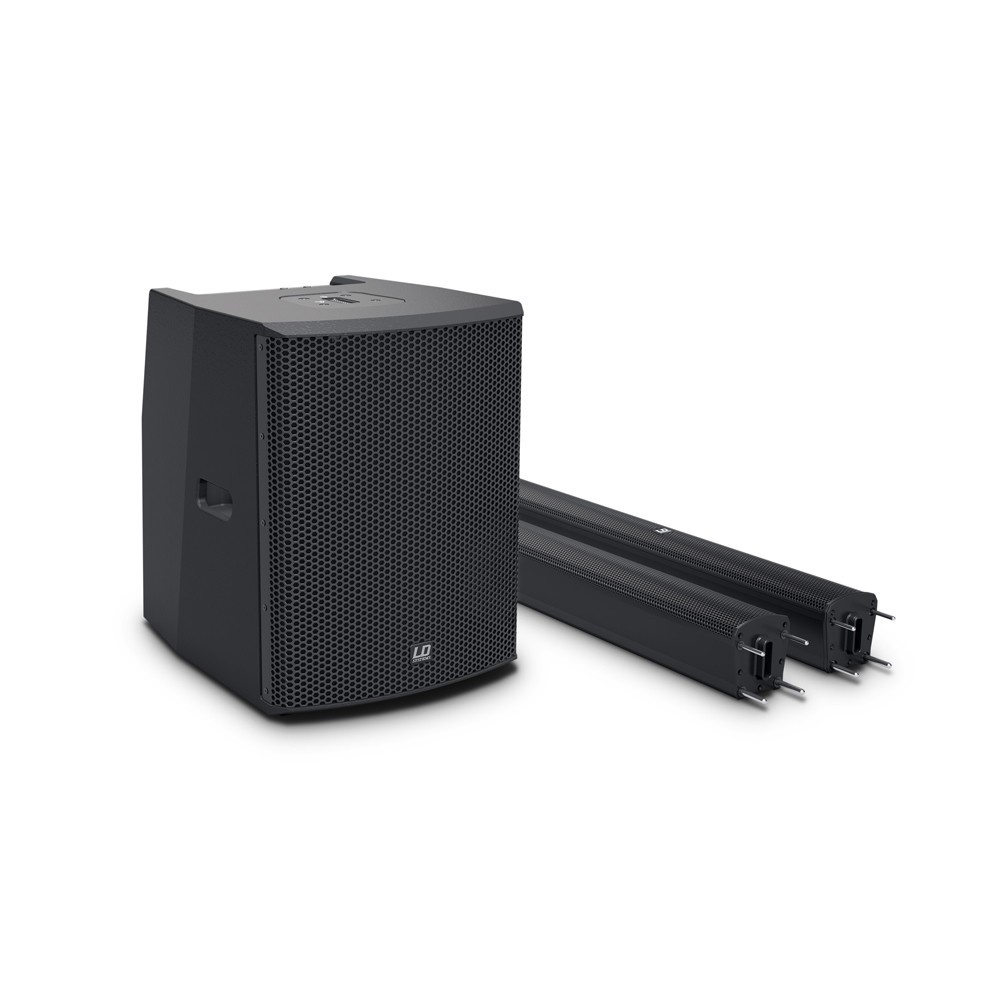

A complete sound system that’s super sleek and sophisticated, introducing the all-in-one column speaker system, the MAUI 28 G2.
The two column elements in the padded shoulder bag, the subwoofer in one hand and the guitar or keyboard in the other – and off you go! Setting up the complete system, which doubles as PA and monitor system is just as easy thanks to the special multi-pin cable plugs. The compact and elegant MAUI 28 G2 offers an unbeatable sound quality and wide-ranging sound distribution. It was developed with year-long experience in the design of the column systems as a user-friendly solution for medium sized gigs and fixed installations.

The MAUI 28 G2 is equipped with two 8″ woofers, sixteen 3″ full-range speakers and two 1″ neodymium HF drivers. They are driven by a light Class-D power amplifier with an enormous 2,000 watts peak power and produce a grunty bass, balanced mids and precise and silky highs. The DynX® DSP technology from LD Systems provides a top-class performance every time and the highest level of freedom from distortion. It includes a multiband limiter which protects against overloading, an EQ, a compressor and a 3-way crossover with run time correction.

The design of the MAUI 28 G2 line array achieves a longer range, increased resistance to feedback and a wider space coverage, which makes separate monitor speakers superfluous. The wave guide of the tweeters has been developed using the Boundary Element Method (BEM), a numerical simulation of the sound radiation and dispersion. It reduces reflections from the floor and ceiling and prevents sidelobe levels and thus achieves an homogeneous dispersion – Your audience hears you in the back row just as clearly as in the front.

With the integrated 4-channel mixer, system presets for mono or stereo configuration and Bluetooth® Audio Streaming, you have full control over the system. Whether you are a singer-songwriter, solo entertainer, DJ or musician in a small band, you will be thrilled with the extraordinary sound and portability of the MAUI 28 G2. The column and the subwoofer can be set up separately: thus, the system is extremely flexible and is also an excellent choice for fixed installations. With a selection of clever transport accessories and special mounting hardware, the MAUI 28 G2 is a well thought out overall solution, down to the last details.

Tech Spec…
General…
– Weight: 30,9 kg
– Product type: PA Complete Systems
– Type: active
– Color: Black
– Max. SPL (Peak): 126 dB
– Frequency response: 45 – 20000
– Dispersion (H x V): 120° x 20 °
– Overall height: 2059 mm

Woofer characteristics…
– Low/mid Woofer dimensions: 2 x 8 ”
– Woofer dimensions (mm): 2 x 203 mm
– Woofer magnet: Ferrite
– Woofer brand: Custom-made
– Woofer voice coil (inch): 2″
– Woofer voice coil (mm): 50.8mm
– Cabinet construction: Bass Reflex
– Cabinet material: 15 mm Plywood
– Cabinet surface: texture paint
– Subwoofer width: 370 mm
– Subwoofer height: 484 mm
– Subwoofer depth: 480 mm
– Subwoofer weight: 19.7 kg

Mid/Hi System…
– Midrange dimensions: 16 x 3 ”
– Midrange dimensions (mm): 16 x 76.2 mm
– Midrange magnet: Ferrite
– Midrange brand: Custom-made
– Midrange voice coil: 1″
– Midrange voice coil: 25.4mm
– Horn: Waveguide
– Tweeter dimensions: 2 x 1 ”
– Tweeter dimensions (mm): 25.4 mm
– Tweeter magnet: Neodymium
– Tweeter brand: Custom-made
– Tweeter voice coil: 1 ”
– Tweeter voice coil (mm): 25.4 mm
– Loudspeaker inputs: 1
– Speaker input connections: Custom-made multipin
– Cabinet construction mid/high: Closed
– Mid/Hi system cabinet material: Aluminium
– Mid/Hi system cabinet surface: HD coating
– Mid/Hi system width: 96mm
– Mid/Hi system height: 780 / 795mm
– Mid/Hi system depth: 104mm
– Mid/Hi system weight: 5.6 / 5.6 kg

Amplifier module (integrated in subwoofer)…
– Amplifier: Class D
– Amplifier output system (RMS): 1000 W
– Amplifier output system (peak): 2000 W
– Protection circuits: DC protection, Multiband limiter, Short circuit, thermal overload
– Cooling: Convection
– Operating Temperature: 0 – 40 °C
– Humidity Range: 10% to 80%, (non-condensing)
– Controls: Bluetooth switch, Hi-Z Level, Line level, Main level, Mono/stereo switch, MP3/Bluetooth Level, Power, Sub level
– Indicators: Limit, mono, On, Protect (protection circuit engaged), Setup, Signal, stereo
– Power supply connector: IEC power cable (included)
– Power supply: 100 – 120 V / 50 – 60 Hz or 200 – 240 V / 50 – 60 Hz (automatic switching)
– Power consumption Off / On / Max.: 0/11/600 W
– Line inputs: 2 x stereo
– Line input connectors: RCA, XLR/6.3 mm jack
– Line outputs: 2 (1x System Out, 1x Sub Out)
– Line output connectors: XLR
– Mic inputs: 1
– Mic inputs: XLR/6.3 mm jack
– MP3 inputs: 1
– MP3 input connectors: 3.5 mm jack
– Hi-Z inputs: 1
– Hi-Z input connectors: 6.3 mm jack
– Loudspeaker outputs: 1
– Speaker output connections: Custom-made multipin
