Description
Overview…

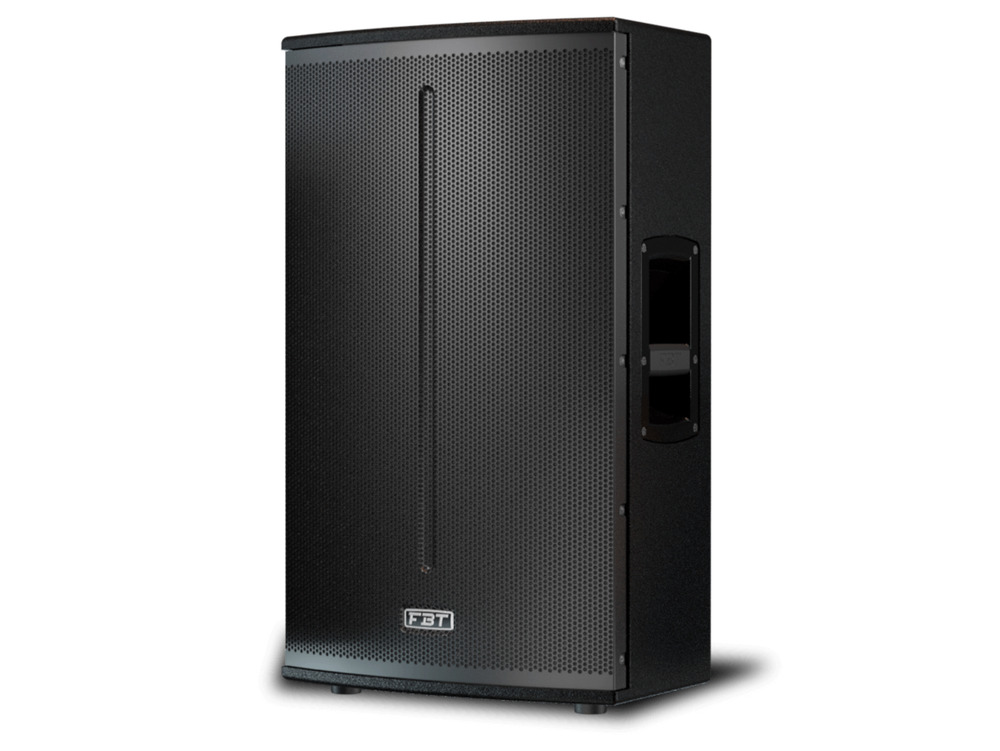

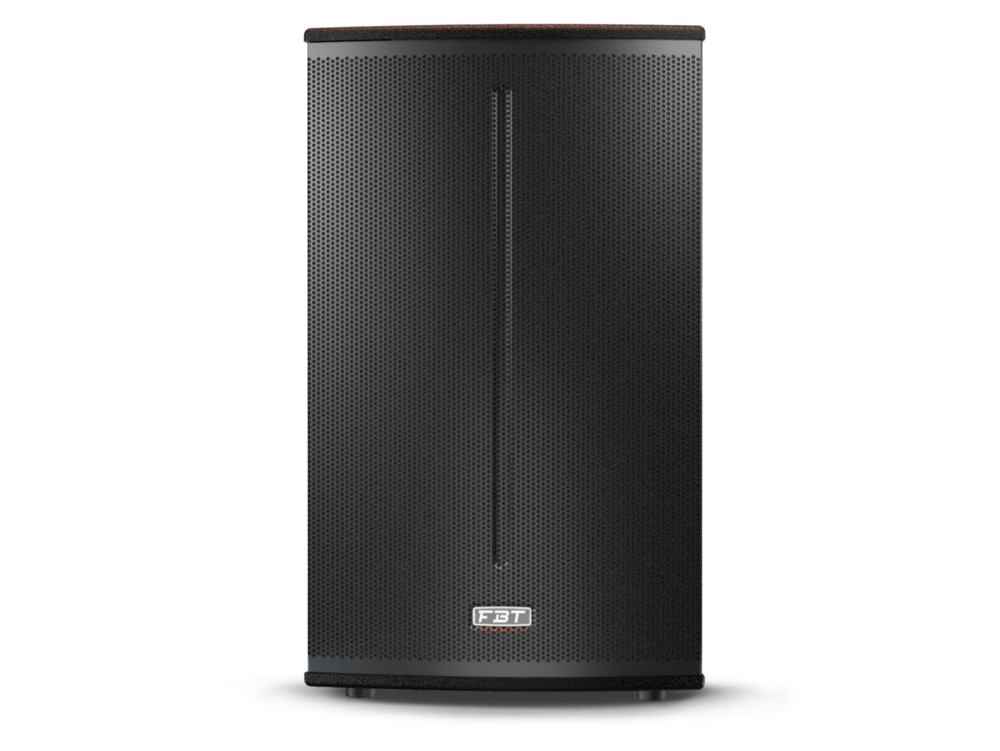

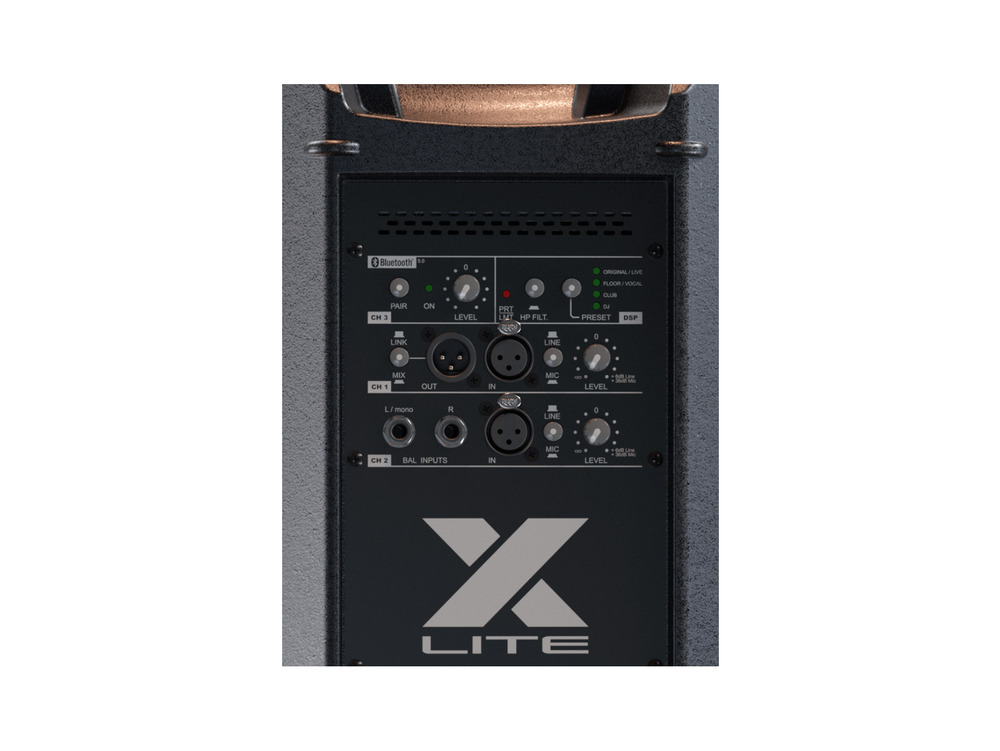

The FBT X-LITE 115A is two way design incorporating a 15” low frequency woofer and 1” HF compression driver coupled to a 90°H x 60°V constant directivity horn. With a frequency range of 42Hz – 20kHz the FBT X-LITE 115A speaker provide high fidelity sound for both speech and music applications with a maximum SPL of 130dB. The bi-amplified FBT X-LITE 115A active speaker feature a 1200W low frequency amp and a 300W high frequency amp. The control panel features a three-channel mixer with two micro-line inputs, a stereo input and a dedicated channel for Bluetooth 5.0; two XLR inputs, stereo input, XLR output with ch1 or mix link selector, hp filter, two mic-line selectors, DSP preset selector, Bluetooth 5.0 with pairing led. 4 x M10 rigging points built-in into the cabinet along with the optional mounting brackets allow the FBT X-LITE 115A speaker to be surface mounted on walls or ceilings.
The asymmetrical shape of the FBT XLITE 115A cabinet also allows use as a powered floor stage monitor.
A standard 1.38” speaker stand socket allows the FBT X-LITE 115A to be mounted on speaker stand.
Key Features…
– 2-way bi-amplified system in bass reflex
– Polypropylene molded enclosure
– Woofer custom 15” (LF) / 2.5” voice coil
– 1” throat / 1,4” voice coil HF compression driver
– 1200/300W built-in amplifier (LF/HF)
– Bluetooth 5.0
– 3-channels mixer
– 4 DSP presets
– 30° or 45° monitor taper
– Universal switching mode power supply 100-240Vac
– M10 rigging points
Tech Spec…
Configuration: 2 way
Built-in Amplifier LF/HF: 1200W 300W
Frequency Response: 42Hz – 20kHz
Low Frequency Woofer: 15″ (2.3″ coil)
High Frequency Driver: 1″ (1.4″ coil)
Maximum SPL Cont/Peak: 125/130dB
Dispersion: 90° x 60° (HxV)
Input Connector: XLR In/Thru, 2x RCA, 2x 6.35mm Jack
Power Cord: 3mt IEC
Net Dimension (WXHXD): 433 x 706,5 x 400 mm
Net Weight: 19kg
Transport Dimension (WXHXD): 500 x 770 x 470 mm
Transport Weight: 22kg
