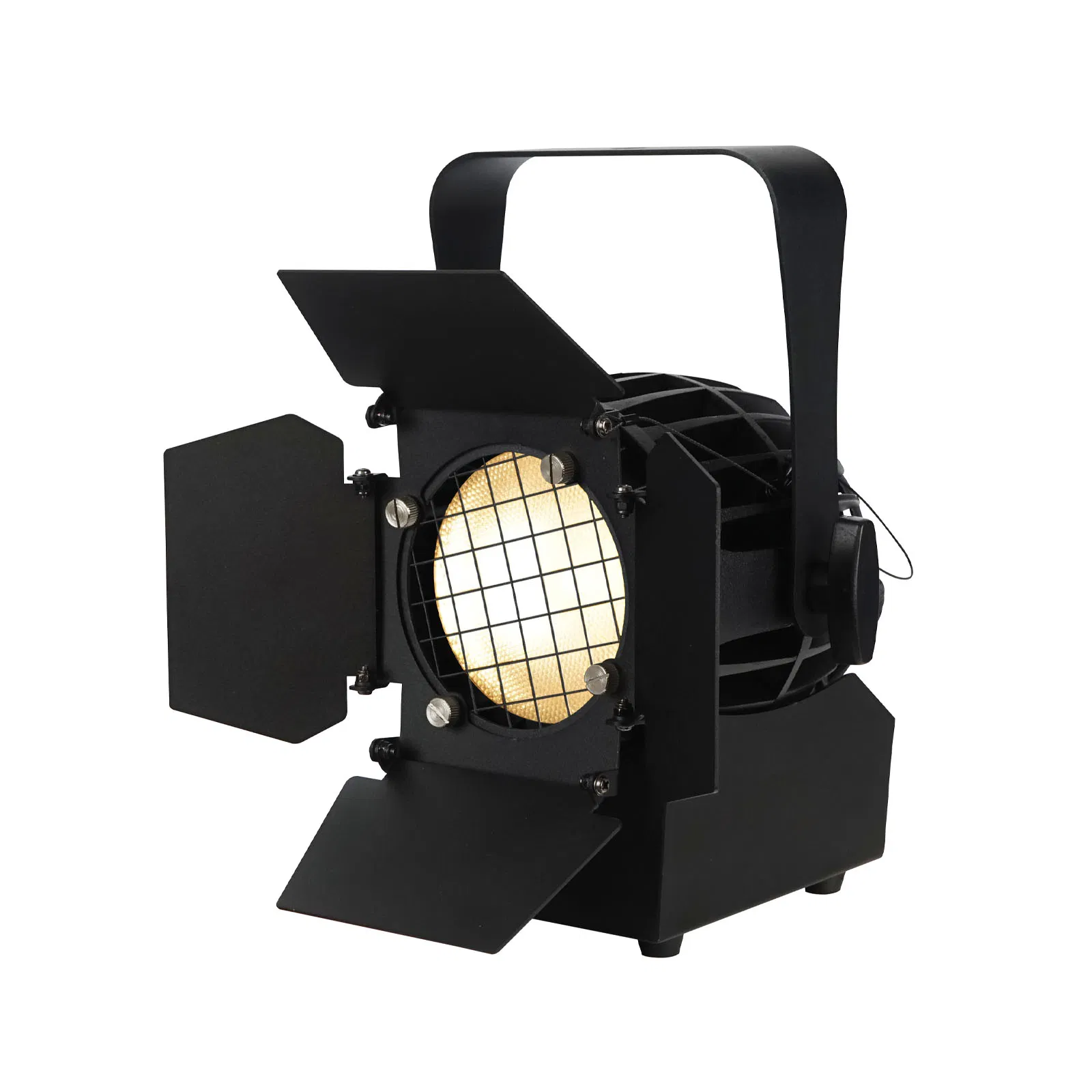

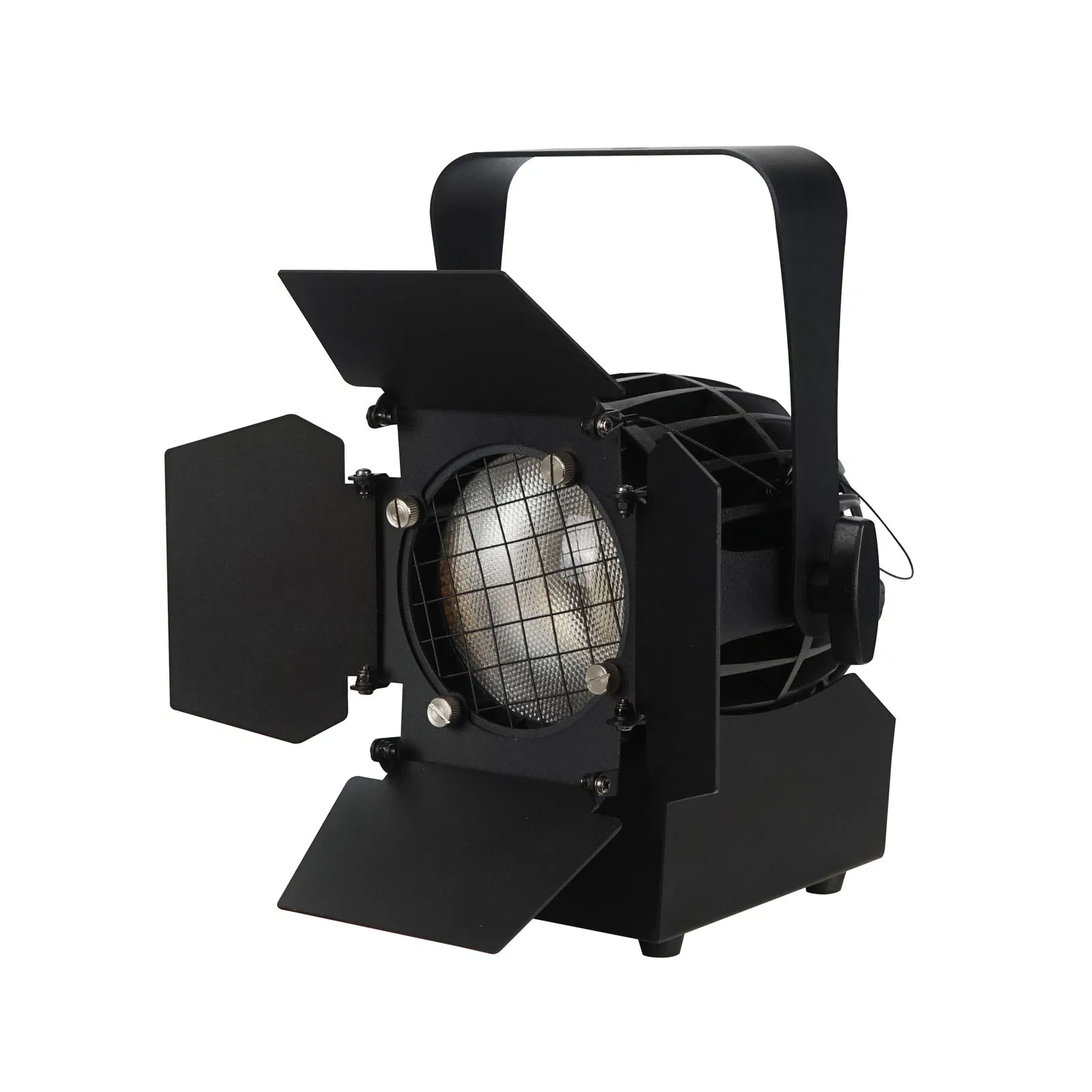

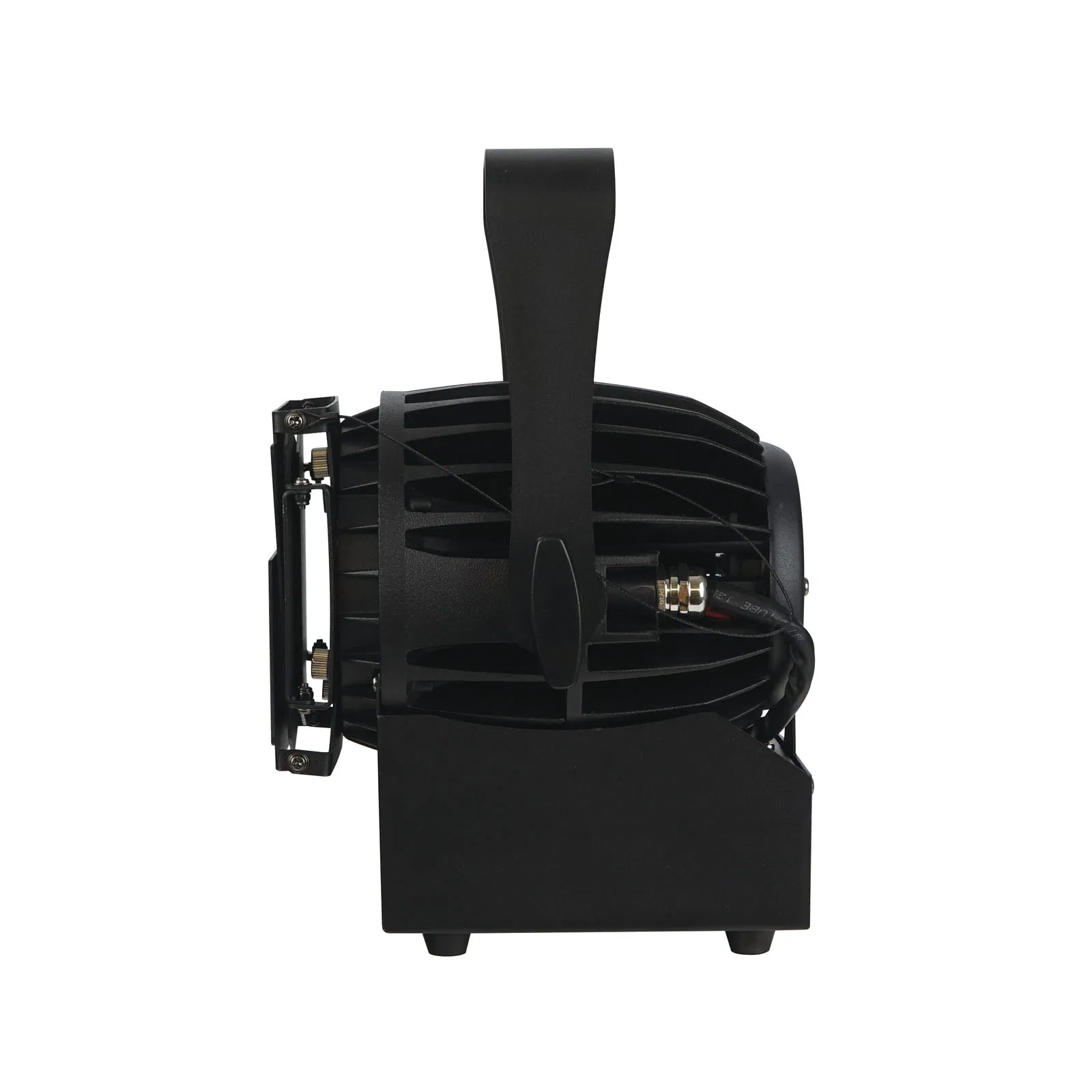

The Equinox Junior 150 Fresnel is a compact and robust stage lighting fixture designed for small stages, studios, and display lighting applications. This general-purpose Fresnel LED light delivers impressive light output from its 150W warm white COB LED source, offering a consistent 2,900K colour temperature and high CRI rating of 90 for natural colour rendering.

With a fixed 40° beam angle, the Junior 150 provides an even wash of light and is perfect for environments where space is at a premium but professional-grade lighting is required. The intuitive 4-button menu with LED display allows for selection of DMX or manual dimming modes, as well as access to multiple dimming curve profiles including LED and halogen emulation.

This fixture is RDM compatible, supports 1 or 3 DMX channel modes, and includes PowerTwist and 3-Pin XLR input/output for reliable connectivity. Supplied with barn doors and fitted with a temperature-controlled fan, the Junior 150 Fresnel is both efficient and quiet — ideal for theatre, studio, or fixed installations.

Key Features…
– 1 x 150W warm white COB LED (2,900K)
– Beam angle: 40°
– CRI Ra: 90
– Refresh rate: 11.8kHz
– DMX channels: 1 or 3 selectable
– RDM (Remote Device Management)
– Manual and primary/secondary modes
– 0-100% dimming
– Dimming curves: LED and halogen profiles (Linear, square law, inverse square law, S-curve)

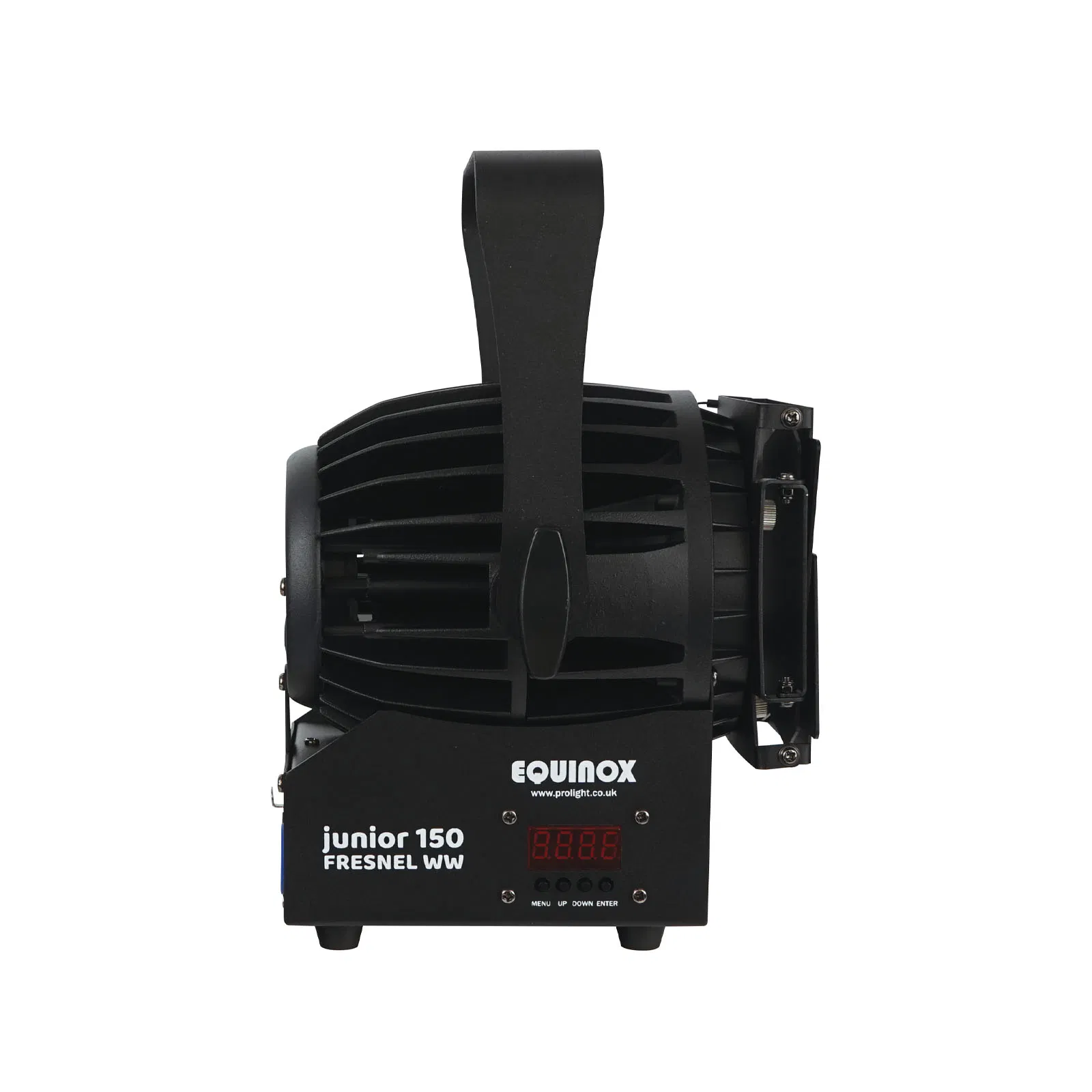

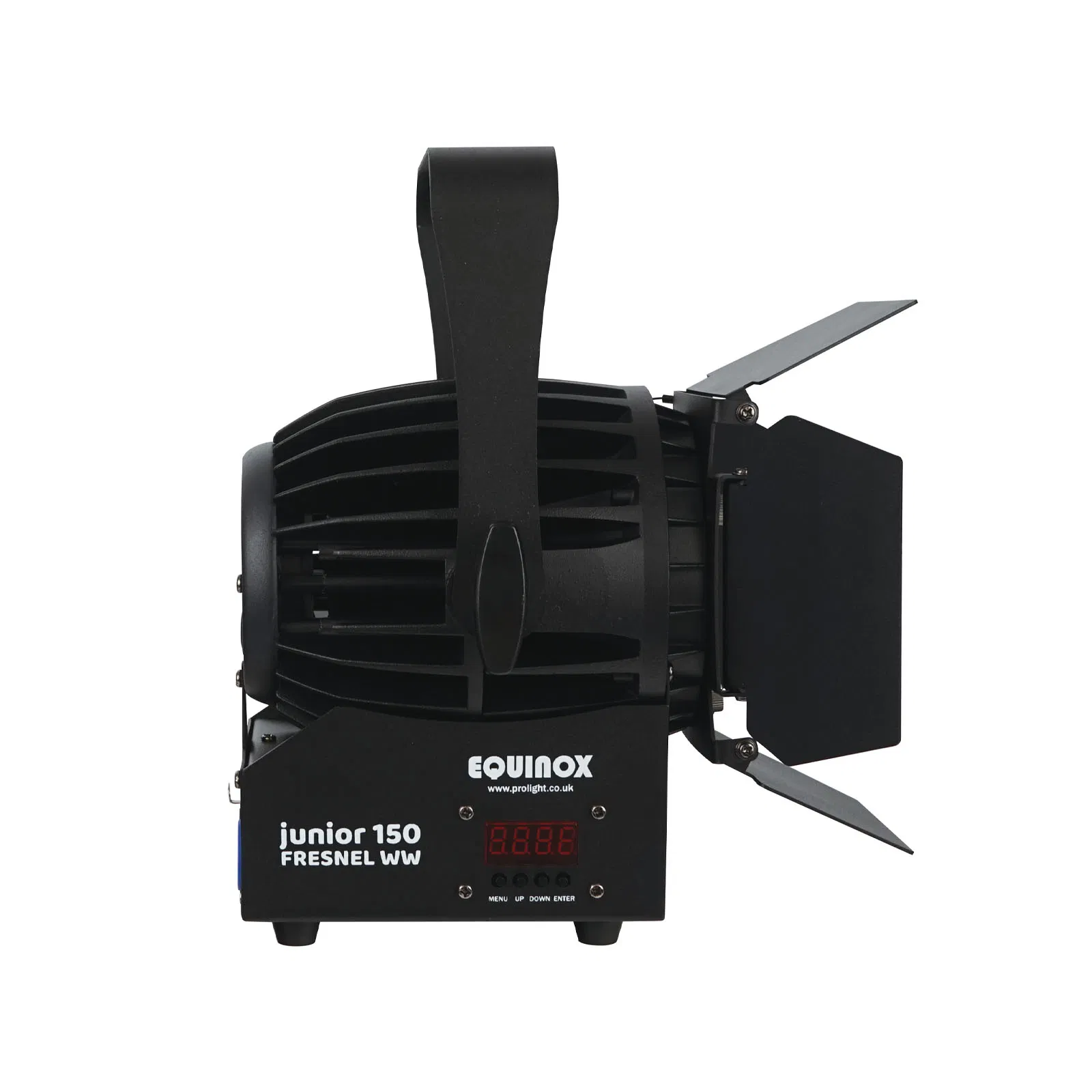

– 4 button menu with LED display

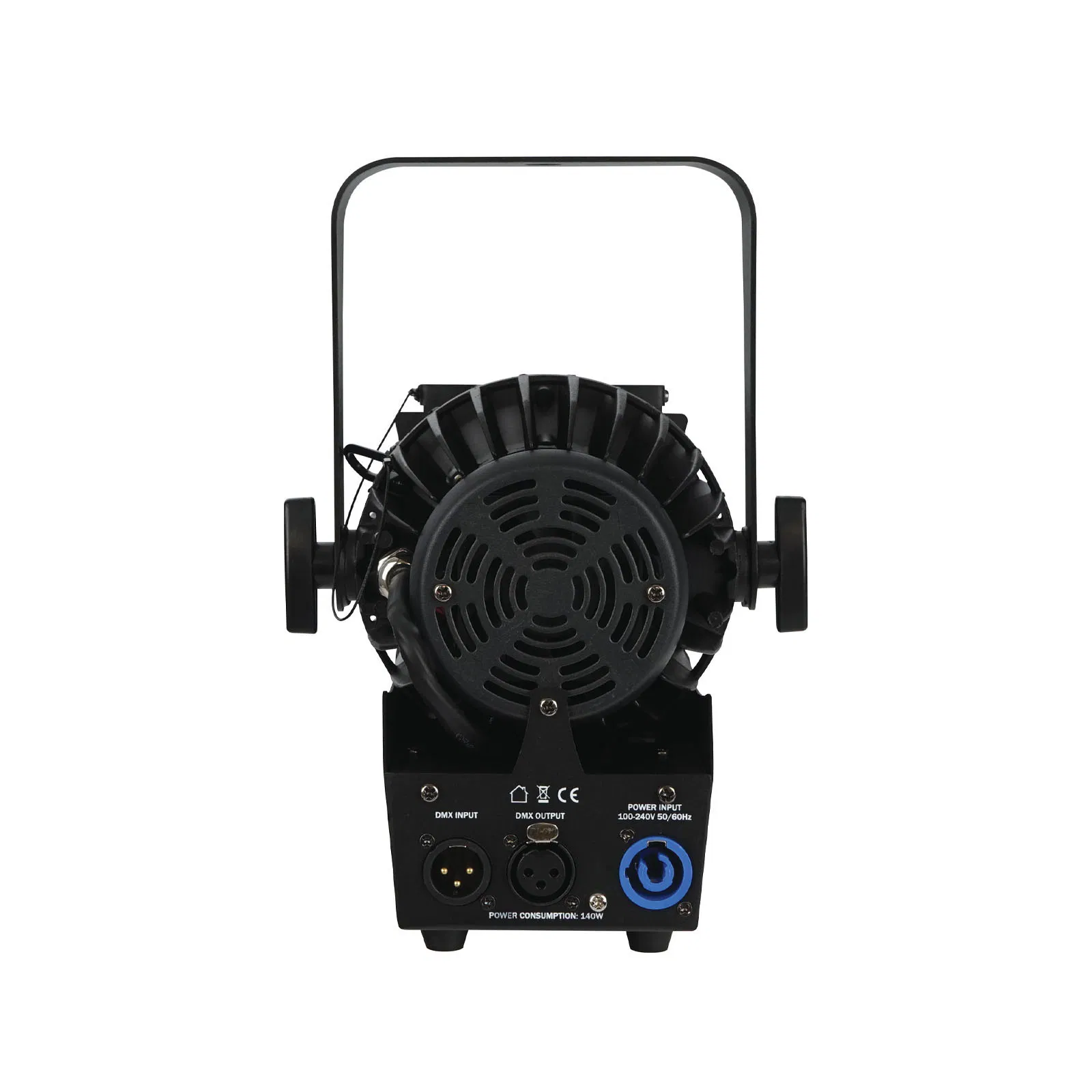

– PowerTwist input
– 3-Pin XLR input/output

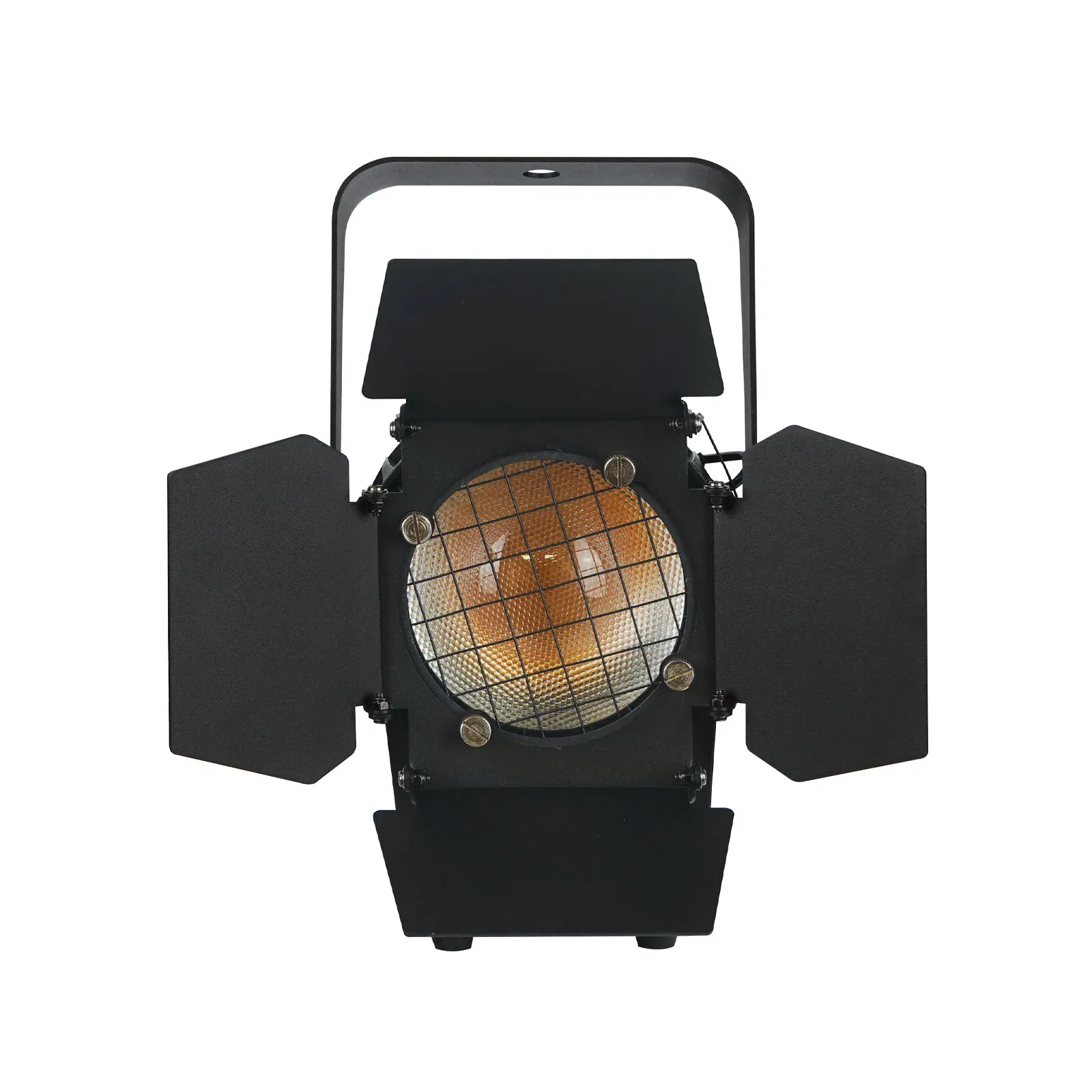

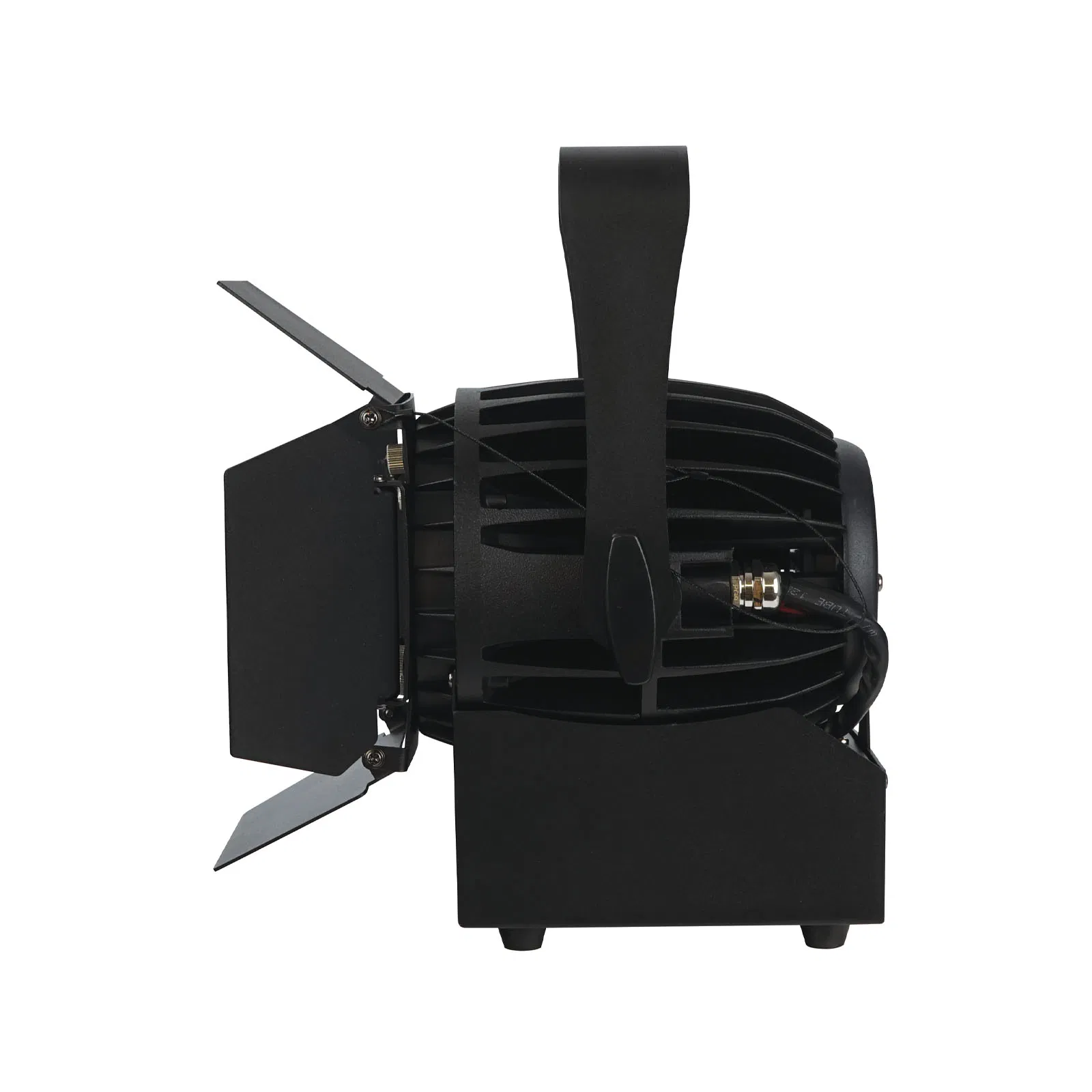

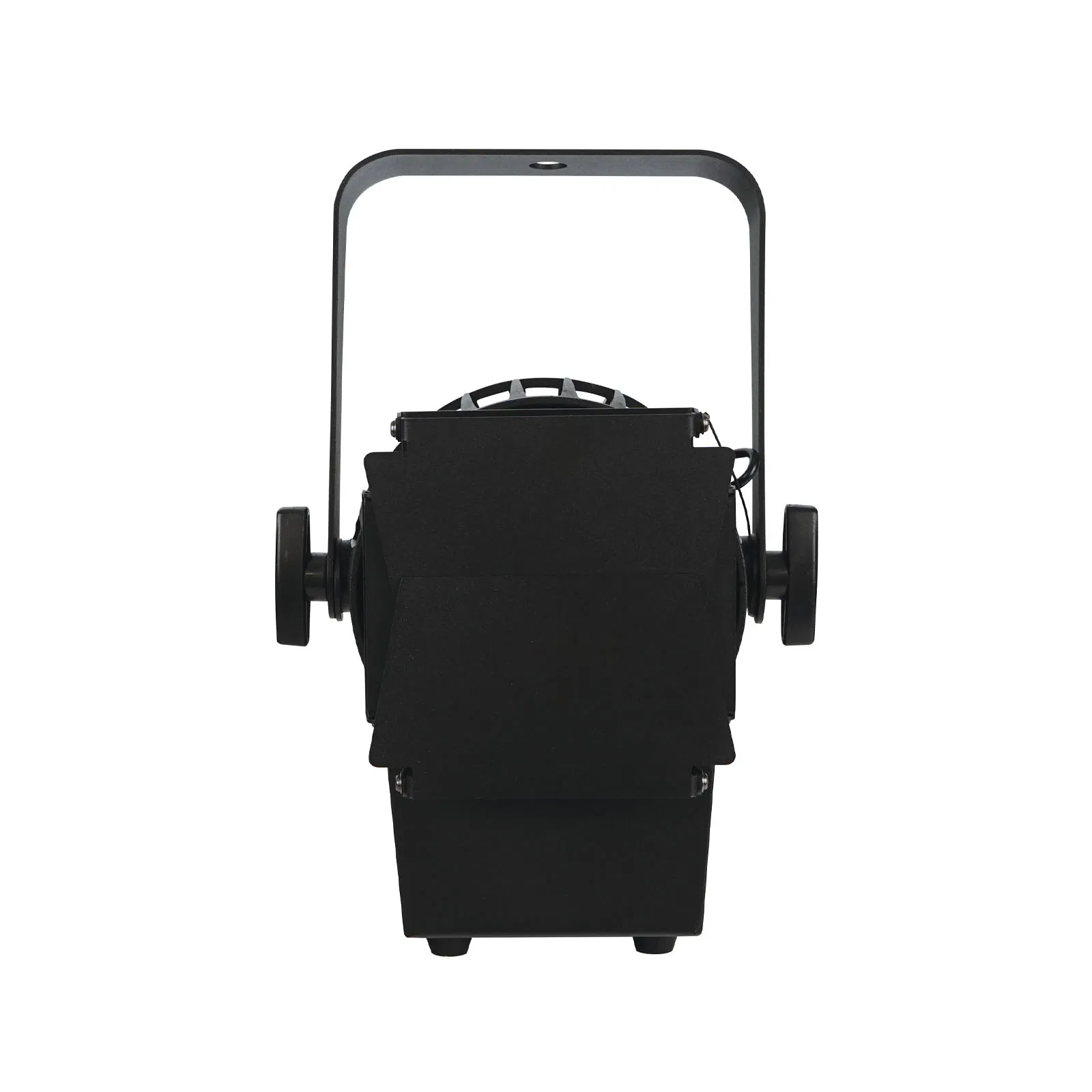

– Barn doors included
– Temperature controlled fan

Tech Spec…
– Power consumption: 140W
– Power supply: 100~240V, 50/60Hz
– Fuse: F3A 250V
– Dimensions (H x W x D): 265 x 185 x 152mm
– Weight: 2.9kg
