Description

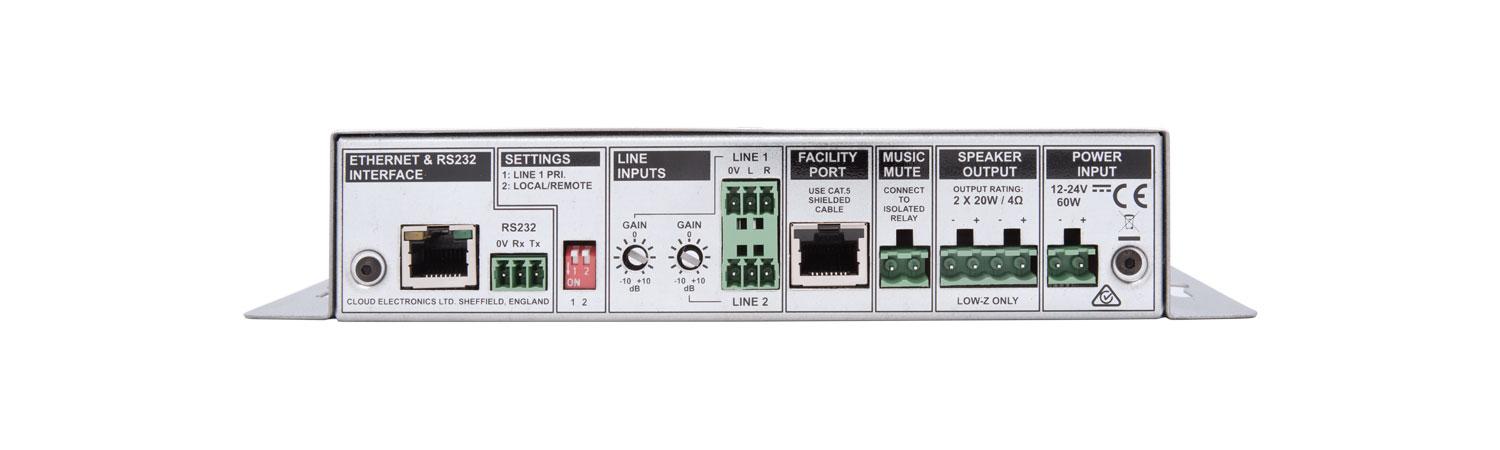

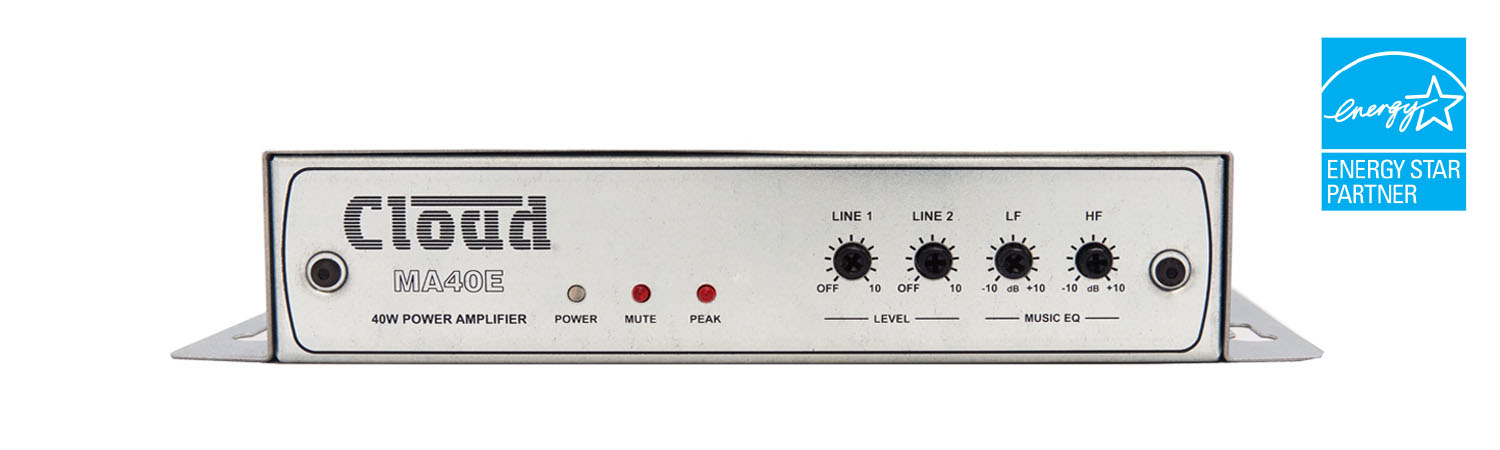

The MA40E is a mini amplifier providing 2 x 20W Stereo Output at 4Ω (low impedance). It is fitted with an Ethernet and RS232 interface, two line inputs and a facility port input option allowing connection of the LM-2 wall input module and the new Cloud BT-1F Bluetooth Audio Wireless input module.

ENERGY STAR ® Tested & Certified providing extensive power saving and energy consumption saving features such as Auto Power Down (APD) and rapid waking.

The MA40E is powered via a 12-24V power supply and offers music mute functionality to allow simple connection to fire alarm and other interfaces and provides a great bridge between centralised and de-centralised solutions.

Features

• 2 x 20W 4Ω Stereo Output
• 2 stereo line inputs with individual input gain
• Line 1 Priority Input
• ENERGY STAR ® Certified
• APD – Auto Wake & Hibernation

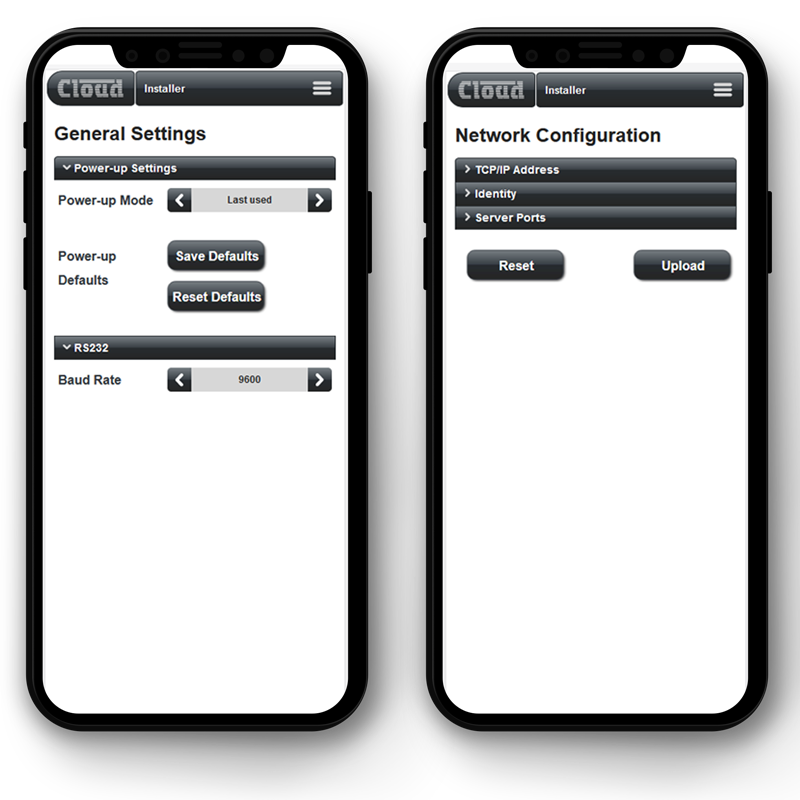

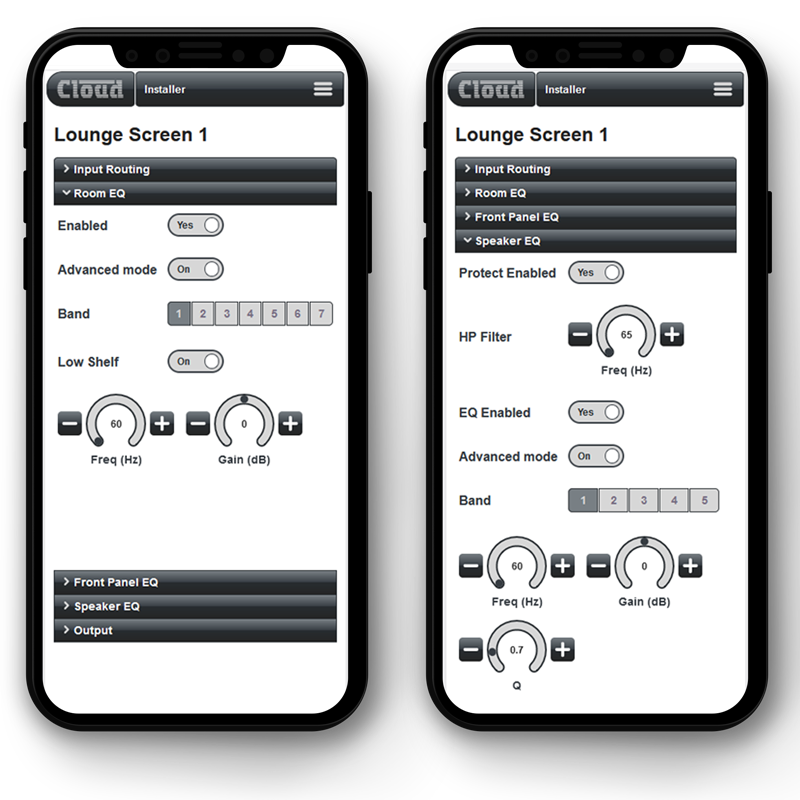

• Ethernet / RS232 Level / Source / EQ Control
• Facility Port Input
• Music Mute
• 12-24V Power Supply

Specifications

Line Inputs

• Frequency Response:  20 Hz to 20 kHz, ±1 dB
• Sensitivity:  195 mV (-12 dBu) to 2.0 V (+8 dBu)
• Input impedance:  >10 kohm (balanced/unbalanced)
• Headroom:  12 dB
• Noise:  <-90 dB (22 kHz bandwidth)
• Equalisation:  HF: ±10 dB @ 10 kHz; LF: ±10 dB @ 50 Hz

Microphone Input

• Frequency Response:  -3 dB @100 Hz (fixed filter) to 20 kHz, ±1 dB
• Sensitivity:  2.45 mV (-50 dBu) to 245 mV (-10 dBu)
• Input Impedance:  3.3 kohms (balanced)
• Phantom Power:  12 V, selectable by jumper
• Headroom:  16 dB
• Noise (EIN):  <-126 dBu
• Equalisation:  HF: ±10 dB @ 5 kHz LF: ±10 dB @ 100 Hz

Facility Input

• Frequency Response:  20 Hz to 20 kHz, ±1 dB
• Sensitivity:  0.775 V (0 dBu)
• Input impedance:  10 kohms (balanced)
• Headroom:  18 dB
• Noise Gate:  -60 dB

Main Outputs

• Output Power (1 kHz continuous sine wave)
  • 24-120:  120 watts per zone nominal; 240 W total available in Power Sharing mode
  • 24-240:  240 watts per zone maximum
• Minimum load
  • Low-Z output:  4 or 8 ohms
  • High-Z output
    • 70 V-line
      • 24-120:  41 ohms
      • 24-240:  20.5 ohms
    • 100 V-line
      • 24-120:  66 ohms
      • 24-240:  33 ohms
• Frequency response
  • Low-Z output:  20 Hz to 20 kHz, ±1 dB
  • High-Z output:  20 Hz to 20 kHz, ±1 dB (65 Hz filter off)
• THD + N:  < 0.05% @ 1 kHz
• Protection:  Fixed level signal limiter: DC, over-current and over-temperature protection

Utility and Auxiliary Outputs

• Nominal output level:  0 dBu (0.775 Vrms), balanced
• Noise:  <-90 dB, 22 kHz bandwidth

General

• Power Input:  Universal type, 85 to 265 VAC, 45 to 65 Hz
• Fuse details
  • 24-120:  5 x 20 mm, time delay, T4A
  • 24-240:  5 x 20 mm, time delay, T5A
• Normal operating temperature:  0 °C to 35 °C (Note: performance and specifications cannot be guaranteed outside of this range)
• Cooling:  Forced air cooling (front to side)
