Description

– Powered by 500pcs of high output SMD5050 RGB LEDs that produce a vast array of colourful moving effects and washes
– 3, 5, 20 or 300 channel DMX modes
– Art-Net Control for easy Pixel map Setup

Overview…

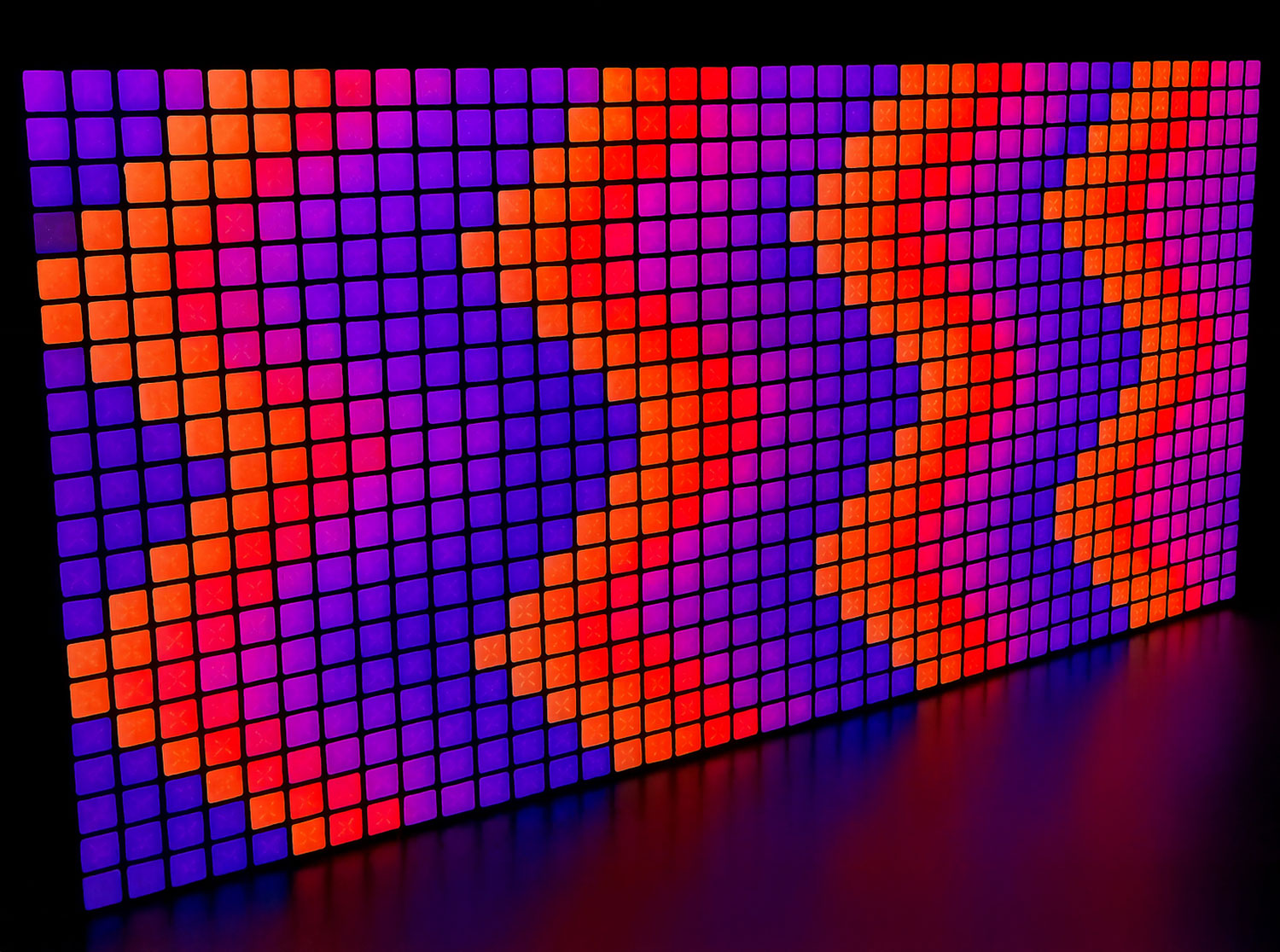

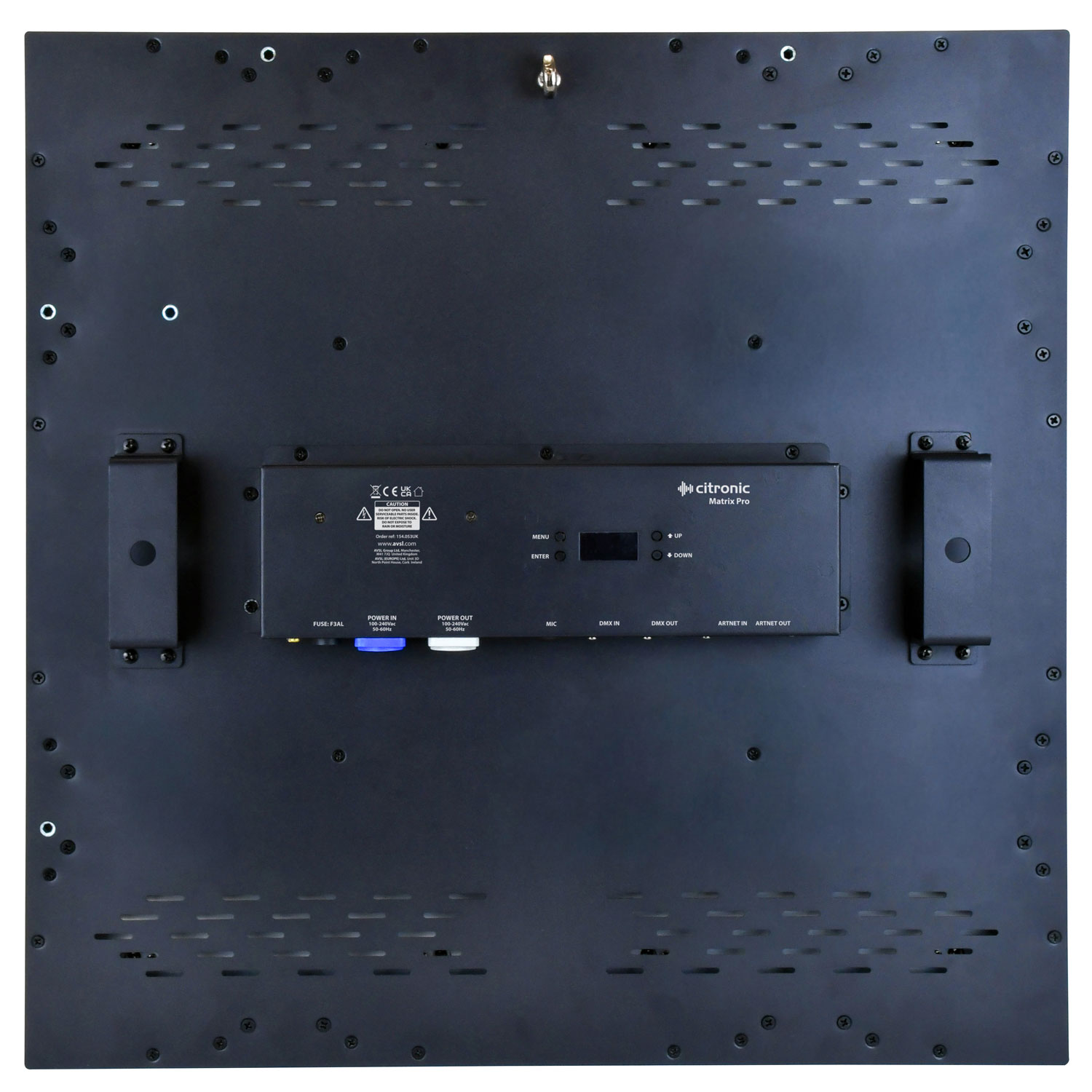

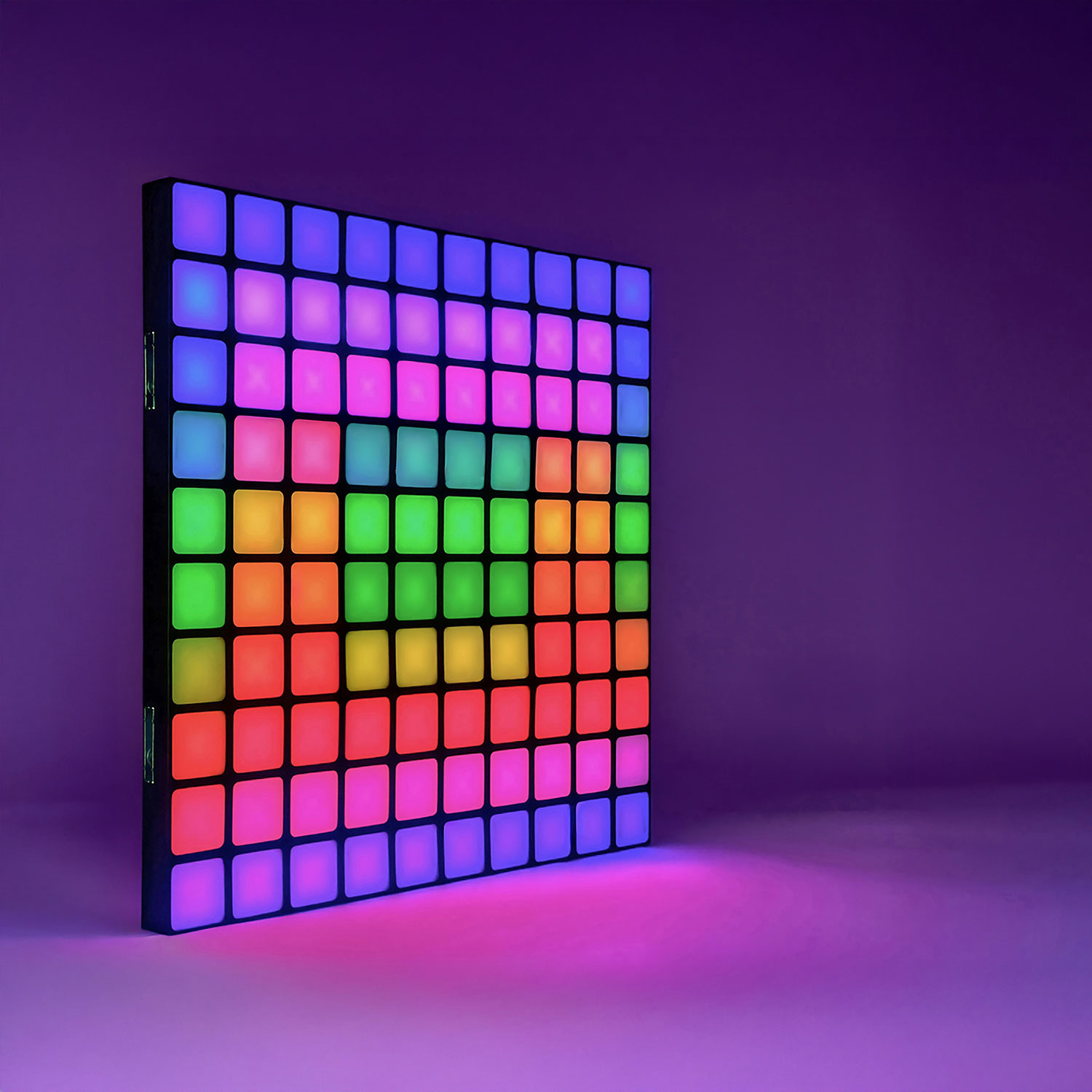

Powered by 500pcs of high output SMDs, the Citronic Matrix Pro can produce a vast array of colourful moving effects and washes. Internal auto, sound activated, and static programs can easily be controlled by the digital control panel on the back of the unit, alternatively the Matrix Pro can be operated remotely by Art-Net or DMX in either 3, 5, 20 or 300 channel modes if required. Intelligent fan control and temperature protection keep the unit cool during longer operations and twist and lock power connections complete the professional outlook. The Matrix Pro can be mounted on trussing in any direction using the provided fixing clamps. Integrated connections on all 4 sides also allow the fixture to be quickly connected to multiple units producing an amazing wall of brilliant colors, ideal for stage backgrounds and larger events.

Key Features…
– Powered by 500pcs of high output SMD5050 RGB LEDs that produce a vast array of colourful moving effects and washes
– 3, 5, 20 or 300 channel DMX modes
– Art-Net Control for easy Pixel map Setup
– Automatic, Static and sound modes that can be tailored to your requirements using additional speed, strobe and sensitivity settings
– Twist and lock power connections for a more professional feel
– Intelligent fan control and temperature protection

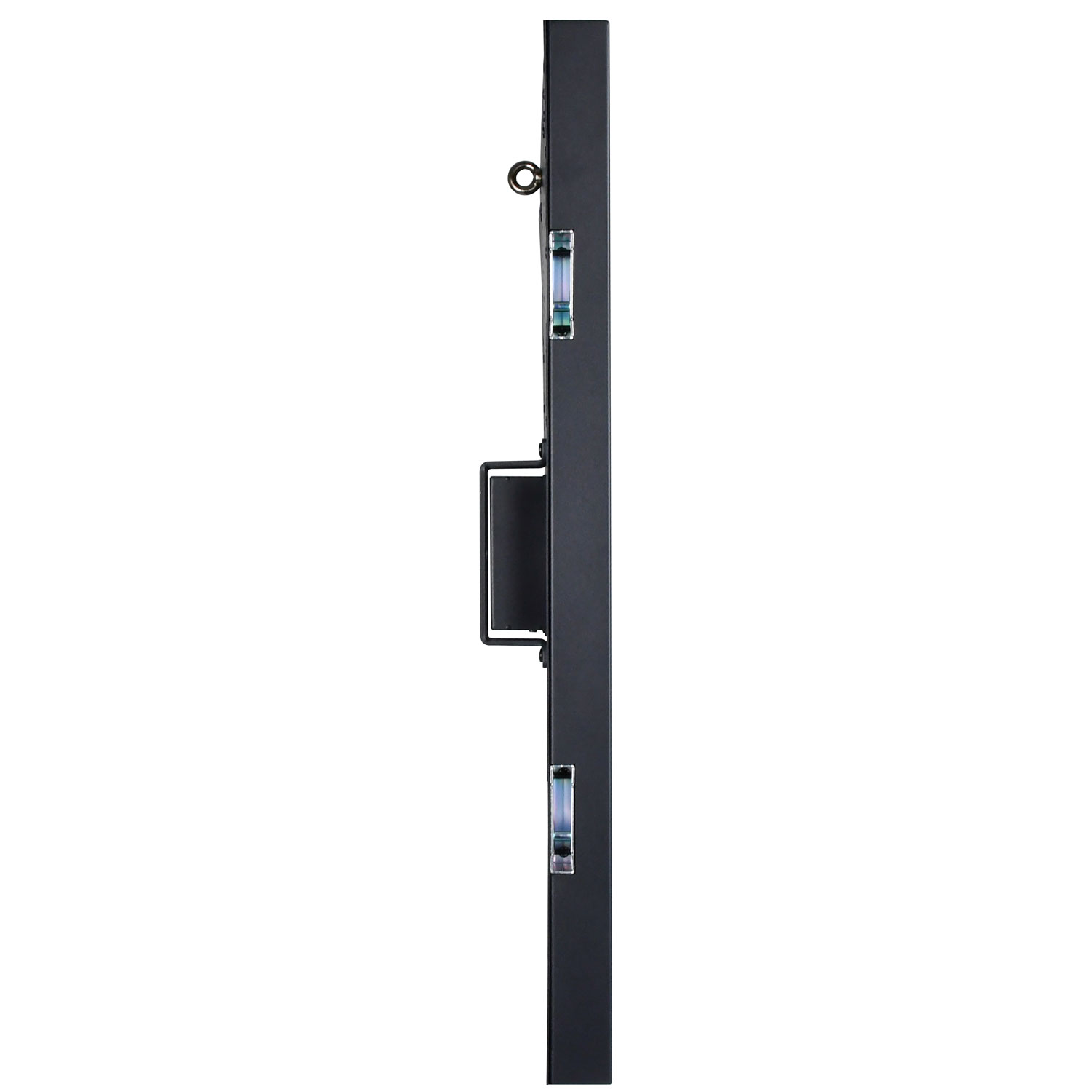

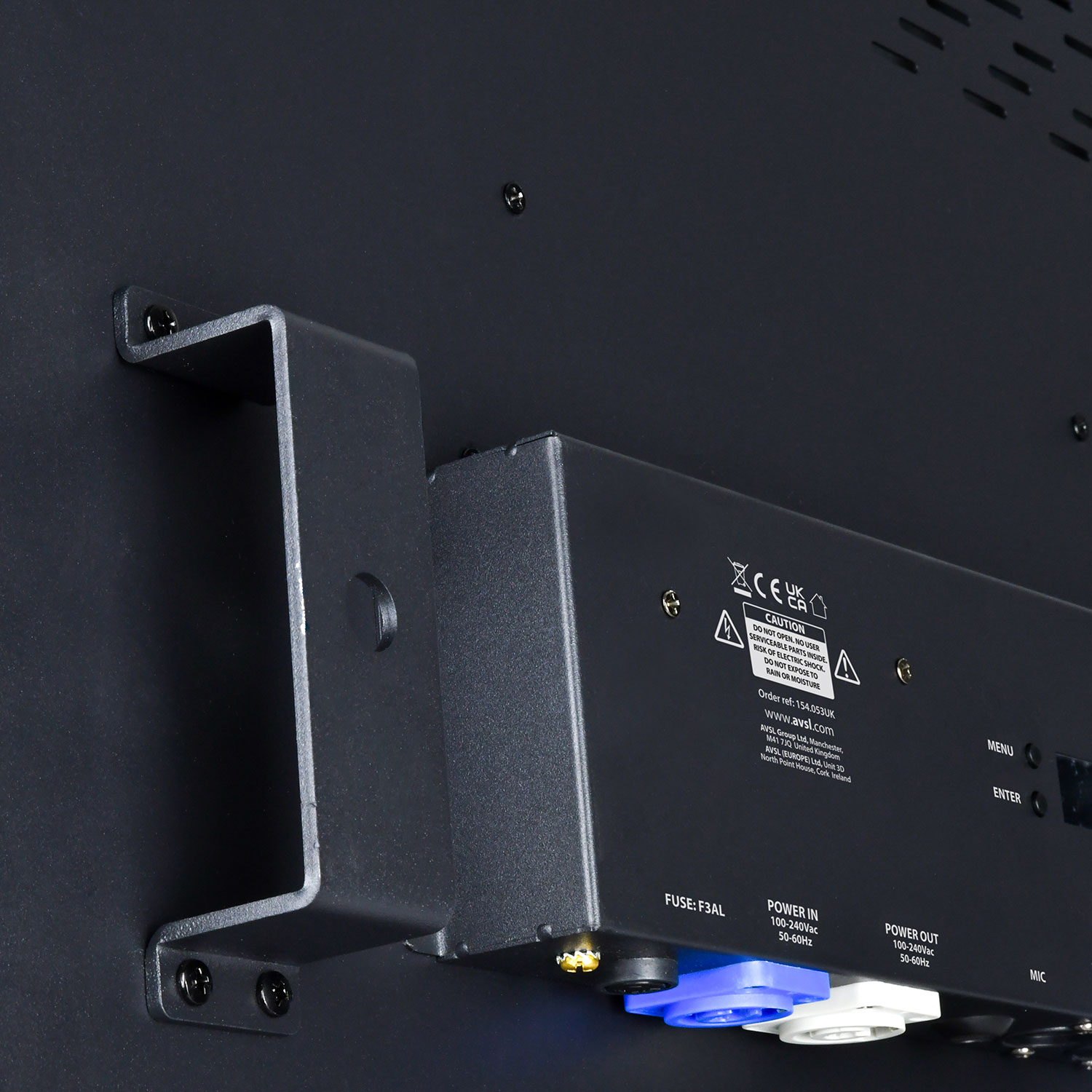

– Mount to trussing using the Vertical Mounting Brackets supplied or via the attached rear brackets.
– Connect horizontally and vertically to more units, using the integrated connectors
– Maximum of 10 units may be hung vertically

Tech Spec…
– LED type: 500Pcs SMD 5050 3-in-1 RGB LEDs 0.2w each
– Effects: RGB colour mixing, Linear dimming 0-100%, Strobe 0-25 times per second
– Modes: Auto, Sound, Static, DMX, Art-Net, Master/Slave
– DMX channels: 3, 5, 20 or 300CH
– DMX connection: 3 Pin DMX (In/Out) or RJ45 (In/Out)
– Power connection: Power in/out (twist and lock)
– Power supply: 110-240Vac, 50/60Hz
– Power consumption: 120 W
– Dimensions: 70mm x 550mm x 550mm
– Weight: 6.6Kg

In the Box…
– Matrix Pro Panel
– 1m RJ45 Cable
– Twist and lock UK mains lead (1.5m)
– 2 x Vertical Mounting Brackets
– 2 x Hex Keys
– User Guide
