Overview…

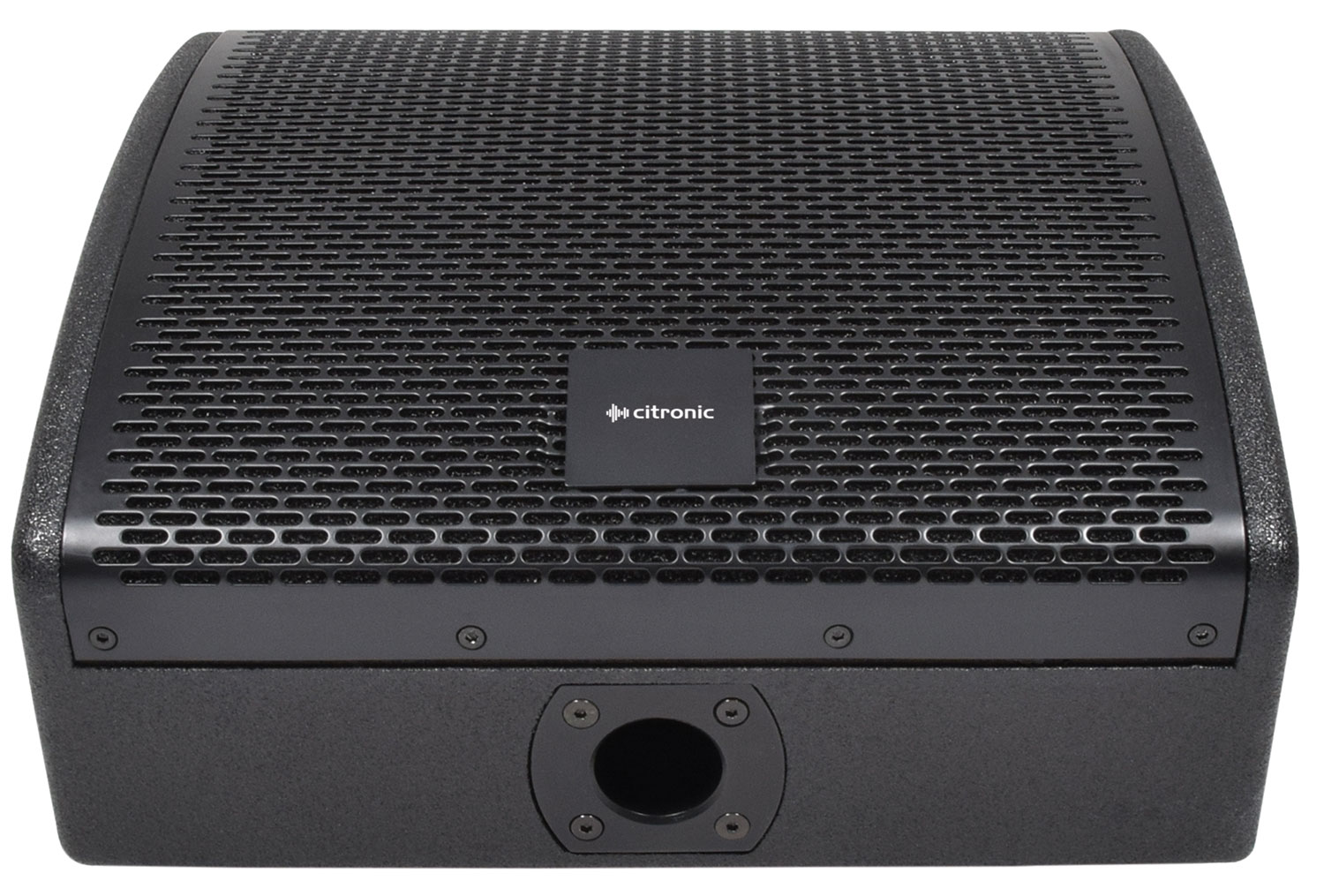

Passive wedge speaker in a durable, texture coated plywood cabinet with minimal footprint. The 10″ main driver delivers punchy low frequencies with the help of 2 bass ports and a concentric titanium tweeter is mounted within the main driver for perfectly aligned, sparkling high frequencies. An arched powder-coated steel grille provides heavy duty protection from the rigours of stage performances and forms 2 side handle holes for easy portability. A pair of twist-lock SPK connectors are wired in parallel to accept input from an amplifier and enable connection onto a further CM10 speaker if required. The compact size and high power handling means that this is a very capable unit for stage foldback but can equally serve as a compact PA speaker, thanks to its 35mm pole-mount socket and M8 flying points.

Tech Spec…

• 250Wrms power handling (450W peak)
• Concentric HF driver
• Compact cabinet with minimal footprint
• 2 side handles and 35mm pole-mount socket
• Main driver: 250mmØ (10″) with concentric tweeter
• Impedance: 8 Ohms
• Voice coil: 50mmØ (2″)
• Magnet weight: 1.13kg (40oz)
• HF driver: 44mmØ (1.75″) Ti compression driver
• Power handling: rms 250W
• Power handling: peak 450W
• Inputs: 2 x SPK connectors (parallel pins 1±)
• Frequency response: 65Hz – 20kHz
• Sensitivity: 95dB
• Dimensions: 355 x 350 x 275mm
• Weight: 8.636kg
