Description

● 19″ rack mountable CD player
● Vari-Speed control
● Plays CD, Bluetooth connectivity, 3.5mm AUX input
● The ideal solution for health & fitness centres
● Hard-wearing and excellent quality

Overview…

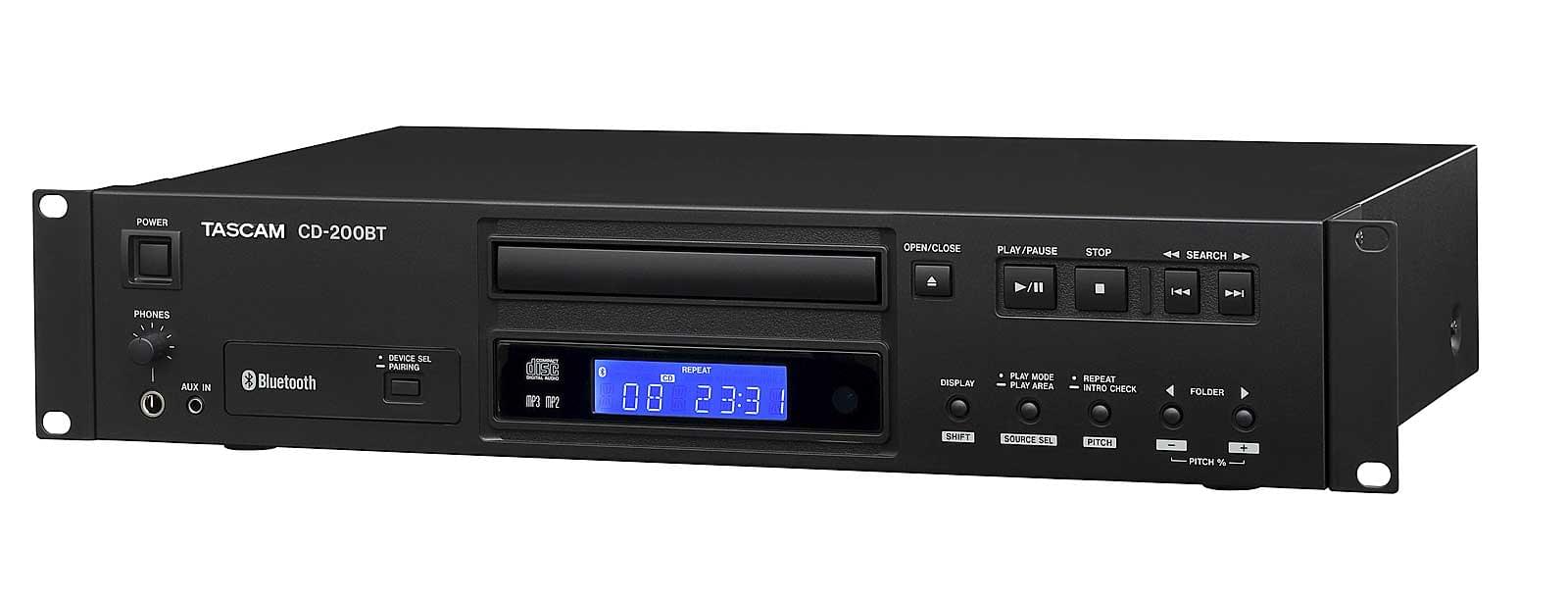

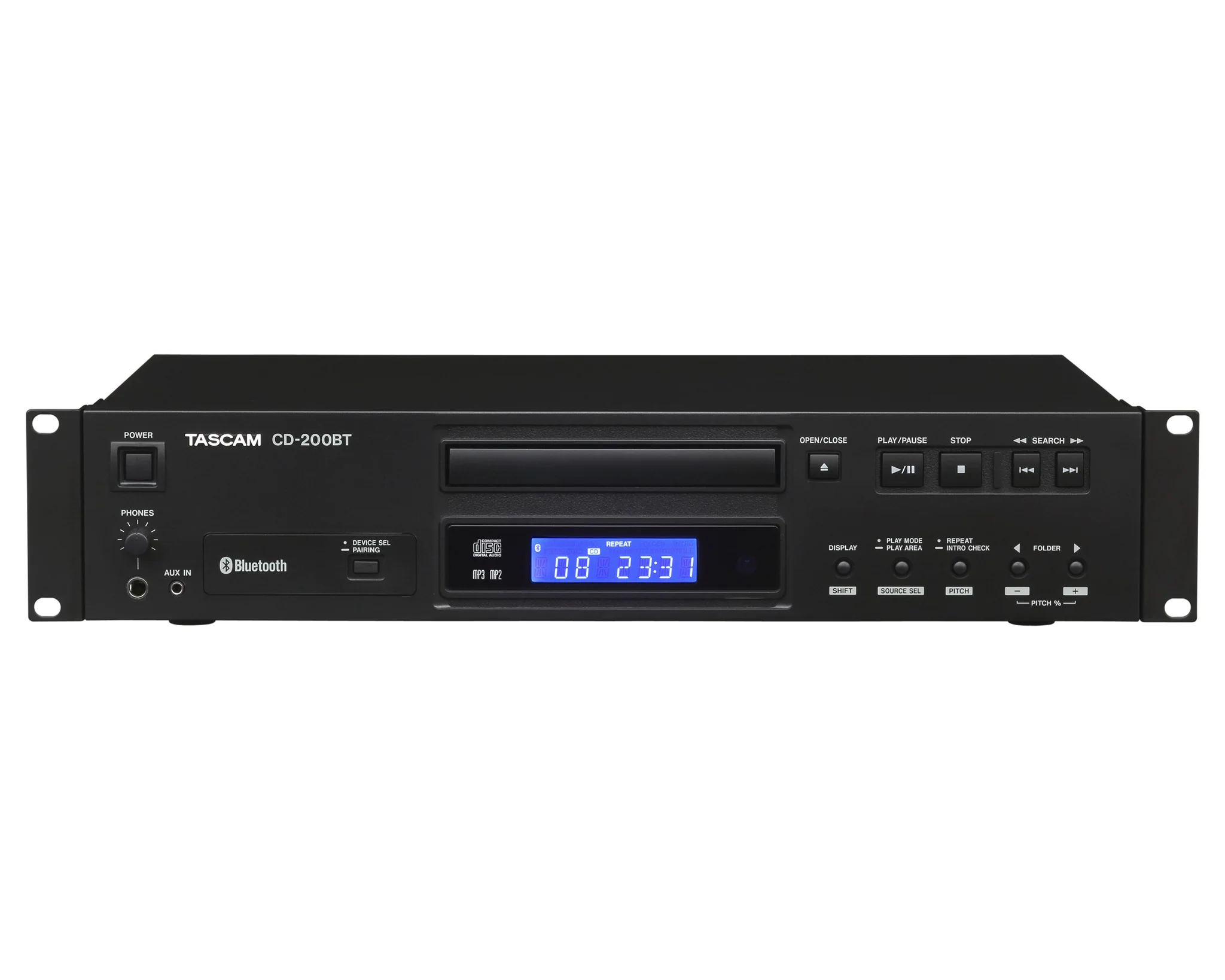

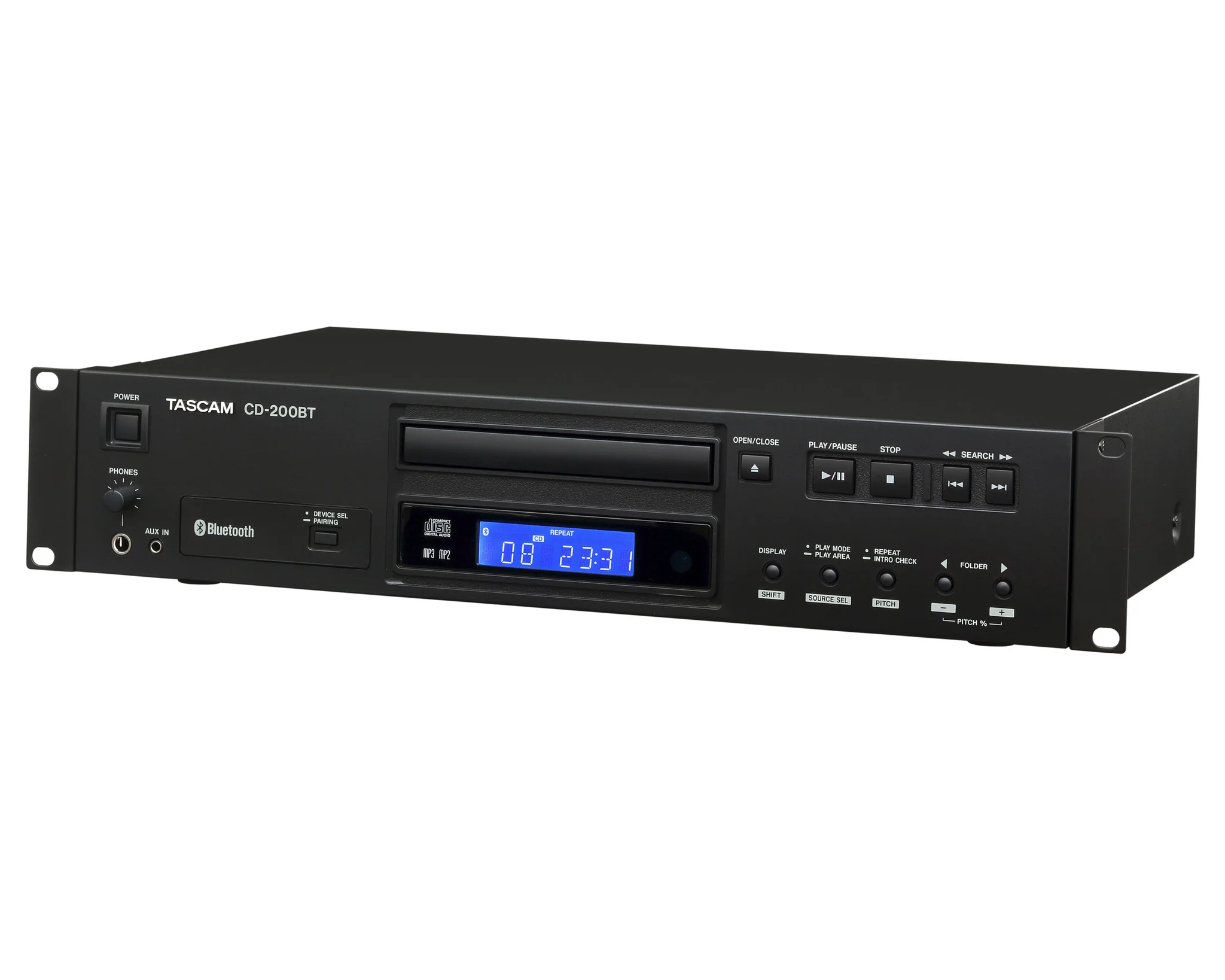

The CD-200BT is the next highly anticipated model in the top selling “CD-200” series. It is designed to meet the increasing demand for playback from various audio formats and devices compatible with Bluetooth® technology.

Users can pair up to 8 Bluetooth devices at a time in order for quick switching and playback. Also supported is the use of the aptX® codec to ensure a much higher quality and more reliable audio signal transmitted via Bluetooth. The unit is equipped with controls for fast track/file selection, multiple playback modes, ±14% pitch control and also includes a wireless remote control. Like all models in the signature “CD-200” series, the CD-200BT features Tascam’s esteemed CD-5020A transport to provide quiet playback, smooth loading and longevity while being outfitted with shockproof memory. To ensure easy set-up in any system, there are stereo line RCA, coaxial and optical audio outputs, as well as a headphones output with level control for monitoring.

The CD-200BT is the perfect 2U rack-mountable addition to any commercial or public space audio install. With its wide array of options and playback features the CD-200BT can meet nearly any demands one might encounter for reliable, high-quality audio playback.

DN-500CB is a highly-versatile yet affordable media player that excels in applications where users bring their own devices for education, instruction or entertainment. The DN-500CB plays not only CD media but provides Bluetooth connectivity, USB playback and a 3.5mm AUX input. Perfect for retail, education, and hotel/conference applications, this player has features normally found on higher-priced players, such as Bluetooth Pairing, Front Panel Lock, Power On Play, direct access to tracks, memory of settings after loss of power, and balanced XLR output.

Key features…
– Easy-to-use, affordable CD player with Bluetooth receiver
– Various playback options: Audio CD playback, MP3 and WAV file playback from CD, Internet radio or network file playback via a Bluetooth connection with a smartphone or computer, Playback from other audio sources via AUX IN connector
– Bluetooth apt-X codec provides high quality audio transmission with low latency (AAC and SBS are also supported)
– Up to eight different Bluetooth devices are memorized and can easily be selected with a dedicated button
– High-quality TEAC audio CD drive (supports CD-R and CD-RW)
– Folder selection for MP3 and WAV CDs
– Continuous, Random and Program playback modes
– Repeat playback (Single, All, Folder)
– Intro Check feature
– CD text and ID3 tag support to display artist and track information if available
– Time display (CD-DA: Elapsed, Remain, Total Remain; MP3: Elapsed)
– ±12.5 % pitch control
– Anti-shock memory
– >Headphones output with level control
– Analogue output (RCA)
– SPDIF digital outputs (coaxial and optical)

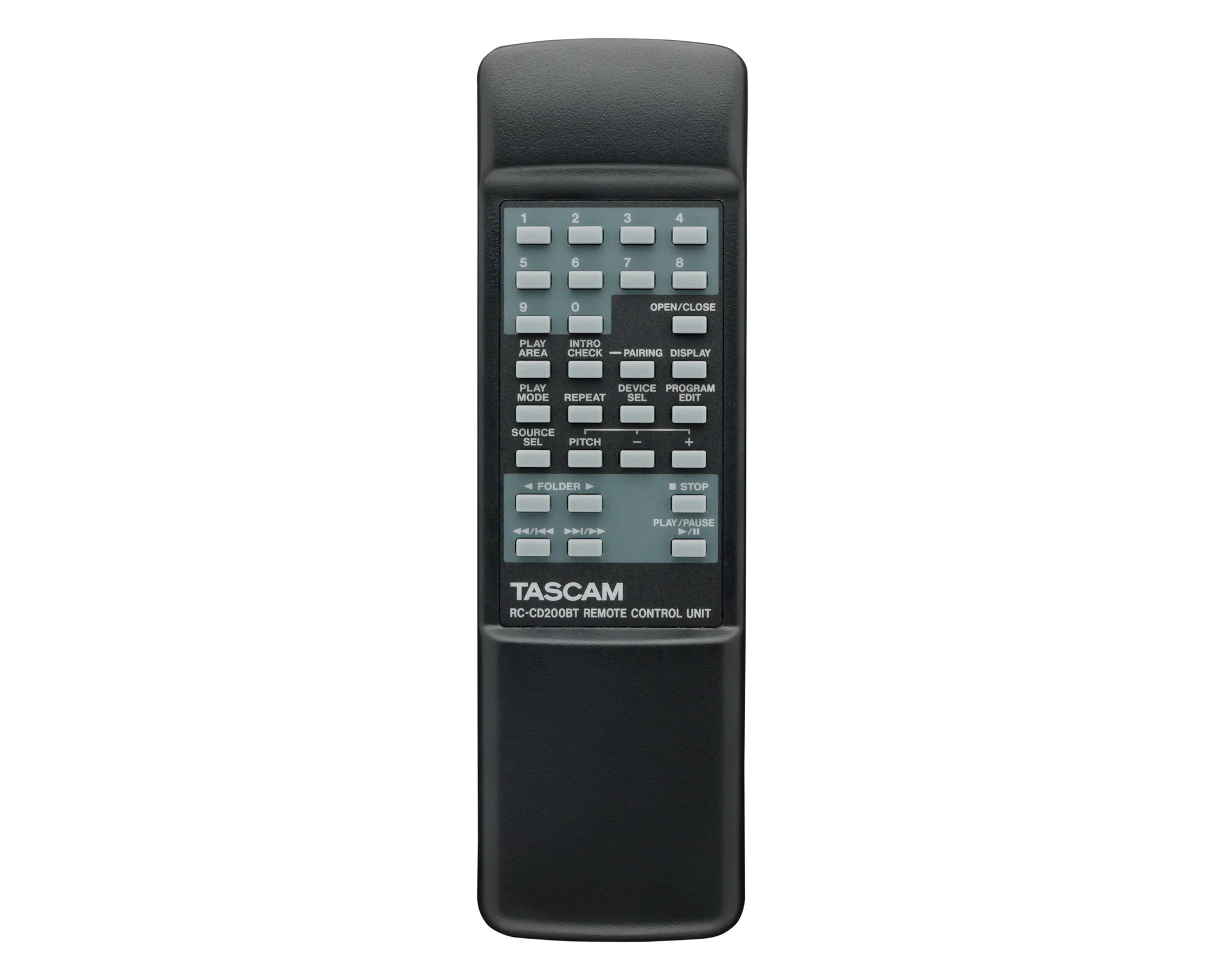

– Wireless remote control included
– 19-inch rack-mount chassis (2U)

Tech Spec…
General…
– Supported disc types: CD, CD-R and CD-RW discs (including 12cm, 8cm and multisession discs and discs with CD text)

Playback file formats…
– CD-DA: 44.1kHz, 16-bit stereo
– MP2: 32/44.1/48kHz, 32–384kbps (data CDs)
– MP3: 32/44.1/48kHz, 32–320kbps, VBR (data CDs)
– WAV: 8/16/32/11.025/22.05/44.1/12/24/48kHz, 16-bit (data CDs)

Analogue audio inputs and outputs…
– Analogue audio input: AUX IN jack, 3.5-mm stereo mini jack
– Nominal input level: –20 dBV
– Maximum input level: –4 dBV
– Input impedance: 22 kΩ

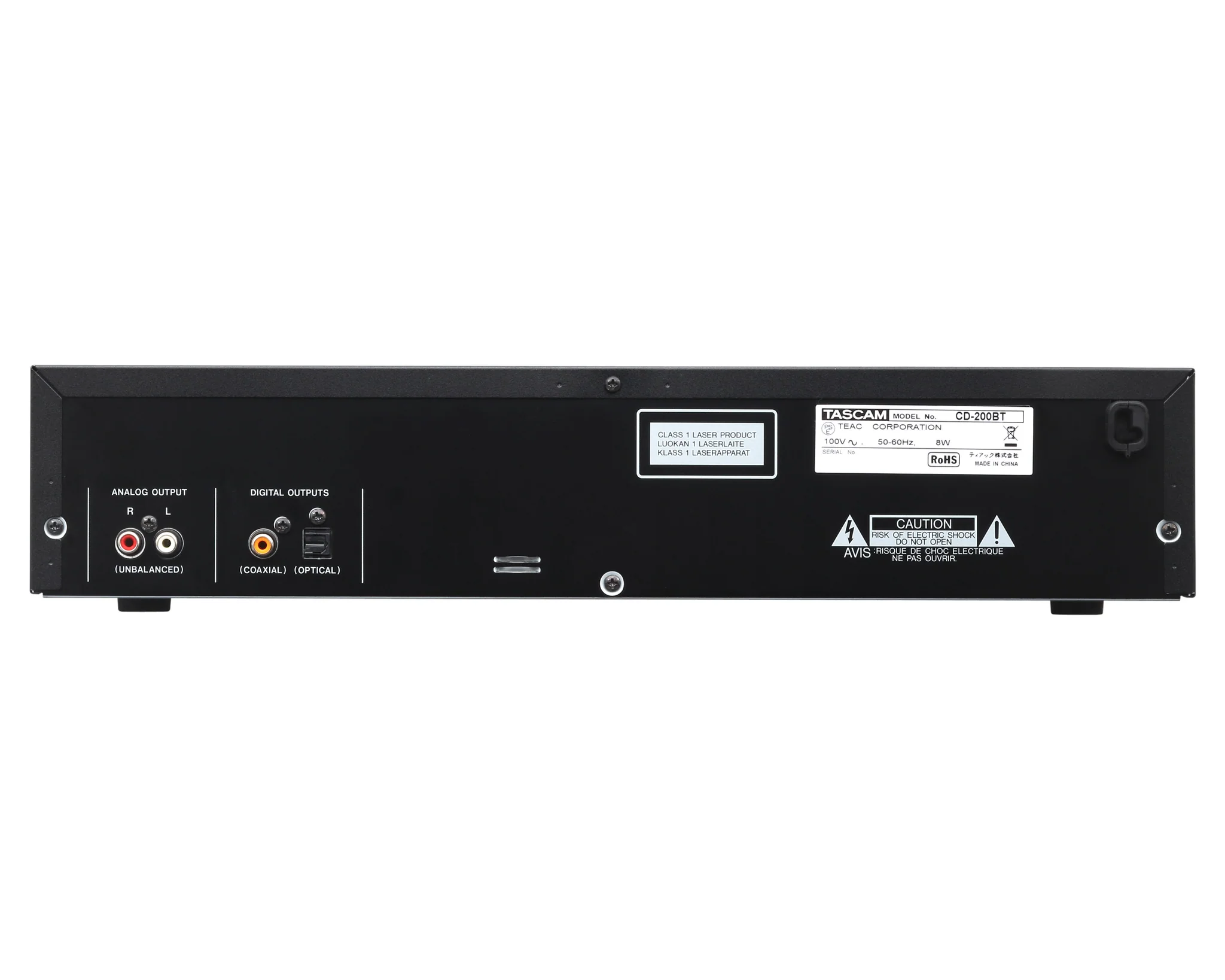

– Analogue output (unbalanced): RCA pin jack
– Output impedance: 200 Ω
– Nominal output level: –10 dBV (0.32 Vrms)
– Maximum output level: +6 dBV (2.0 Vrms)
– Phones output: 6.3-mm stereo phone jack
– Maximum output power: 20 mW + 20 mW (THD+N: 0.1%, 32 Ω)

Digital audio outputs…
– Digital output (coaxial): RCA Pin Jack
– Compatible signal format: IEC-60958-3 (SPDIF)
– Digital output (optical): TOS (JEITA RC-5720C)
– Compatible signal format: IEC-60958-3 (SPDIF)

Audio performance…
– Frequency Response: 20 Hz – 20 kHz ±1.0 dB (during playback, JEITA)
– Signal-to-Noise Ratio (S/N): >90 dB (during playback, JEITA)
– Total Harmonic Distortion: <0.01% (during playback, JEITA) – Dynamic Range: >90 dB (during playback, JEITA)
– Channel Separation: >90 dB (during playback, JEITA)
– Bluetooth: Version 3.0, Class 2 (approximate transmission distance: 10m*)
– Supported profiles: A2DP, AVRCP
– Supported A2DP codecs: SBC, AAC, aptX
– Supported A2DP content protection: SCMS-T
*The transmission distance is approximate. The transmission distance could vary depending on the surrounding environment and electromagnetic waves.

Power supply and other specifications…
– Power requirements: AC 120 V, 60 Hz (U.S.A./Canada), AC 230 V, 50 Hz (U.K./Europe), AC 240 V, 50 Hz (Australia)
– Power Consumption: 8 W (U.S.A./Canada/U.K./Europe), 9 W (Australia)
– Dimensions (W x H x D): 481 mm x 95 mm x 298 mm
– Weight: 4.5 kg
– Operating Temperature: 5–35 °C
– Inclination of installation: 5° or less
