Description
– 3 x 100V volume tappings via 4-core cable
– 8 Ohm optional (bypass transfomer)

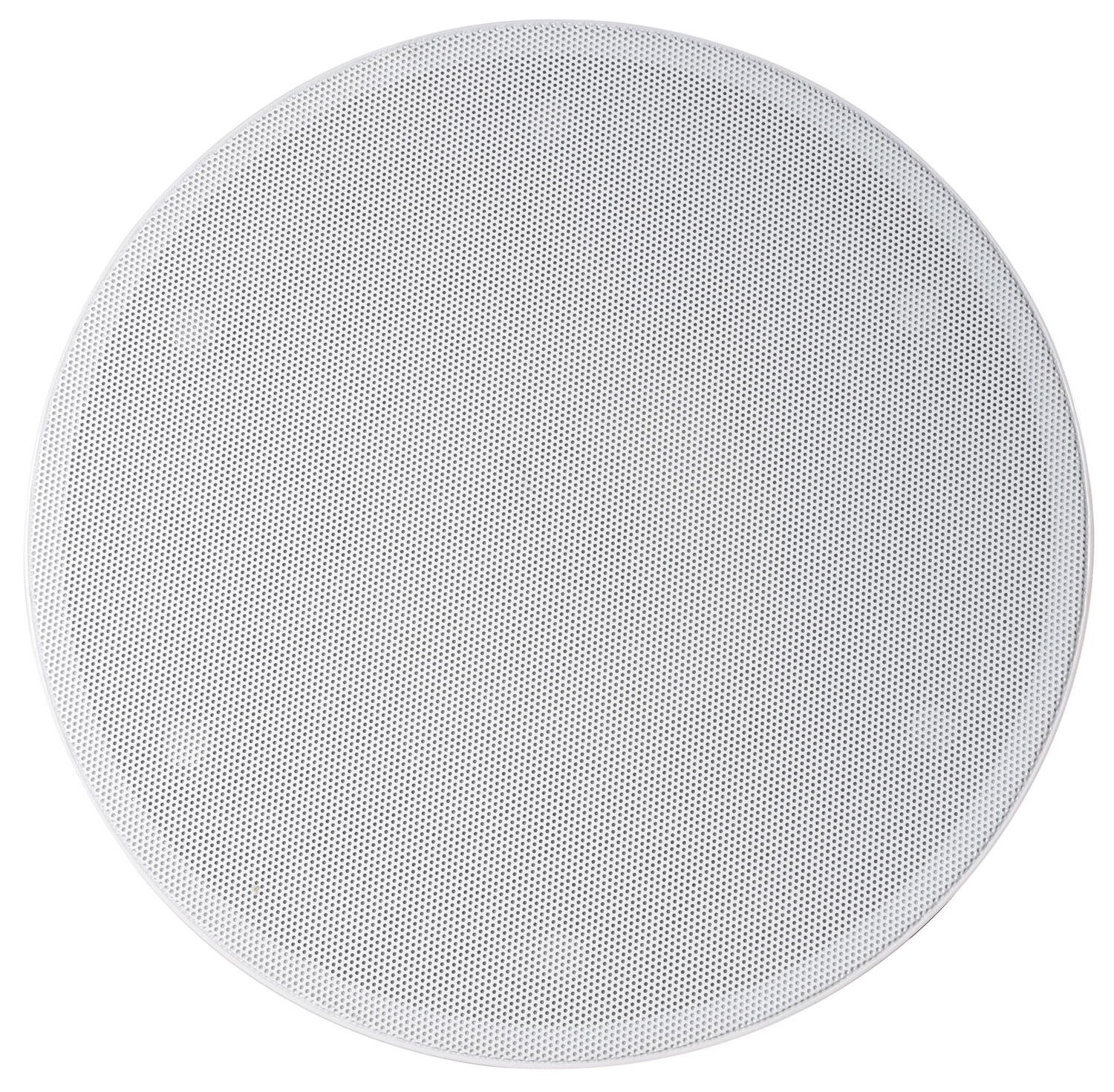

– Magnetic low profile steel grille
Overview…
Premium quality ABS 2-way ceiling speakers with magnetic frameless grille for high quality music reproduction in a sleek design. High energy glass-aramid main drivers are combined with a coaxial dome tweeter and coupled to a wave guide baffle for optimum sound dispersion. Each KV-T speaker is fitted with a 100V transformer with selectable volume tappings. High performance ceiling speakers to integrate with 100V voice and background music systems.
Key Features…
3 x 100V volume tappings via 4-core cable
8 Ohm optional (bypass transfomer)
Magnetic low profile steel grille
Heavy duty glass-aramid cone
Supplied individually
Tech Spec…
Impedance: 500, 1k, 2k Ohms or 8 Ohms
Tappings: 5W, 10W, 20W & 8 Ohms (40W)
Magnet weight: 270g
SPL @ 1W/1m: 89dB
Max. SPL: 100dB
Frequency response: 80Hz – 20kHz
Cutout: 180mmØ
Mounting depth: 80mm
Dimensions: 80 x 206mmØ
Construction: ABS basket & powder coated steel grille
Dispersion angle: 120°
HF driver: 25mmØ (1″) ASV diaphragm
