Description
– Powder-coated steel enclosure
– Fire resistant EN54-24 compliant
– Removable surface-mounting bar
Overview…

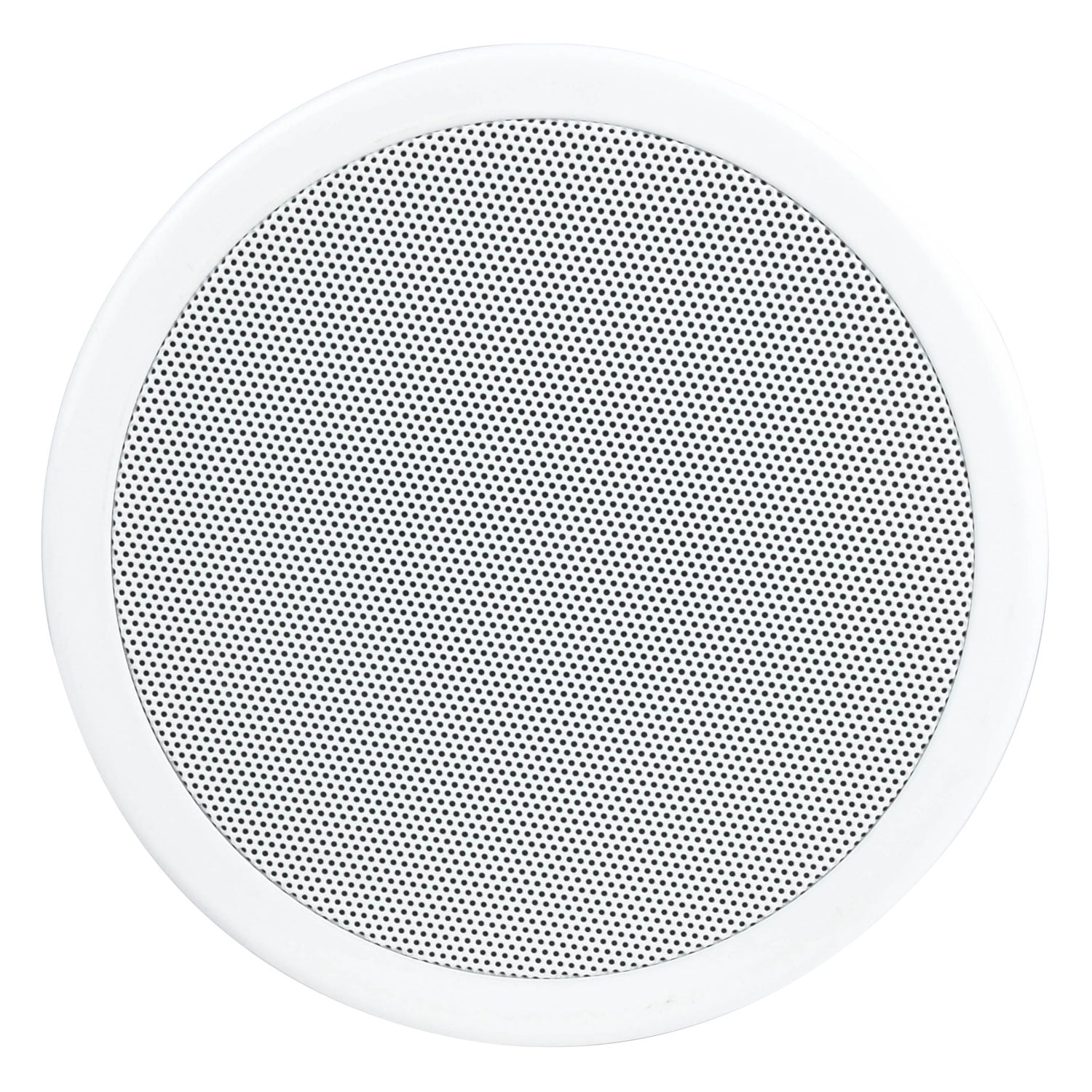

CS-6F is a fire-rated ceiling or wall speaker in a powder-coated steel enclosure that is surface-mounted through an internal cross-bar assembly. This design offers convenient and discreet public address coverage where recessed installation is not possible or may compromise a fire barrier. Internally, the 6.5″ full-range driver is connected via a fire-resistant cable to a ceramic terminal block, thermal fuse, and 100V transformer. Cable access is via gland knock-out holes. Fully certified to EN54-24 for use in fire-rated commercial installations.
Key Features…
Powder-coated steel enclosure
Fire resistant EN54-24 compliant
Removable surface-mounting bar
Ceramic terminal block and thermal fuse fitted
Tech Spec…
– Construction: Powder-coated steel housing and grille
– Driver: 165mmØ (6.5″) full range woofer
– Tappings: 0.75W, 1.5W, 3W, 6W
– Sensitivity: 93dB (1W/1m)
– Frequency response: 150Hz-20kHz
– Impedance: 8 ohms
– Approvals: EN54-24
– Dimensions: 76 x 170mmØ
– Weight: 910g
