Description
– Slot-feed CD player
– Bluetooth receiver
– USB/SD audio player
– FM tuner, DAB/DAB+ tuner
Overview…

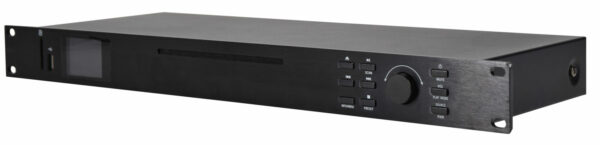

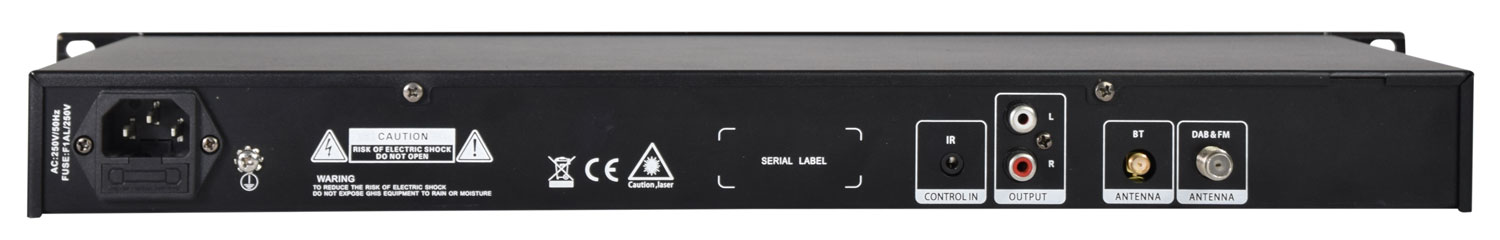

1U rack-mountable audio source with 6 different playback modes all in a single, compact unit. The clean and minimalist front panel is home to a full colour TFT display, which shows mode and settings information (including a clock in standby mode). Controls on the right side of the front panel operate the menus and playback, along with the included remote control handset. Modes include a slot-feed CD player, USB player, SD card player, FM tuner, DAB/DAB+ tuner and Bluetooth® receiver. A compact magnetic spring antenna is provided for FM and DAB+ reception which connects to an F socket on the AS-6 rear panel, or alternatively connect this socket to a roof mounted aerial for best possible reception. A comprehensive solution for playback in any sound system installation requiring background music and other continuous program material.
Key Features…
– Slot-feed CD player
– Bluetooth receiver
– USB/SD audio player
– DAB/DAB+/FM tuner
– Supplied with magnetic DAB/FM antenna
– Supplied with handheld remote control
Tech Spec…
– Power supply: 230Vac, 50Hz (IEC)
– Fuse: F1AL 250V (5 x 20mm)
– Power consumption: 15W
– Outputs: L+R RCA (line level)
– Modes: CD, USB, SD, FM, DAB, Bluetooth
– Frequency response: 20Hz – 20kHz (CD), 40Hz – 16kHz (USB/SD/DAB/FM/BT)
– THD: 0.03% (CD), 0.05% (USB/SD), 0.10% (DAB/FM)
– SNR: 75dB (CD/USB/SD), ?65dB (FM)
– Tuning range: 87.5 – 108MHz (FM) ,160MHz – 240MHz (DAB/DAB+)
– Dimensions: 482 x 167 x 44mm (1U)
– Weight: 2.35kg
– Bluetooth version: 5.0
In The Box…
– AS-6 audio source multi-format player
– Magnetic DAB/FM antenna
– Mini Bluetooth antenna
– Remote control handset
– IEC power lead
