Description

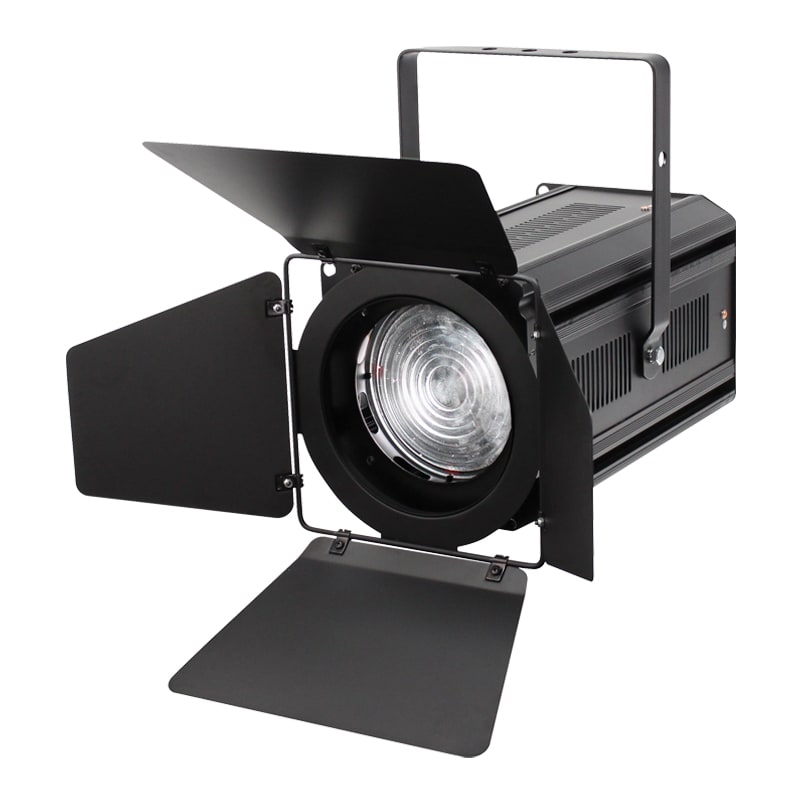

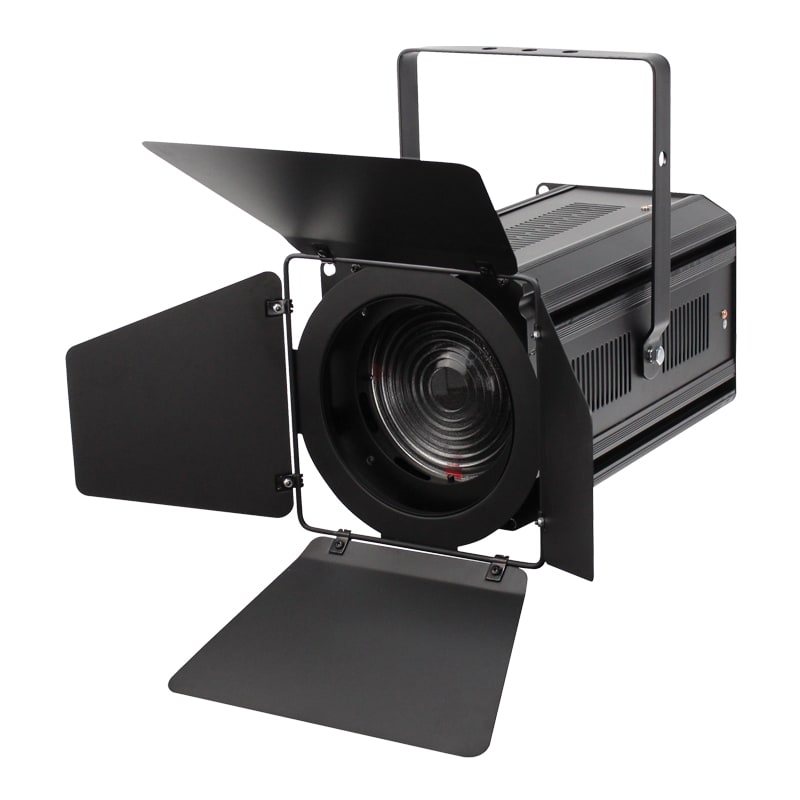

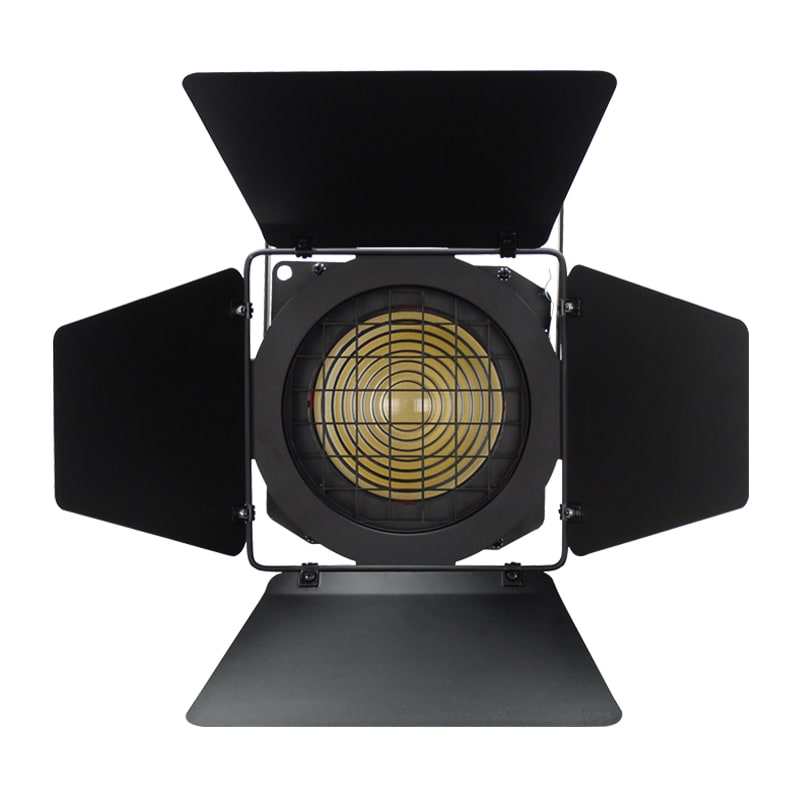

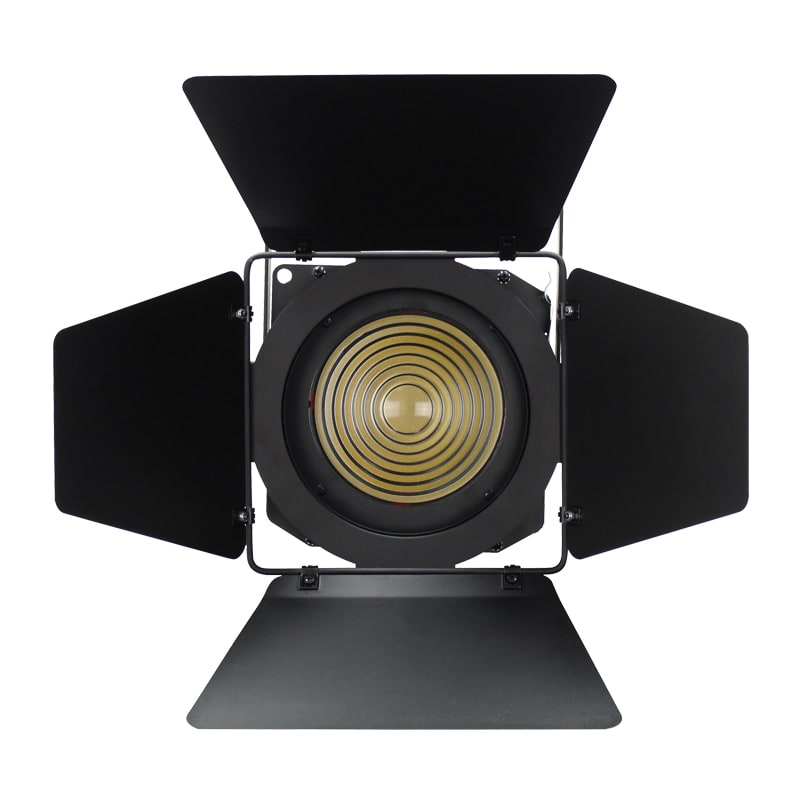

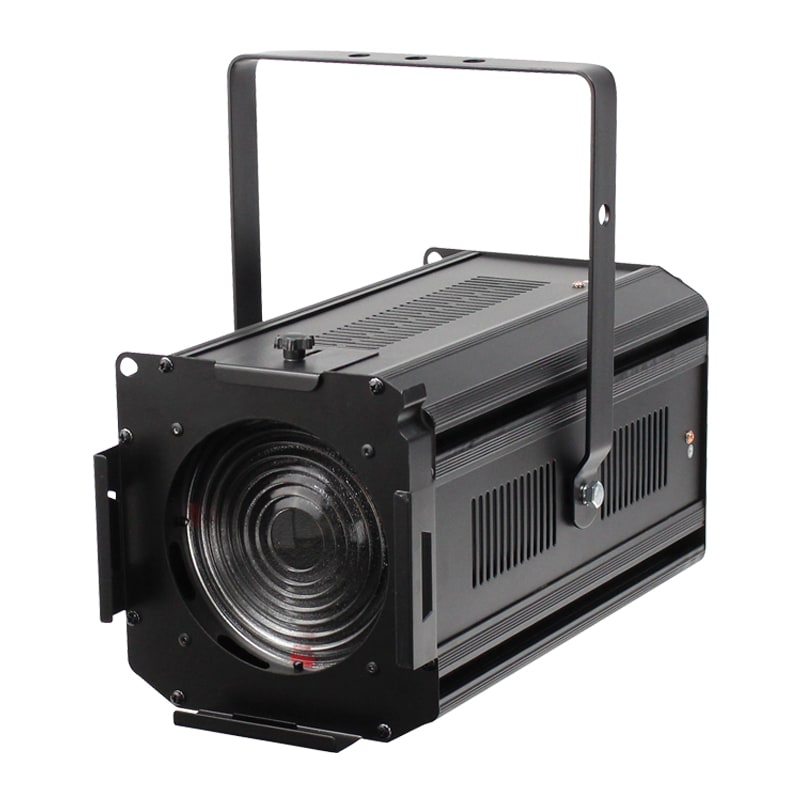

The ZF LED Zoom Fresnel is loaded with a 100W cool white LED, producing an output similar to a 650W lamp. Control of the unit is facilitated via a 4 button menu and LCD display, whilst the beam angle can be manually adjusted between 12� and 60�. Eight dimmer curves are included for maximum flexibility. The whole fixture is enclosed in a robust chassis, and is supplied with filter frame and barndoor.
Features
2 year warranty
1 x 100W cool white COB LED (6000K)

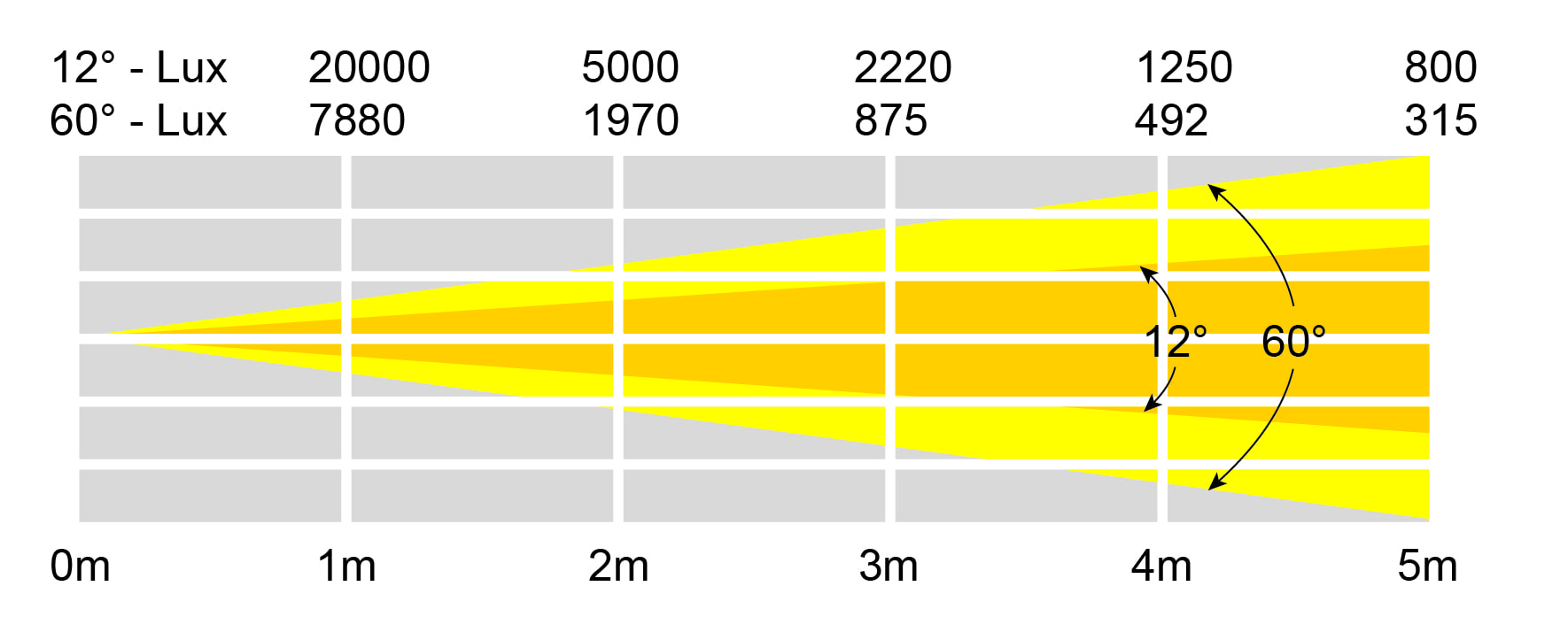

Manually adjustable beam angle: 12 Degree 60 Degree
12 Degree 5,000 Lux @ 2m
60 Degree 1,970 Lux @ 2m
CRI > 95
1.6kHz refresh rate
DMX channels: 1 or 2 selectable
0100% dimming aLinear
square law
inverse square law and Scurve

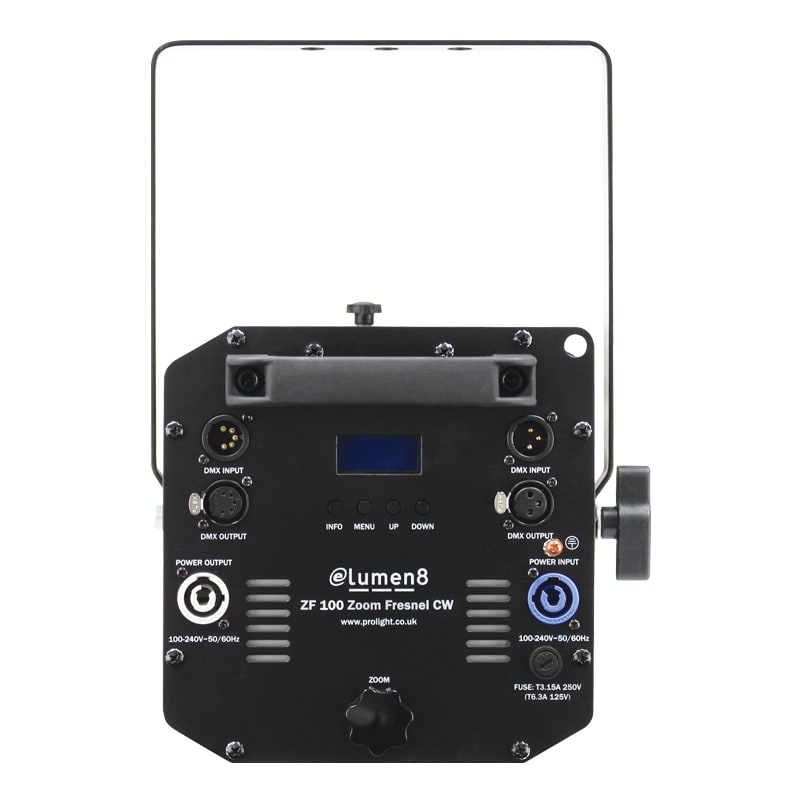

4 push button menu with LCD display
PowerCON input/output
5Pin XLR input/output
3Pin XLR input/output
Temperature controlled fan for whisper quiet operation
Handle on rear panel
Filter frame and barn doors included
Technical Specifications
Power consumption: 120W
Power supply: 100~240V
50/60Hz
Dimensions: 430 x 270 x 340mm
Weight: 7.3kg
Dimensions
Height: 27.7cm
Width: 50.0cm
Depth: 31.3cm
Weight
7.4kg
