Description

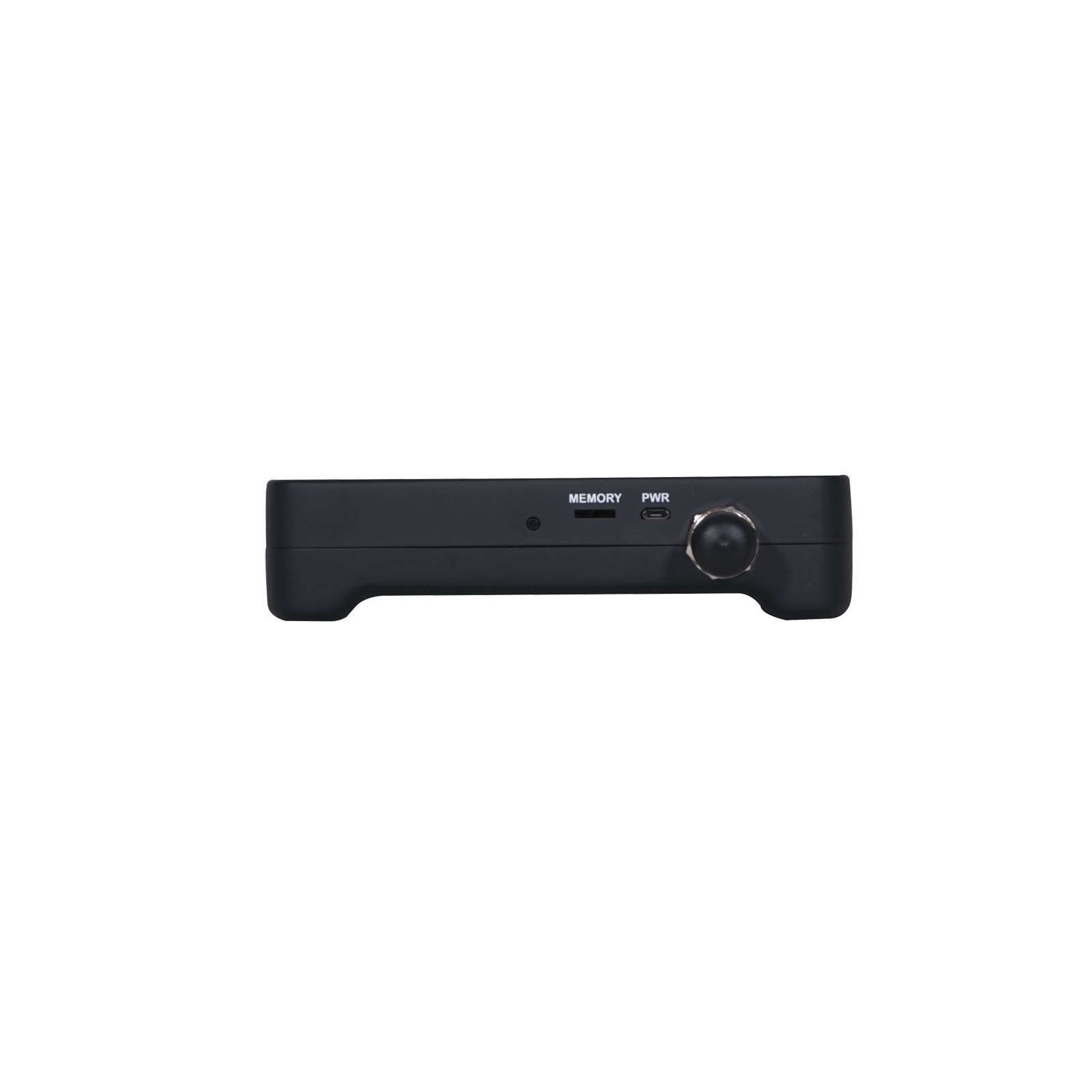

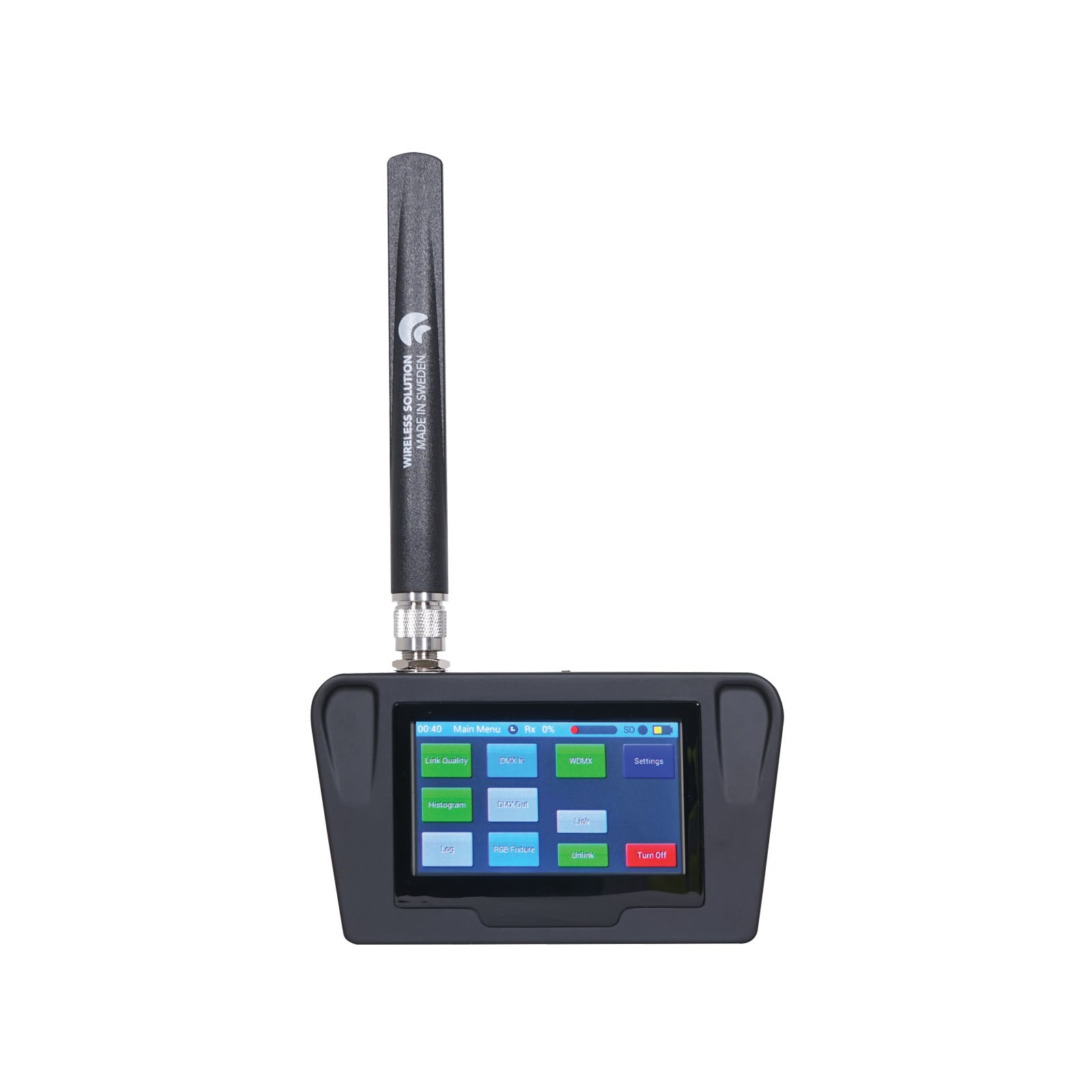

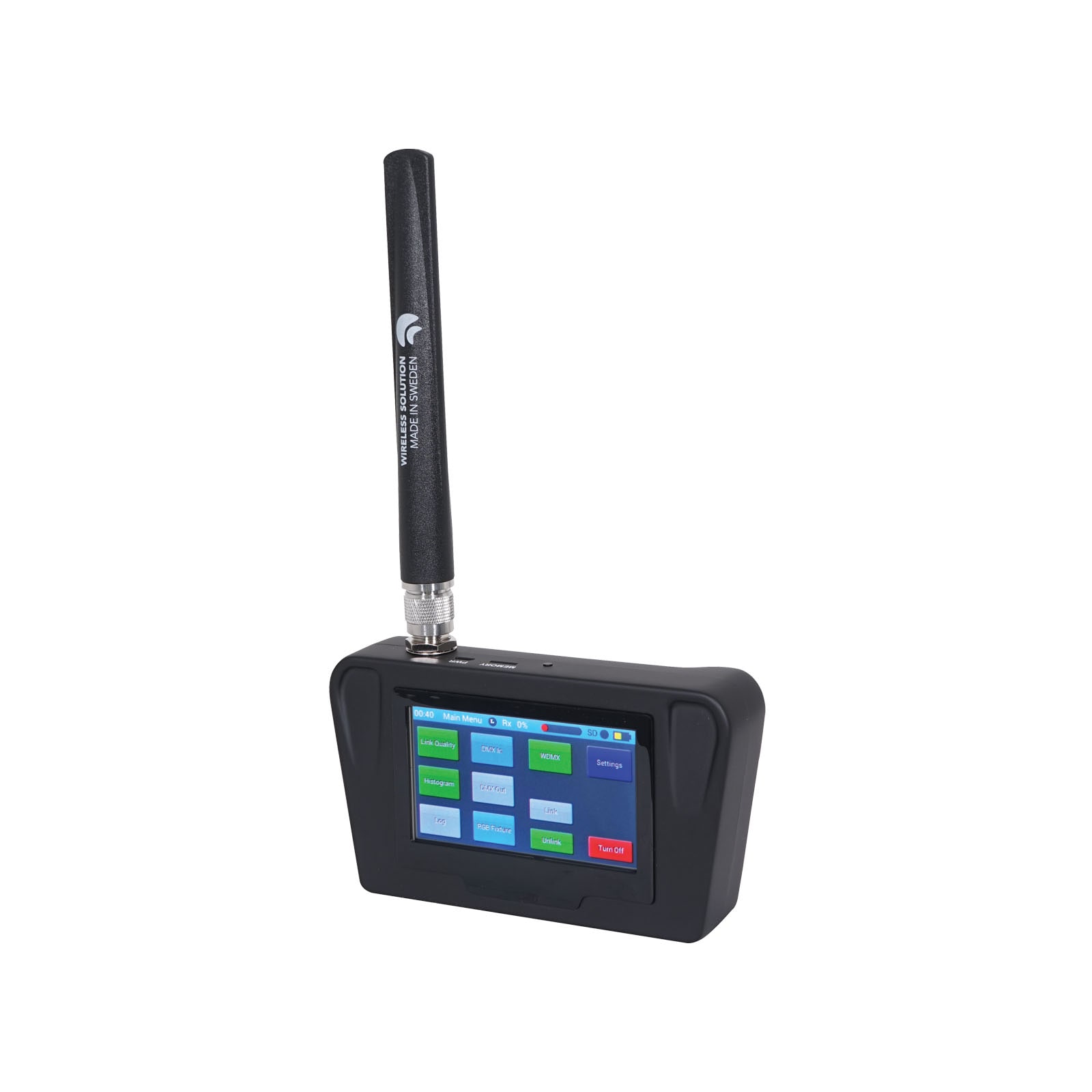

The UglyBox is hailed as the ‘riggers best friend’, an indispensable tool in the lighting designer or technician’s arsenal. With the capability to receive W-DMXT signals to check their signal strength, as well as check the output of DMX channels, the W-DMXT UglyBox is great for testing the limits of the W-DMXT radio system and/or checking DMX data, in a portable, pocket sized device. The UglyBox is great for checking if a system will work before installation, and checking DMX levels in a system. The W-DMXT UglyBox can also be used to check W-DMXT signal history, allowing the user to see quickly any transient problems in the system. The Uglybox runs on standard AA batteries and last over 8 hours.
Features
WDMXT transmitter and receiver tester
Up to 700 meters / 2,200 feet
512 DMX channels
WDMXT G5 Protocol
2.4 GHz
5.2 GHz and 5.8 GHz
Lithiumion battery with USB charging
History View – view signal strength over time
Records data in MicroSD card
LCD colour touchscreen
Adaptive Frequency Hopping
DataSafe
Backward compatible with G3 and G4S
Compatible with OEM products
Technical Specifications
Dimensions (H x W x D): 300 x 170 x 45mm
Weight: 0.5kg
Dimensions
Height: 6.5cm
Width: 26.5cm
Depth: 20.0cm
Weight
0.7kg
