Description

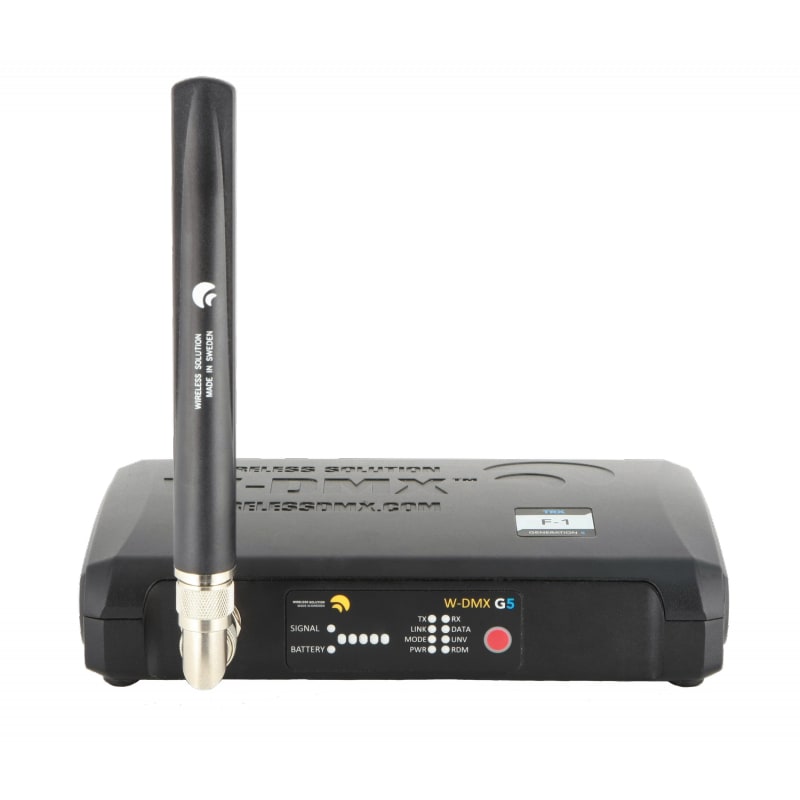

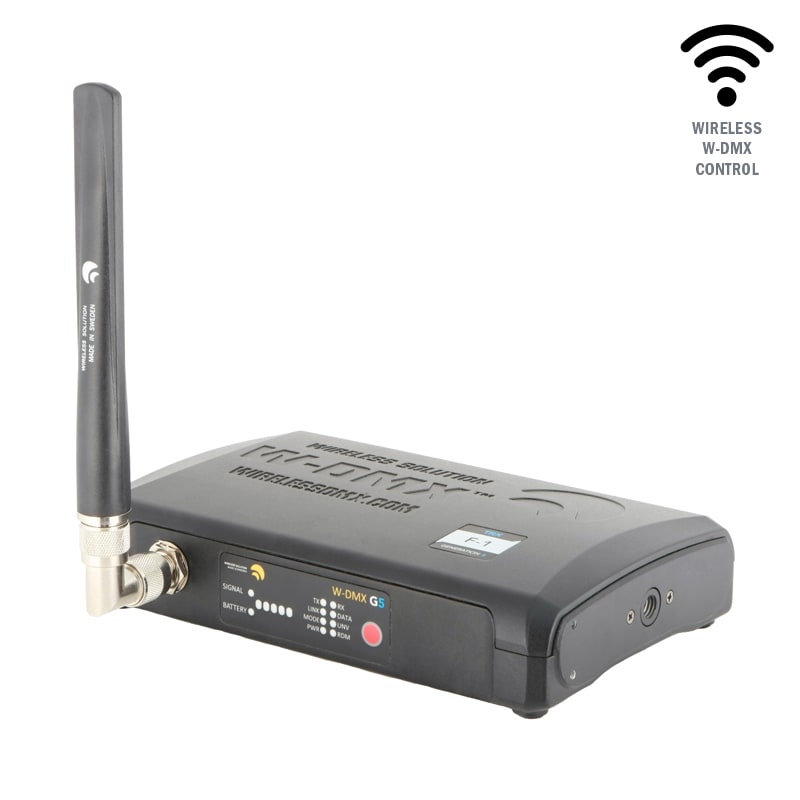

The W-DMX BlackBox F-1 G5 Transceiver is a single universe, highly flexible wireless solution. This unit supports transmit and receive modes of both DMX and RDM signals, for both 2.4GHz, 5.2GHz or 5.8GHz frequency bands, giving access to more channels and hence greater reliability. With the optional Ethernet input (requires Ethernet PCB purchased separately) the product can support any protocol input, be it Art-Net, sACN or ETC Net, and any protocol output, Ethernet or RS-485.
Features
Single universe outdoor DMX/RDM transmitter/receiver
WDMX G5T Protocol – Backward compatible with G3 and G4S
Tough diecast metal casing
Invisiwire highfidelity technology Output matches input
Datasafe technology Wireless fidelity and error correction
Less than 5ms latency
Full DMX 512 support
Full RDM support
Onebuttontogo technology for ease of use
Adaptive frequency hopping radio
2.4GHz radio – License free worldwide
5.2GHz
5.8GHz dualband – Provides access to ‘virgin’ spectrum
12V backup input
Interchangeable antennas – Easily expand your range
2dBi indoor antenna
Compatible with all WDMX OEM products

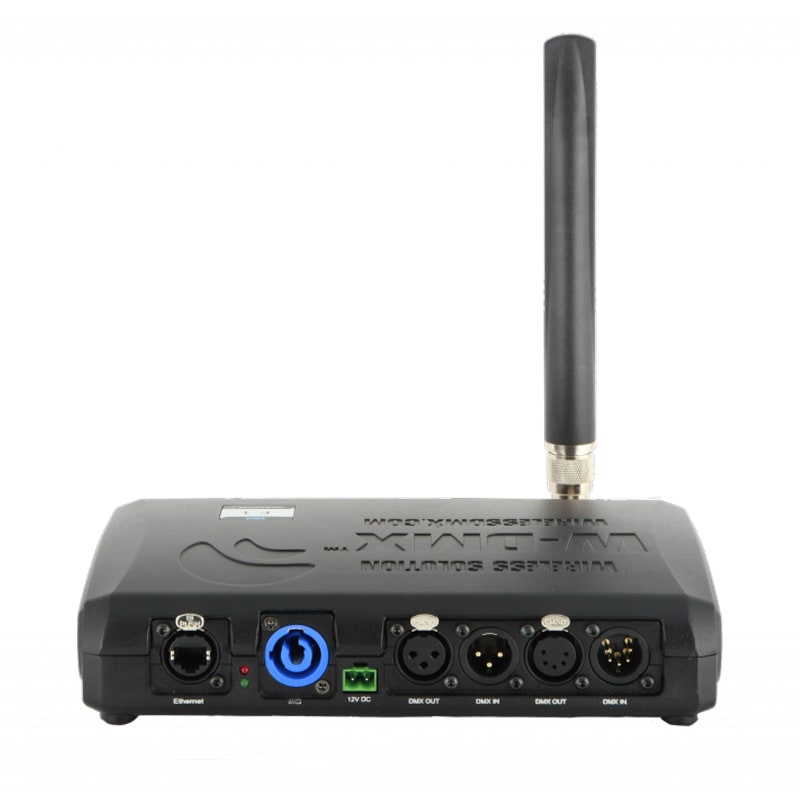

PowerCON input
PowerCON cable not included
Technical Specifications
Dimensions
Height: 25.5cm
Width: 27.5cm
Depth: 7.5cm
Weight
0.5kg
