Description
– Supplied in a full flight case with lockable castors
– Operates from standard fog fluid and water
– Requires no ice or carbon dioxide
Overview…

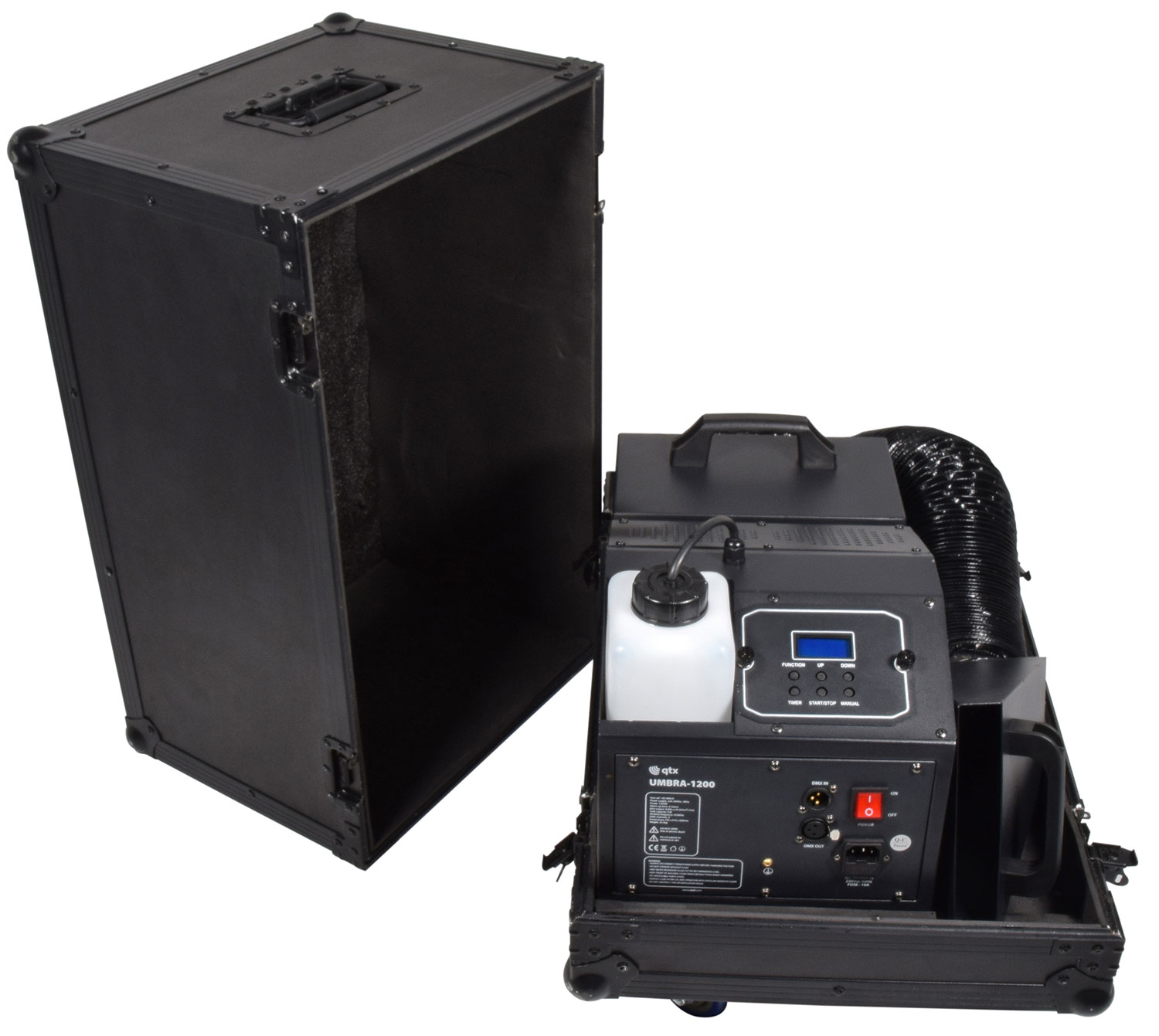

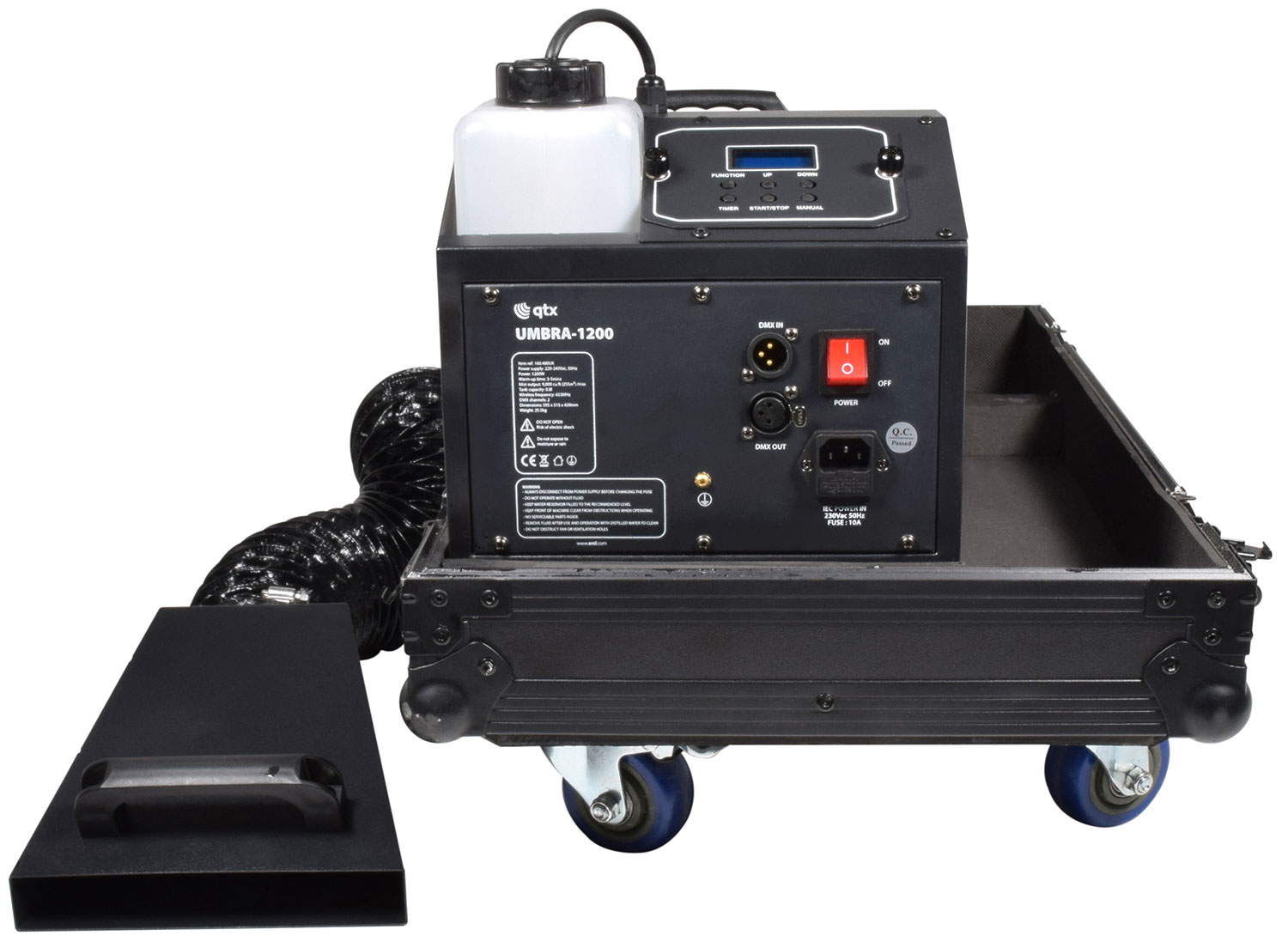

Stage effect machine producing ‘dry ice’ type low fog effects without the use of carbon dioxide or ice. New technology delivers a ground-hugging mist from standard fog fluid and water. Housed in a full flight case with castors for portability, the main unit has a removable fluid tank and easy access water reservoir with drain tap. the mist is delivered via a flexible duct and output funnel to allow the user to direct the effect onto a specific area of the stage. Operated by the onboard digital control panel, which can be detached as a wired remote or via DMX512. Designed to provide a dramatic low flowing mist scene for stages, theatres and themed events.
Key Features…
– Supplied in a full flight case with lockable castors
– Operates from standard fog fluid and water
– Requires no ice or carbon dioxide

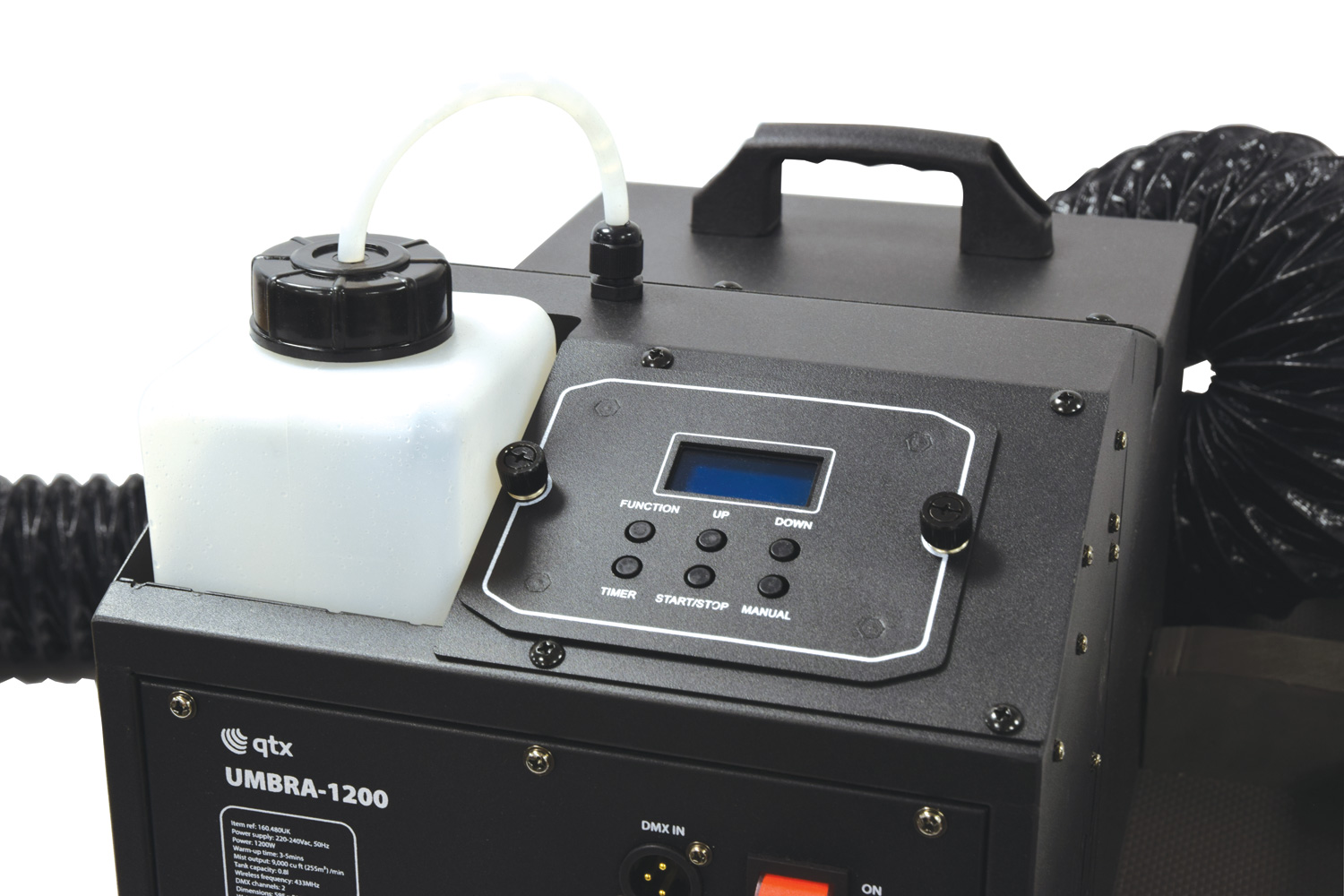

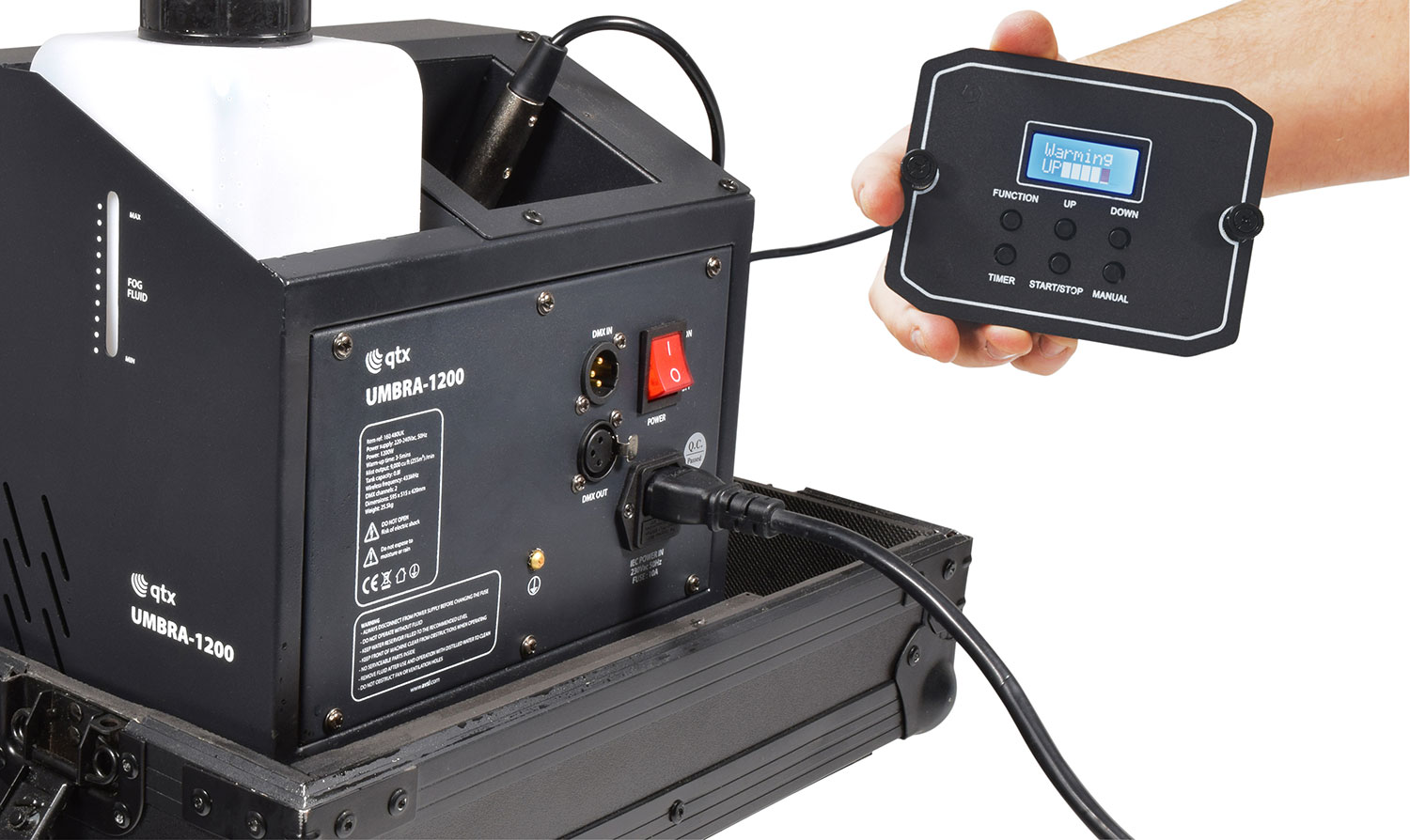

– Removable digital control panel for remote control
– Professional ground level mist effect
Tech Spec…
– Power supply: 220-240Vac, 50Hz (IEC)
– Power consumption: 1200W
– Fuse: F8AL
– Connection: DMX in & out (3-pin XLR)
– DMX channels: 2
– Remote control connection: 5-pin XLR
– Warm up time: 3-5 minutes
– Fluid capacity: 0.8 litre (fog fluid)
– Consumption: Low Level Fog Fluid 25ml/min
– Fog output: 9000 Cu Ft (255m³) /min
– Dimensions: 590 x 510 x 410mm (in flight case)
– Weight: 25kg (in flight case)
In the Box…
– UMBRA-1200 main unit
– Flexible ducting and outlet funnel
– 5-pin XLR lead – 5m
– IEC mains lead
