Description
– Supplied with hardware for rack-mounting 2 units
– 5 input channels
– 24V fire alarm mute contacts
Overview…

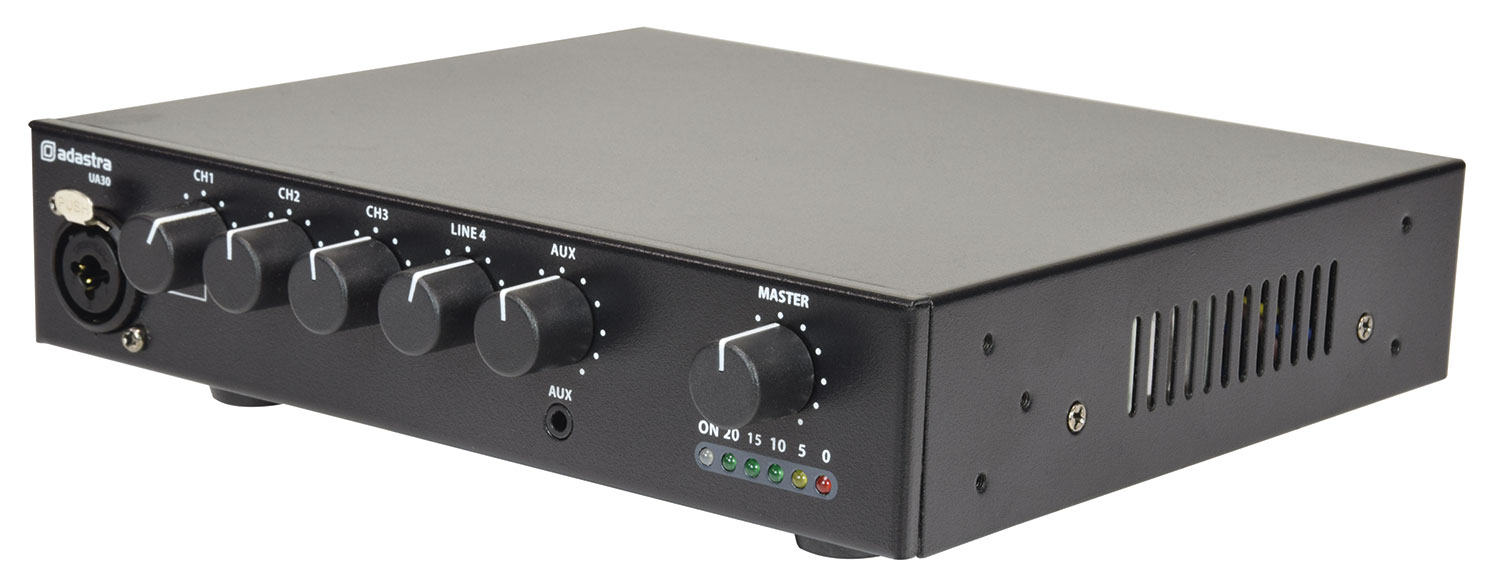

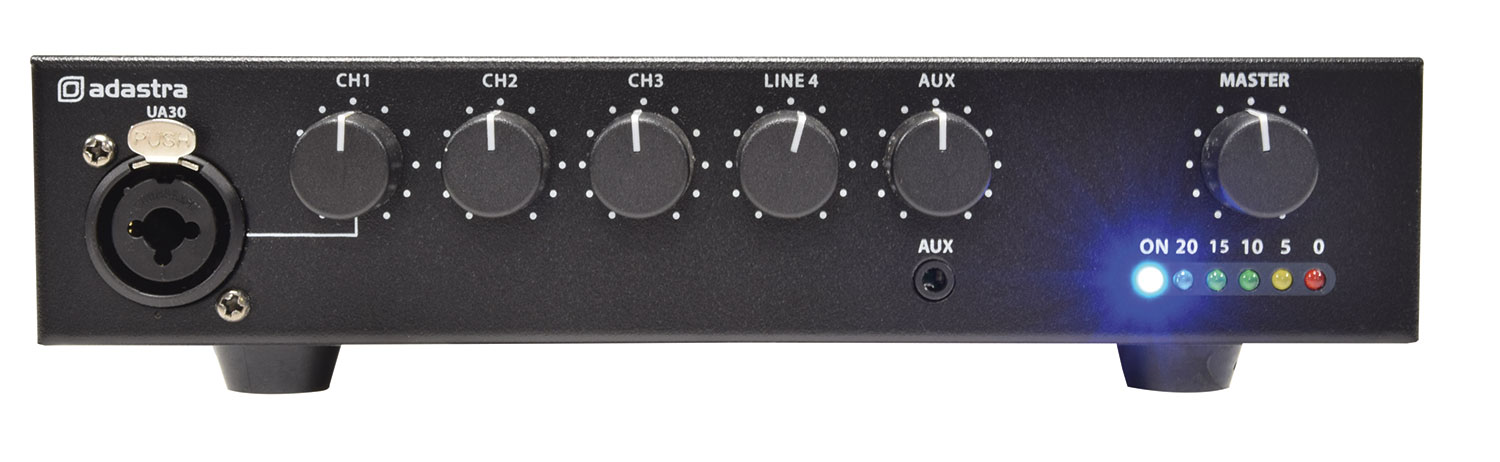

100V mixer-amplifiers with an integral mixer in a half width 1U housing. 3 switchable mic/line inputs, an RCA line input and a 3.5mm Aux input are governed by front panel volume controls and a Master output control. Mono output to either 100V line or 8 ohms speaker load is connected via a removable screw terminal connector on the rear panel. Supplied with rack-mounting hardware which can be configured to mount a single unit against a wall or under a worktop. Designed as a versatile solution for small to medium PA installations.
Key Features…
– Supplied with hardware for rack-mounting 2 units
– 5 input channels
– 24V fire alarm mute contacts
– 100V line or 8 Ohms operation
– Switchable +20V phantom power CH1
– Global 2-band EQ on 120W and 240W models
Tech Spec…
– Output power: rms 30W
– Weight: 2.35kg
– Dimensions: 249 x 210 x 44mm
– Power supply: 170-264Vac, 50Hz (IEC)
– Amplifier construction: Class D + transformer output
– Inputs: Mic/line (combo), 2 x mic/line (6.3mm), line (RCA), aux (3.5mm)
– Phantom power: +20V CH1 (XLR or rear terminals)
– Line output: 2 x RCA (mono)

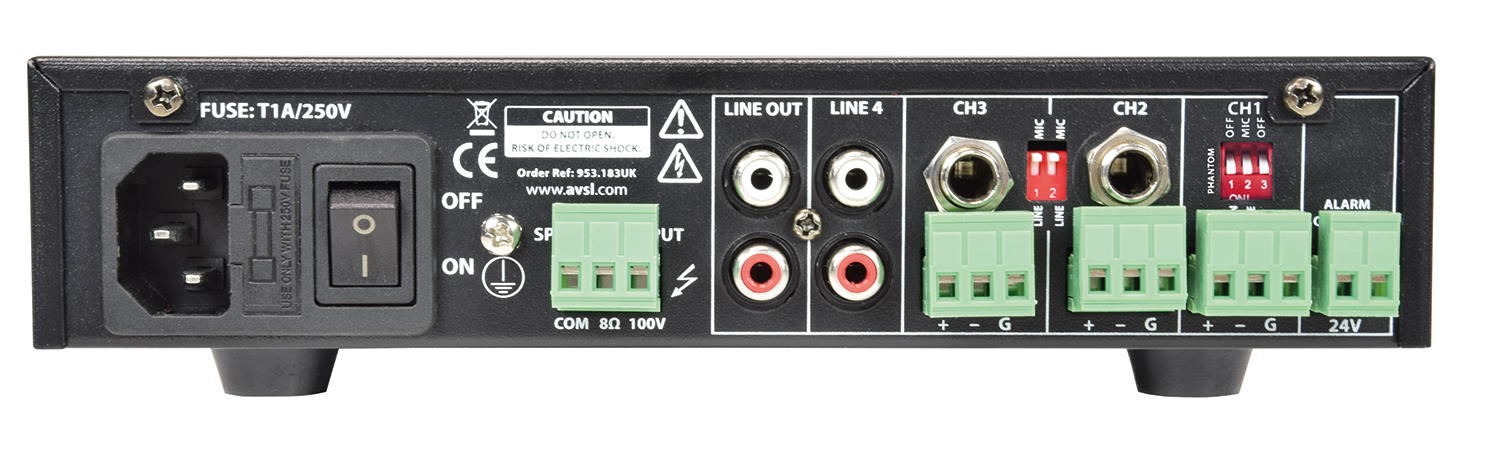

– Speaker output: Euroblock terminals: 100V / 8 Ohms / Com
– Mute: 24V relay contacts
– THD: <0.4% @ 1kHz
– Input impedance: 1k Ohms (mic/line)
– Input sensitivity: -10dB (line), -45dB (mic)
– SNR: 80dB (line), 75dB (mic)
– Frequency response: 100Hz – 18kHz
In the Box…
– UA series compact 100V amplifier
– IEC power lead(s)
– Rack-mounting hardware
