Description
● Powers and controls up to sixteen TPix Strips
● 8 DMX Channels
● 4 push button menu with LCD display
● Four RJ45 sockets for outputs to TPIX Strip
Overview…
TPix Strip Controller…
Used to power and control up to sixteen TPix Strips, the controller has four RJ45, each output can drive up to four TPix Strips with a total 16 strips per controller.
Key Features and Tech Spec…
– DMX channels: 8
– Art-Net channels: 480
– 4 push button menu with LCD display

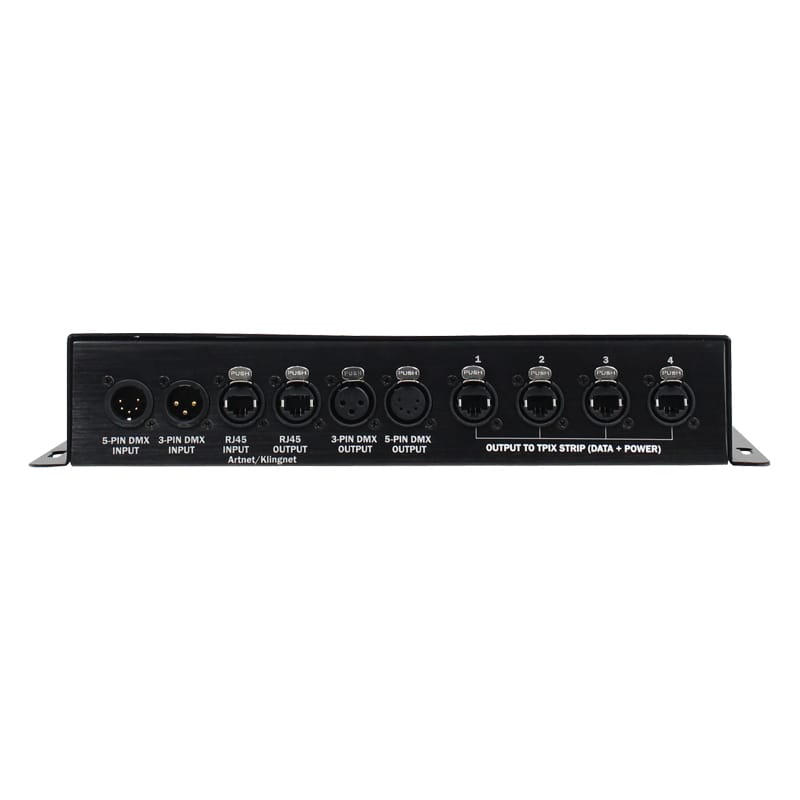

– 5-Pin XLR input/output
– 3-Pin XLR input/output
– Ethercon input/output (Art-Net/Kling-Net)
– Four RJ45 sockets for outputs to TPIX Strip

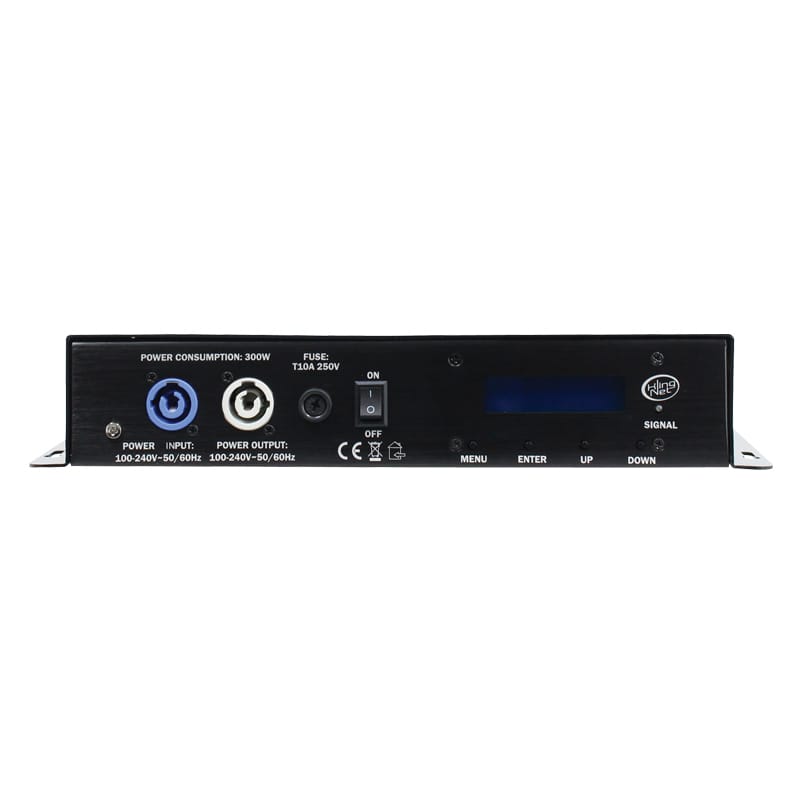

– Power consumption: 300W
– Power supply: 100~240V, 50/60Hz
– Fuse: T10A 250V
– Dimensions: 62 x 340 x 208mm
– Weight: 2.2kg
