Description

Key Features…

• Makes it easy to integrate smartphones, tablets and other Bluetooth devices with existing audio systems
• Unique Bluetooth ID for each device allows multiple RX-BT10 units to be used in one installation
• Stores pairing information for up to 8 devices
• Up to 3 devices can be connected at the same time
• Extendable pairing button
• Balanced and unbalanced audio outputs (XLR, RCA)
• Mounting brackets included
• Optional AK-RS1 allows two units to be installed side by side in a rack

Product Overview…

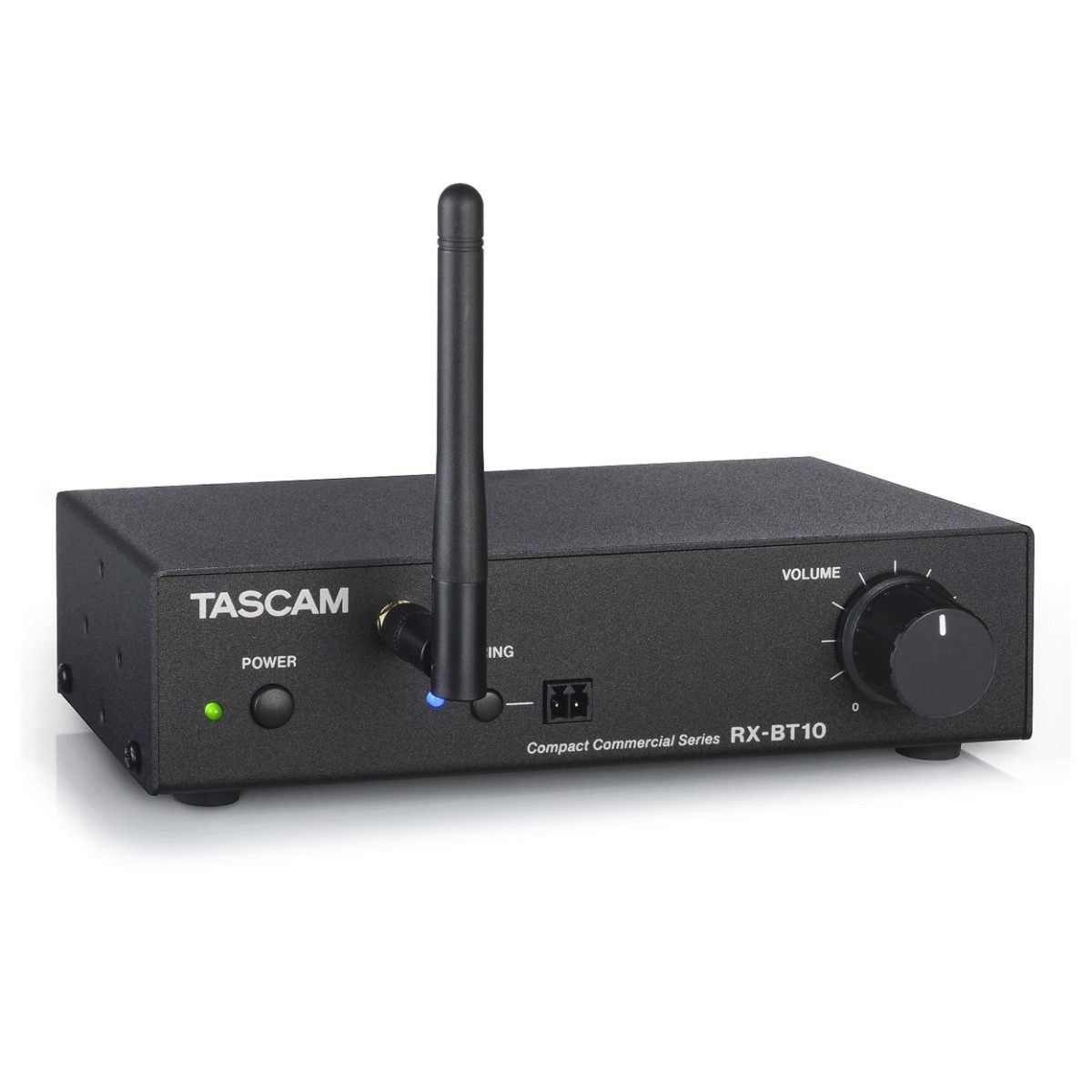

The Tascam RX-BT10 is the professional solution for integrating Bluetooth® audio into any audio installation. With Bluetooth 5.1 Class 1, both balanced and unbalanced outputs, an extendable antenna, and the option to connect a remote pairing button, the RX-BT10 delivers versatility and reliable performance in spaces ranging from small rooms to large venues.

The RX-BT10 is the easy way to add Bluetooth connectivity to any setup. With Bluetooth 5.1 output class 1, it delivers a stable connection over long distances – up to 100 metres in ideal conditions. The front-panel receiver antenna ensures reliable reception so you don’t have to worry about signal sensitivity.

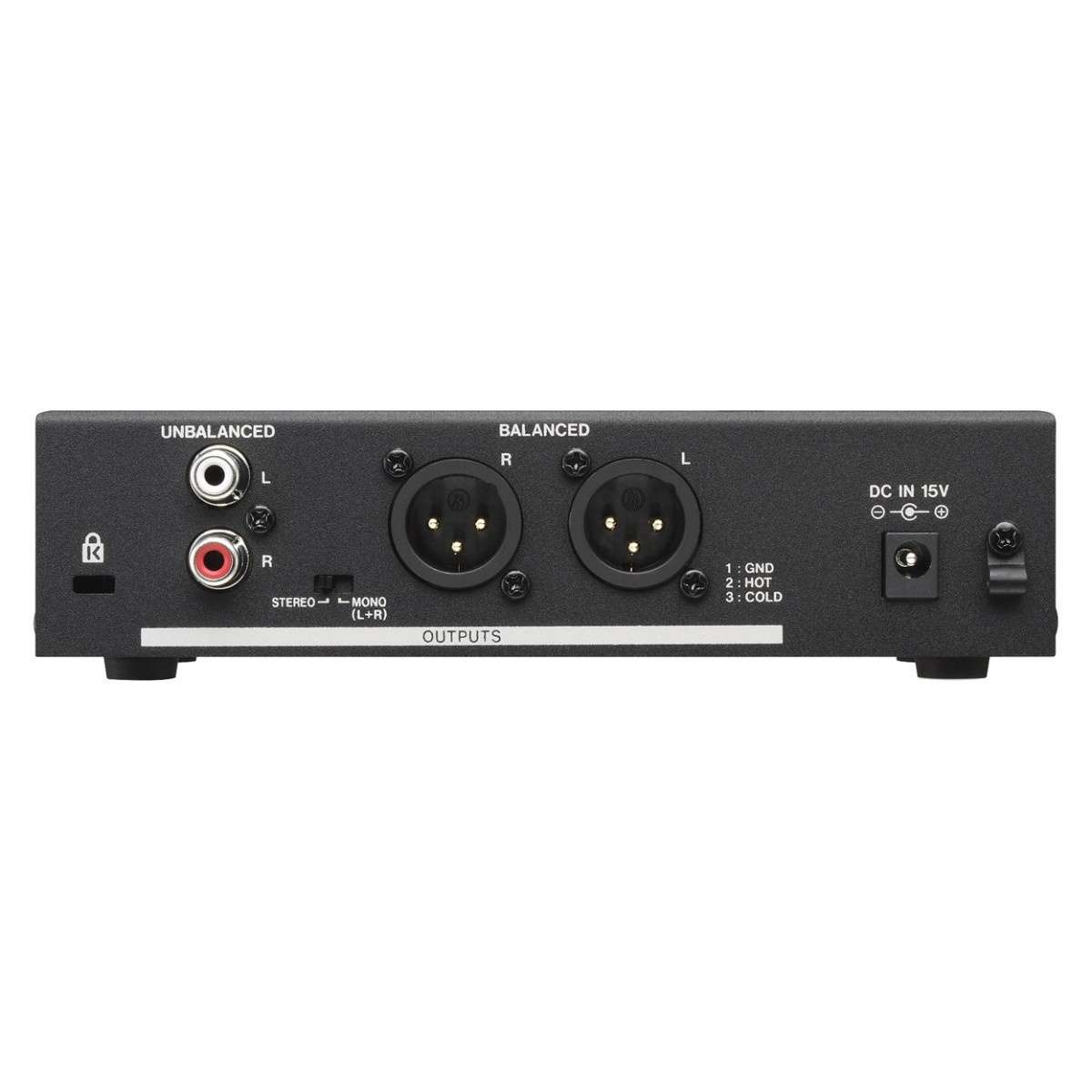

With both balanced and unbalanced outputs, this unit integrates seamlessly into any setup. Choose between stereo XLR and stereo RCA connections, and use the Stereo/Mono switch on the rear panel to maintain a full stereo field or sum the signal as required.

Built for durability, the RX-BT10 features a rugged metal chassis that can withstand the rigours of any installation. Its compact size makes it easy to integrate into a variety of setups. Mounting points on the top and bottom panels allow the RX-BT10 to be attached to virtually anything, and a bracket kit is included for mounting on a shelf or under a desk.

Tech Spec…

• Version:  5.1
• Output class:  1 (approx. 100 m unobstructed transmission range*)
• Supported profiles:  A2DP, AVRCP
• Supported codecs:  SBC, AAC

Analogue audio outputs

• Line output (unbalanced):  RCA connectors
• Maximum output level:  +6 dBV
• Nominal output level:  −10 dBV
• Output impedance:  ≤100 Ω
• Line output (balanced):  XLR female connectors
• Maximum output level:  +14 dBu
• Nominal output level:  −2 dBu
• Output impedance:  ≤200 Ω

Audio performance

• Frequency response:  20 Hz – 20 kHz, +0.5 dB / –1 dB
• Distortion (THD+N):  ≤0.04 % (1 kHz, max. output level)
• Signal-to-noise ratio:  ≥90 dB (1 kHz, 22 kHz LPF, A-weighted)
• Channel separation:  ≥100 dB

Power supply and other specifications

• Power supply:  Dedicated AC adapter (Tascam PS-M1524)
• Input voltage:  AC 100–240 V (50–60 Hz)
• Output voltage:  DC 15 V
• Output current:  2.4 A
• Power consumption:  1.7 W
• Dimensions (W × H × D):  171 mm × 45 mm × 73 mm (excluding protrusions)
• Weight:  530 g
• Permissible operating temperature range:  0–40 °C
• Permissible operating humidity range:  5–85 % (without condensation)
