Description
Incorporating a beam and strobe/wash effect, the Switchblade does it all. One side of the sleek bar features five pixel mappable beams with an 8� beam angle whilst the other has 250 tri-colour LEDs controllable over five zones which strobe/wash to fill venues with blinding effects in any colour. Infinite pan and tilt with lightning quick movements along with razor sharp beams create awesome aerial effects.
Features
Beam optics:
5 x 40W quadcolour LEDs (RGBW)
Beam angle: 8 Degree
15,558 Lux @ 2m (per LED
full on)
16kHz refresh rate,Strobe optics:
250 tricolour 5050 SMD LEDs (RGB)
Beam angle: 160 Degree
183 Lux @ 2m (full on)
500Hz refresh rate
Individually controllable LEDs (beams)/zones (strobe)
DMX channels: 2/15/23 or 48 selectable
Auto
sound active and master/slave modes
Pan/tilt auto correction
16 bit pan/tilt positioning
360 Degree continuous pan and tilt
0100% dimming and variable strobe
Supplied with quick release omega clamp
4 push button menu with 2.5” LCD display

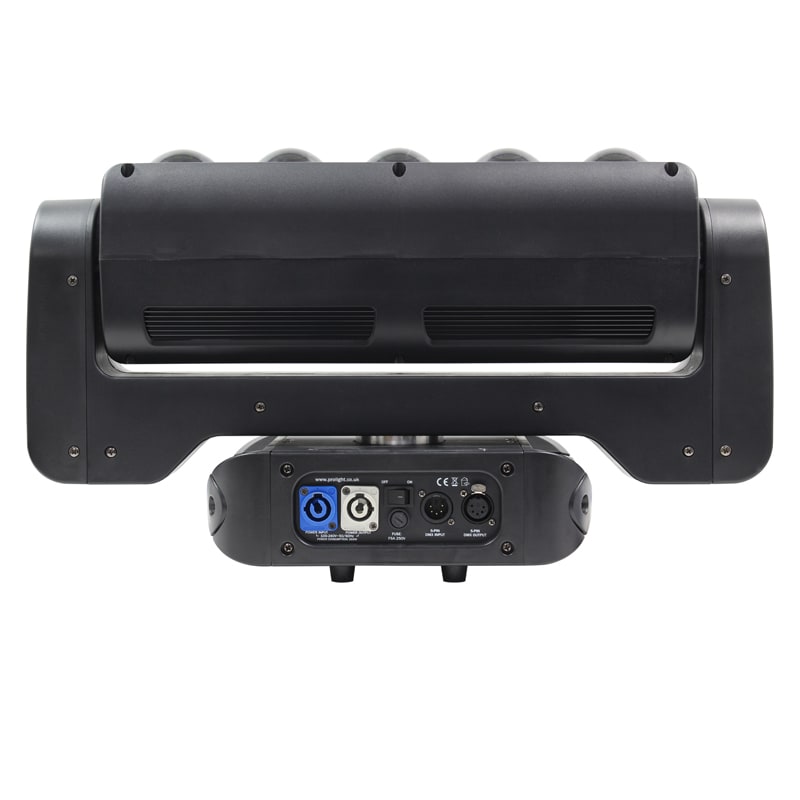

PowerCON input/output
5Pin XLR input/output
Fan cooled
Technical Specifications
Power consumption: 265W
Power supply: 100~240V
50/60Hz
Fuse: F5A 250V
Dimensions: 305 x 532 x 183mm
Weight: 11.2kg
Dimensions
Height: 25.5cm
Width: 64.0cm
Depth: 36.5cm
Weight
13.6kg
