Description

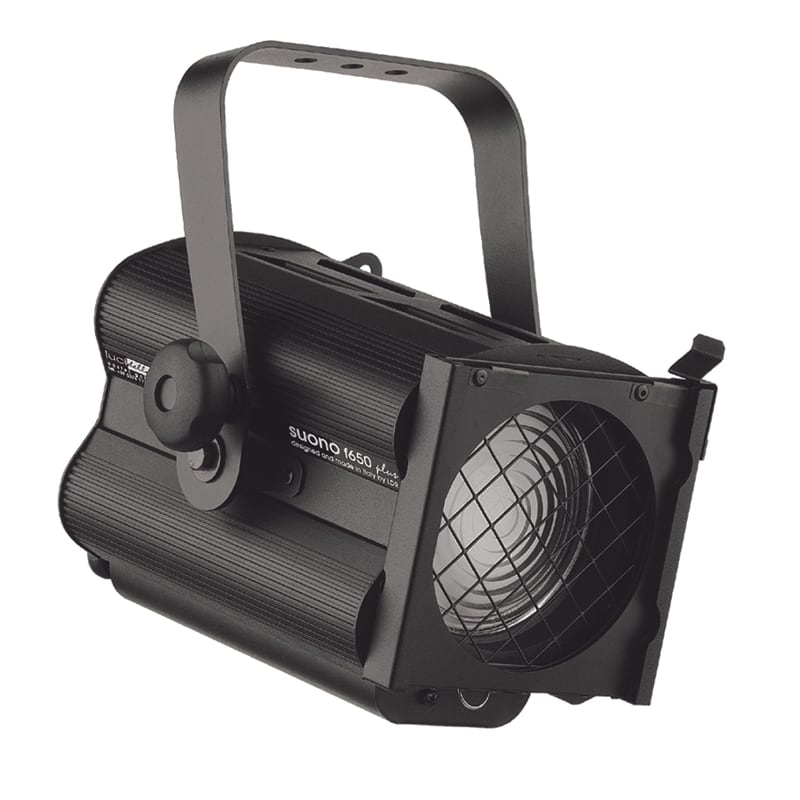

A compact, quality 300W/500W/650W fresnel spotlight ideal for professional applications in smaller venues. The soft-edged beam is adjustable by a screw focus mechanism, and the design also includes a glass reflector and a double-microswitch interlock for safe lamp replacement. A gel frame and safety guard are all included as standard.
Features
650W lamp (not supplied)
Beam style: Variablespread
softedged beam
Adjustable beam angle: 7 Degree 60 Degree
Focus adjustment: Screw focus with control on rear
Working position: Max. tilting � 90 Degree from horizontal
Beam shaping: Optional 4leaf barn door
Lamp base: GY9.5
Lamp types:,300W 230V M38 2950K 2000 hrs,500W 230V T18 3000K 360 hrs / T25 3000K 360 hrs / M40 2950K 2.000 hrs,650W 230V T26 3050K 600 hrs / T27 3050K 600 hrs,300W 120V CP81 FKW 3200K 50 hrs,650W 120V CP89 FKR 3200K 200 hrs
Positional adjustment single rimclamp tilt lock
Autodisconnect doublepole microswitch
3 accessory runner slots
150 x 150mm gel frame and safety guard included
Reflector: 55mm diameter glass
Lens: 120mm diameter fresnel
Mounting bracket and stirrup rotates 360 Degree around the body of the luminaire
Captive power connection
Power cable to bare ends included
Construction: Extruded aluminium and sheet steel
Technical Specifications
Power supply: 230/240V AC
Dimensions: 295 x 210 x 305mm
Weight: 4.1kg
Dimensions
Height: 32.0cm
Width: 48.0cm
Depth: 31.0cm
Weight
5.5kg
