Description

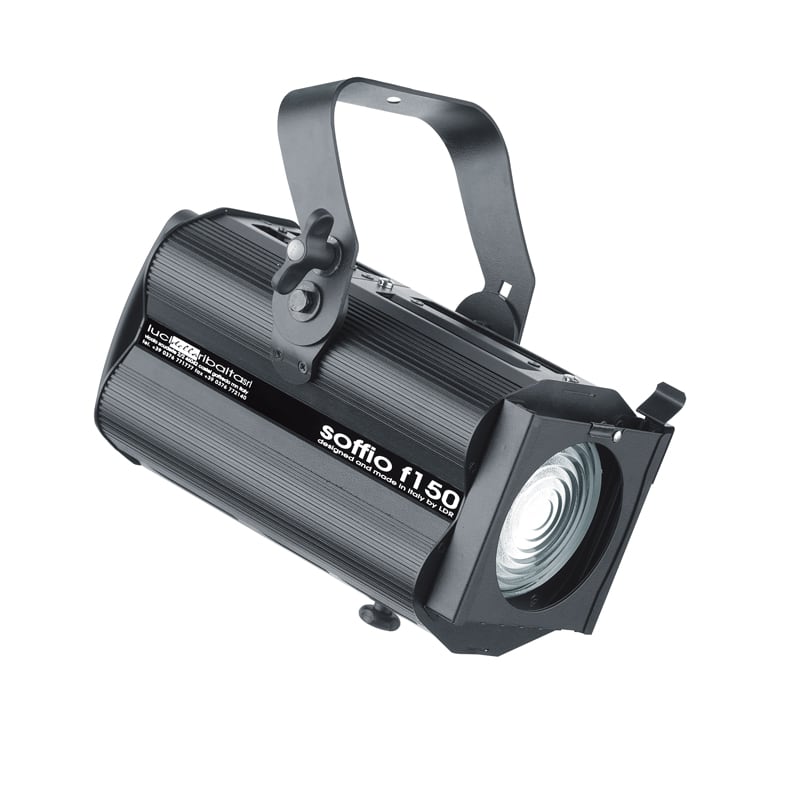

Ideal for display lighting and theatrical-style illumination of architectural spaces, the Soffio Fresnel produces a bright soft-edged beam, variable from 7� to 63� and shaped using an optional 4-leaf barn door accessory. With a choice of 150W discharge lamps to give a warm or cool colour temperature, the high power, low consumption and low maintenance design is perfectly suited to architectural applications, and is supplied with a internal electronic ballast and gel frame.
Features
150W lamp (not supplied)
Adjustable beam angle: 7 Degree 63 Degree
Focus adjustment: Slide focus on underside
Beam shaping: Optional 4leaf barn door
Positional adjustment: Single rimclamp tilt lock
Internal electronic ballast and power factor corrected
Lamp base: G12
Lamp types:,3000K Philips 150W CDMT 150/830 9.000 hrs,4200K Philips 150W CDMT 150/942 9.000 hrs,4200K Philips 150W CDMT SA 150/942 6.000 hrs
125 x 125mm gel frame included
3 accessory runner slots
Mounting bracket
Captive power connection
Power cable to bare ends included
Construction: Extruded aluminium and sheet steel
Technical Specifications
Power supply: 230/240V AC
Dimensions: 300 x 210 x 320mm
Weight: 4.3kg
Dimensions
Height: 23.0cm
Width: 36.0cm
Depth: 25.0cm
Weight
4.8kg
