Description
Overview…

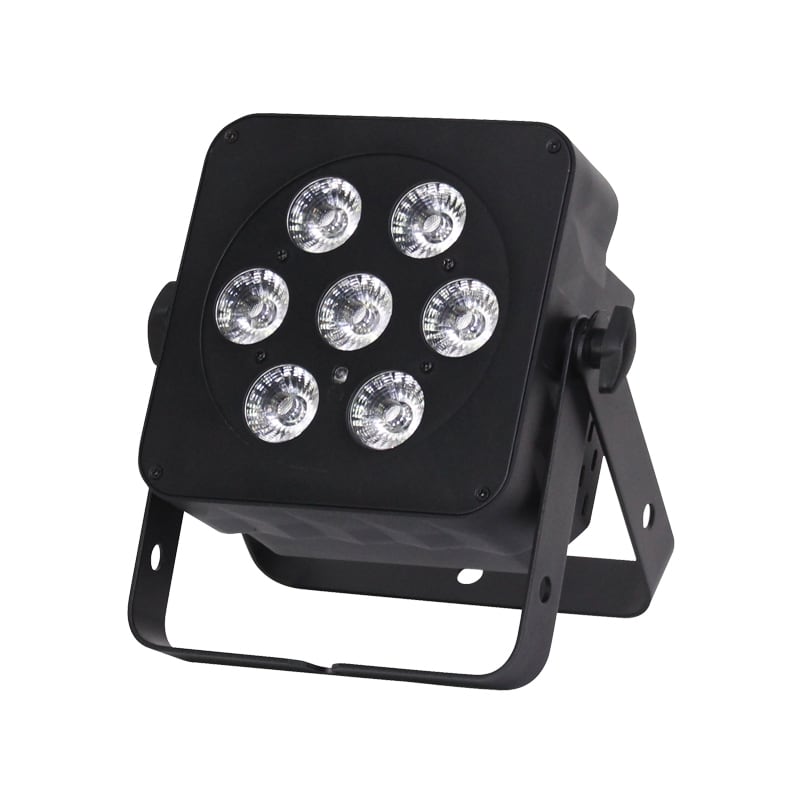

Housing 7 x 5W quad-colour LEDs, the Slimline 7Q5 give smooth colour mixing from rich saturated hues to subtle pastel shades. These units have rugged, all metal housings and measure only 99mm in depth for easy transportation and installation. They are also convection cooled for silent operation and feature a 25 degree beam angle. The 4 push button LED menu or optional IR remote allows easy access to the functions including DMX, master/slave, sound active and stand alone.
Features…
7 x 5W quadcolour LEDs (RGBW)
Beam angle: 25 Degree (field angle: 40 Degree)
2,700 Lux @ 2m
400Hz refresh rate
DMX channels: 2/3/4 or 7 selectable
Static colour
colour change
colour fade
auto run
sound active and master/slave modes
0 100% dimming and variable strobe
Bracket allows for multiple rigging or floor standing applications
Rubber feet allow the panel to sit flat on the floor for uplighting
4 push button menu with LED display
Side entry XLR and power connections
IEC power input/output
3Pin XLR input/output
Convection cooled
Optional IR remote (LEDJ90C)
Technical Specifications…
Power consumption: 45W
Power supply: 100~240V
50/60Hz
Dimensions: 202 x 224 x 99mm
Weight: 2.5kg
