Sound Dynamics > Slimline 7Q5 RGBA

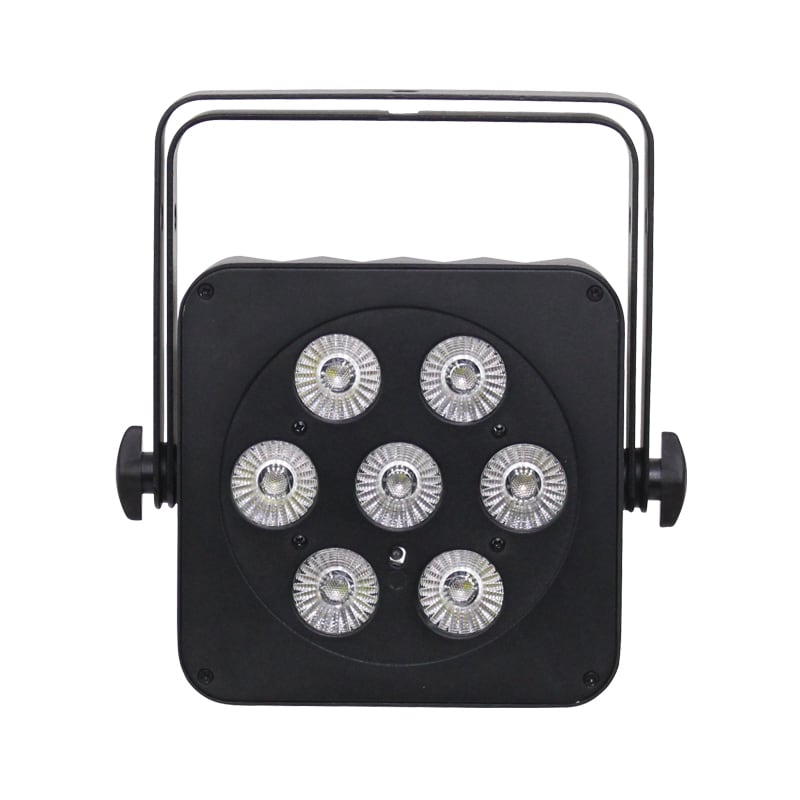

Slimline 7Q5 RGBA

£87.50 Ex VAT: £72.92

Housing 7 x 5W quad-colour LEDs including amber, the Slimline 7Q5 produces a wide spectrum of smooth colours from rich saturated hues to subtle pastel shades. These units have rugged, all metal housings and measure only 99mm in depth for easy transportation and installation. They are also convection cooled for silent operation and feature a 25� beam angle. The 4 push button LED menu or optional IR remote allows easy access to the functions including DMX, master/slave, sound active and stand alone.

In stock

SKU: LEDJ59B Categories: ,

Description

Housing 7 x 5W quad-colour LEDs including amber, the Slimline 7Q5 produces a wide spectrum of smooth colours from rich saturated hues to subtle pastel shades. These units have rugged, all metal housings and measure only 99mm in depth for easy transportation and installation. They are also convection cooled for silent operation and feature a 25� beam angle. The 4 push button LED menu or optional IR remote allows easy access to the functions including DMX, master/slave, sound active and stand alone.

Features

7 x 5W quadcolour LEDs (RGBA)
Beam angle: 25 Degree (field angle: 40 Degree)
1,810 Lux @ 2m
400Hz refresh rate
DMX channels: 2/3/4 or 7 selectable
Static colour
colour change
colour fade
auto
sound active and master/slave modes
0100% dimming and variable strobe
Bracket allows for multiple rigging or floor standing applications
Rubber feet allow the panel to sit flat on the floor for uplighting
4 push button menu with LED display

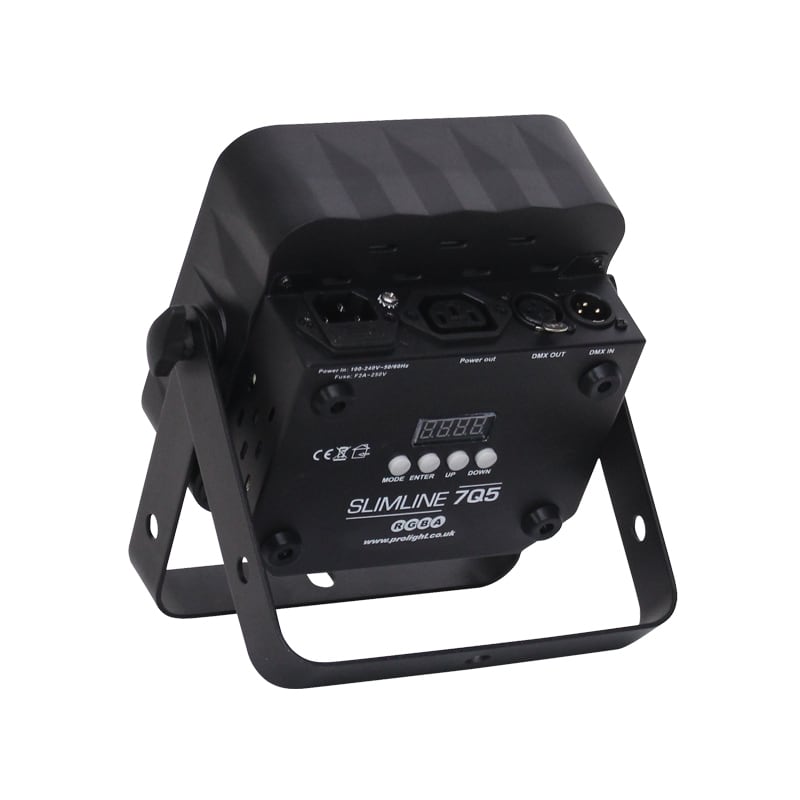

Side entry XLR and power connections
IEC power input/output
Convection cooled
Optional IR remote (LEDJ90C)

Technical Specifications

Power consumption: 45W
Power supply: 100~240V
50/60Hz
Dimensions: 202 x 224 x 99mm
Weight: 2.5kg

Dimensions

Height: 27.2cm
Width: 23.2cm
Depth: 17.2cm

Weight

2.5kg

Additional information

Weight 2.5 kg
Dimensions 27223217.2 cm
