Description
The SD-1 is a dedicated controller for the Display Panel, Display Qube and Display Floor fixtures. Features include 82 programs with auto run and 18 speed settings, master/slave mode for multiple fixture linking, sound active with sensitivity adjustment, brightness and DMX modes.
Features
DMX channels: 12
Auto shows
sound active and master/slave modes
4 push button menu with LCD display
DC 12V power input
3Pin XLR input/output trailing connections
RJ45 link input/output
8 RJ45 zone outputs
3.5mm jack audio source input

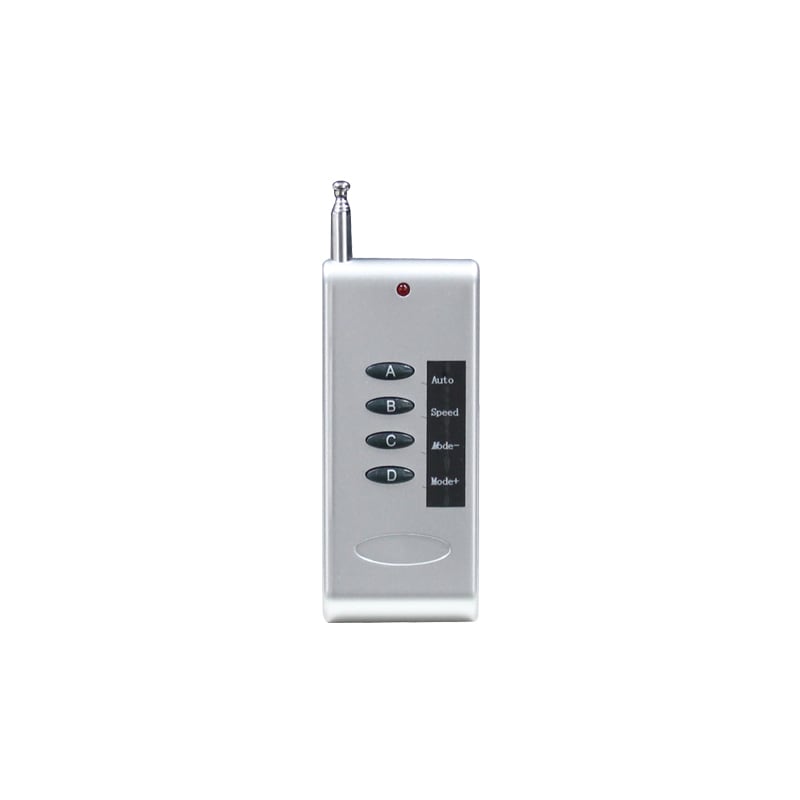

Wireless remote included
Technical Specifications
Power consumption: 10W
Power supply: DC 12V
Controller dimensions: 45 x 220 x 143mm
Remote dimensions: 103 x 38 x 12mm
Controller weight: 1kg
Remote weight: 0.1kg
Dimensions
Height: 11.5cm
Width: 40.0cm
Depth: 32.5cm
Weight
2.0kg
