Description
● 12 x 4W quad-colour LEDs (RGBW)
● Beam angle: 30°
● Static colour, auto, sound active and master/slave modes plus built-in programs
Overview…

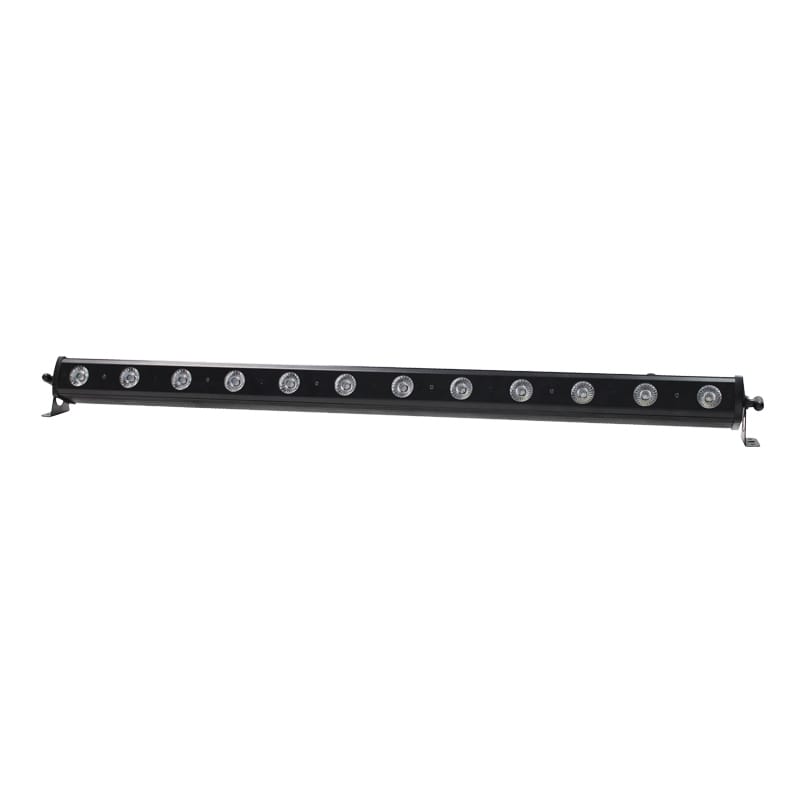

The Quad Pix Batten is a pixel controllable LED bar with 12 x 4W 4-in-1 RGBW LEDs. For ease of operation, the batten features a large number of macros and effects accessible either via the on board menu or DMX. Full pixel control is also available when operated in 48 channel mode to create stunning colour flows and chases.
Key Features…
– 12 x 4W quad-colour LEDs (RGBW)
– Beam angle: 30°
– 536 Lux @ 2m (full on)
– 2kHz refresh rate
– Pixel mapping capabilities
– DMX channels: 3/4/6 or 48 selectable
– Static colour, auto, sound active and master/slave modes plus built-in programs
– 0 -100% dimming and variable strobe
– Bracket allows for multiple rigging or floor standing applications
– 4 push button menu with LED display
– IEC power input/output
– 3-Pin XLR input/output
– Convection cooled
Specification…
– Power consumption: 25W
– Power supply: 100~240V, 50/60Hz
– Fuse: T1A 250V
– Dimensions: 88 x 1070 x 65mm
– Weight: 2kg
