Description
- High power delivery
- Overheat/overload protection
- Multiple input and output connection types
Overview…
Professional dual channel power amplifier delivering high quality, dependable performance at an accessible price. Design of these workhorse amplifiers has been focused upon high power delivery without over-complicated features adding excessive costs. Yet still, these units are furnished with multiple connection possibilities and self-protection circuitry to ensure that they will deliver, whatever the application.
Features…
High power delivery
Overheat/overload protection
Multiple input and output connection types
2U 19″ rack mountable
Balanced and unbalanced inputs
Technical Specifications…
Power supply[tab]110/240Vac, 50/60Hz (IEC)
THD[tab]0.25%
SNR[tab]90dB

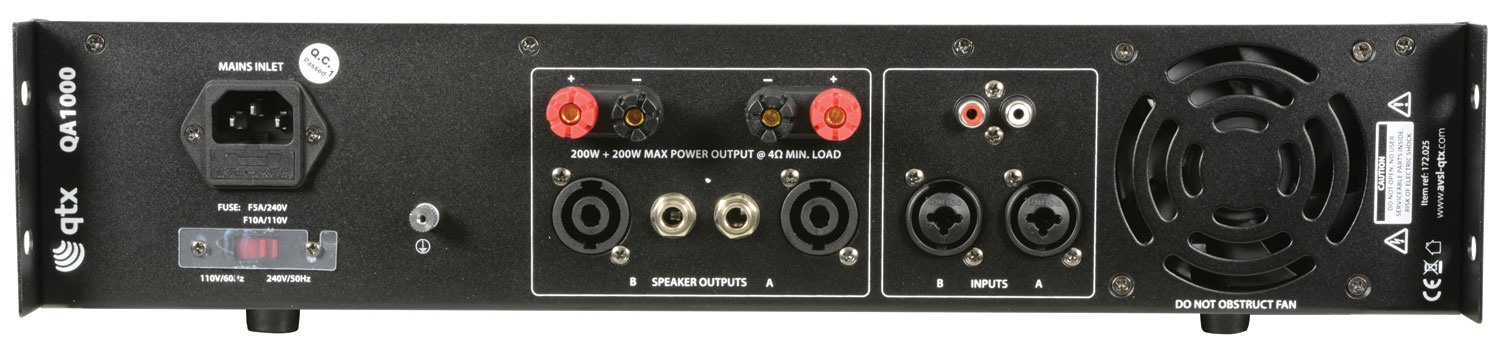

Inputs[tab]Combo (6.3mm jack + XLR) and RCA
Outputs[tab]SPK, 6.3mm jack and 4mm binding posts
Power max. @ 4 Ohms: 2 x 500W
Fuse Rating: T5A (240V) / T10A (110V)
Power rms @ 4 Ohms: 2 x 250W
Power rms @ 8 Ohms: 2 x 170W
Dimensions: 88 x 482 x 340mm
Weight: 9.1kg
