NuX MG-300 Guitar Multi-FX Pedal

£159.00 Ex VAT: £132.50

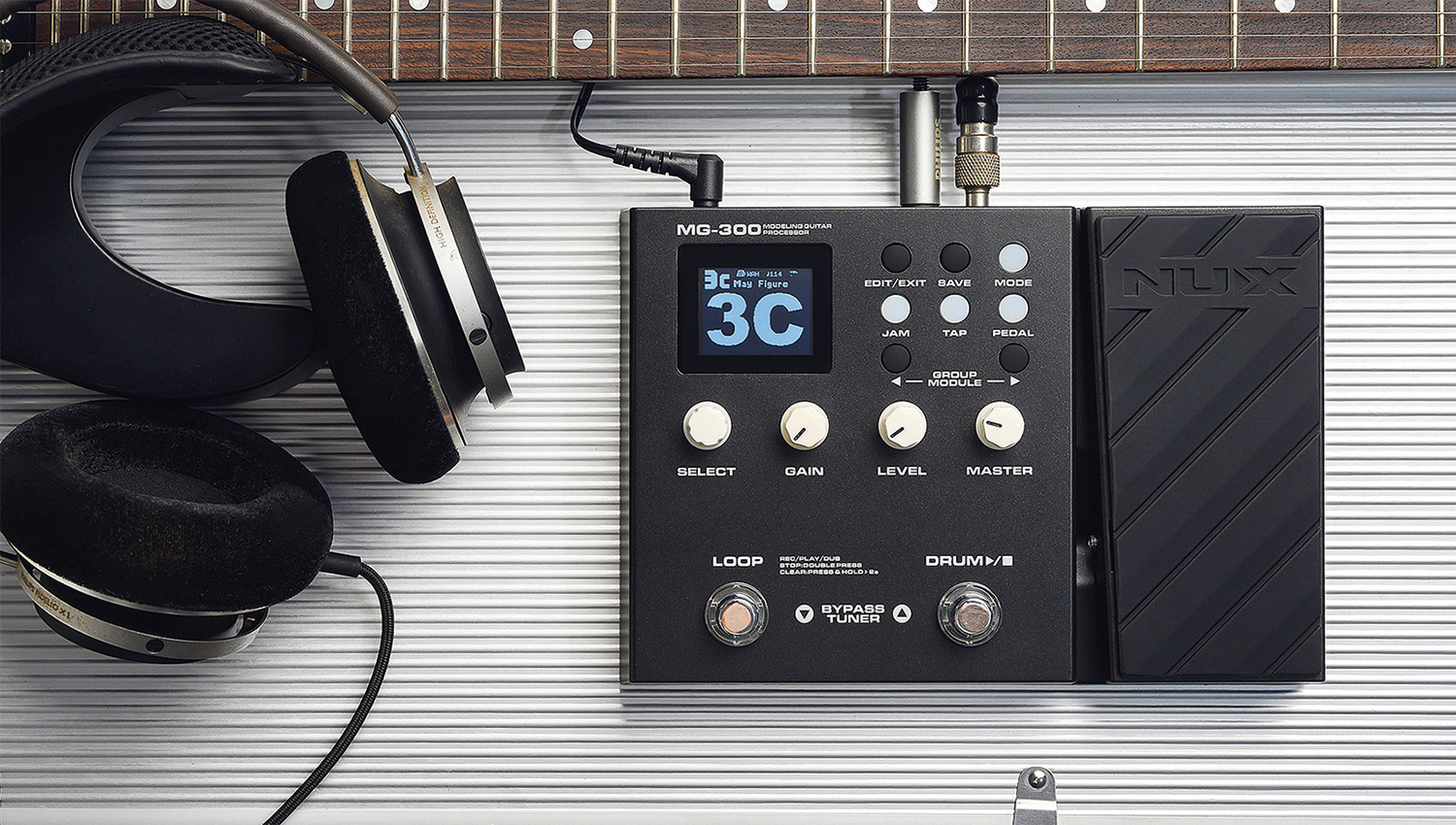

NuX MG-300 Multi-Effect Pedal

In stock

SKU: 173.316UK Categories: ,

Description

The NuX MG-300 is a compact yet powerful live multi-effects processor, recording tool and practice companion for guitar players. Integrated effects sections include Drive, Amp Simulation, I.R cabinet simulation, Modulation, Delays & Reverbs with a host of options within each category. Audio modelling is based on the NuX TSAC algorithm, which delivers high definition analogue circuit simulation for pro quality guitar tones. An expression pedal covers wah and swell effects amongst other possibilities. All settings can be edited onboard or via USB using the downloadable PC/Mac Quicktone software and then stored into one of 36 internal memory locations. For live or rehearsal backing, the built-in Jam function has a fully featured drum machine and phrase looper. To integrate with a DAW studio suite, the USB also functions as a high quality audio interface, completing the studio-ready guitar rig. The main output has options for guitar amplifiers, D.I to studio equipment or straight to a pair of headphones. On-the-fly controls and a full colour display complete the package, providing a comprehensive and affordable guitar workstation in a very portable format.

Features

Multi-functional controls and display
USB audio interface and PC/Mac editor
TSAC pre-effects and amp modelling
Core image modulation, delay and reverb effects
Fully-featured drum machine and looper
I.R. cabinet simulation (importable)

Technical Specifications

Power supply[tab]9Vdc, 260mA pin-negative (adaptor included)
Inputs[tab]6.3mm jack (guitar), 3.5mm jack (aux input)
USB port[tab]Micro-USB for audio interface and PC/Mac editing
Sampling format[tab]48kHz, 24-bit
Frequency response[tab]20Hz – 20kHz (±1dB)
Output[tab]6.3mm jack to mixer, amp or headphones
THD +N[tab]<0.03%
Dynamic range[tab]110dB
Input level[tab]-20dB
Output level[tab]-10dB
Dimensions[tab]230 x 160 x 58mm
Weight[tab]754g

Weight

1.3000kg

Dimensions

332 x 192 x 92mm

Additional information

Weight 1.3000 kg
