Description

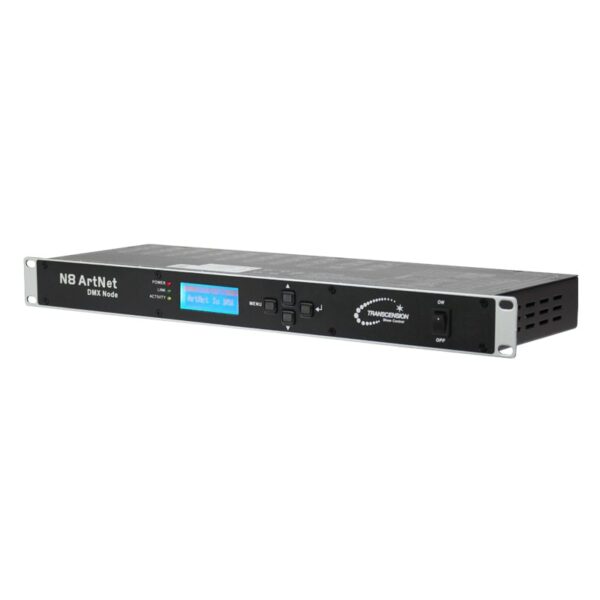

Multi-purpose, eight universe DMX processor featuring three modes of operation: Art-NetT to DMX node, eight universe DMX to Art-NetT processor or DMX splitter/buffer. It has eight optically isolated DMX outputs via 5-Pin XLR, NeutrikT etherCONT input/through and a fused IEC mains input.
Features
Eight way ArtNetT to DMX processor
ArtNetT input/through via etherCONT RJ45
4096 channels
4 push button menu with LCD display
6 user presets
10/100M LAN interface
Supports TCP/IP protocol
Manual IP address selection
Eight DMX512 output s via 5Pin XLR
RDM Support
Electronically isolated inputs and outputs
IEC power input
19”/1U rack mountable
Technical Specifications
Power supply: 100~240V
50/60Hz
Dimensions: 45 x 484 x 152mm
Weight: 1.98kg
Dimensions
Height: 14.3cm
Width: 24.0cm
Depth: 53.7cm
Weight
2.6kg
