Description

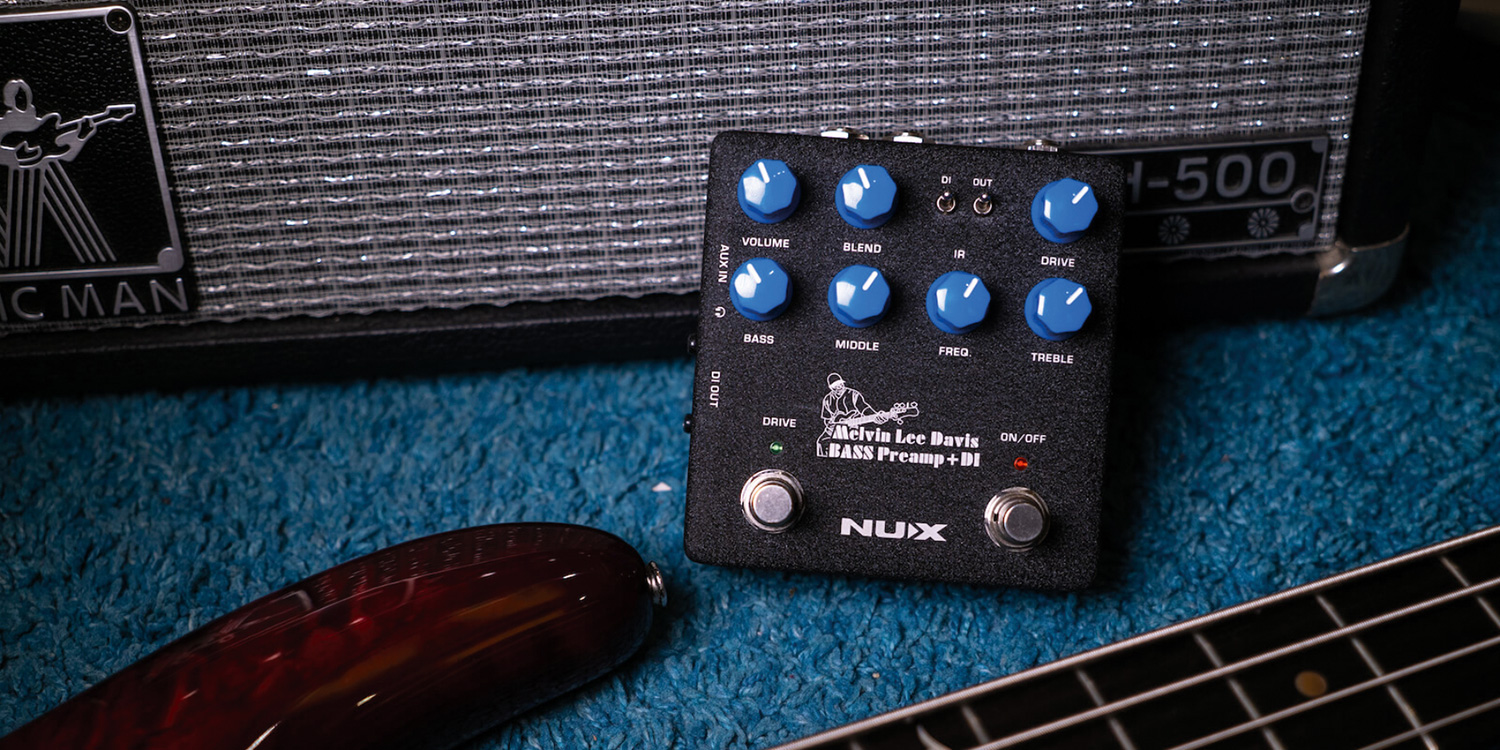

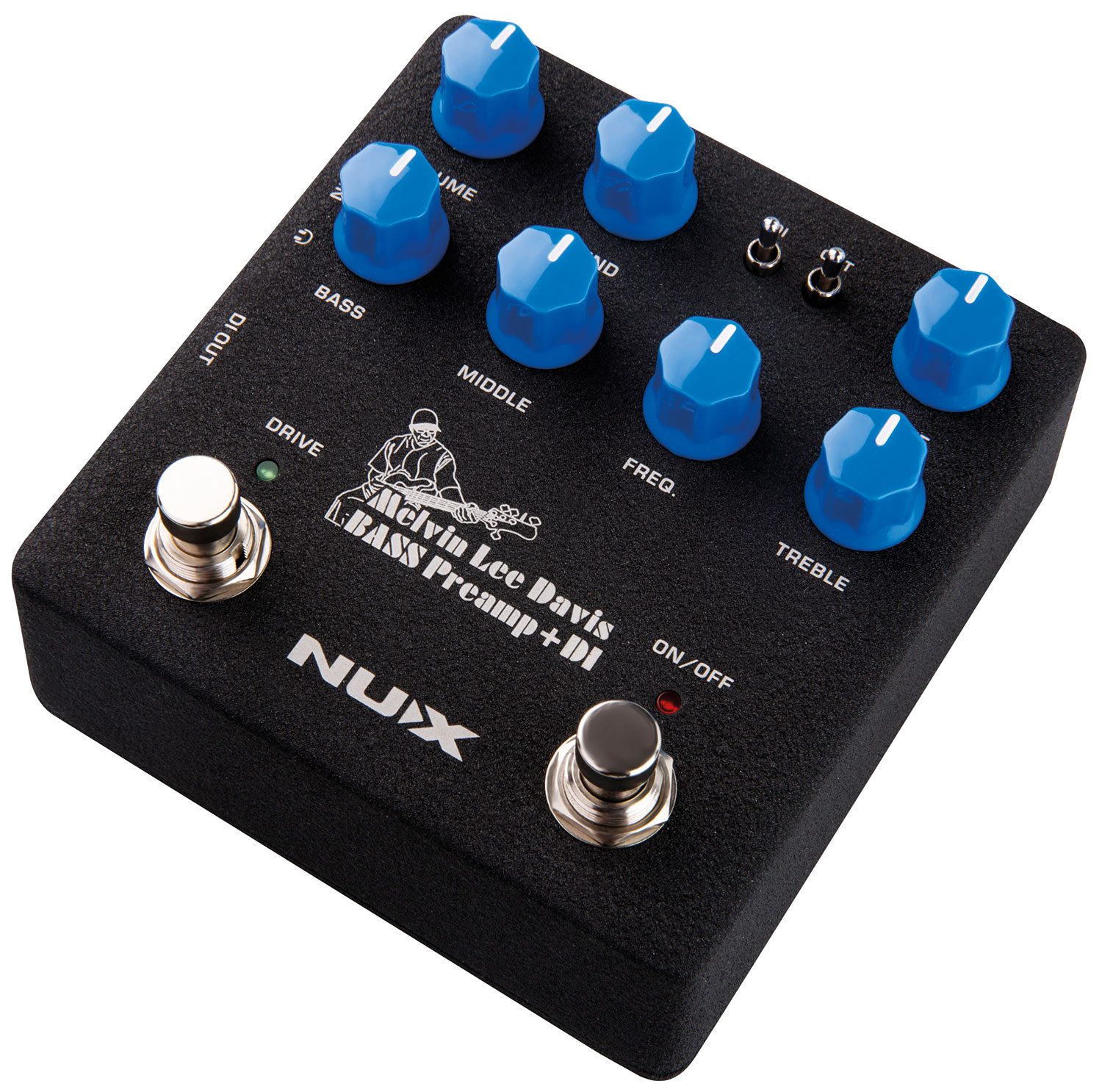

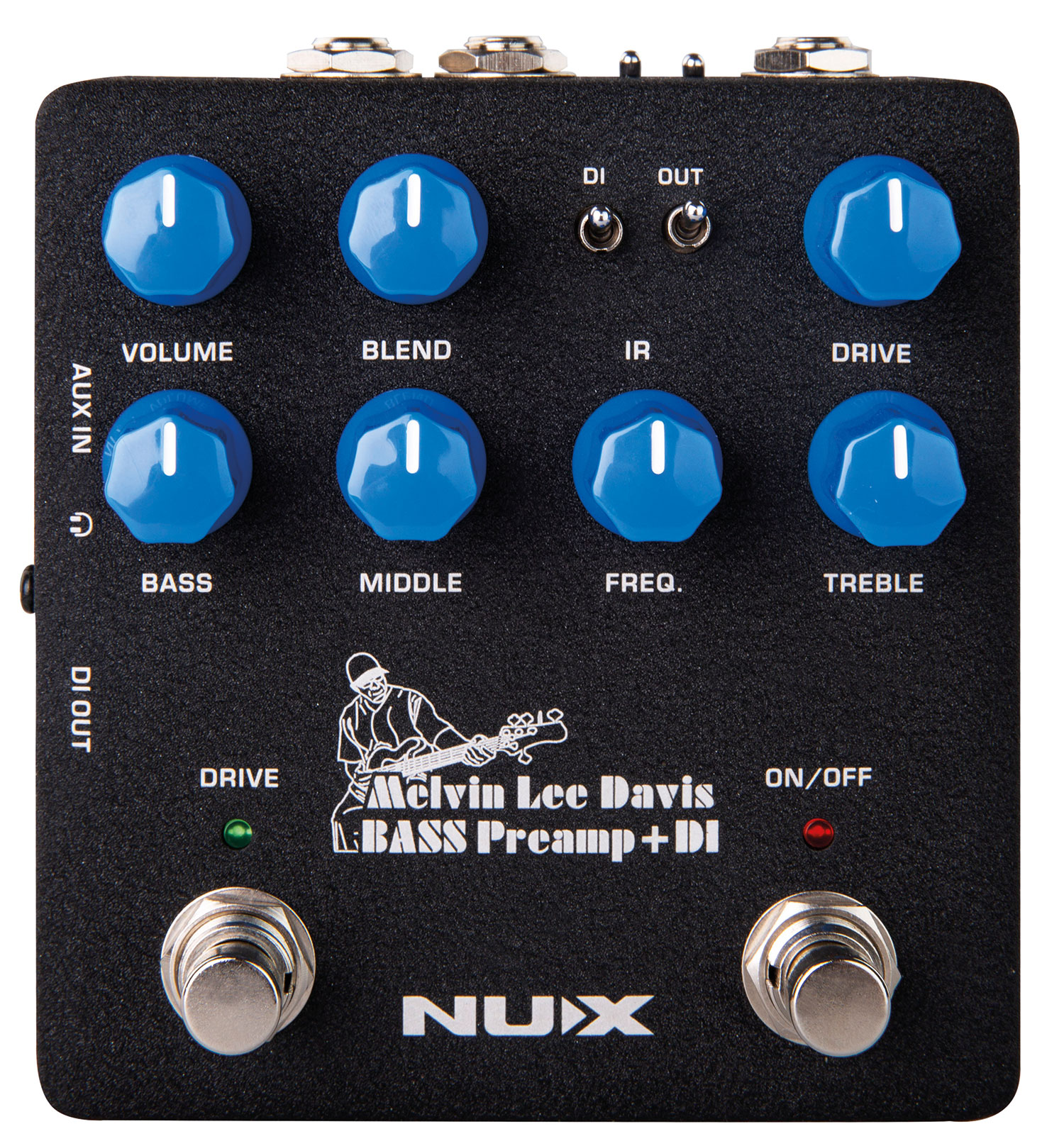

Signature preamp pedal of acclaimed U.S. bass guitar virtuoso Melvin Lee Davis. Features include 3-band EQ with swept mid-band, separate Drive footswitch for extra gain on demand, Impulse Response loader for custom cabinet simulation and balanced D.I. output for feed direct to a live or studio mixing console. Additional jack output, through connection to an amplifier, auxiliary line input and headphone outputs give even further options. USB connection to a P.C. for recording and control via the proprietary NuX software provides deeper editing possibilities. For ultimate bass tone, the MLD preamp can be the main control unit for any live or studio rig.
Features
USB connection for editing and audio interface
Individual Preamp and Drive footswitches
3-band EQ with swept mid-band
I.R. loader cabinet emulation
Technical Specifications
Power supply[tab]9Vdc, >150mA adaptor (not supplied)
DC input connection[tab]5.5 x 2.1mm DC jack
Inputs[tab]Instrument 6.3mm jack, Aux 3.5mm jack
Outputs[tab]6.3mm jack Out + Thru, XLR D.I. and 3.5mm headphones jack
PC Com port[tab]Micro USB (audio/firmware/editing)
Dimensions[tab]115 x 105 x 58mm
Weight[tab]460g
Sampling format[tab]48kHz 32-bit
Frequency response[tab]20Hz – 20kHz (-1dB)
Dynamic range[tab]100dB
Weight
0.5900kg
Dimensions
140 x 140 x 70mm
