Description
Overview…

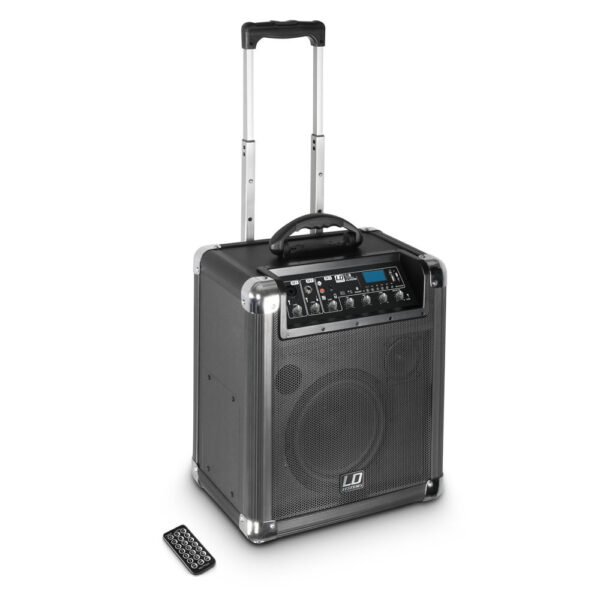

The Road Series 8″ active 2-way system takes your sounds anywhere. With built-in wheels and extension handles for carting convenience the LDRJ8 features a 90 Hz – 18 kHz frequency range and 100 watts peak output. A rechargeable battery pack provides up to 20 hours of continuous operation.

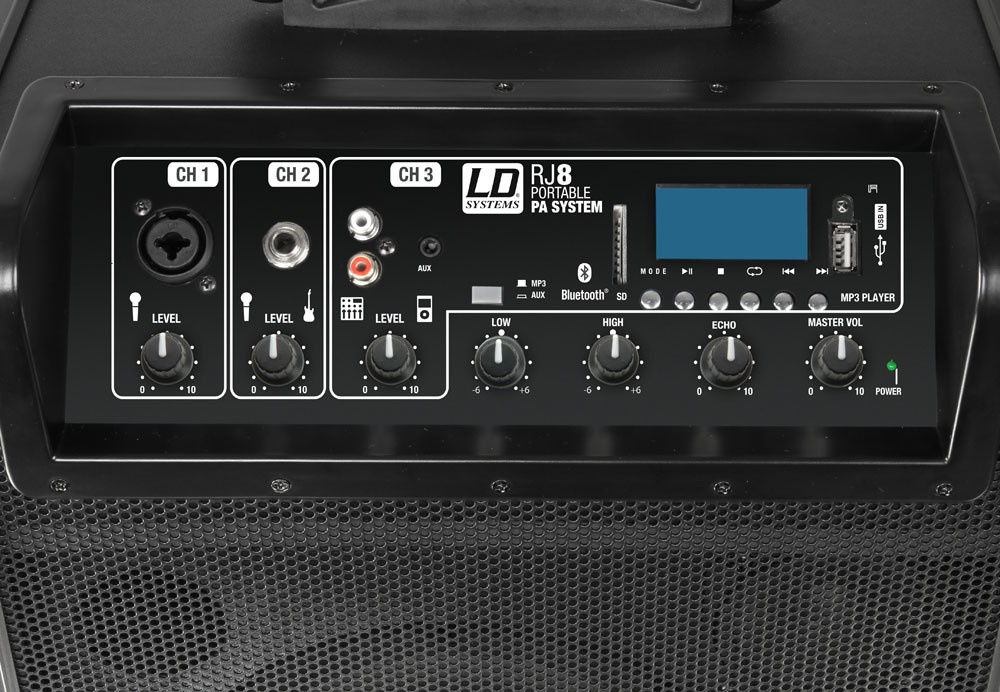

The integrated mixer sports 3 channels with individual volume controls, a 2-band EQ plus an echo and master volume. Combo, 6.3 mm TRS jack, RCA and 3.5 mm TRS mini-jack connectors allow for a wide variety of input sources.
The LDRJ8’s major feature is a built-in Bluetooth player which permits wireless streaming to the system. It also supports SD card and USB storage devices. The player menu includes multiple genre specific presets for instant EQ adjustment.
The LDRJ8 comes with a handy IR remote control and convenient stand mount insert.
Key Features…
– Battery powered speaker solution
– Built-In Wheels and extension handles for carrring
– Bluetooth player with USB port and SD card slot
– 2 combo sockets for microphone or line inputs
– 3.5 mm Aux input
– Master section with 2-band EQ

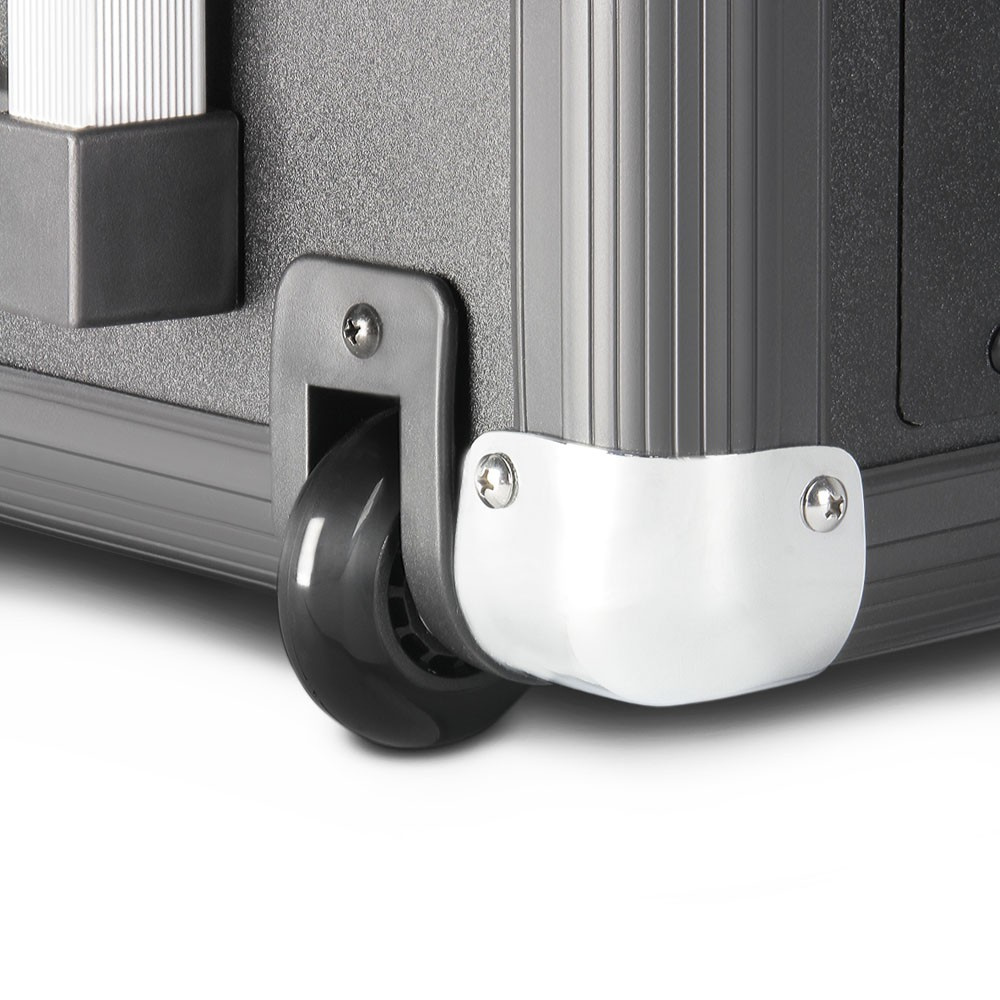

– Built-in wheels, pull-out handle and fixing for 35 mm tripod mount
– Wireless microphone and IR-remote control included
Tech Spec…
General…
– Product type – Battery-powered PA speaker
– Low/mid Woofer dimensions – 8 ”
– Woofer dimensions (mm)203.2 mm
– Woofer magnet Ferrite
– Woofer brand Custom-made
– HF driver dimensions (wide range) 3 ”
– HF driver dimention (mm) 76.2 mm
– HF driver magnet Ferrite
– HF driver brand Custom-made
– Amplifier Class D
– RMS 25 W
– Peak power 100 W
– Frequency response 90 – 18000
– SPL (1W/1m) 94 dB
– Max. SPL 113 dB
– Protection circuits over-current, overload protection, short circuit
– Controls AUX / MP3 switch, CD / Tape IN Level, Echo, high, low, Master Volume, Mic 1 Level, Mic 2 Level
– Indicators Charge/battery status, Power
Media player…
– Supported media -Bluetooth, SD Card, USB stick
– Supported formats – MP3 file, WAV-CD, WMA file
– Media player controls – Mode (Menu / Bluetooth /SD / USB), Next Track, Play / Pause, Previous Track, Repeat, Stop
– Media player display elements – Lighted multifunctional LC display
– Line inputs 1
– Line input connectors 2 x RCA, 3.5 mm jack
– Mic inputs 2
– Mic inputs 3.5 mm jack, XLR
– Operating voltage Switching power supply
– Operating voltage 100 V – 120 V / 60 Hz, 220 V – 240 V AC / 50 Hz
– Rechargeable batteries 12 V / 5 Ah
– Cabinet material 15 mm MDF
– Cabinet construction Bass Reflex
– Width 385 mm
– Height 450 mm
– Depth 298 mm
– Weight 13.8 kg
– Other features: Extendable handle, IR Remote for Media Player, Stand mount 36 mm, Transport casters, transport handle
