Description
Overview…
With built-in wheels and extension handles for carting convenience the LDRJ10 active 2-way system is your mobile sound station. It is powered by a rechargeable battery pack for up to 20 hours of continuous operation and provides a 90 Hz – 18 kHz frequency response with 100 watts of peak output.
The LDRJ10’s integrated mixer features 3 channels with individual volume controls, 2-band EQ, echo and master volume. Combo, 6.3 mm TRS jack, RCA and 3.5 mm TRS mini-jack connectors accommodate a wide variety of input sources.
A major feature permitting wireless streaming to the LDRJ10: the system sports a Bluetooth player which also supports SD card and USB storage devices. The player menu includes language selection and multiple genre specific EQ presets for instant sound adjustment.
The Roadjack 10 also features corners for cabinet protection, a stand mount insert and includes a convenient IR remote control.
Key Features…
– Battery powered speaker solution
– Built-In Wheels and extension handles
– Bluetooth player with USB port and SD card slot
– 2 combo sockets for microphone or line inputs
– 3.5 mm Aux input
– Master section with 2-band EQ

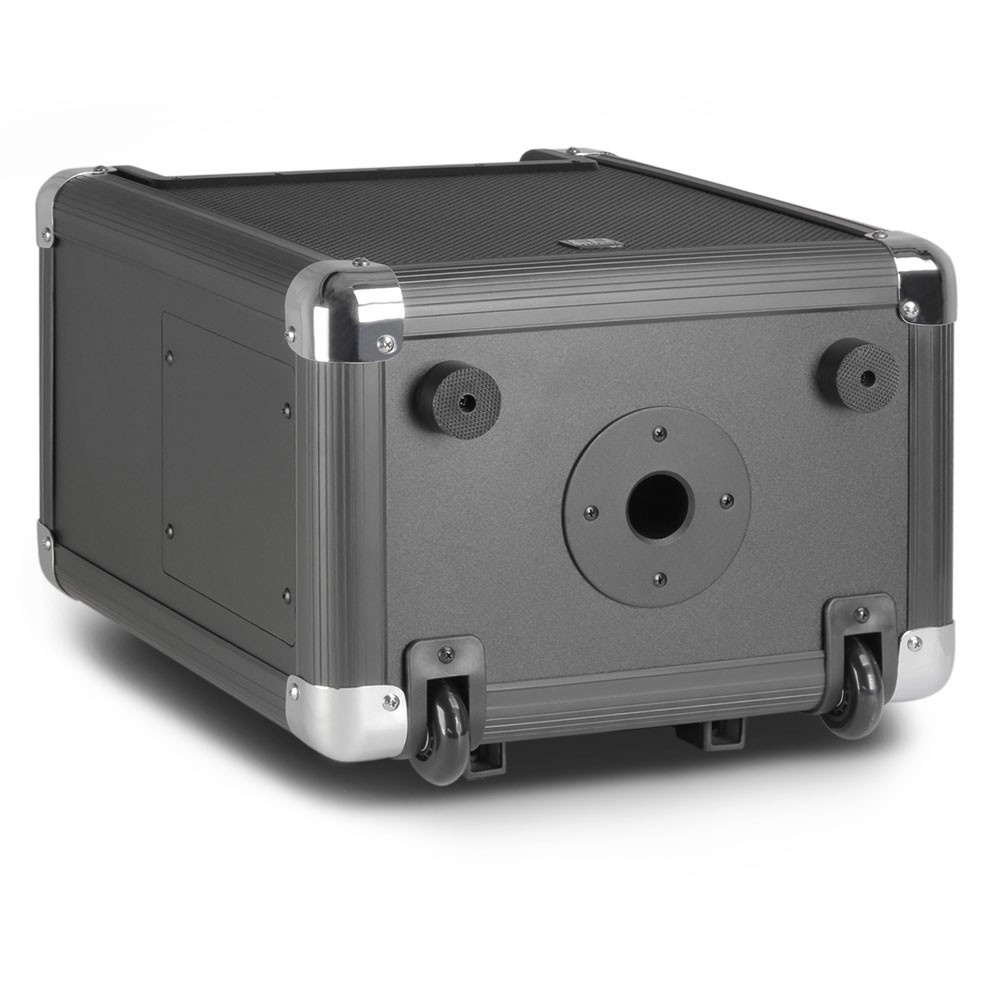

– Built-in wheels, pull-out handle and fixing for 35 mm tripod mount
– Wireless microphone and IR-remote control included
Tech Spec…
General…
– Product type: Battery-powered PA speaker
– Low/mid Woofer dimensions: 10 ”
– Woofer dimensions (mm): 254 mm
– Woofer magnet: Ferrite
– Woofer brand: Custom-made
– HF driver dimensions: (wide range) 3 ”
– HF driver dimensions (mm): 76.2 mm
– HF driver magnet: Ferrite
– HF driver brand: Custom-made
– Amplifier: Class D
– RMS: 25 W
– Peak power: 100 W
– Frequency response: 65 – 18000
– SPL (1W/1m): 96 dB
– Max. SPL: 117 dB
– Protection circuits: over-current, overload protection, short circuit
– Controls: AUX / MP3 switch, CD / Tape IN Level, Echo, high, low, Master Volume, Mic 1 Level, Mic 2 Level
– Indicators: Charge/battery status, Power
Media player…
– Supported media: Bluetooth, SD Card, USB stick
– Supported formats: MP3 file, WMA file
– Media player controls: Mode (Menu / Bluetooth /SD / USB), Next Track, Play / Pause, Previous Track, Repeat, Stop
– Media player display elements: Lighted multifunctional LC display
– Line inputs: 1
– Line input connectors: 2 x RCA, 3.5 mm jack
– Mic inputs: 2
– Mic inputs: 3.5 mm jack, XLR
– Operating voltage: Switching power supply
– Operating voltage: 100 V – 120 V / 60 Hz, 220 V – 240 V AC / 50 Hz
– Rechargeable batteries: 12 V / 5 Ah
– Cabinet material: 15 mm MDF
– Cabinet construction: Bass Reflex
– Width: 415 mm
– Height: 525 mm
– Depth: 328 mm
– Weight: 16.2 kg
– Other features: Extendable handle, IR Remote for Media Player, Stand mount 36 mm, Transport casters, transport handle
