Description

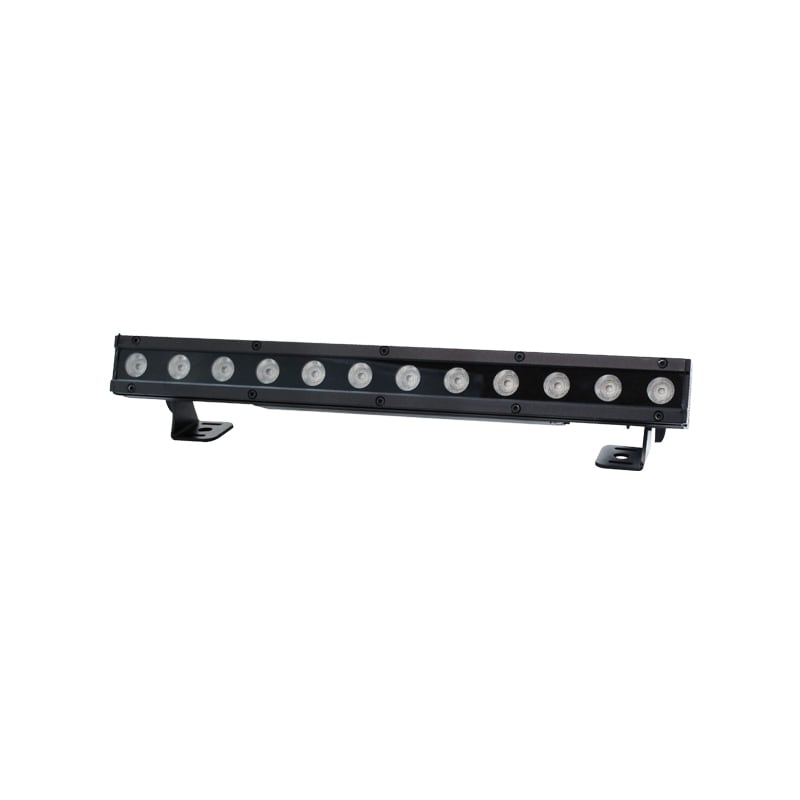

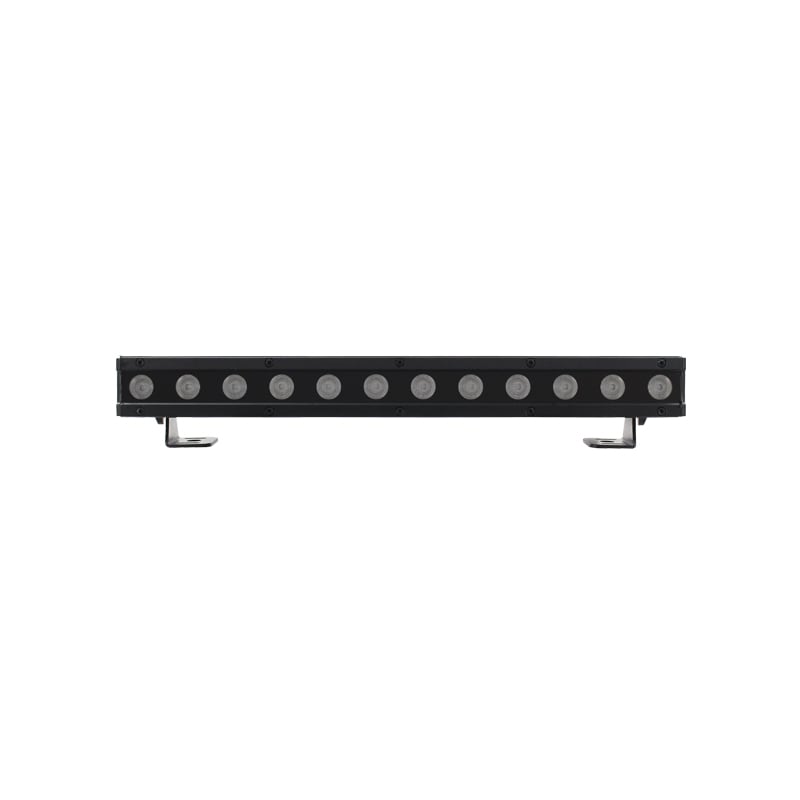

This sleek IP65 batten is perfectly suited for wall washing and cyclorama applications, and is manufactured using superior quality components to ensure smooth colour mixing and optimum reliability. Utilising an innovative optical arrangement combined with a specially designed light source, the 15� x 37� beam angle produces an unprecedented chromatic performance. The 4 button backlit LCD display facilitates control over static colours, colour mixing, changes, fades, DMX and master/slave and offers an access lock to prevent unauthorised setting changes. The rugged aluminium exterior ensures years of use in most weather conditions while the integral mounting brackets complete the fixtures sleek, modern appearance.
Features
12 x 3W quadcolour LEDs (RGBW)
Beam angle: 15 Degree x 37 Degree
1,421 Lux @ 2m (full on)
1.1kHz refresh rate
DMX channels: 3/4/6/8 or 10 selectable
RDM (Remote Device Management)
Static colour
colour change
colour fade and master/slave modes
0 100% dimming and variable strobe
Bracket allows for multiple rigging or floor standing applications
Eyebrow supplied to reduce glare and hide the LEDs when uplighting
4 button menu with LCD display
IP rated power input/output trailing connections
IP rated 3Pin DMX input/output trailing connections
Convection cooled
Technical Specifications
Power consumption: 58W
Power supply: 100~240V
50/60Hz
Fuse: T1A 250V
IP rating: IP65
Dimensions: 120 x 480 x 50mm
Weight: 3kg
Dimensions
Height: 19.0cm
Width: 55.0cm
Depth: 13.0cm
Weight
3.7kg
