Description
Overview…

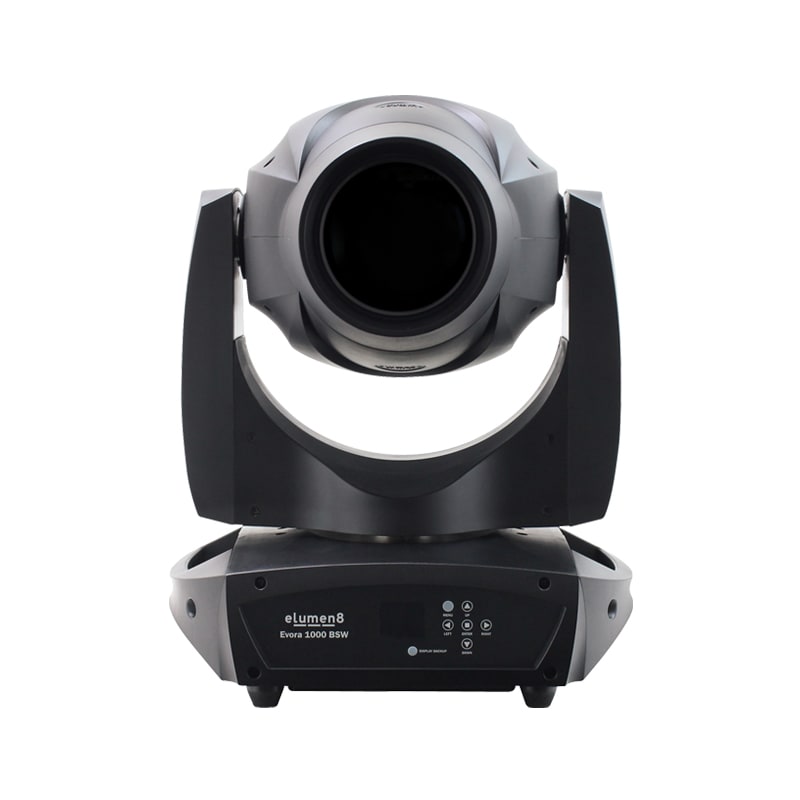

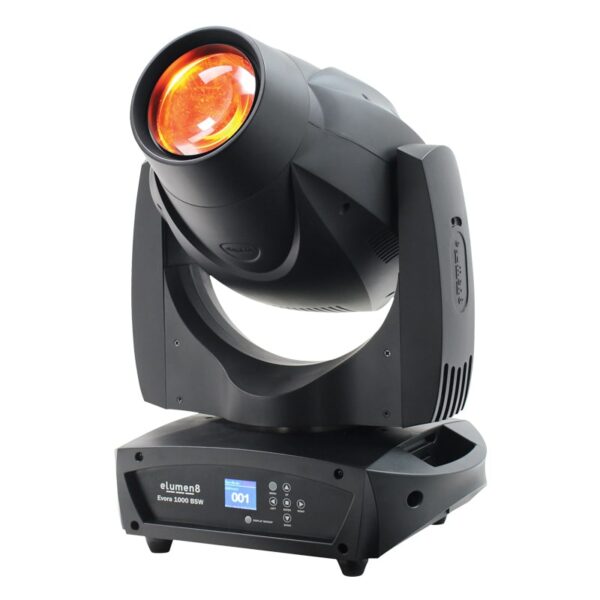

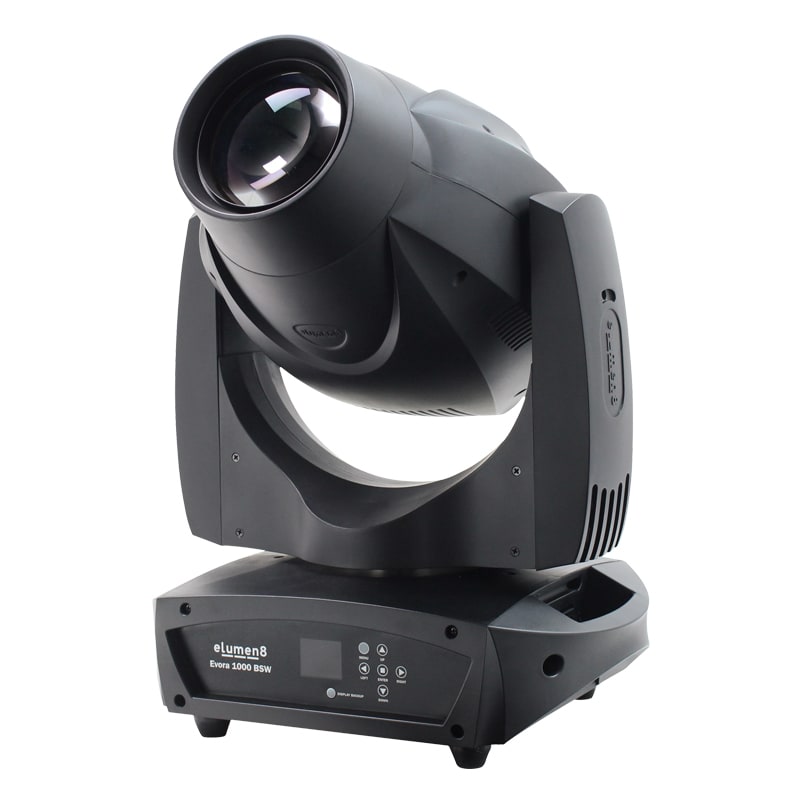

The Evora 1000 BSW is a 3-in-1 hybrid moving head with super smooth 3 phase motors. Boasting an immensely bright 180W LED, its output is ample for most large venues and events. With the ability to switch between a beam, spot and wash the Evora 1000 BSW offers a huge potential of creativity with a fully variable beam angle for projecting patterns onto walls or generating stunning mid-air effects. Used as a beam effect (4.5 degree), the unit emits sharp beams of light whilst as a spot (20 degree) the fixture is capable of stunning projections. When operated in the wash mode (45 degree) the unit produces soft-edged washes.
Features…
2 year warranty
1 x 180W white LED
Beam angle: 4.5 Degree (Beam)
20 Degree (Spot)
45 Degree (Wash)
4.5 Degree 5,220 Lux @ 10m
20 Degree 720 Lux @ 10m
45 Degree 163 Lux @ 10m
3.6kHz refresh rate
Motorised zoom and focus
8 facet circular rotating indexable prism plus 6 facet linear rotating indexable prism
Frost filter

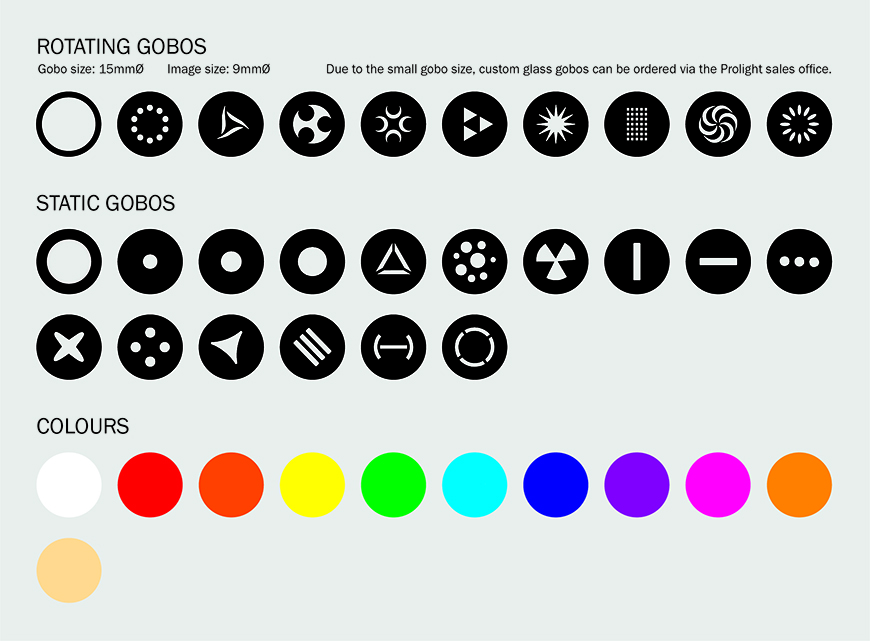

Gobo wheel 1: 9 rotating
indexable
replaceable gobos + open
Gobo wheel 2: 15 static gobos + open
Colour wheel: 9 colours + 3200K + open
DMX channels: 16
RDM (Remote Device Management)
Auto
sound active and master/slave modes
Forward facing show mode
Pan/tilt auto correction
16Bit pan/tilt positioning
Pan: 540 Degree or 630 Degree selectable
Tilt: 270 Degree
0100% dimming and variable strobe

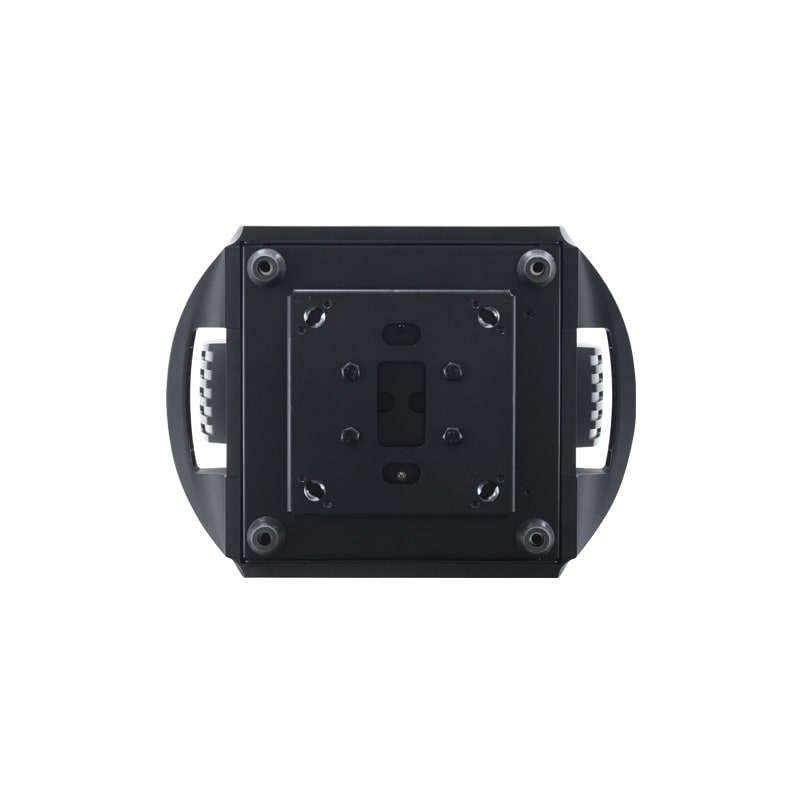

Supplied with quick release omega clamps

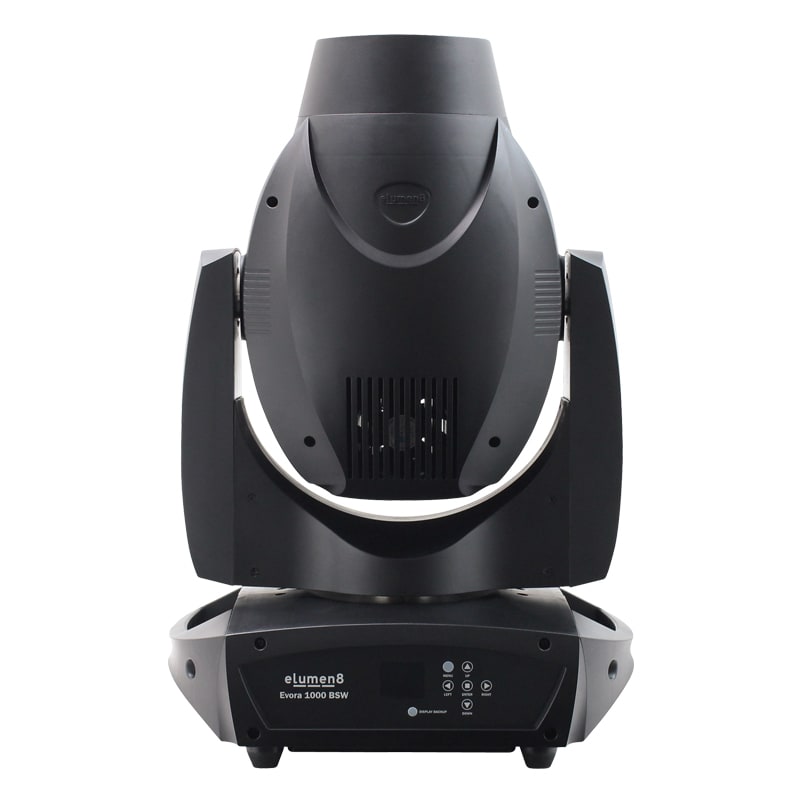

6 push button menu with 1.8” LCD display
Display battery backup for offline configuration

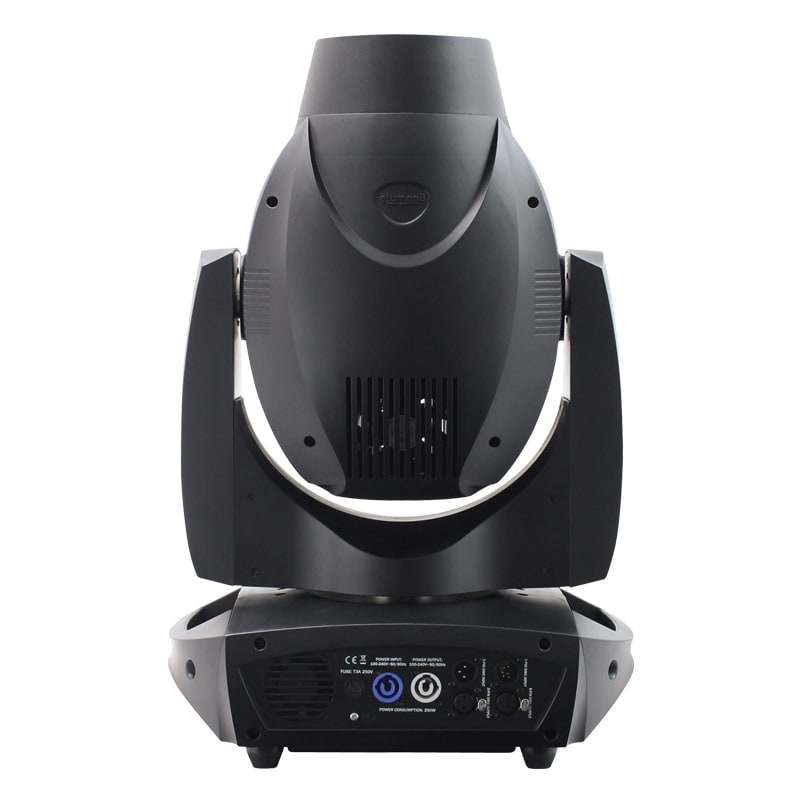

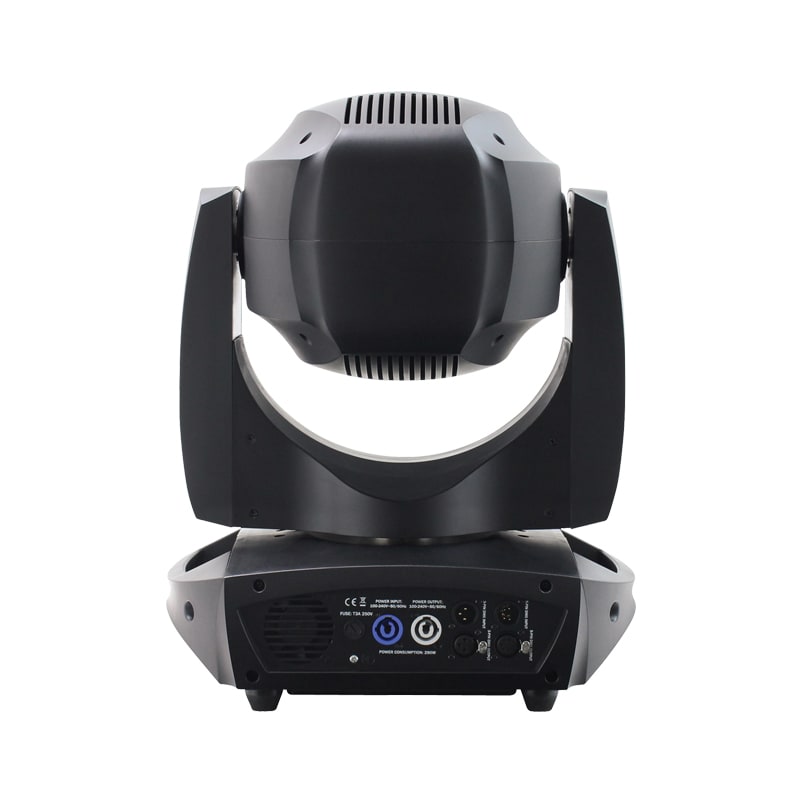

PowerCON input/output
3Pin XLR input/output
5Pin XLR input/output
Fan cooled
Technical Specifications…
Power consumption: 290W
Power supply: 100~240V
50/60Hz
Fuse: T3A 250V
Dimensions: 590 x 390 x 290mm
Weight: 19.4kg
