Description
Overview…

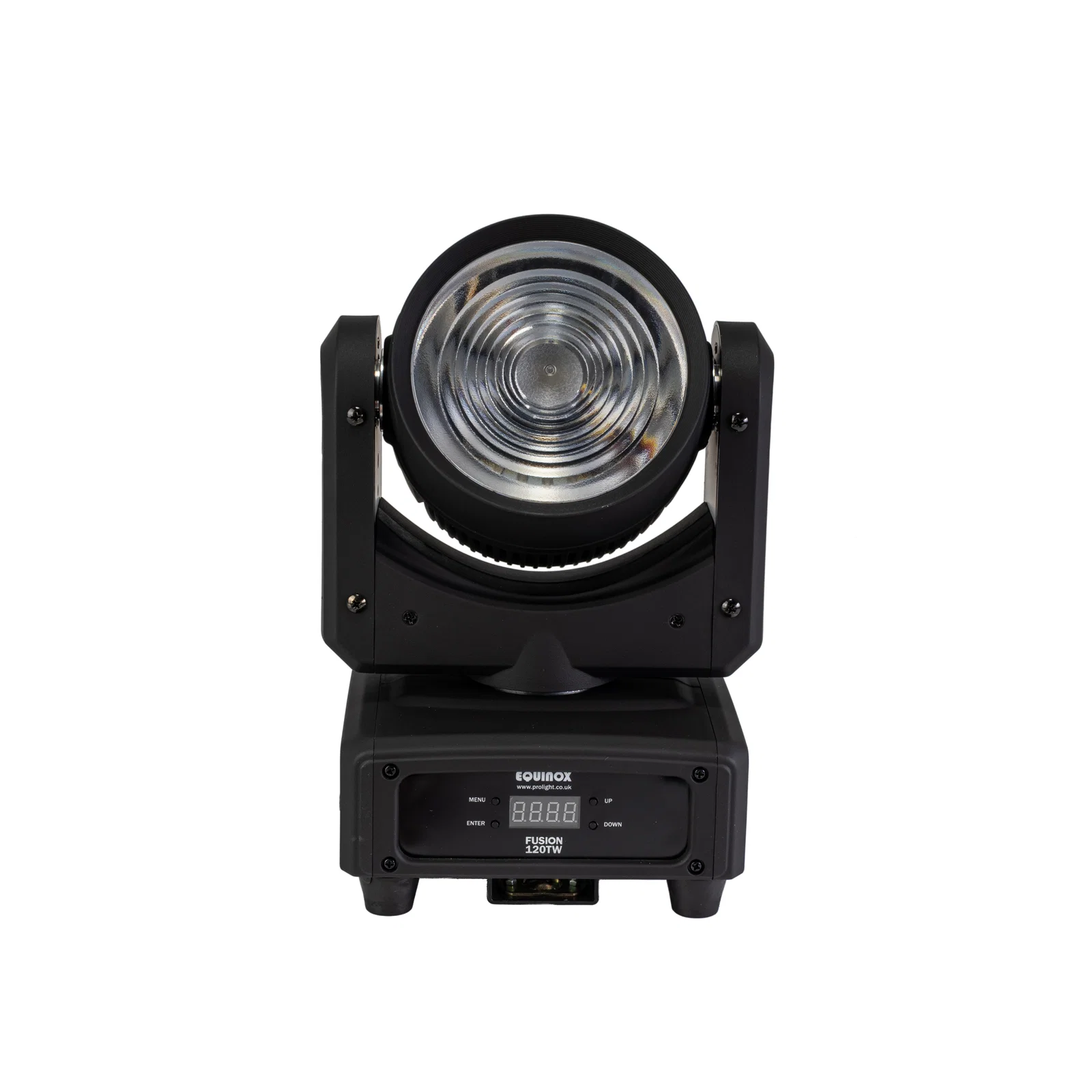

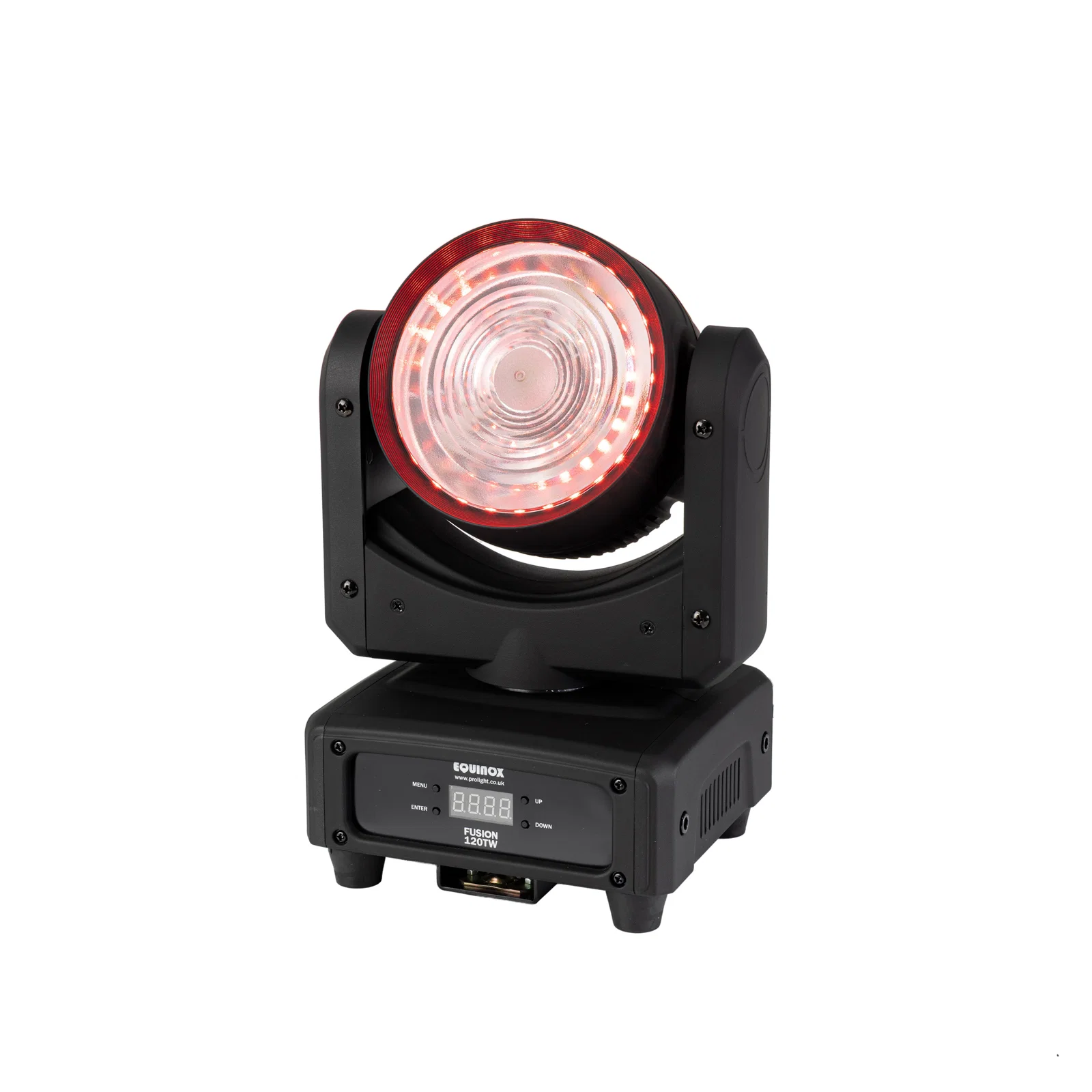

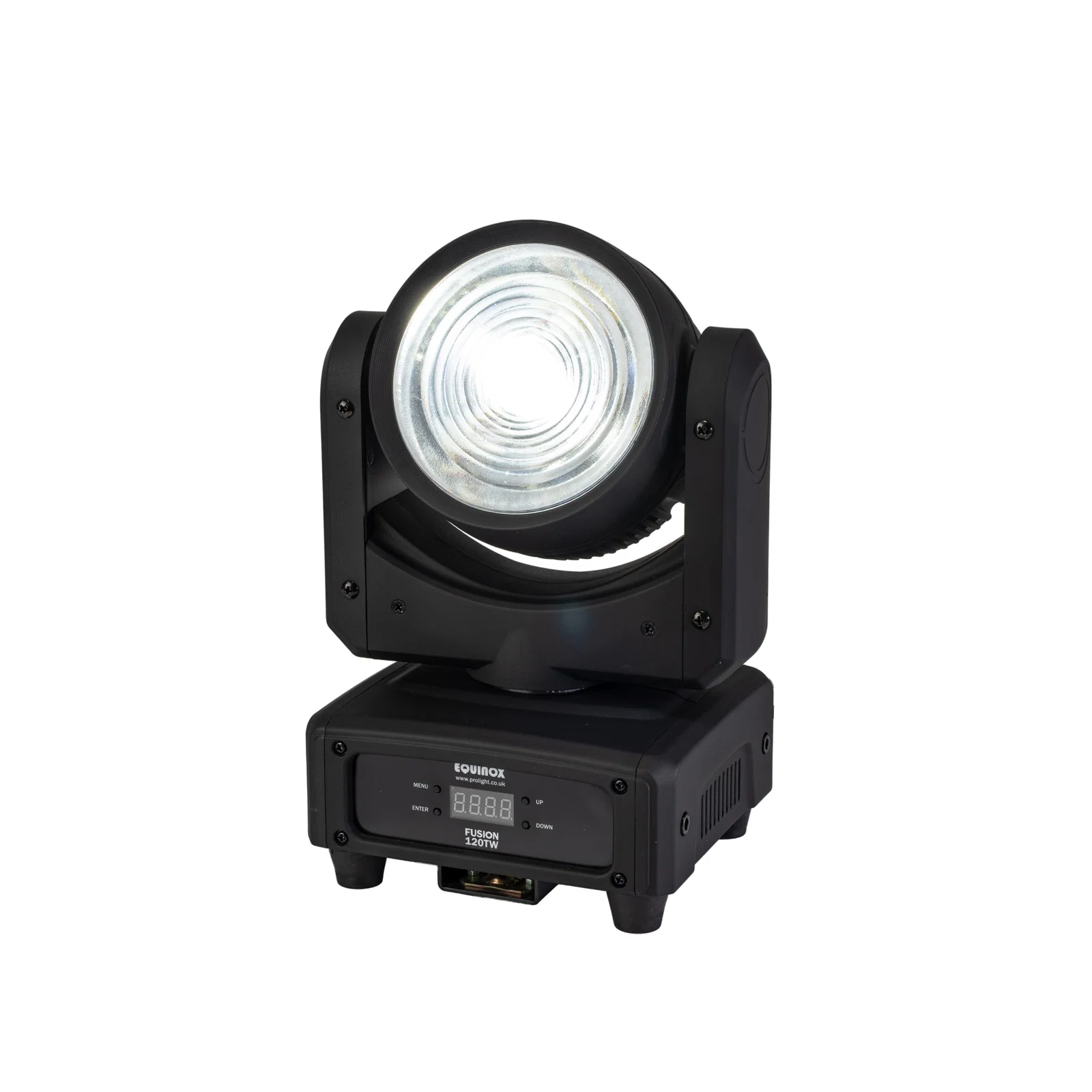

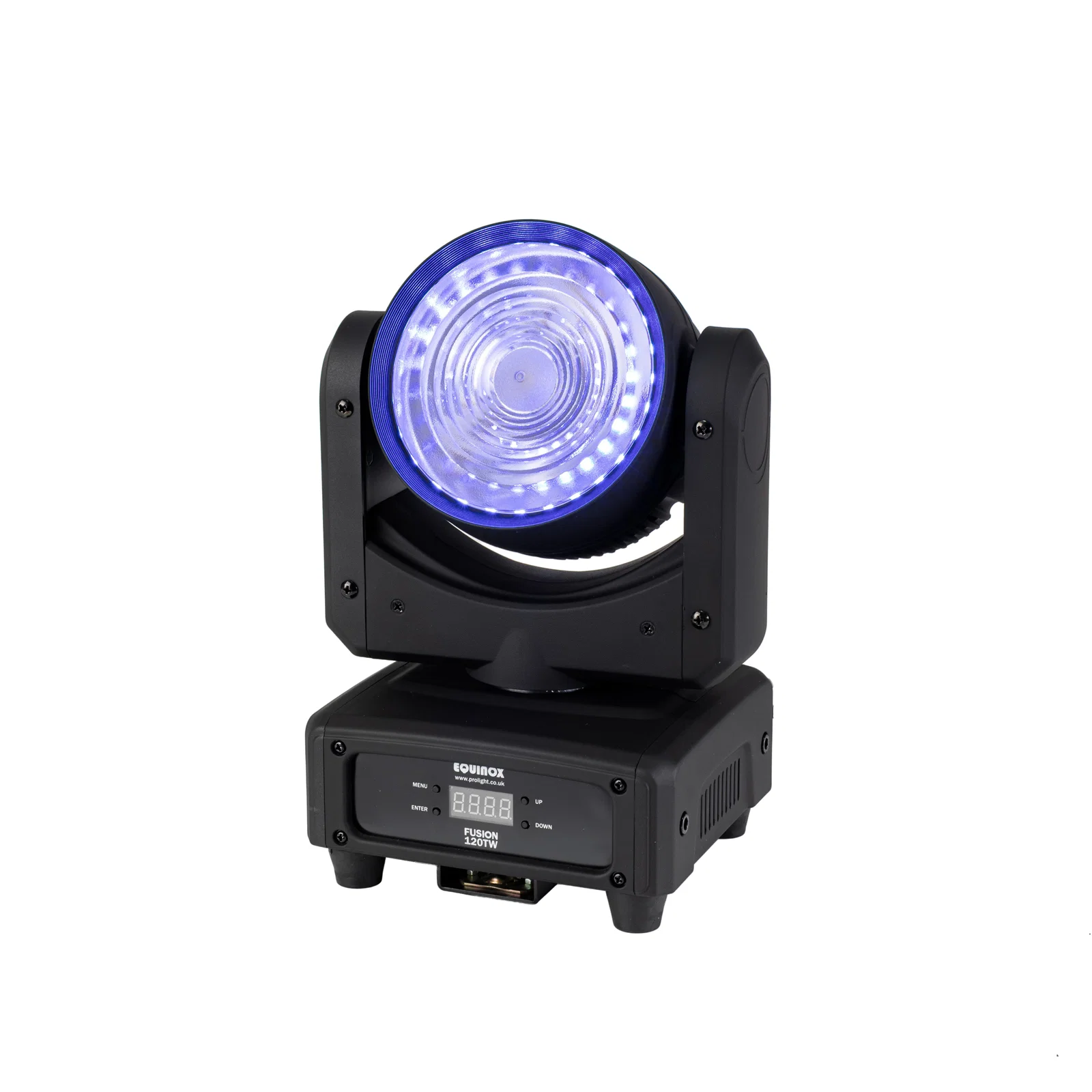

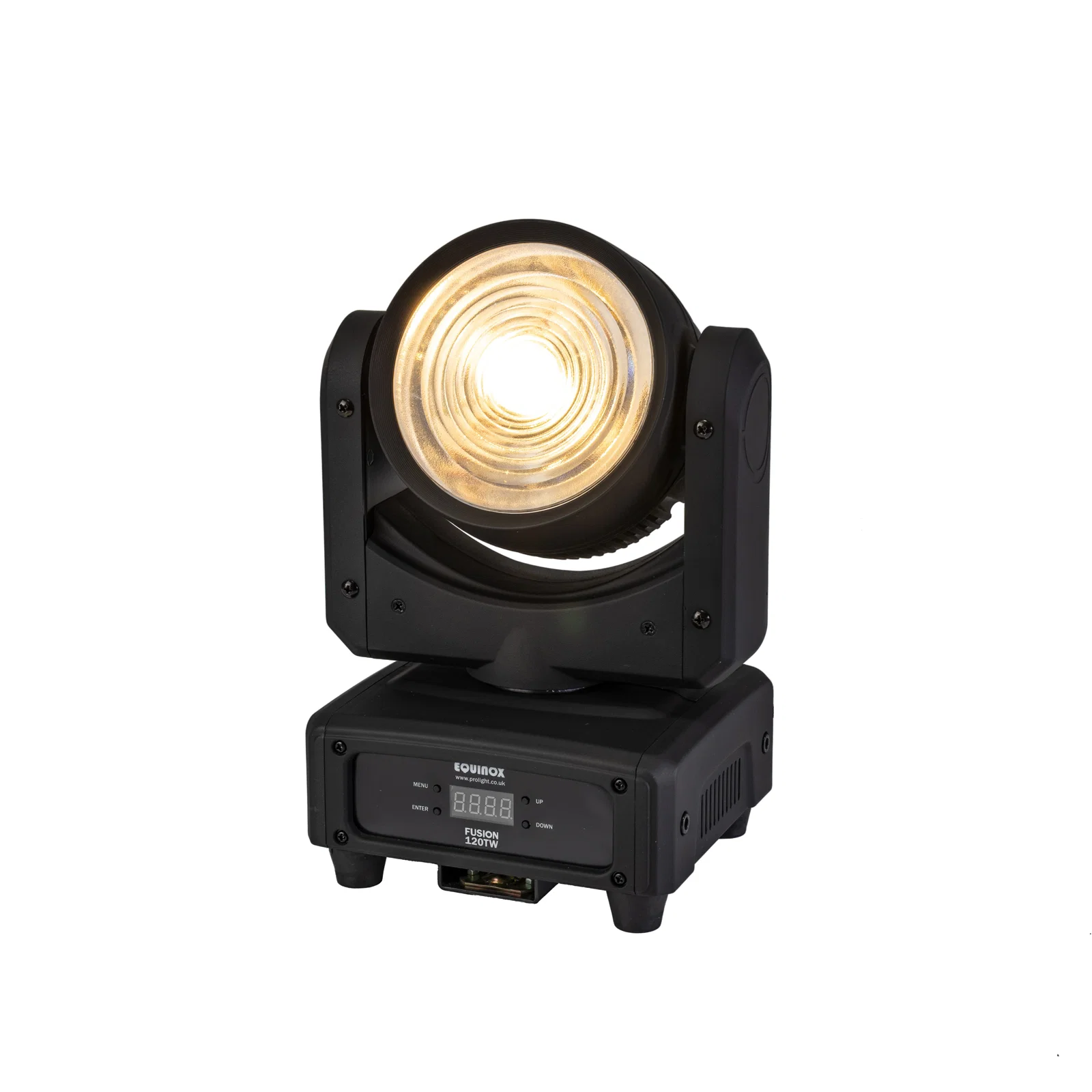

The Equinox Fusion 120TW is a compact yet powerful 120W LED moving head packed full of features. A 120mm fresnel lens and high CRI provide superb colour rendering, whilst an RGB LED ring changes colour and chases, producing mesmerising eye-candy effects. Also onboard are a host of ring colour macros/programs and colour temperature presets along with 4 dimming curves. An omega clamp is supplied for quick and easy installation, whilst the PowerTwist TR1 and 3-Pin DMX inputs/outputs allow for a problem-free connection.
Key Features…
– 1 x 120W cool white (6,300K) and warm white (2,700K) COB LED (CW/WW)
– 26 x tri-colour 5050 SMD LEDs (RGB)
– Beam angle: 18°
– 17,952 Lux @ 2m (full on)
– CRI: 90
– Refresh rate: 20kHz
– DMX channels: 2/11/15 or 21 selectable
– Auto, sound active, manual control and master/slave modes
– Built-in ring colour macros and programs
– Forward facing show modes
– Pan/tilt auto correction
– 16-Bit pan/tilt positioning
– Pan: 540°, Tilt: 220°
– 0 – 100% dimming
– 4 dimming curves: Linear, square law, inverse square law and S-curve
– Variable strobe

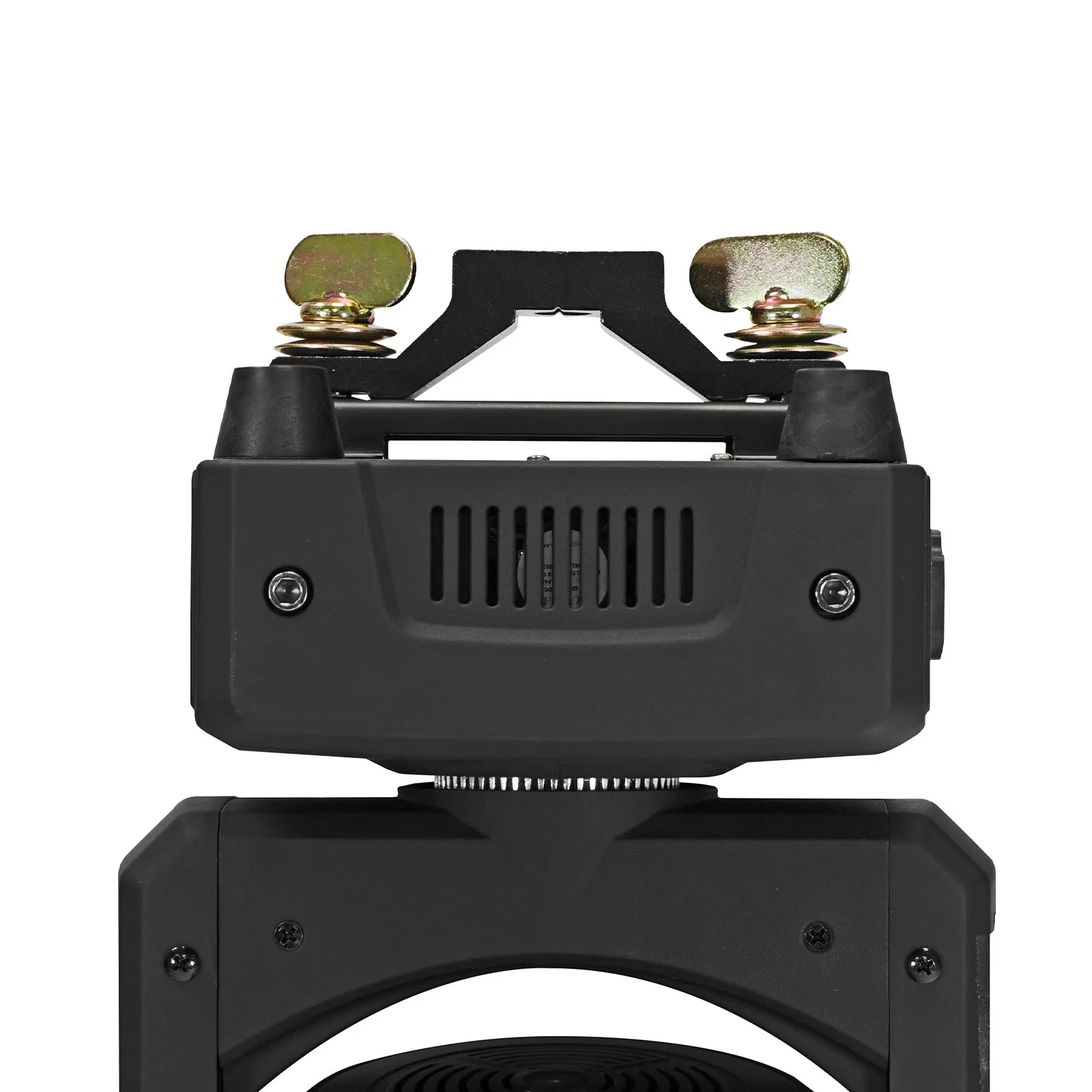

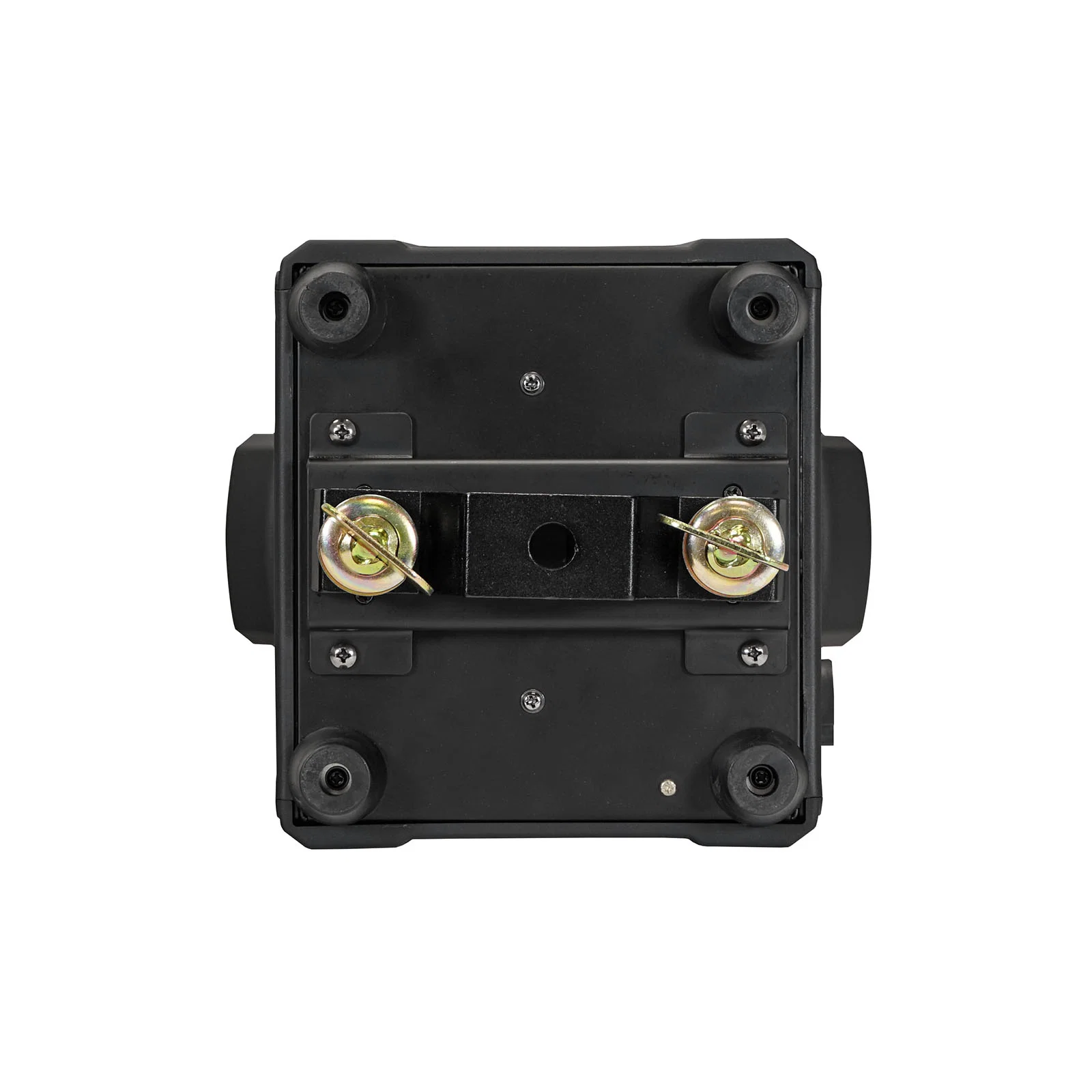

– Quick release omega clamp included
– 4 button menu with LED display

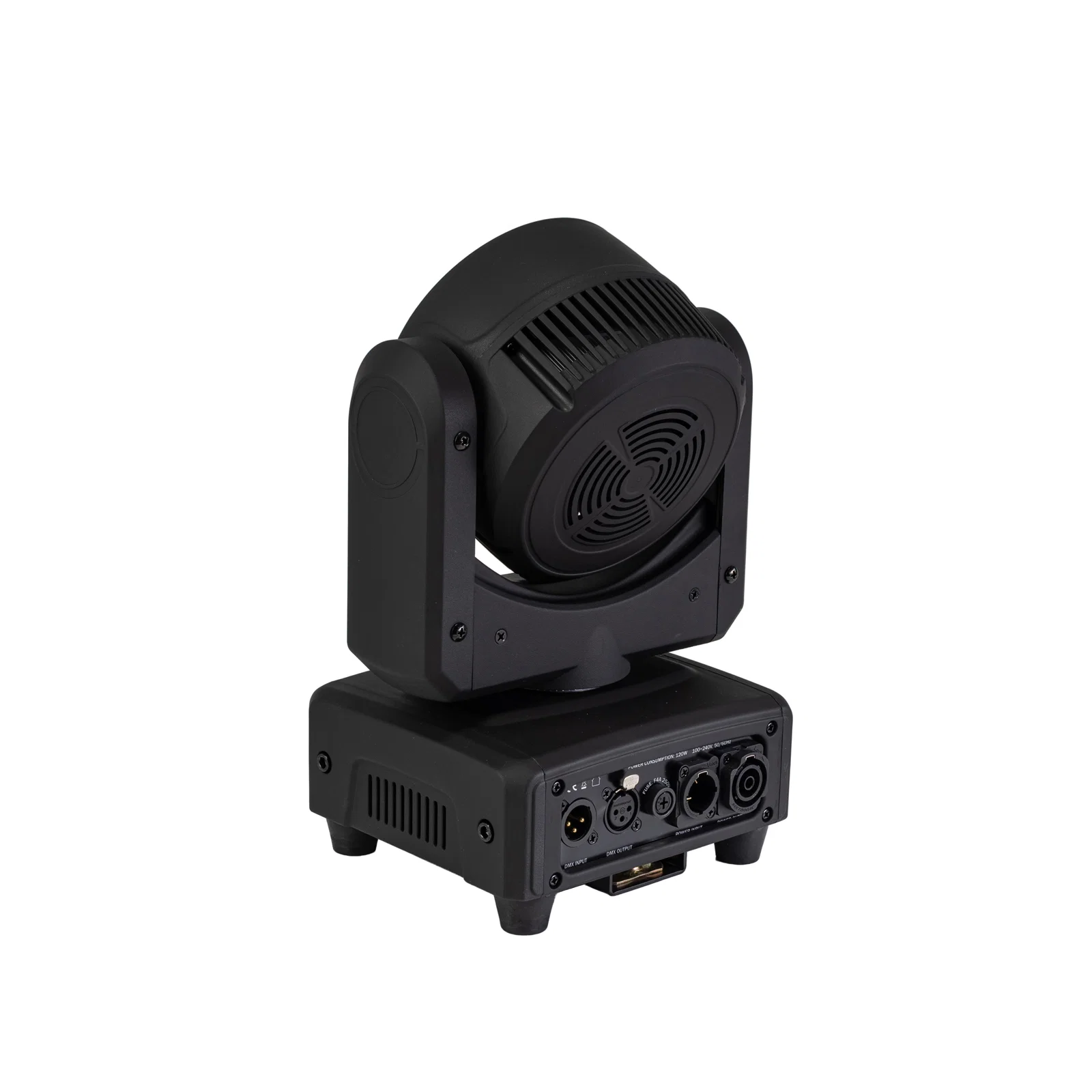

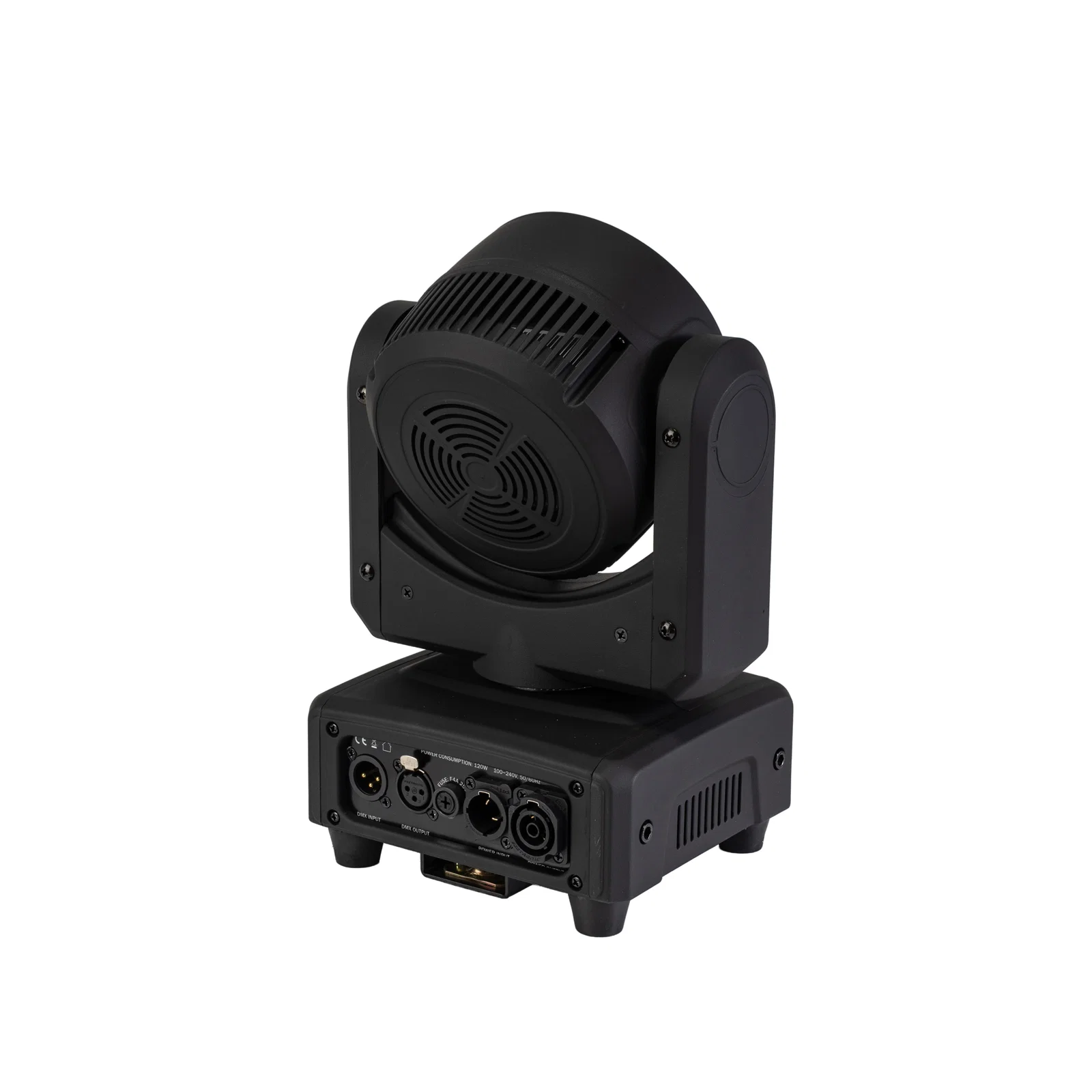

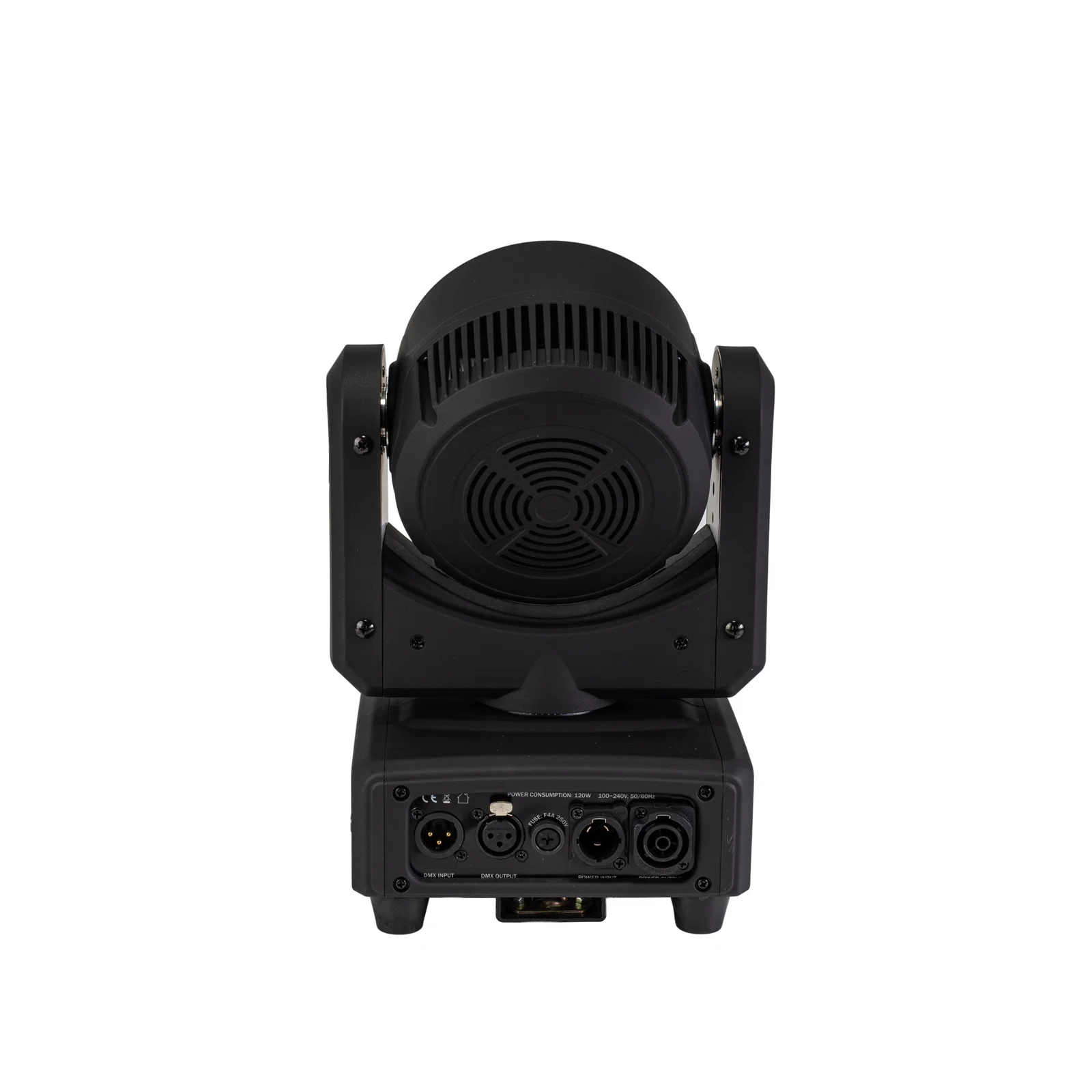

– PowerTwist TR1 input/output
– 3-Pin XLR input/output
– Fan cooled
Tech Spec…
– Power consumption: 120W
– Power supply: 100~240V, 50/60Hz
– Fuse: F4A 250V
– Dimensions (H x W x D): 292 x 204 x 162mm
– Weight: 4kg
