Description

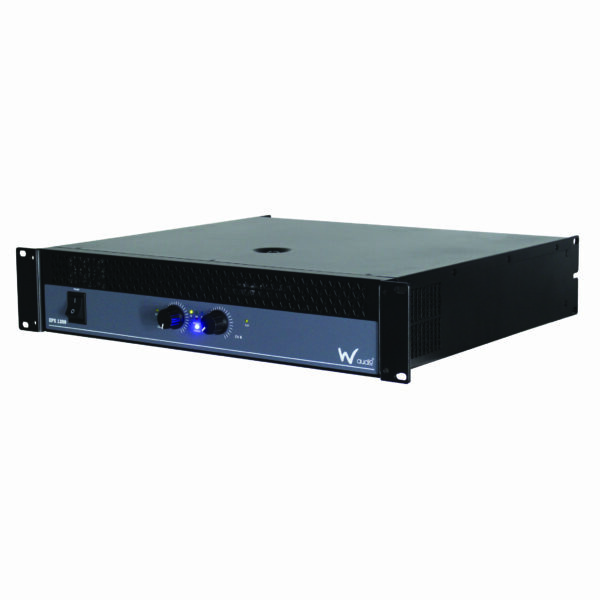

W Audio have designed the EPX Series power amplifiers to work perfectly with most loudspeaker systems. These power amplifiers feature several power outputs all with extended reliability and superior stability for a wide range of applications.
Features
2 x 600Wrms @ 4Ohm
2 x 400Wrms @ 8Ohm
Bridge 1200Wrms @ 8Ohm
Frequency response: 20Hz to 20kHz
Input sensitivity: 0.775V / 1.0V / 1.44V
Protection circuits: Soft start
limit
thermal
short circuit
overload
DC fault protection
AC power supply fuse and circuit breaker
LED indicators: Power
protect
clip
stereo
parallel and bridge
Input connections: 2 x XLR sockets
2 x 1/4” jack sockets
1 x powerCON mains input
Output connections: 2 x speakON connectors
2 pairs of binding posts
1 x speakON bridge connector
Additional features: Switchable stereo
parallel & bridge. High pass & low pass filters
limiter and ground lift
Technical Specifications
Power supply: AC 240V/50Hz
Dimensions: 87 x 481 x 450mm
Weight: 14.8kg
Dimensions
Height: 18.0cm
Width: 53.0cm
Depth: 53.0cm
Weight
17.2kg
