Description

– Premium quality, full-range passive speaker
– Hard-wearing polyurea cabinet coating

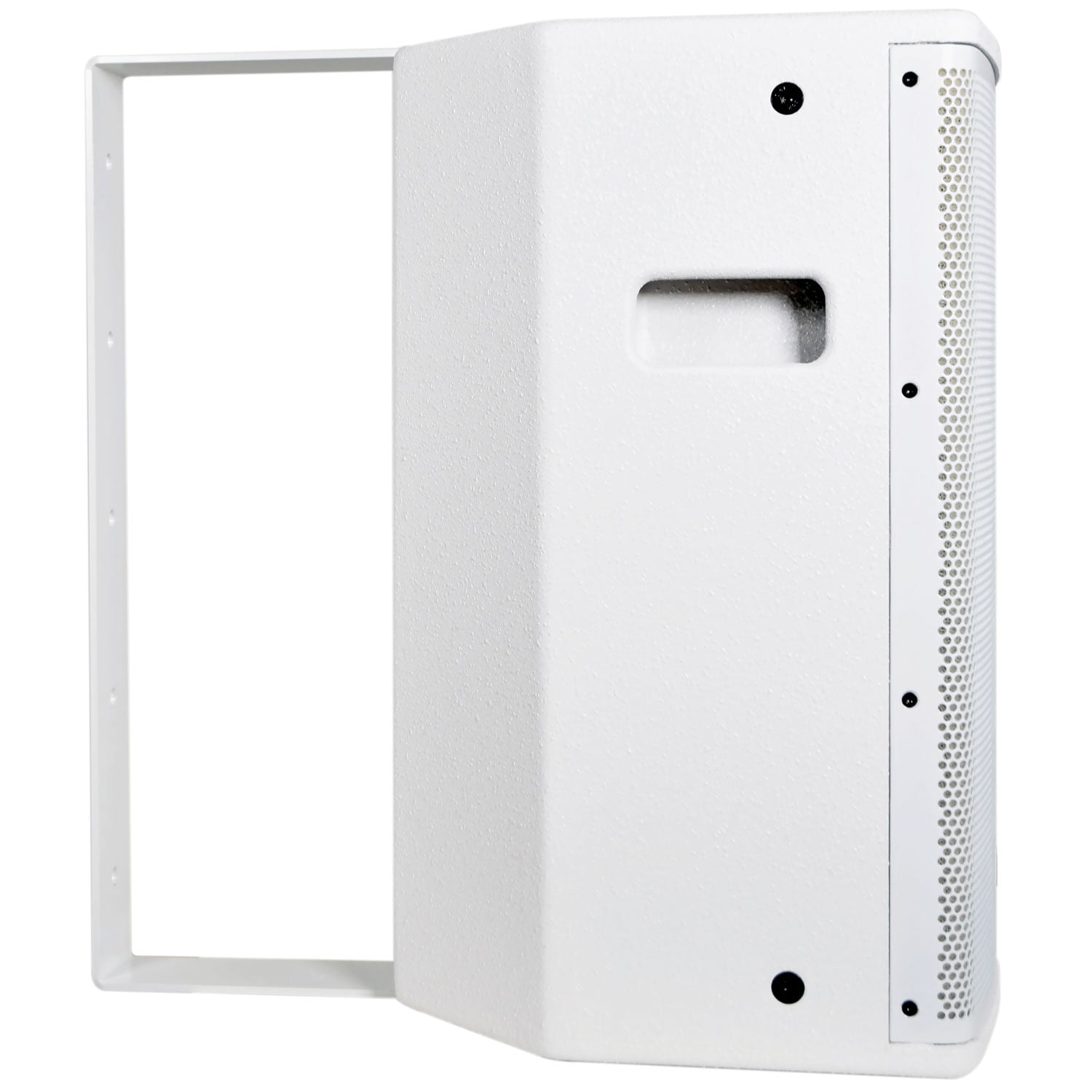

– Supplied with a U-bracket
– 35mm pole mount socket and M8 flying points

Overview…

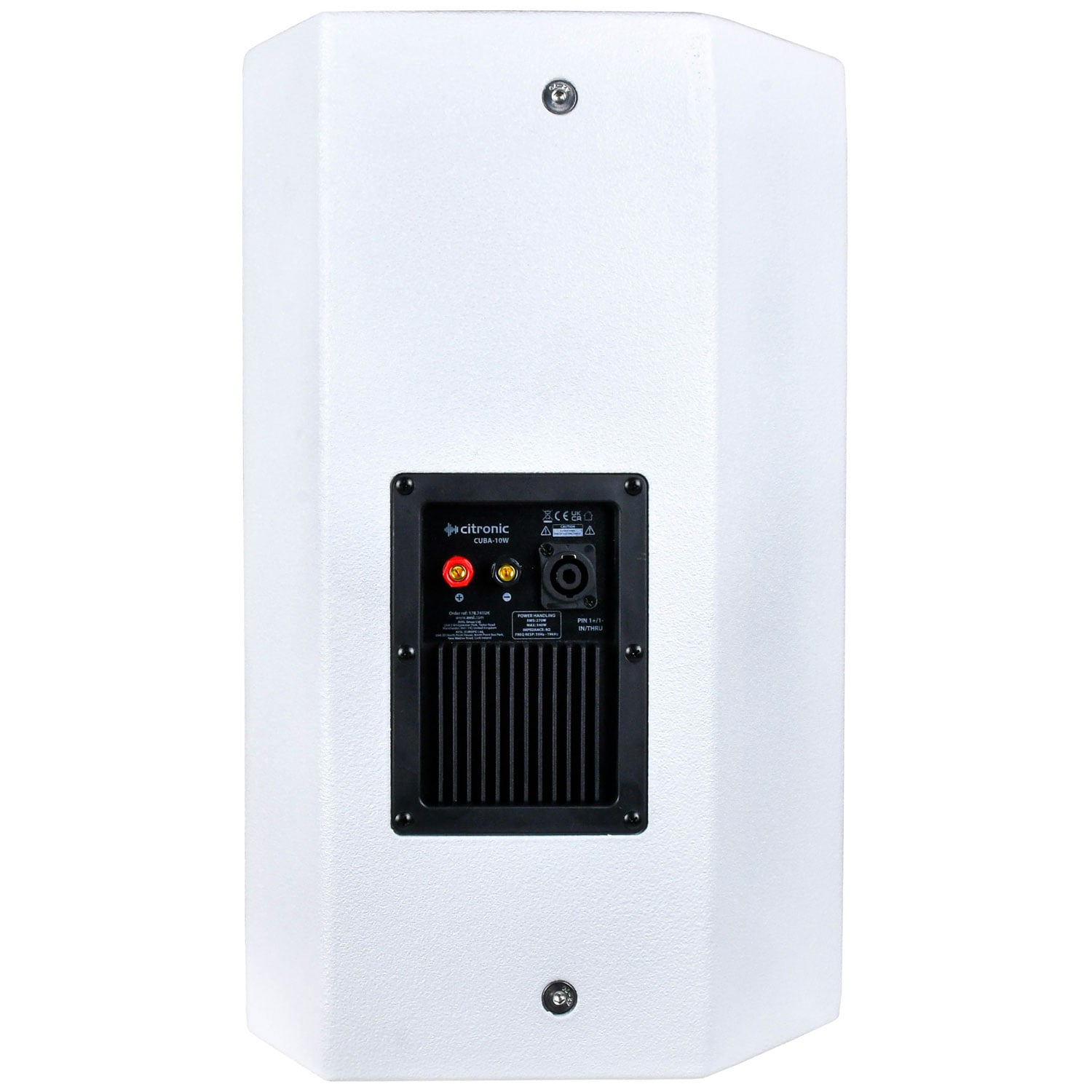

Premium full-range passive speaker cabinets with a polyurea coated wooden enclosure and powder-coated steel grille. A high power-handling main driver and efficient titanium diaphragm HF compression driver combine with the tuned enclosure to deliver a balanced output of all frequencies. The rear panel has 2 parallel inputs for Speakon connection, also enabling linking onto additional speakers. Each cabinet has 2 side handles and a 35mm pole-mount socket for stand mounting. The rear of the cabinet has 2 different bevels for angled placement at ground level or for suspended arraying, multiple M8 flying points are inset on each cabinet. Recommended for use with Citronic PLX, D and H-series amplifiers for a wide range of professional high power sound reinforcement situations.

Key Features…
– Hard-wearing polyurea cabinet coating
– Supplied with a U-bracket
– 35mm pole mount socket and M8 flying points
– Custom designed high power LF and HF drivers

Tech Spec…
– Weight: 12.5kg
– Dimensions: 507 x 313 x 307mm
– HF dispersion: 100°/50° x 55°
– Max. SPL: 122.5dB
– Sensitivity: 95dB
– Frequency response: 55Hz-19kHz
– Power handling max: 540W
– Power handling rms: 270W
– HF driver: 35mmØ (1.35″) Ti compression driver
– Voice coil: 50mmØ (2″)
– Main driver: 250mmØ (10″)
– Colour: White
– Construction: Polyurea coated MDF + powder-coated steel grille

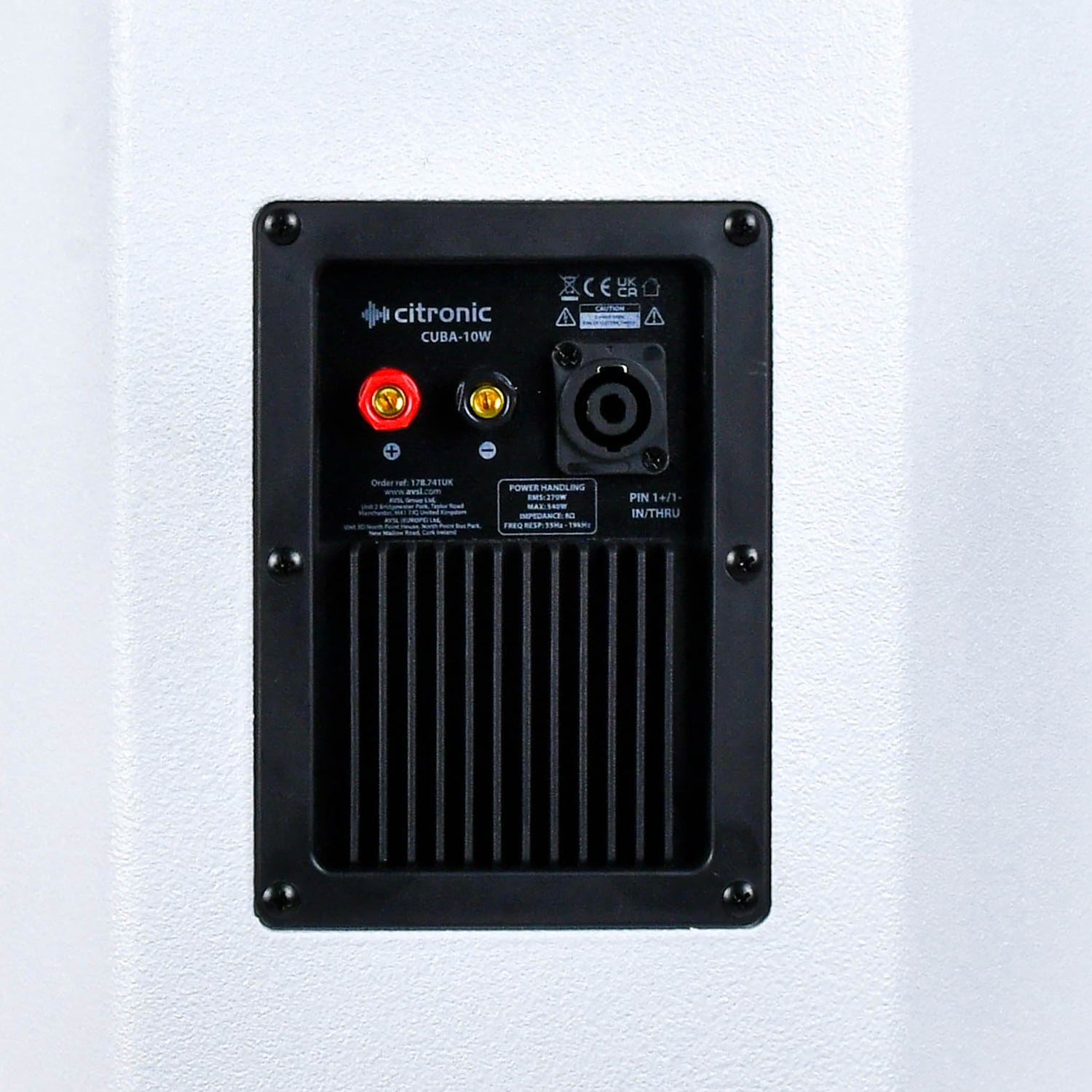

– Input: 2 x parallel SPK socket
– Impedance: 8 Ohms
