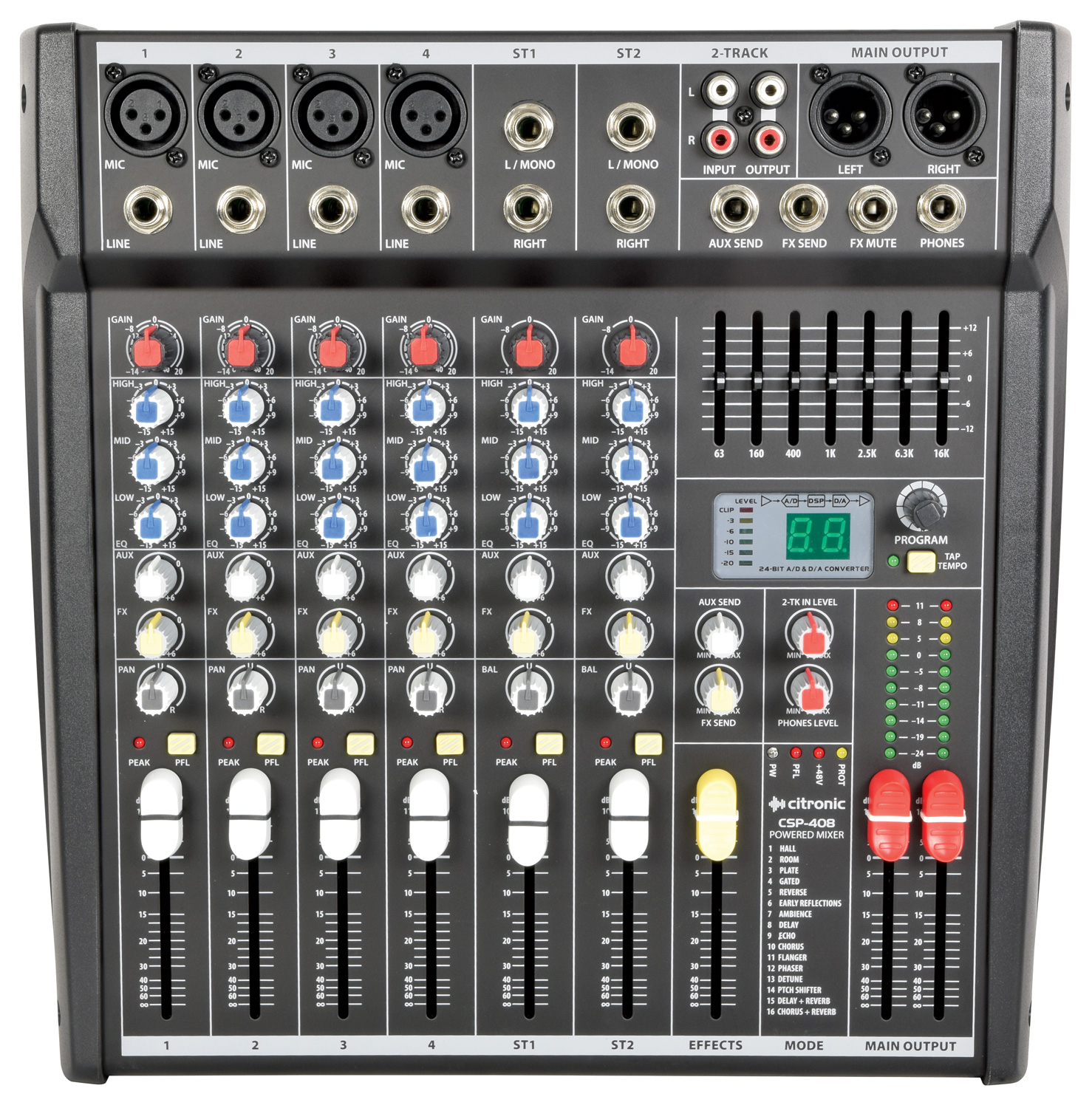

Description
Powered mixer with balanced mic/line inputs and 2 stereo inputs, each with 3-band EQ and aux send. A 16 program DSP section with tap tempo can provide vocal effects and a 7-band graphic EQ facilitates global tone control. The built-in stereo amplifier delivers ample power to drive 2 or 4 speakers for coverage in medium sized venues, offering a compact and comprehensive solution for mobile PA, bars and special events.
Features
24-bit 16 program DSP effects
48V phantom power for XLR inputs
3-band EQ per channel
7-band global graphic EQ
Balanced main outputs
Internal stereo power amplifier
19″ rack-mounting ears available: 170.846-7-8UK
Technical Specifications
Power supply[tab]230Vac 50Hz (IEC)
Input level[tab]+24dBu
Output level : line[tab]+26dBu
Frequency response[tab]20Hz-30kHz (0.5dB)
CMRR[tab]>74dB (mic 1kHz)
THD +N[tab]<0.01% (channel to main out)
Crosstalk[tab]>85dB (fader mute), >82dB (channel)
Noise rms : 22Hz-22kHz[tab]-122dBu (EIN), -82dBu (mix)
EQ: high[tab]12kHz ±15dB shelving
EQ: mid[tab]2.5kHz ±15dB band pass
EQ: low[tab]80Hz ±15dB shelving
Input impedance : mic (balanced)[tab]2k Ohms
Input impedance : line (balanced)[tab]10k Ohms
Sensitivity : mic[tab]-60 to +14dBu
Sensitivity : line[tab]-40 to +14dBu
2-track[tab]2 x RCA in & out (-2dBu)
Effects[tab]16 program DSP (24-bit sigma-delta, 40khz)
Output impedance[tab]<75 Ohms
Headphone output[tab]6.3mm jack, 30-600 Ohms

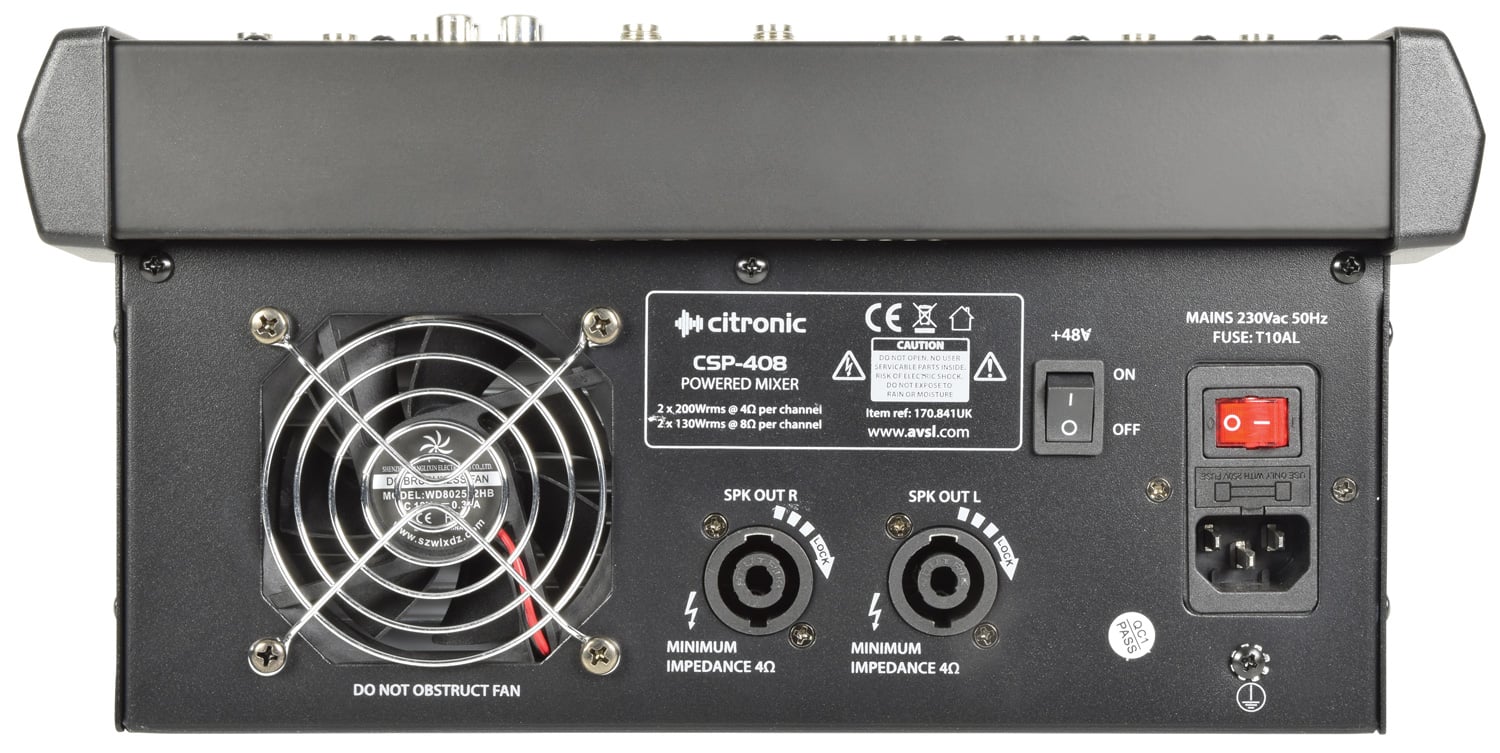

Speaker : outputs[tab]L+R SPK connectors
Phantom power[tab]+48V (XLR inputs)
Weight
7.2000kg

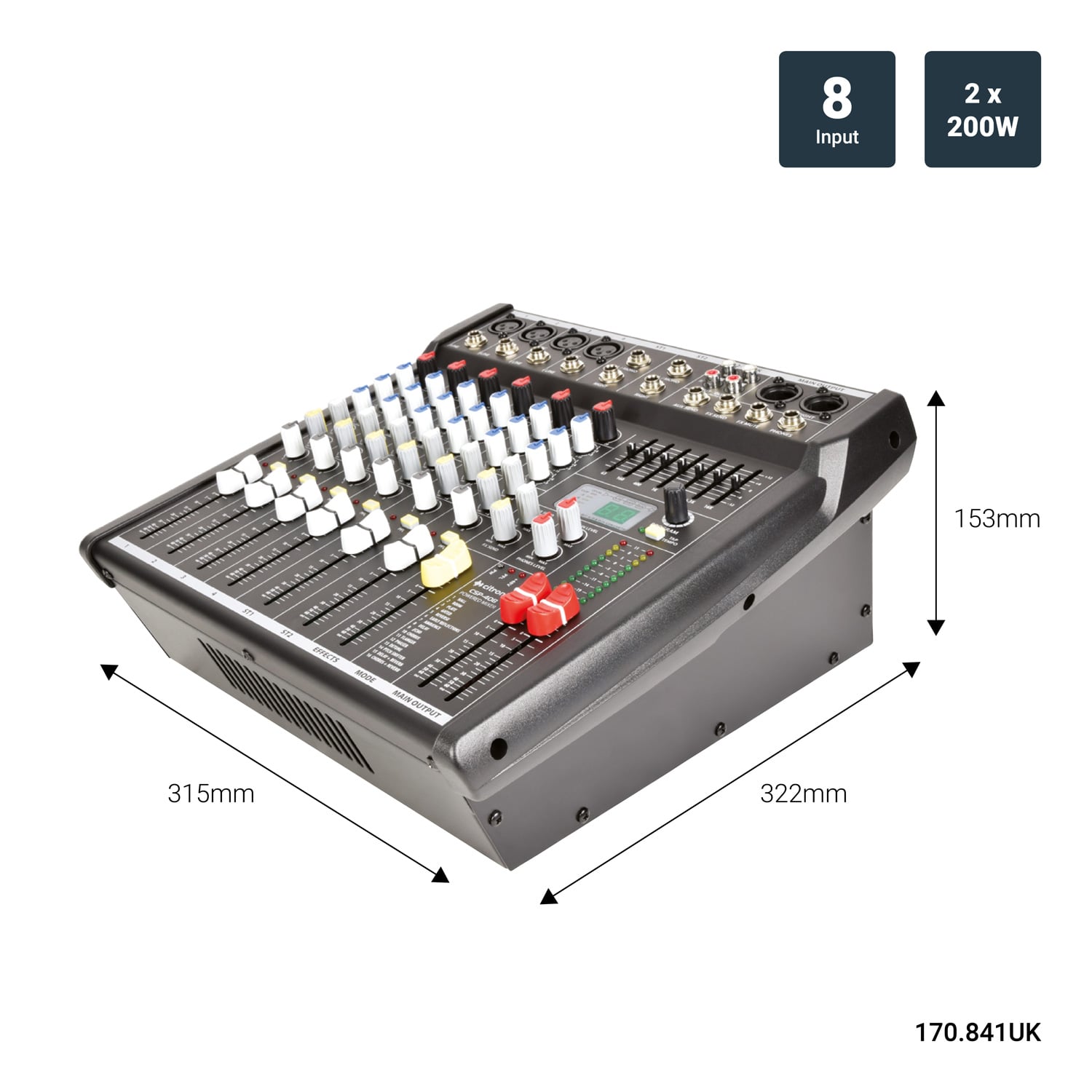

Dimensions
380 x 360 x 210mm
