Description
● Compact format audio mixer with 6 mono + 1 stereo input
● Bluetooth wireless connectivity
● 16 program DSP effects!
● Fantastic quality and great value for money!
Overview…
Compact format audio mixer with 6 mono input channels and a stereo line input. Each mono channel has a combo XLR/jack input with individually switchable mic/instrument impedance and +48V phantom power for the XLR. Input channels have High/Low EQ and Pan controls. The B/T pairing button enables wireless connection to a smart phone or tablet for playback. All CSD mixers feature a 16 program DSP effects section with digital reverbs, delays and modulation effects for vocals and instruments. Output is delivered on a pair of balanced XLR connectors and offers very low noise operation for high quality studio or live performances.
Key Features…
– B/T wireless pairing for smartphone or tablet
– 16 program, 24-bit DSP effects engine
– Individually switchable +48V phantom power
– Supplied with DC power adaptor
Tech Spec…
– Power supply: 5Vdc 1A (adaptor included)
– Power consumption max.: 5W
– EQ: low; ±15dB @ 80Hz
– EQ: high; ±15dB @ 12kHz
– Phantom power: +48V individually switchable (XLR inputs only)
– Effects: 16 program DSP (24-bit sigma-delta, 40kHz)
– Audio source: B/T wireless receiver
– B/T wireless version: 2.1 + EDR
– Input impedance: mic2k Ohms
– Input impedance: instrument1M Ohms
– Input impedance: line20k Ohms
– Frequency response: 20Hz – 20kHz (±0.5B)
– THD +N: <0.03% @ 1kHz
– Dynamic range: 102dB
-Crosstalk: stereo92dB
– Output: Left + Right balanced XLR
– Output impedance: 120 Ohms
– Max. output level: 3Vrms
– Inputs: 6 x combo XLR/jack + stereo jack

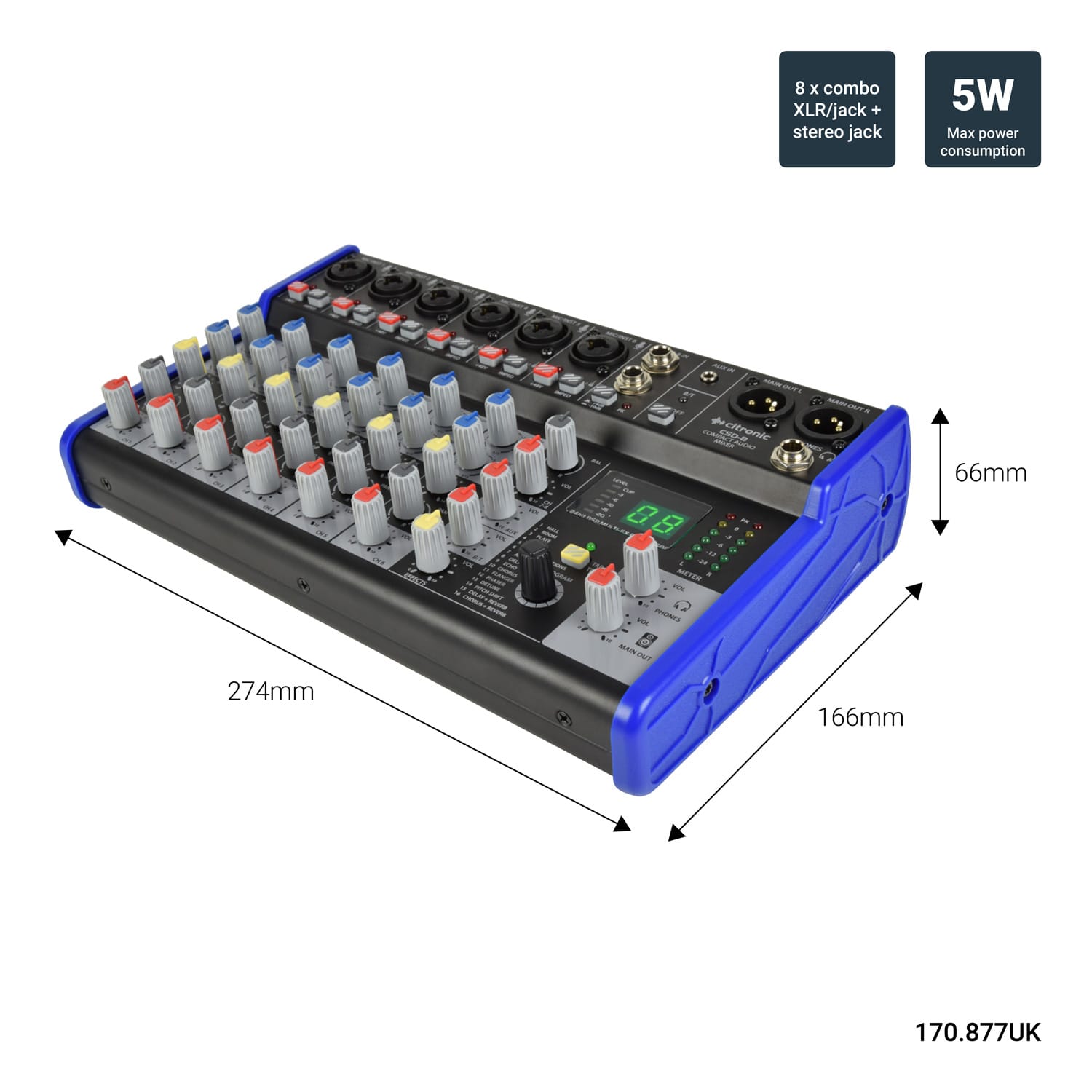

– Dimensions: 274 x 166 x 66mm
– Weight: 1.46kg
