Description

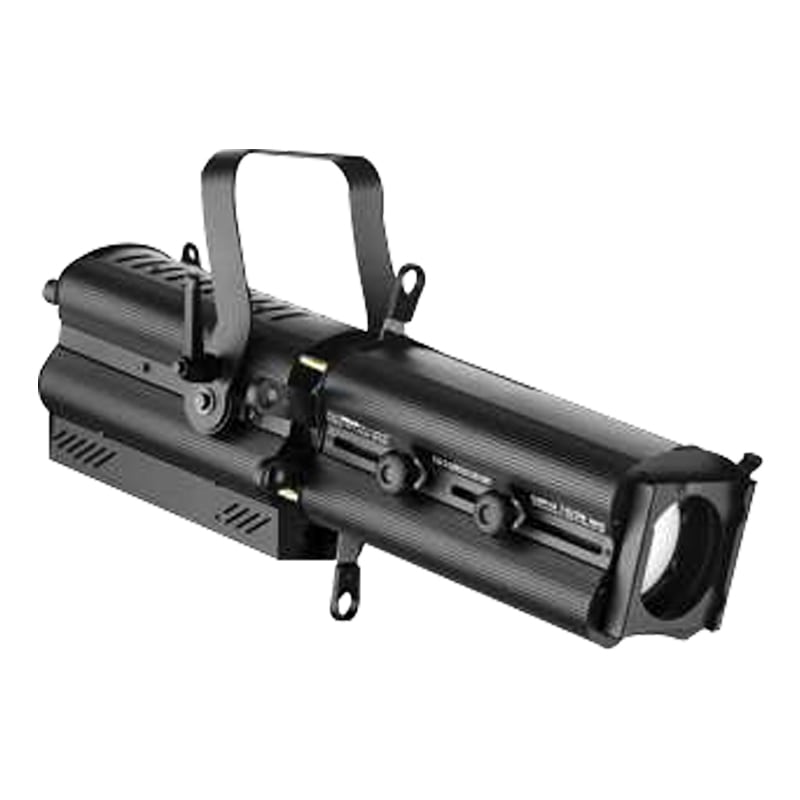

A compact and extremely high efficiency LED narrow angle profile spot featuring double-condenser optics and a PWM dimming power source. Its attractive design makes it the perfect choice for stages, stores, displays and architectural applications where a theatrical-type luminaire is needed.
Features
1 x 80W LED (RGBW)
Beam style: Variablespread
softedged beam
Optical style: Double condenser with variable zoom
Adjustable beam angle: 10 Degree 28 Degree
Focus adjustment: Slide zoom controls on side (diameter and softness)
Beam shaping: 4 shutter blades supplied and optional iris diaphragm
CRI > 90
16KHz refresh rate
DMX channels: 6 or 7 selectable
RDM (Remote Device Management)
0 100% 8 or 16 bit dimming
PWM (Pulse Width Modulation)
2 dimming curves: Linear and square
125 x 12mm gel frame holder
Mounting bracket
LCD display
Neutrik powerCON input/output
PowerCON cable to bare ends included
5Pin XLR input/output
3 mode fan speed control: Silent/Auto/Constant
Construction: Extruded aluminium and sheet steel
Technical Specifications
Power consumption: 100W
Power supply: 100~260V
50/60Hz
Dimensions: 300 x 240 x 730mm
Weight: 9.2kg
Dimensions
Height: 31.5cm
Width: 83.0cm
Depth: 31.5cm
Weight
11.4kg
