Description

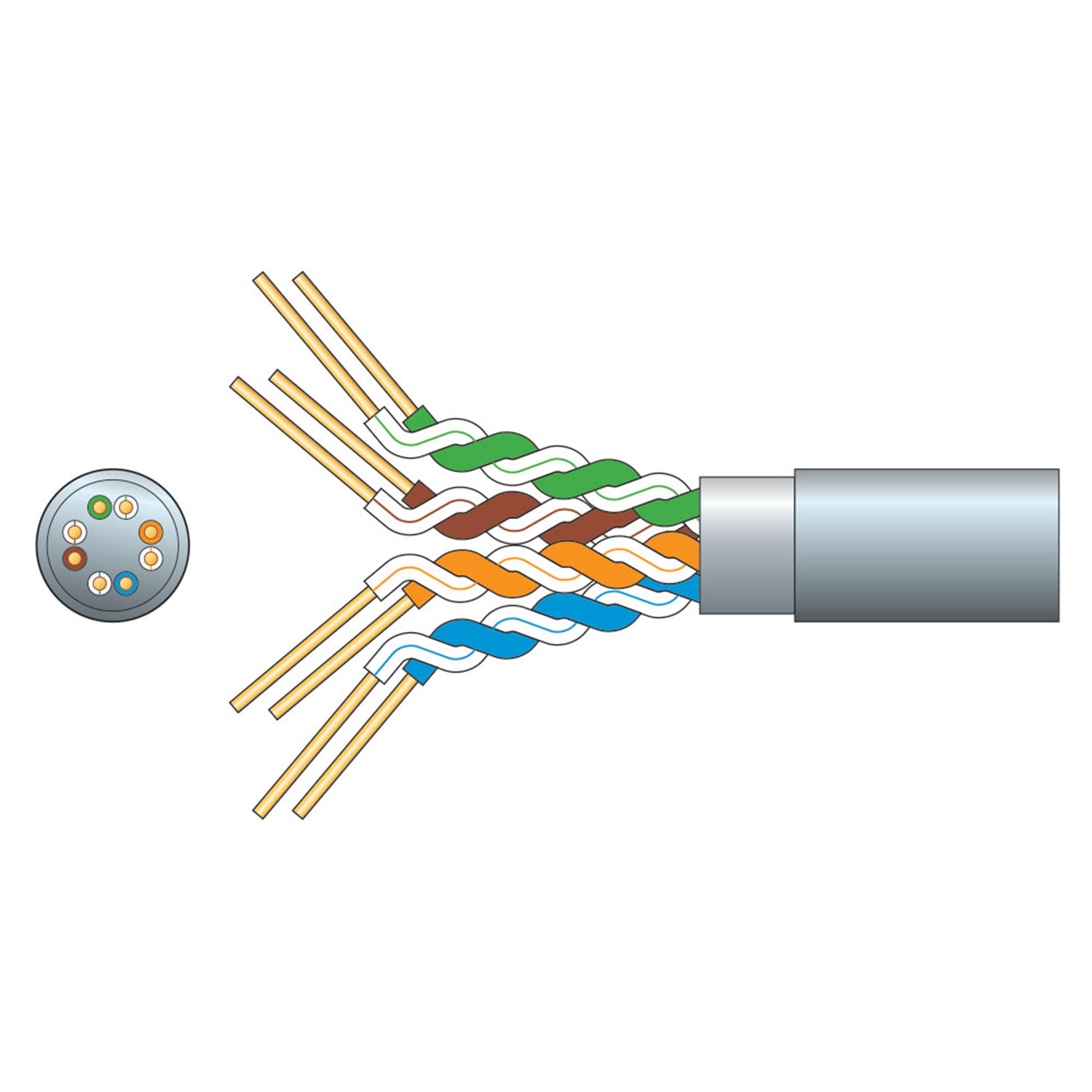

Cat5e oxygen free copper twisted pair data cable with overall aluminium foil screen. supplied in dispensing box and marked at 1 metre intervals. This cable is designed for high speed data transmission such as Gigabit Ethernet applications.
Features
AWG 24 oxygen free solid copper conductor
Supplied in an easy-pull dispensing box
Passes Cat5e fluke test 100m at 100MHz
Complies to TIA/EIA-568 Cat5e standard
Technical Specifications
Strands[tab]8 x 1/0.5mmØ ±2%
Conductor CSA[tab]8 x 0.196mm²
Insulation[tab]HDPE 0.225mm thickness
Screen material[tab]Mylar + Aluminium/Mylar + Drain wire
Sheath[tab]PVC 0.55mm thickness
Capacitance[tab]5.0nF/100m
DC resistance @ 20°C[tab]<9.5 ohms/100m
Impedance (1 to 100MHz)[tab]100±15 ohms
Return loss[tab]>20dB @100m
Attenuation[tab]<22dB @100m
NEXT[tab]>35.3dB
PSNEXT[tab]>32.3dB
ELFEXT[tab]>23.8dB
PSELFEXT[tab]>20.8dB
Phase delay[tab]<570ns
Colour[tab]Grey
Length[tab]305m
Weight[tab]11.8kg
Cable : diameter[tab]5.8mmØ
Conductor[tab]Solid OFC
Weight
11.8000kg
Dimensions
405 x 405 x 210mm
