Description

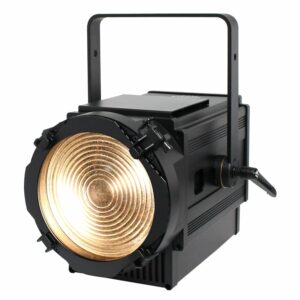

The Artisan 1200 WW Profile is ideal for schools, churches and stages and makes an ideal replacement for tungsten fixtures. Control of the unit is facilitated via a 4 button menu and LCD display, whilst the beam angle can be manually adjusted. A handy IR remote control is included and an optional W-DMX Compatible Transceiver can be added into the back panel. The fixture is enclosed in a robust chassis featuring four framing shutters, a gobo slot with holder and is supplied with a filter frame.
Features
1 x 120W warm white COB LED (3200K)
Manually adjustable beam angle: 12 Degree 25 Degree
12 Degree 24,007 Lux @ 2m
25 Degree 8,491 Lux @ 2m
14.4kHz refresh rate
CRI: 98
Beam framing shutters
Glass condenser optic system with zoom and focus adjustment
Gobo slot
Gobo size: 74.5mm�
Image size: 63mm�
Max. thickness: 2mm
DMX channels: 1/2 or 3 selectable
Artisan Series WDMX USB compatibility for wireless master/slave or DMX control
Artisan Series WDMX USB can be used to receive wireless DMX and relay the DMX signal via the XLR output
0100% dimming and variable strobe
4 dimming curves : Linear
square law
inverse square law and Scurve
4 push button menu with LCD display
PowerCON input/output
5Pin XLR input/output
Temperature controlled fan for whisper quiet operation
Handle on rear panel
Filter frame included
Includes 4 glass gobos
Supplied with gobo holder
Supplied with IR remote
Technical Specifications
Power consumption: 160W
Power supply: 100~240V
50/60Hz
Fuse: T3A 250V
Noise level: 39.5dBA @ 2m
Dimensions: 370 x 305 x 727mm
Weight: 9.4kg
Dimensions
Height: 29.0cm
Width: 82.0cm
Depth: 37.5cm
Weight
11.8kg
